Luxman PD-191A Turntable
Spec
| ●Turntable drive section | |
|---|---|
| Drive system | Belt drive system |
| Motor | Brushless DC motor with PID control |
| Material | Machined aluminum, Surface finish: Diamond cut |
| Revolution | 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable) |
| Revolution adjustment range | ±6% (each rotation speed adjustable independently) |
| Wow and flutter | 0.04% or less (W.R.M.S.) |
| Weight | 5.2kg (Platter) |
| ●Tonearm section | |
| Type | Static balanced, S shaped, universal type |
| Bearing | Concealed vertical knife edge |
| Effective length | 256mm |
| Overhang | 16mm |
| Tracking error angle | +1.07° to -1.52° |
| Applicable cartridge weight | 4 to 11g (including headshell 17 to 24g) |
| Adjustable height range | 22mm |
| Anti-skating | 0 to 4g |
| ●Main unit | |
|---|---|
| Power source | 230V~50Hz / 115V~60Hz |
| Power consumption | 5W |

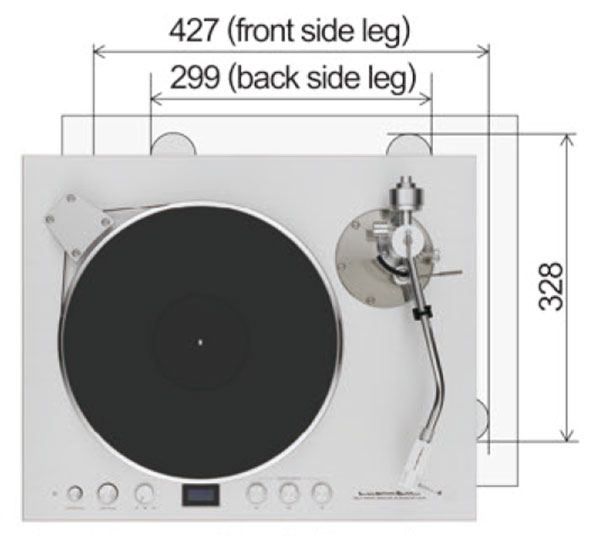

| Dimensions | 491(W) × 128(to the upper surface of the platter) (H)× 399(D) mm |
| Net weight | 24.8kg (main unit), 26.4kg (with dust cover) |
| Accessories | Platter, Headshell (D.U.C.C lead wire included) Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Anti-skating weight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment Arm base removal hex wrench, Phono cable (DIN→ RCA : already installed in the unit), Power cable
*D.U.C.C. is a registered trademark of Mitsubishi Cable Industries, Ltd.
|
