Description

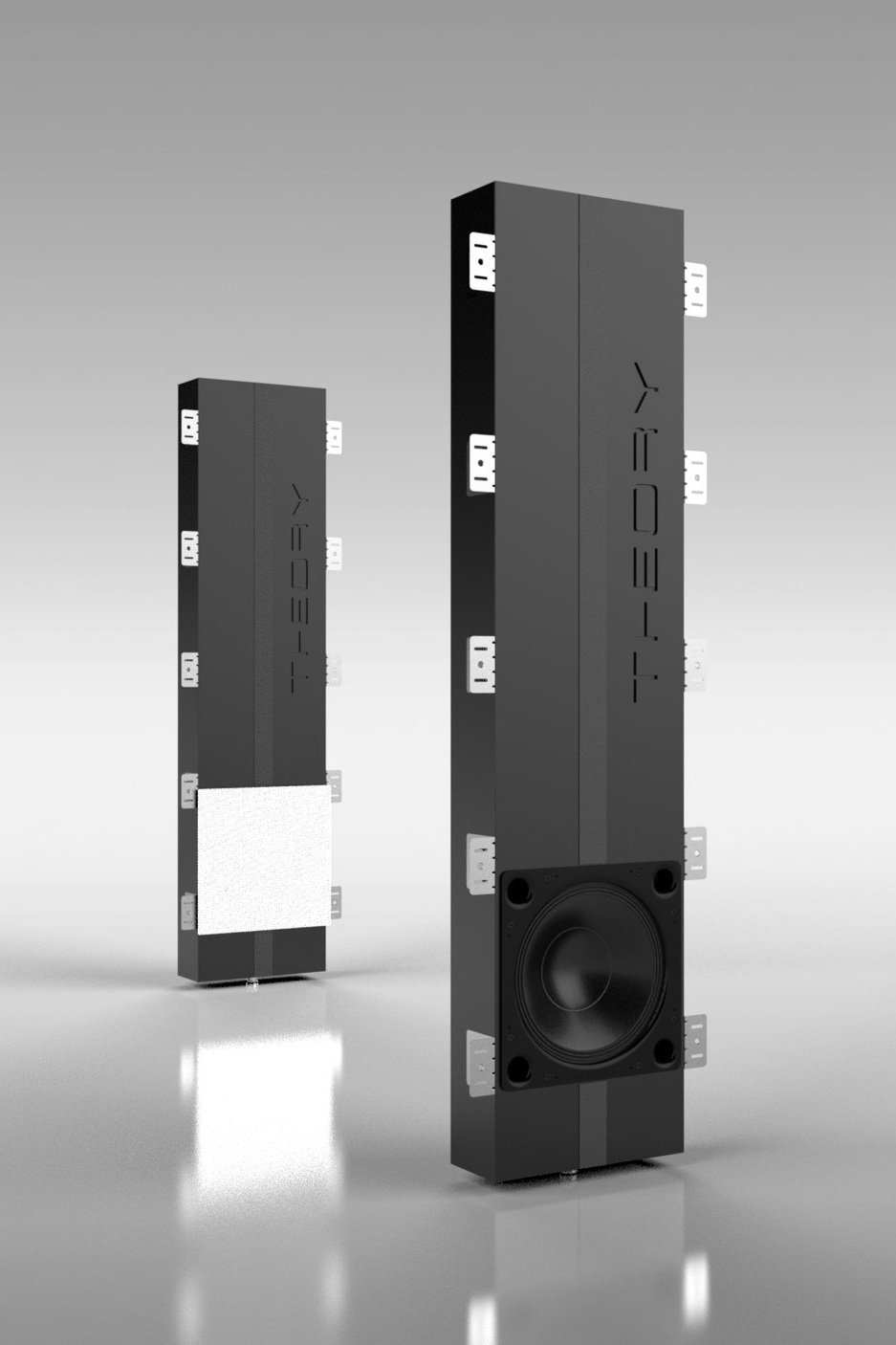

Theory Audio iws12-6 High Output Architectural Subwoofer
| Description: | 12” High-Output In-Wall Subwoofer for 2″ x 6″ walls |
| Operation: | Passive, Requires 1 Theory ALC Amp channel |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 12″ Theory 1400W 4” Voice Coil Long Throw Woofer |
| Enclosure: | Multi Plywood |
| Terminals: | Twin Spring-Loaded Push Terminals |
| Mounting Points: | Low-Profile Steel Angle Mounting Brackets (10x) |
| Outdoor Capability: | Indoor Use Only |
| Bandwidth: | 24Hz -125Hz, – 3dB; |
| 18Hz, -10dB | |
| Sensitivity: | 95.5 dB |
| Power Handling: | 700W (AES) |
| 1400W (Continual); | |
| 2800W (Peak) | |
| Minimum recommended Power: | |
| Max Output: | 124 dB SPL / 1m (AES) |
| 127dB SPL / 1m (Continuous) | |
| Nominal Impedance: | 8-ohms |
| Colors: | Black, White Perforated Metal Grille Optional |
| Dimensions: | Enclosure Only: 60″ H x 14″ W x 5.5″ D (1524mm H x 356mm W x 140mm D) |
| Enclosure w Speaker Assembly: 60″ H x 14″ W x 5.9″ D (1524mm H x 356mm W x 150mm D) | |
| Total Installed Depth: | 5.5″ (140mm) |
| Max. Wall Thickness: | N/A |
| Net Weight: | 49 lbs. (22.2 kg) |
| Included Accessories: | Low Profile Angle Mount Brackets for 16″ O.C. Studs |
| Optional Accessories: | White Paintable Perforated Low-Profile Grille |
