Description

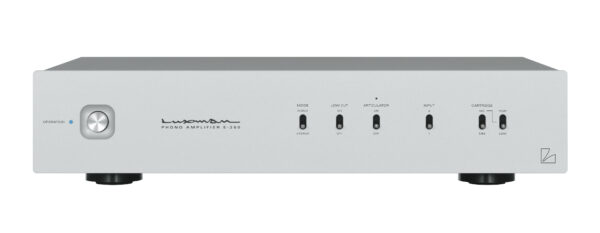

Luxman E-250 Phono Amplifier
Spec
| Circuiting system | NF type equalizer amplifier |
|---|---|
| Input sensitivity | MM: 3.2mV MC HIGH: 0.37mV, MC LOW: 0.12mV |
| Input impedance | MM: 34kΩ/47kΩ/56kΩ/100kΩ(switch selection) MC HIGH: 40Ω, MC LOW: 2.5Ω |
| Rated output/output impedance | 250mV/300Ω |
| Gain | MM: 38dB MC HIGH: 57dB, MC LOW: 66dB |
| Maximum allowable input (1kHz) | MM: 120mV MC HIGH: 15mV, MC LOW: 5mV |
| RIAA deviation | MM: 20Hz to 20kHz (±0.3dB), MC HIGH/MC LOW: 20Hz to 20kHz (±0.5dB) |
| Total harmonic distortion | 0.003% |
|---|---|
| S/N ratio (IHF-A) | MM: 90dB MC HIGH: 83dB, MC LOW: 80dB |
| Channel separation (10kHz) | 91dB |
| Input | Unbalanced line x 2 |
| Output | Unbalanced line x 1 |
| Power supply | 230V~(50Hz) / 115V~(50Hz) |
| Power consumption | 7W |
| External dimensions | 364(W) x 81(H) x 274(D) mm |
| front side knob of 6mm and rear side | terminal of 11mm included in depth |
| Net weight | 4.3kg (main unit) |
| Accessories | Power cable |
