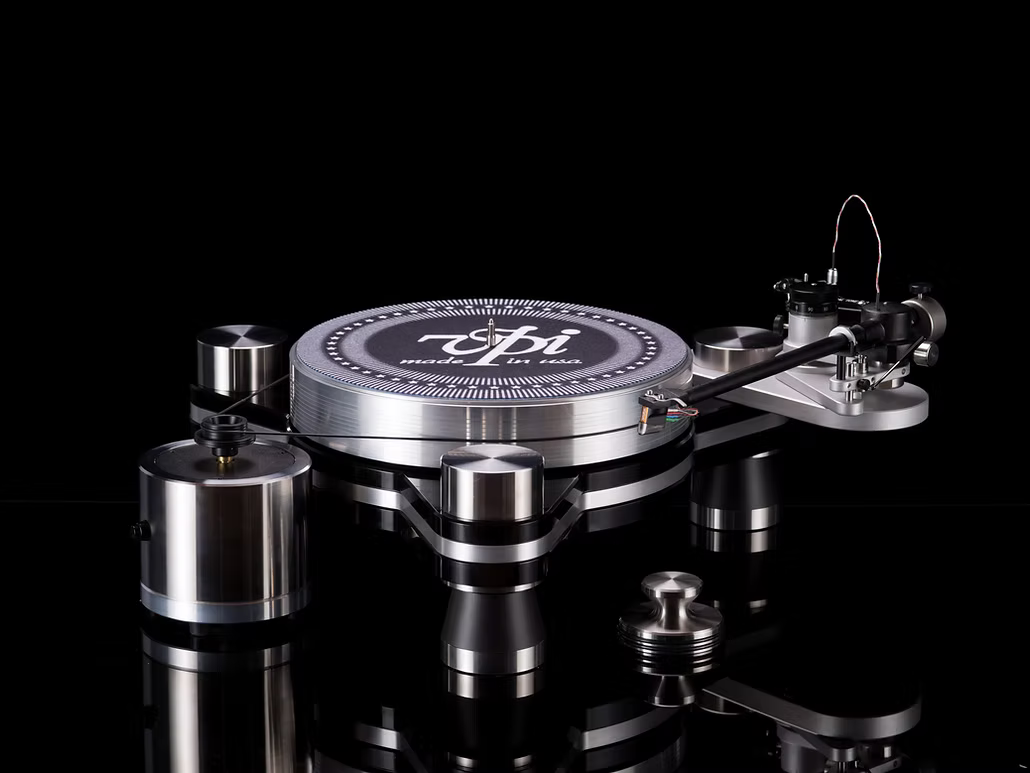

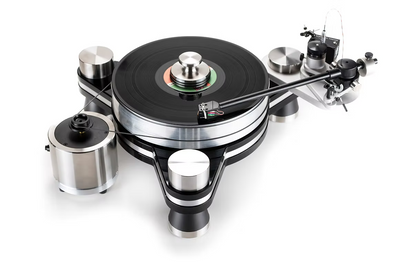

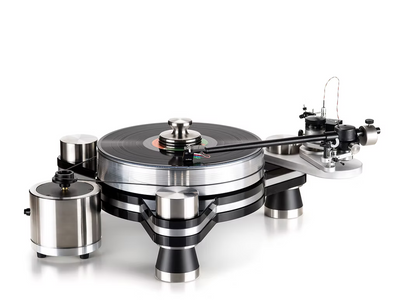

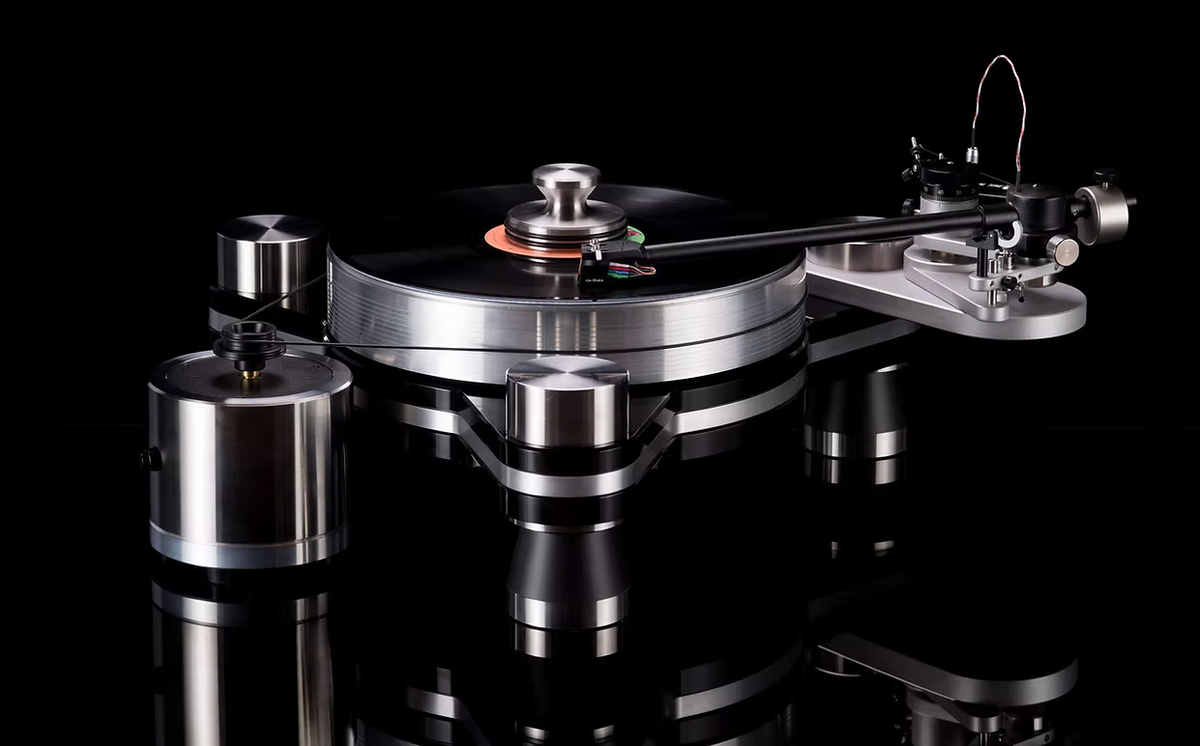

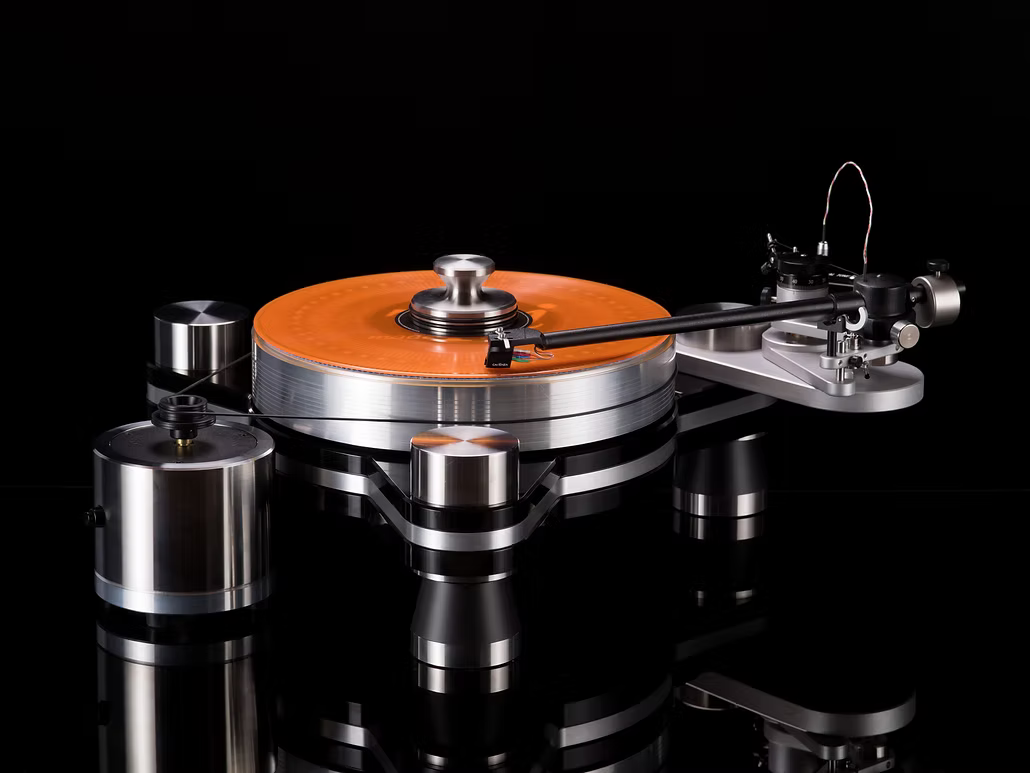

VPI Avenger High-End Turntable

The VPI Avenger is one of the most versatile high-end turntables in the VPI lineup. Built around a substantial three-layer acrylic/aluminum/acrylic chassis, the Avenger combines mass, mechanical isolation, precision machining and an exceptionally flexible tonearm platform.

This is a turntable designed to grow with a serious analog system. The Avenger can accommodate up to three tonearms, including arms from other manufacturers and of different lengths, making it especially appealing to vinyl enthusiasts who want to run multiple cartridges or build a truly customized analog front end.

Three-Layer Avenger Chassis

The heart of the Avenger is its distinctive chassis.

VPI bonds layers of acrylic, aluminum and acrylic together with damping material between them, creating a rigid but highly damped structure designed to control unwanted resonance.

Three stainless-steel corner posts provide mechanical grounding, isolation and support for the tonearm assemblies. Adjustable machined controls allow the chassis to be leveled precisely.

The fully adjustable armboards are machined from 5/8-inch 6061 aluminum for rigidity and grounding.

Up to Three Tonearms

One of the Avenger's defining features is its ability to accommodate as many as three tonearms.

That opens up possibilities that simply aren't available with most turntables. An Avenger system could be configured with separate moving-coil and moving-magnet cartridges, a dedicated mono cartridge, or completely different tonearms and cartridge combinations.

VPI designed the platform to accommodate different tonearm manufacturers and arm lengths, making the Avenger an unusually flexible foundation for a serious vinyl collection.

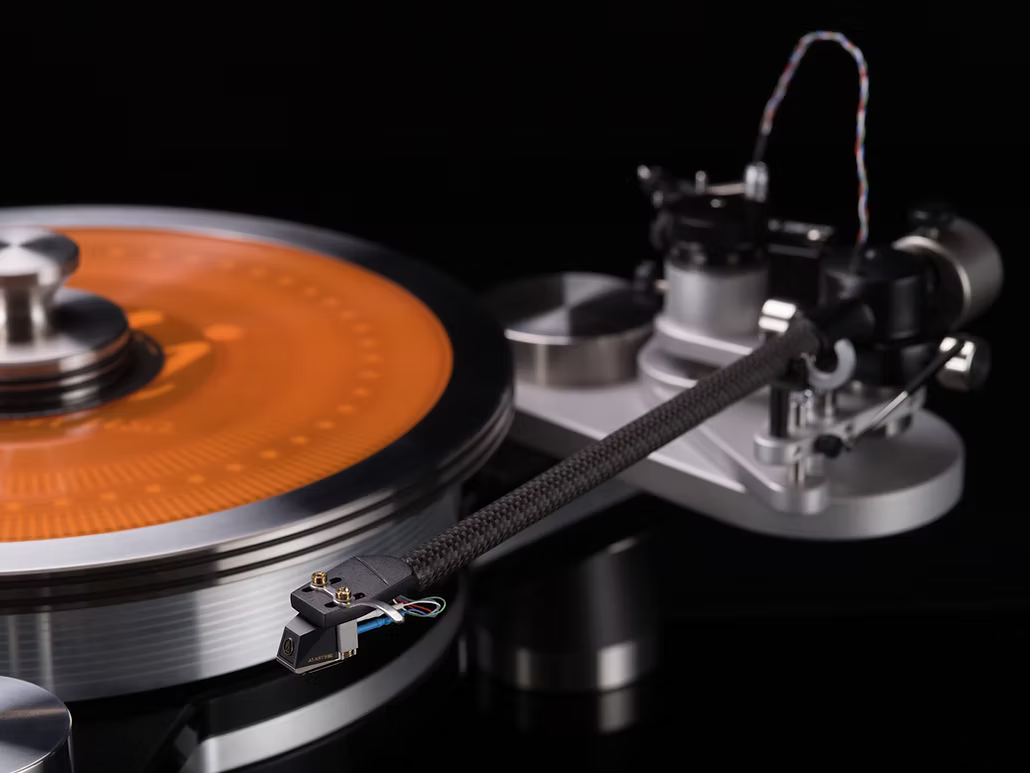

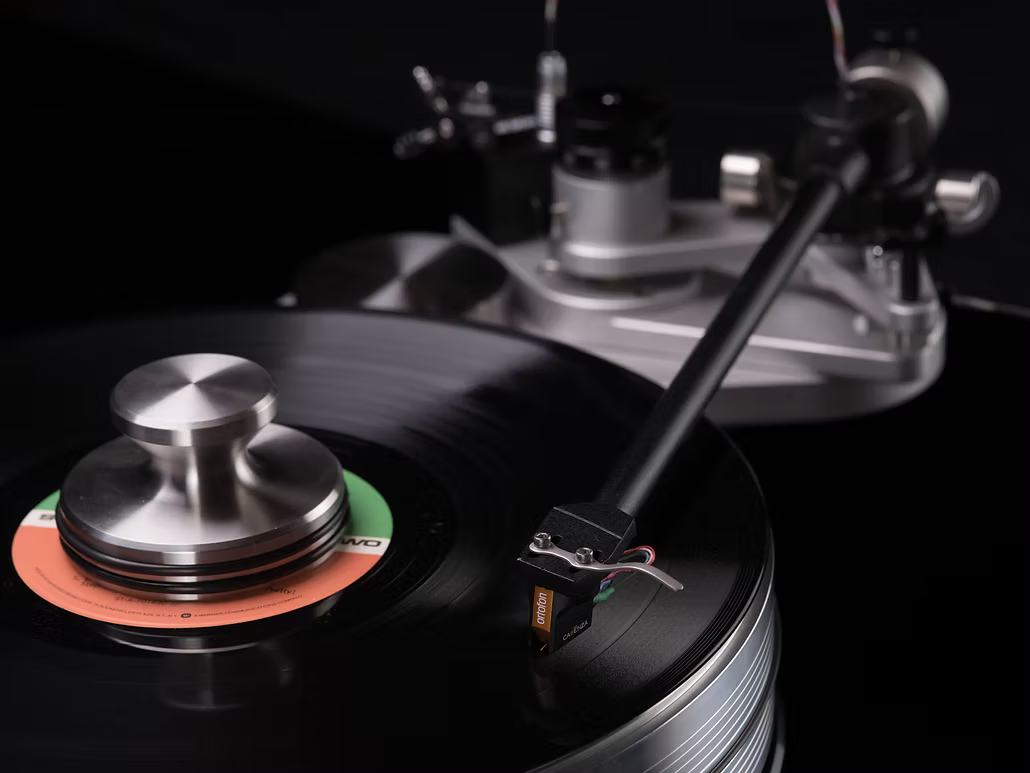

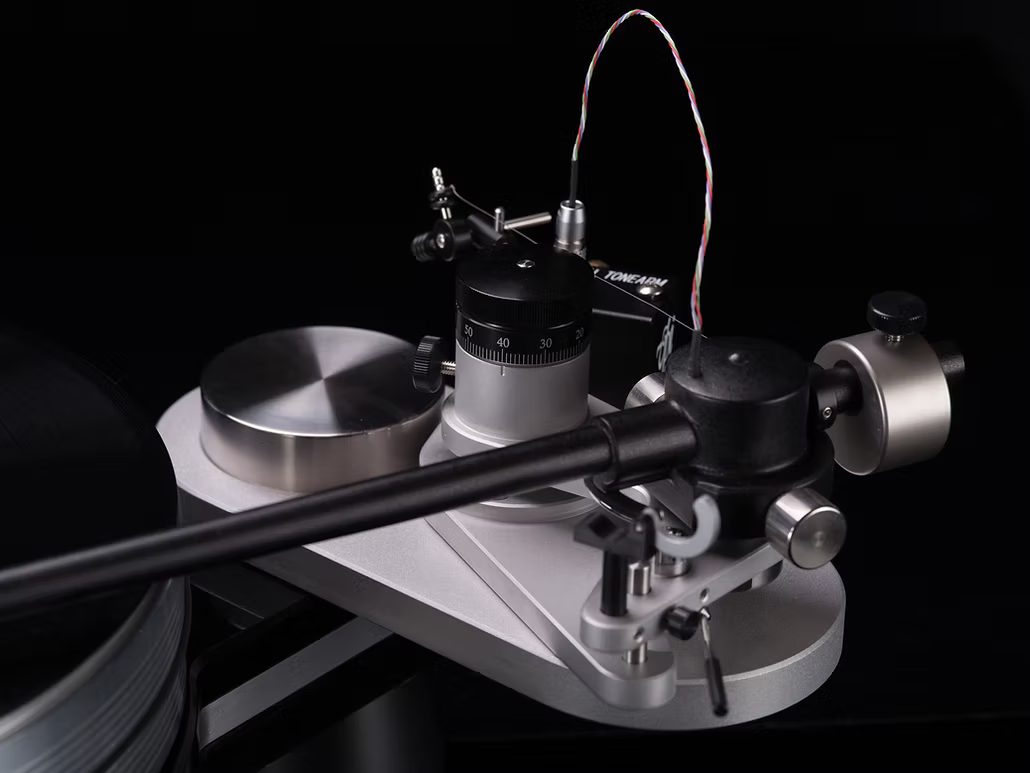

VPI JMW-12 3D Tonearm

The standard Avenger includes VPI's JMW-12 3D tonearm with VPI copper-weave internal wiring.

Its 12-inch architecture helps minimize tracking-angle error while providing extensive adjustment for properly dialing in a high-performance cartridge.

Tonearm Specifications

• 300 mm pivot-to-spindle distance
• 313 mm effective length
• 10.5 g effective mass
• 13 mm overhang
• 17.37° offset angle
• VPI copper-weave internal wiring
• 3D arm construction using materials including epoxy resin and Delrin
• Adjustable counterweight
• Azimuth adjustment
• Adjustable VTA

Precision Belt-Drive System

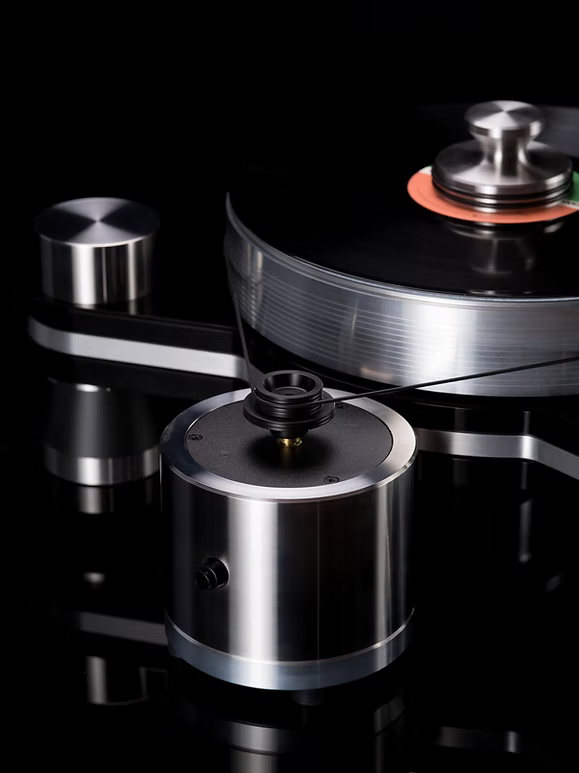

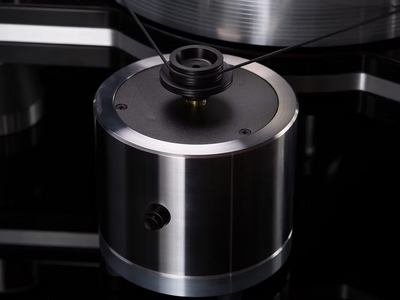

The Avenger uses a 300 RPM, 24-pole AC synchronous motor housed separately from the main chassis to help isolate motor vibration from the platter and tonearm.

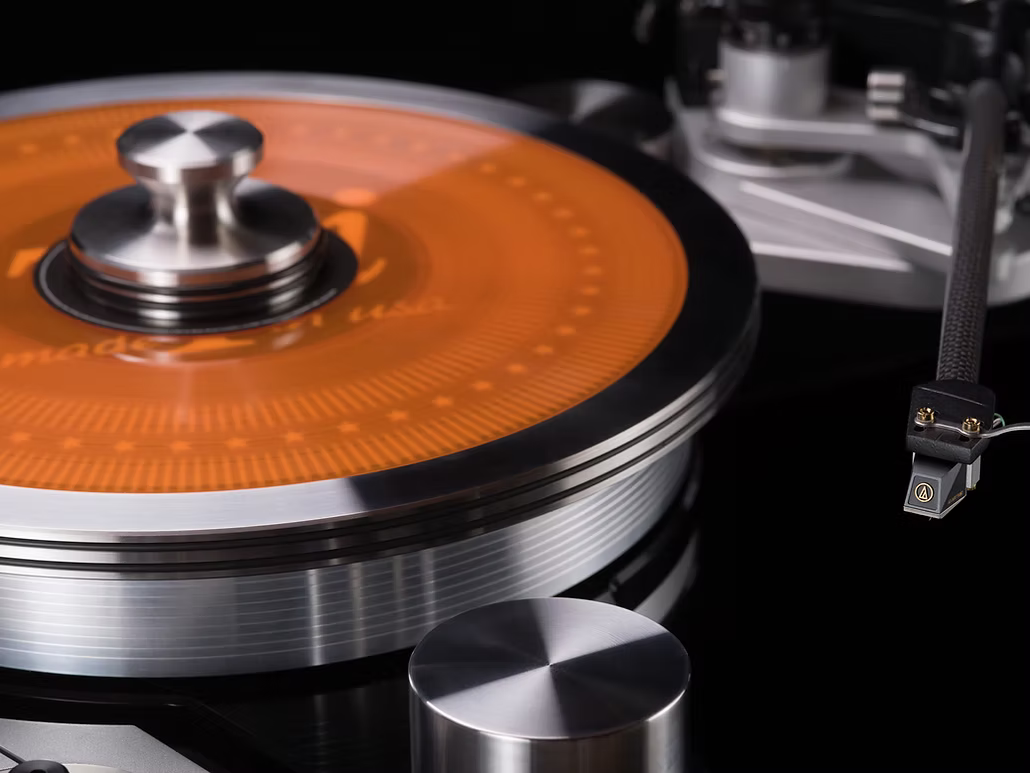

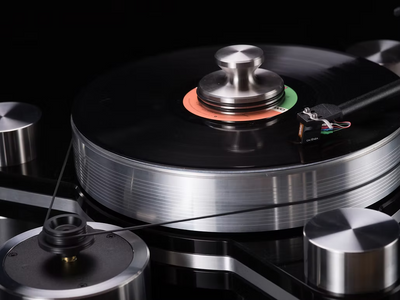

A precision-machined motor pulley drives the aluminum platter through VPI's belt-drive system.

The inverted main bearing uses a hardened stainless-steel shaft, hardened ball, phosphor-bronze bushing and PEEK thrust disc. VPI positions the belt side-load at the center of the rotating bearing to minimize unwanted rocking forces on the platter.

Key Specifications

• Drive System: Belt drive
• Motor: 300 RPM, 24-pole AC synchronous
• Platter: 6061 aluminum
• Bearing: Inverted bearing
• Tonearm: VPI JMW-12 3D
• Internal Tonearm Wiring: VPI copper weave
• Chassis: Bonded acrylic/aluminum/acrylic
• Wow & Flutter: 0.03%
• Speed Accuracy: 0.04%
• Rumble: 82 dB down
• Footprint: 23" × 20"
• Overall Dimensions: 27" × 23" × 10"
• Total Weight: 68 lbs.
• Tonearm Capacity: Up to three

Built to Evolve

The Avenger's modular architecture is a big part of its appeal. VPI offers a substantial upgrade path for owners who want to continue developing the platform.

Available options include:

• Periphery Ring Clamp
• Avenger Rim Drive
• Avenger Reference Magnetic Drive
• Avenger Reference Feet
• Fatboy Tonearm
• Additional VPI JMW tonearms
• Additional armboards for third-party tonearms

That means an Avenger purchased today doesn't have to remain the same turntable five or ten years from now. The platform can evolve as your cartridge collection, system and approach to analog playback change.

Experience the VPI Avenger at The Grid HiFi

The Grid HiFi is your VPI turntable and high-end analog audio expert in Houston, Texas.

The Avenger is exactly the kind of turntable where proper system matching matters. With the ability to accommodate multiple tonearms and cartridges, there are countless ways to configure it—and that's where having an experienced VPI dealer becomes important.

The Grid can help match the Avenger with the right moving-coil or moving-magnet cartridge, phono preamplifier, tonearm, amplification, loudspeakers, cabling and isolation for your system.

We can also professionally handle cartridge installation and alignment, tracking force, VTA, azimuth, tonearm setup and complete turntable optimization, including systems using multiple arms and cartridges.

Contact The Grid HiFi for VPI Avenger availability, demonstrations, cartridge recommendations, system matching and professional setup.
