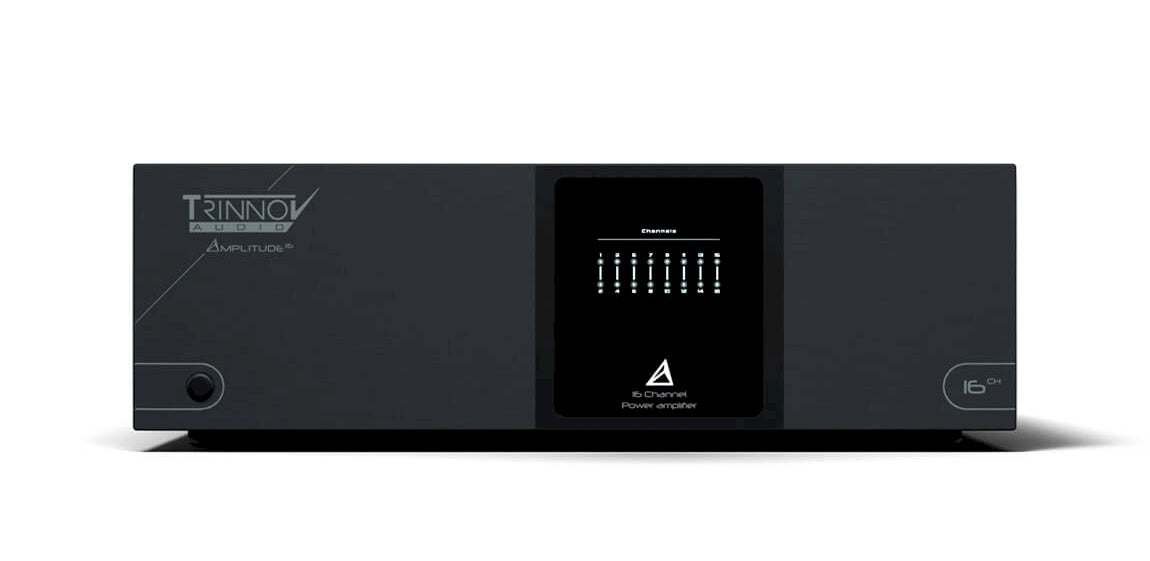

Trinnov Amplitude16 16-Channel Power Amplifier

The Trinnov Amplitude16 is a high-performance 16-channel power amplifier designed specifically for the demands of immersive home cinema.

Developed with ICEpower to Trinnov's specifications, the Amplitude16 combines 16 channels of powerful Class D amplification, dual independent power supplies, exceptional rack efficiency, bridgeable channels, and optional Dante Audio over IP connectivity.

Delivering 200 watts per channel into 8 ohms and 400 watts per channel into 4 ohms, the Amplitude16 provides enough channels to power a substantial immersive theater from a single amplifier.

And when additional power is needed, channels can be bridged in pairs to deliver up to 800 watts into 8 ohms.

That combination of channel count, power, flexibility, and compact packaging makes the Amplitude16 a natural partner for Trinnov's Altitude processors.

16 Channels of High-Performance Amplification

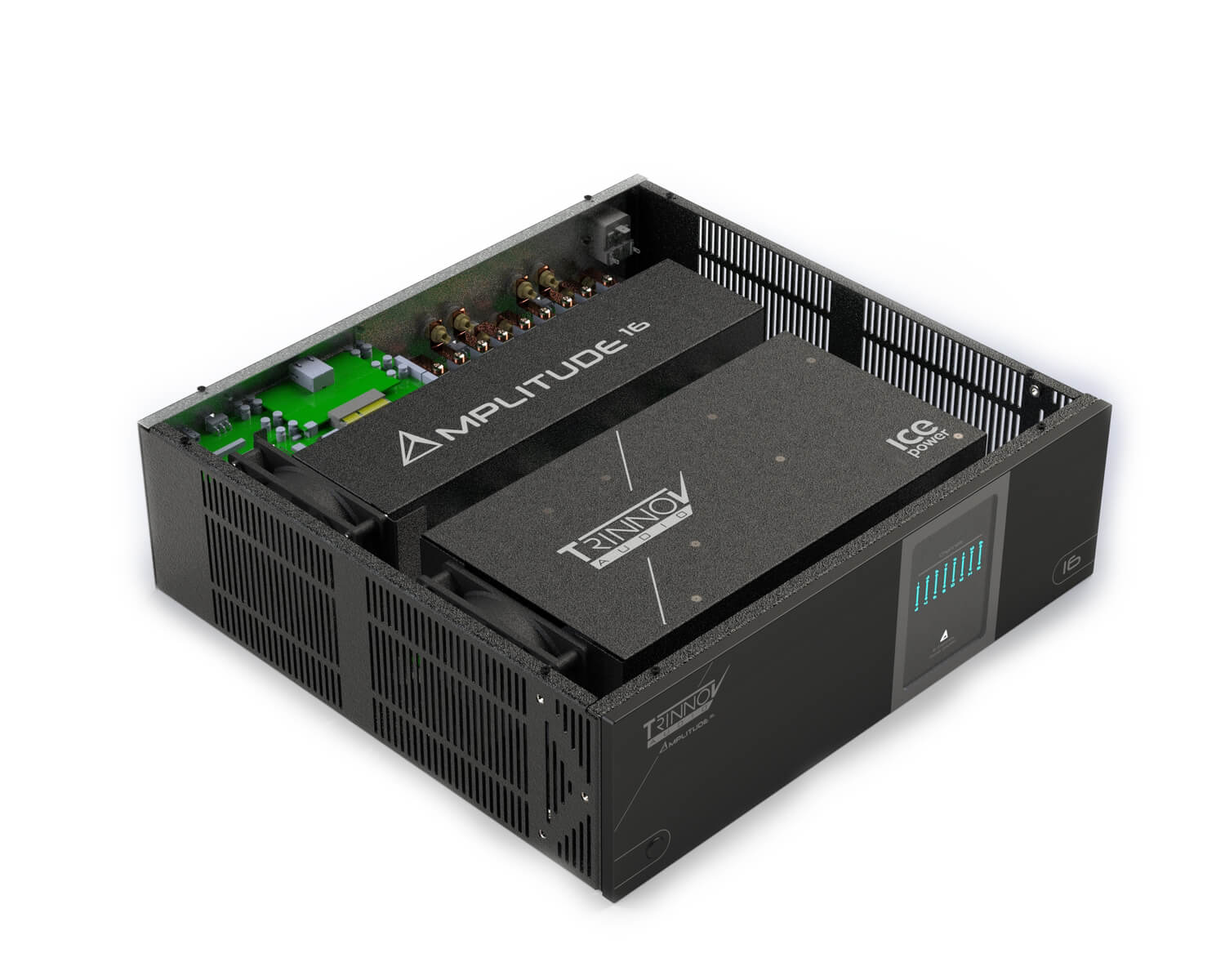

The Amplitude16 is essentially two independent eight-channel amplifiers operating within a single chassis, with each section receiving its own dedicated power supply.

In its standard configuration, it delivers:

• 200 watts into 8 ohms
• 400 watts into 4 ohms

This allows one Amplitude16 to power a large Dolby Atmos, DTS Pro, or Auro-3D loudspeaker system without requiring a rack full of individual amplifiers.

Trinnov specifies total output capability of 2,800 watts with all channels driven on 120V power and 3,200 watts on 230V power.

Peak output capability reaches an impressive 6,080 watts.

Up to 800 Watts in Bridged Mode

One of the Amplitude16's biggest advantages is its flexibility.

Channels can be bridged in pairs when additional power is required, delivering up to:

• 800 watts into 8 ohms
• 1,000 watts into 4 ohms

This gives a theater designer the ability to allocate amplifier power according to the needs of the actual loudspeakers.

For example, channels can be bridged to provide substantially greater power to demanding left, center, and right screen speakers, while the remaining channels operate normally to power surrounds and overhead speakers.

That makes the Amplitude16 much more than simply a 16-channel amplifier.

Designed for Trinnov Altitude

The Amplitude16 was specifically engineered to complement the Trinnov Altitude16, Altitude32, and AltitudeCI processors.

Its input sensitivity is precisely matched to the output characteristics of the Altitude processors, helping preserve dynamic range while minimizing unnecessary system noise.

This becomes increasingly important in theaters containing large numbers of loudspeakers and amplifier channels, where small amounts of noise can accumulate across the system.

The result is a system designed to remain quiet when it should be and extraordinarily dynamic when the soundtrack demands it.

Optional Dante Audio over IP

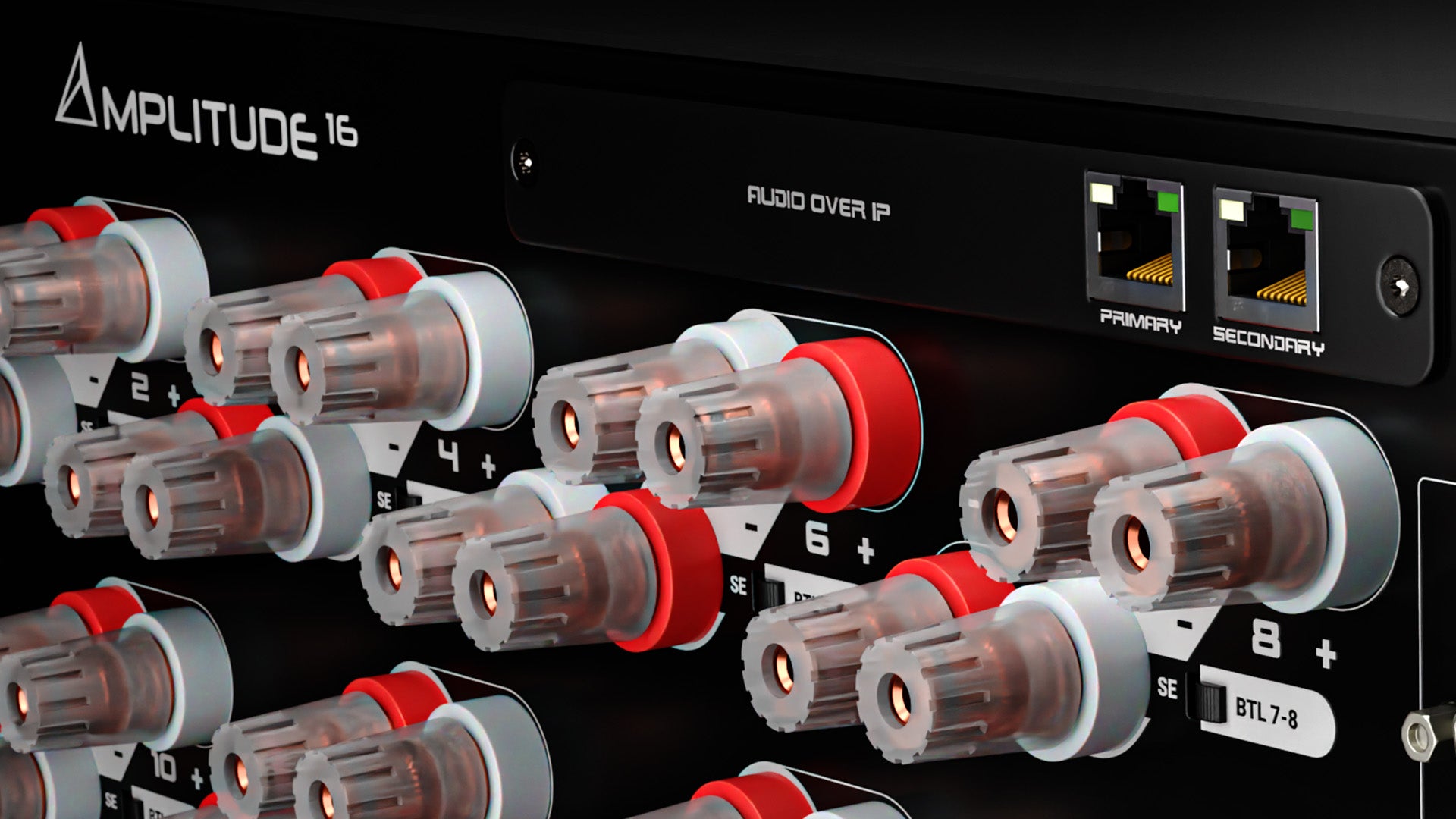

The Amplitude16 is now available with an optional Dante input board, transforming it from a conventional multichannel amplifier into a networked Audio over IP component.

The Dante board provides up to 16 digital audio inputs over standard Ethernet and is also AES67 compatible.

When paired with the Trinnov AltitudeCI, audio can be transmitted digitally from the processor to the amplifier over the network.

Digital-to-analog conversion then takes place inside the Amplitude16 itself.

The Dante implementation uses the same DAC architecture as the AltitudeCI, providing a tightly integrated Trinnov digital signal path while significantly simplifying rack cabling.

Together, an AltitudeCI and Dante-equipped Amplitude16 can create a complete Trinnov Audio over IP processing and amplification system in only 5RU of rack space.

DirectLink Integration

When combined with AltitudeCI and Dante, Amplitude16 can become part of Trinnov's DirectLink architecture.

This allows Audio over IP traffic to be separated from normal control and internet network traffic, providing a cleaner and more purpose-built network architecture for sophisticated cinema installations.

For professionally designed theaters, this can simplify installation while improving system organization and serviceability.

Balanced Analog Connectivity

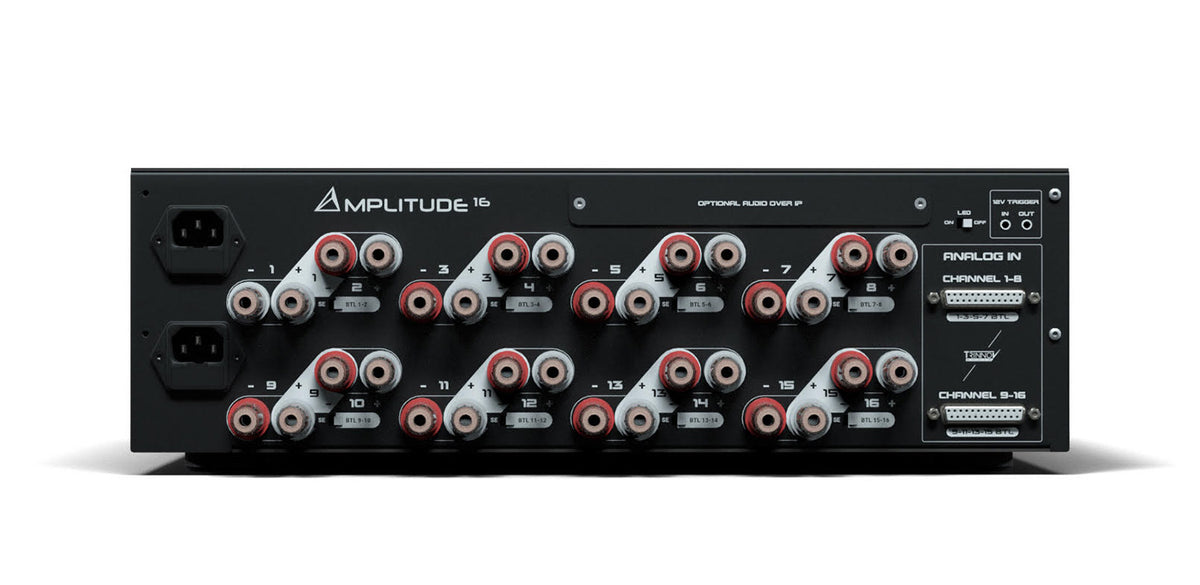

For conventional installations, Amplitude16 provides 16 channels of balanced analog input through two DB25 connectors using the standard Tascam analog pinout.

DB25 connectivity allows 16 balanced channels to be connected using only two compact cables, dramatically reducing rack clutter compared with individual XLR connections.

Each amplifier channel uses its own high-quality five-way binding posts for loudspeaker connection.

Exceptional Audio Performance

The Amplitude16 isn't simply about fitting more amplifier channels into less rack space.

Trinnov specifies extremely low distortion and noise:

• 0.0015% THD+N in single-ended operation
• 0.0015% THD+N in bridged operation
• 126 dB signal-to-noise ratio
• Less than 0.05% intermodulation distortion
• Load-independent frequency response from 20Hz to 20kHz

Damping factor reaches 2,340 at 100Hz, providing substantial electrical control over connected loudspeakers.

Dual Power-Supply Architecture

The Amplitude16 uses two independent power supplies, one for each eight-channel amplifier section.

Two IEC power connections feed the amplifier, with each power supply automatically accepting 100–240V AC.

This dual architecture contributes to the amplifier's ability to deliver substantial output across large numbers of channels simultaneously.

Built for Custom Installation

The Amplitude16 was designed from the beginning for professional cinema installations.

Its combination of high channel density, DB25 balanced inputs, optional Dante connectivity, bridgeable channels, trigger control, dual power supplies, and rack-mountable construction makes it especially well suited to sophisticated equipment racks.

Instead of selecting an amplifier independently from the processor and speakers, an integrator can determine exactly how the Amplitude16's channels should be allocated based on the requirements of the finished theater.

Specifications & Features

• Type: 16-Channel Home Cinema Power Amplifier
• Amplifier Architecture: Class D
• Amplifier Modules: ICEpower, customized to Trinnov specifications
• Channels: 16
• Architecture: Two independent 8-channel amplifier sections
• Power Supplies: 2 independent
• Power – 8Ω: 200W per channel
• Power – 4Ω: 400W per channel
• Bridged Power – 8Ω: 800W
• Bridged Power – 4Ω: 1,000W
• Total Output – 120V: 2,800W, all channels driven
• Total Output – 230V: 3,200W, all channels driven
• Peak Output: 6,080W
• Gain: 16 dB single-ended / 22 dB bridged
• Frequency Response: 20Hz–20kHz, +0/-0.6dB
• THD+N – Single Ended: 0.0015% at 8Ω / 5W
• THD+N – Bridged: 0.0015% at 8Ω / 20W
• Signal-to-Noise Ratio: 126 dB A-weighted
• Intermodulation Distortion: Less than 0.05%
• Damping Factor: 2,340 at 100Hz / 1,820 at 1kHz / 354 at 10kHz
• Analog Inputs: 2 × female DB25
• Input Format: Tascam balanced analog pinout
• Speaker Outputs: 16 × five-way binding posts
• Optional Dante: Yes
• Dante Channels: Up to 16 network inputs
• AES67 Compatible: Yes
• Dante Connections: Dual RJ45 Primary / Secondary
• 12V Trigger Input: Yes
• 12V Trigger Output: Yes
• Power Requirement: 2 × 100–240V auto-selecting
• Power Inputs: 2 × IEC C14
• Standby Consumption: 0.52W
• Idle Consumption: 125W
• Maximum Consumption: 2 × 2,000W
• Dimensions Including Rack Ears: 19" W × 5.2" H × 17.8" D
• Weight: 45.3 lbs
• Warranty: 5 years
• Warranty Transferable: Yes

Build Your Trinnov Cinema with The Grid HiFi

The real advantage of the Amplitude16 isn't simply having 16 amplifier channels in one chassis. It's being able to engineer those channels around the requirements of the theater.

Some speakers may need 200 watts. Others may benefit from 400 or 800 watts through bridged operation. A large immersive system may require multiple Amplitude16 amplifiers. A new AltitudeCI installation may benefit from Dante and Audio over IP rather than conventional analog cabling.

Those decisions should be made as part of the theater design.

The Grid HiFi is your Trinnov and high-performance private cinema expert in Houston, providing complete system engineering, equipment specification, installation, programming, acoustic integration, and professional Trinnov calibration.

Our team can design a complete system around the AltitudeCI, Altitude16, or Altitude32 and Amplitude16, determining the correct amplifier configuration for every speaker and properly integrating subwoofers, Trinnov WaveForming, room acoustics, and automation.

From speakers, subwoofers and amplification to projection, screens, acoustic treatment, lighting, seating, networking, Control4 automation, equipment racks, installation, and final calibration, The Grid can design and deliver the complete private cinema.

Contact The Grid HiFi for Trinnov Amplitude16 pricing, availability, demonstrations, Dante configuration, system design, installation, and professional Trinnov calibration.
