Trinnov Altitude32 28-Channel Reference Immersive Sound AV Processor

The Trinnov Altitude32 28-Channel is designed for large, sophisticated private cinemas requiring substantially greater speaker and subwoofer capability than conventional surround processors can provide.

This configuration delivers 24 analog outputs and supports up to 28 discrete decoded and optimized channels through Trinnov's +4 Channels architecture.

With Trinnov Optimizer, WaveForming, patented 3D Remapping, Dolby Atmos, DTS Pro, Auro-3D, IMAX Enhanced, advanced bass management, 64-bit floating-point processing, and HDMI 2.1, the Altitude32 provides the processing and calibration platform required for truly reference-level private cinema.

28 Discrete Optimized Channels

The Altitude32 28-Channel configuration provides 24 analog outputs with four additional channels available through AES/EBU digital outputs.

All 28 channels can be independently decoded and optimized, allowing extremely sophisticated immersive-audio layouts and multi-subwoofer configurations.

For larger theaters, those additional channels can be used for expanded surround arrays, additional overhead channels, independently optimized subwoofers, or active multi-way loudspeaker systems.

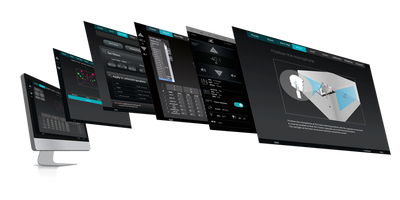

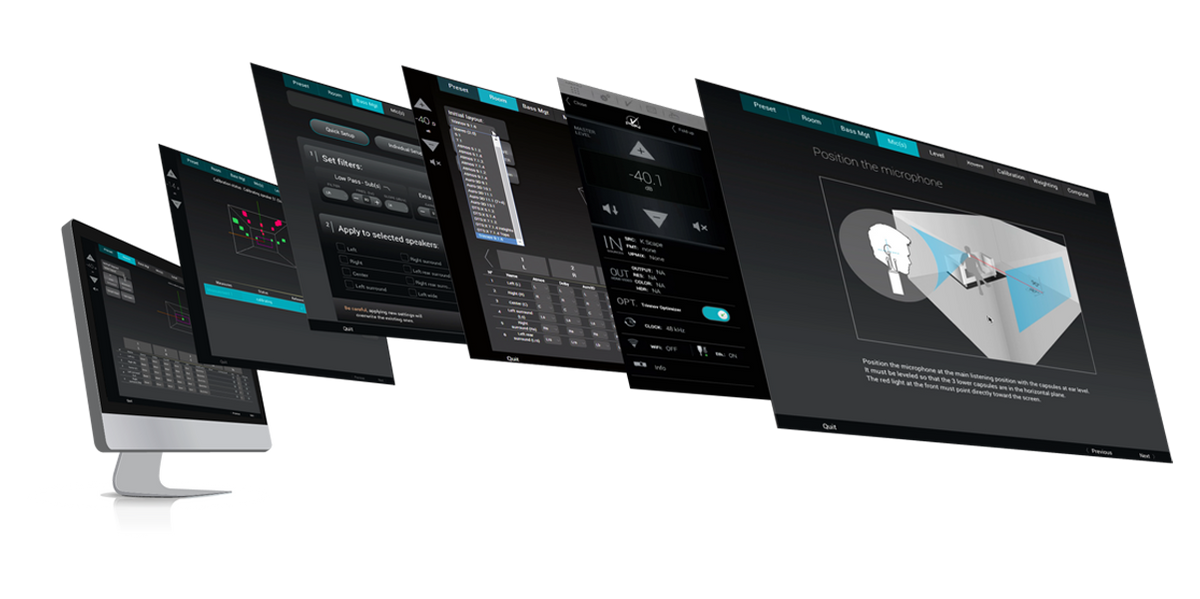

Trinnov Optimizer

Trinnov's proprietary Optimizer measures both the acoustic response and actual three-dimensional position of the loudspeakers within the room.

Using Trinnov's 3D microphone and powerful software-based processing, Optimizer provides sophisticated control over:

• Frequency response
• Phase
• Impulse response
• Speaker levels
• Delays
• Crossover behavior
• Bass management
• Target curves
• Multi-seat optimization

The result is an extraordinarily powerful platform for integrating the entire cinema as a complete acoustic system.

Trinnov WaveForming

The Altitude32 supports Trinnov WaveForming, allowing low-frequency performance to become part of the fundamental theater design.

When used with a properly engineered subwoofer array, WaveForming controls how low-frequency energy propagates through the room.

This can provide significantly more consistent bass performance across multiple seats while addressing the room modes that traditionally make low-frequency reproduction difficult to control.

Patented 3D Remapping

Trinnov's exclusive 3D Remapping technology measures the physical position of every loudspeaker in three dimensions.

When a loudspeaker cannot be placed exactly where the soundtrack expects it, Altitude32 can use surrounding loudspeakers to reposition the apparent location of the sound.

This helps preserve the accuracy of the immersive sound field even in rooms where architectural constraints prevent theoretically perfect speaker placement.

Extraordinary Bass-Management Capability

This Altitude32 configuration can support as many as 28 independently optimized subwoofer channels.

While very few systems would use all 28 outputs strictly for subwoofers, that capability demonstrates the flexibility of Trinnov's routing architecture.

For sophisticated private cinemas using multiple subwoofers or WaveForming arrays, this provides enormous freedom in designing the low-frequency system around the room.

Active Crossover Capability

Altitude32 can also provide sophisticated active crossover processing.

The 28-channel configuration supports up to:

• 14 two-way active crossovers
• 9 three-way active crossovers
• 7 four-way active crossovers

This allows Altitude32 to become the processing platform for extremely sophisticated actively amplified cinema systems.

Immersive Audio

Altitude32 supports:

• Dolby Atmos
• DTS Pro
• Auro-3D
• IMAX Enhanced
• Dolby Surround
• DTS Neural
• Auro-Matic

Dolby Atmos decoding supports up to 34 discrete channels across the Altitude32 platform, while DTS Pro supports up to 30.2, subject to the channel capability of the specific Altitude32 configuration.

HDMI 2.1

Altitude32 provides:

• 8 HDMI inputs
• 2 HDMI outputs
• 40Gbps bandwidth
• 8K/60Hz
• 4K/120Hz
• HDR10
• HDR10+
• Dolby Vision
• HLG
• ARC / eARC
• HDCP 2.3

Software-Based Architecture

Altitude32 runs on an Intel multi-core hardware platform using TrinnovOS, rather than relying on conventional fixed DSP architecture.

That difference allows Trinnov to continually evolve the platform through software updates and hardware upgrades.

For a processor intended to remain at the center of a reference private cinema for many years, that upgradeability is a major advantage.

Specifications & Highlights

• Model Configuration: Altitude32 16-24
• Maximum Channels: 28
• Maximum Optimizer Channels: 28
• Maximum Subwoofer Channels: 28
• Analog Outputs: 24
• Additional +4 Channels: AES/EBU
• Maximum Active Crossovers: 14 two-way / 9 three-way / 7 four-way
• Dolby Atmos: Yes
• DTS Pro: Yes
• Auro-3D: Yes
• IMAX Enhanced: Yes
• Trinnov Optimizer: Yes
• WaveForming: Yes
• 3D Remapping: Yes
• Processing: 64-bit floating point
• Maximum Processing Rate: Up to 192kHz through 24 channels; above 24 channels up to 96kHz
• HDMI Inputs: 8
• HDMI Outputs: 2
• HDMI Bandwidth: 40Gbps
• Maximum Video: 8K/60 and 4K/120

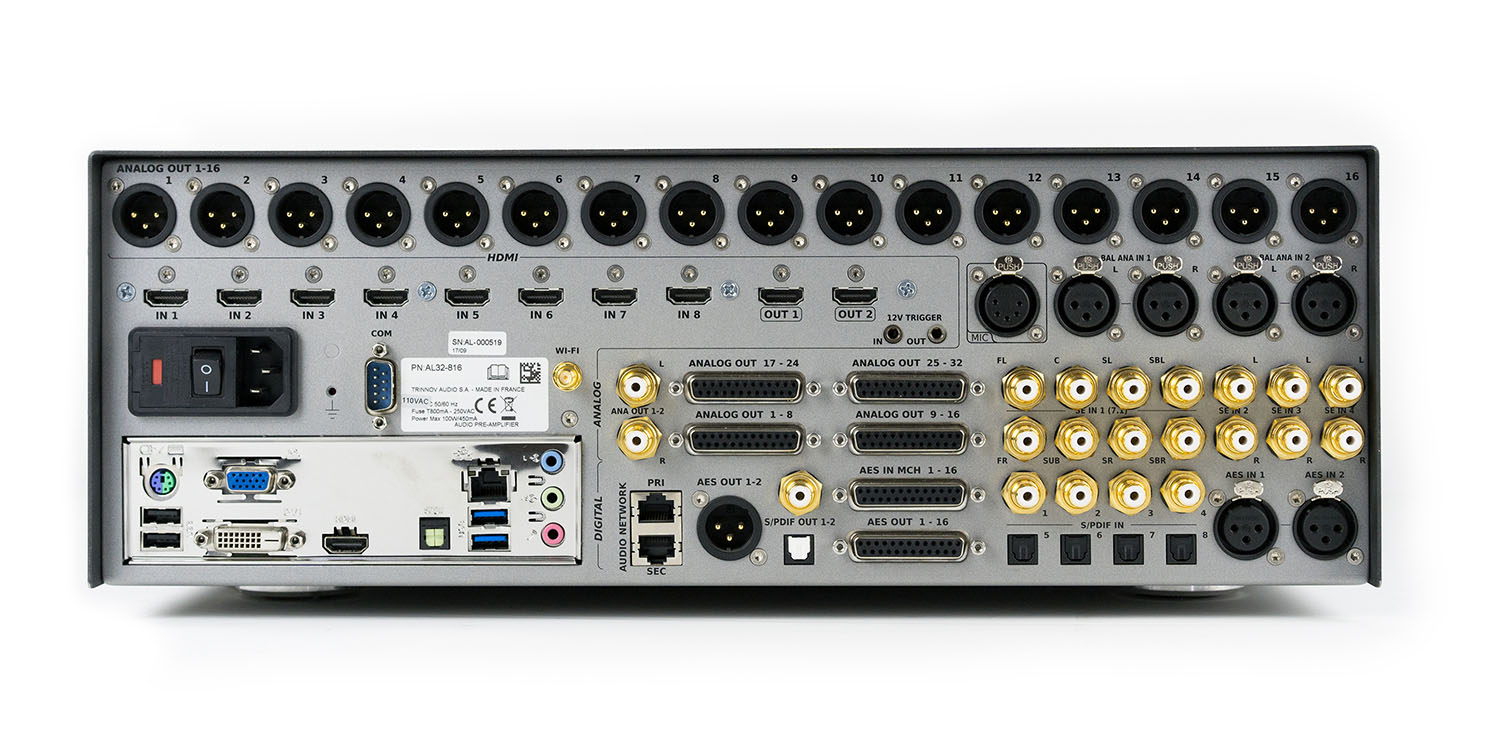

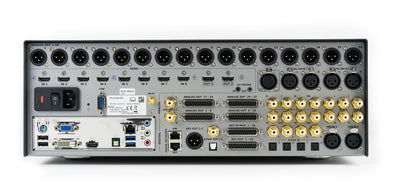

• Analog DB25 Outputs: 24 channels
• Balanced XLR Outputs: 16
• AES3 DB25 Outputs: 16
• Balanced Analog Inputs: 2 stereo XLR
• Unbalanced Inputs: 3 stereo RCA + 7.1 RCA
• Roon: Yes
• Configuration Presets: 29
• Dimensions: 17 7/16" W × 6 1/2" H × 17 9/16" D
• Weight: 32 lbs
• Rackmount: 3.5U, rack ears included

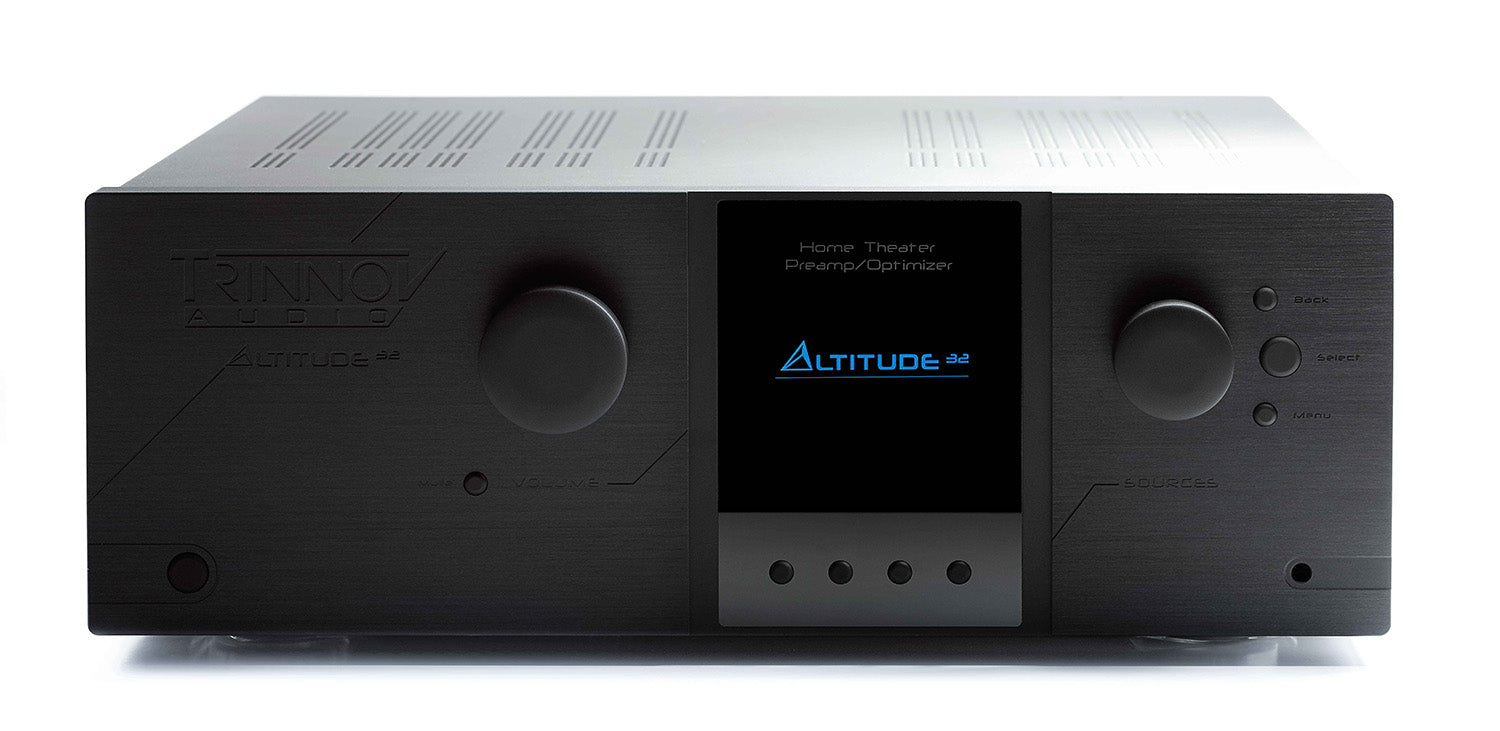

• Standard Finish: Black

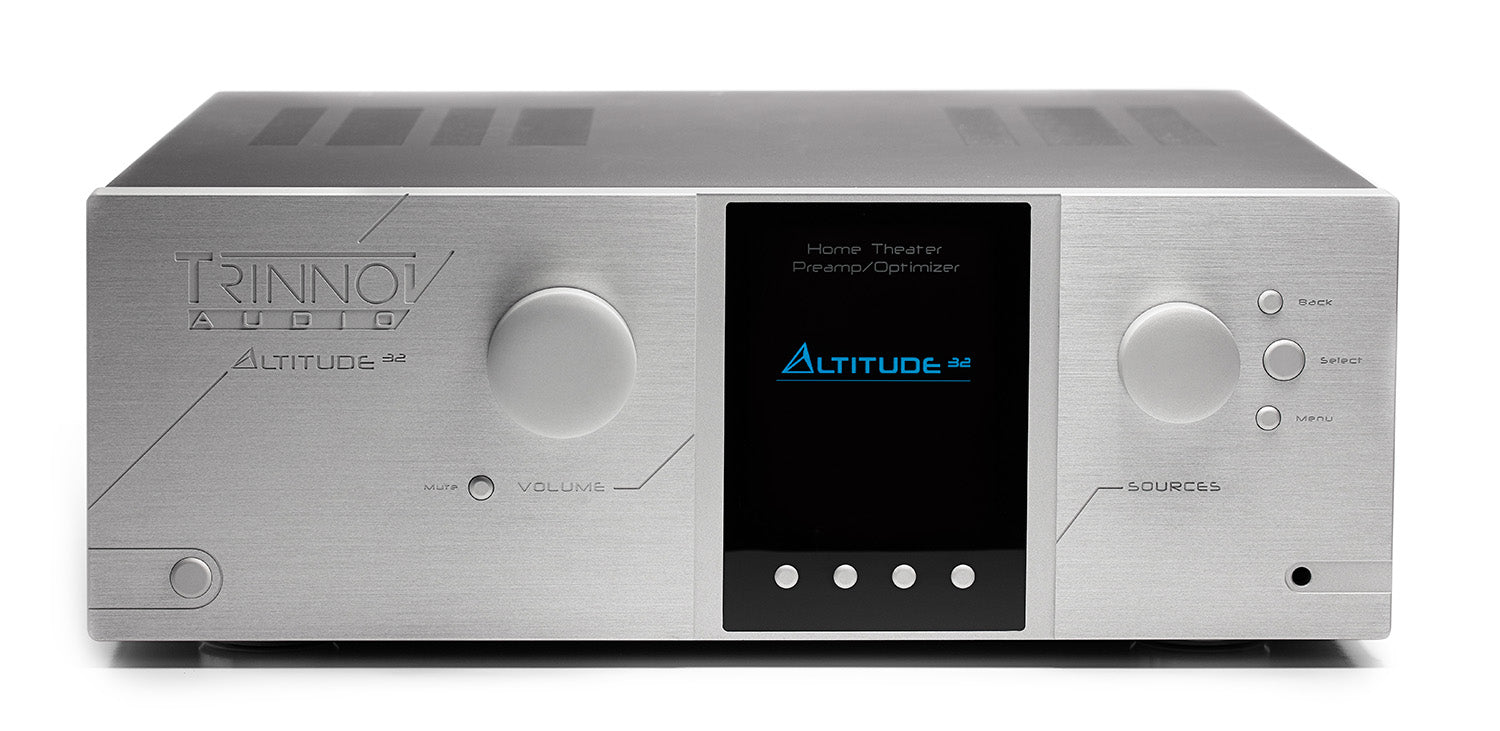

• Optional Finish: Silver
• Warranty: 5 years
