Trinnov Altitude16 Reference Immersive Sound AV Processor

The Trinnov Altitude16 is one of the most advanced high-performance home theater processors available, bringing Trinnov's reference-level immersive audio processing, room optimization, bass management, and system calibration technology to theaters requiring up to 20 discrete channels.

Built on the same software-based processing platform as the flagship Altitude32, the Altitude16 combines Dolby Atmos, DTS Pro, Auro-3D, IMAX Enhanced, Trinnov Optimizer, exclusive 3D Remapping, advanced bass management, 64-bit floating-point processing, and HDMI 2.1 in a processor designed for serious private cinemas.

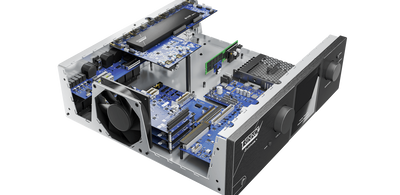

Unlike conventional AV processors built around fixed DSP chipsets, the Altitude16 uses a powerful Intel multi-core processor and Trinnov's proprietary software platform, allowing its capabilities to continue evolving through software updates.

Up to 20 Discrete Channels

Despite its name, the Altitude16 can now decode and optimize up to 20 discrete channels.

The processor provides 16 balanced XLR analog outputs, while Trinnov's +4 Channels capability combines the analog and S/PDIF outputs to expand the system to as many as 20 discrete channels of decoding and optimization.

This provides enormous flexibility for sophisticated Dolby Atmos and DTS Pro speaker layouts, additional subwoofers, and custom theater configurations.

Most importantly, Trinnov does not impose conventional restrictions on which speakers those channels can represent.

Dolby Atmos Without Conventional Layout Restrictions

The Altitude16 can decode and render Dolby Atmos using virtually any speaker layout within its 20-channel capability.

That means system designers aren't forced into a handful of predetermined configurations.

Multiple side-surround speakers, additional height channels, and multiple independent subwoofers can be incorporated according to the needs of the room.

The Altitude16 also supports:

• Dolby Atmos – up to 20 discrete channels
• DTS Pro – up to 20 discrete channels
• Auro-3D – up to 13.1 channels
• IMAX Enhanced
• Dolby Surround
• DTS Neural
• Auro-Matic

Trinnov Optimizer

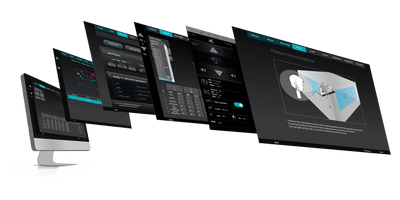

At the heart of the Altitude16 is the Trinnov Optimizer, the company's advanced loudspeaker and room optimization platform.

Using Trinnov's proprietary 3D calibration microphone, Optimizer measures not only frequency response but also the actual three-dimensional position of every loudspeaker in the room.

The system provides extensive control over frequency response, phase, impulse response, levels, delays, crossover behavior, and bass management.

Rather than simply applying automatic EQ, Optimizer gives a trained calibrator an extraordinarily sophisticated set of tools for integrating the loudspeakers, subwoofers, electronics, and room into one complete system.

Exclusive Trinnov 3D Remapping

Even carefully designed theaters sometimes require compromises in speaker placement.

Trinnov's patented 3D Remapping technology addresses this by measuring the actual distance, azimuth, and elevation of every loudspeaker.

The processor then compares the real-world speaker locations with the intended locations of sounds within the soundtrack.

When necessary, Remapping uses adjacent loudspeakers and stereo imaging to reposition sound closer to where the content creator intended it to originate.

The result is a more accurate and convincing immersive sound field even when architectural limitations prevent theoretically perfect speaker placement.

Advanced Bass Management

Bass management is another area where the Altitude16 goes far beyond a conventional AV processor.

Low-frequency information from any channel can be routed to any combination of subwoofers, with extensive control over crossover frequencies, filter types, and slopes.

There is no predetermined limitation on the number of subwoofer channels beyond the processor's available outputs.

Trinnov's intermediate bass management can even redirect bass from a smaller speaker to a nearby full-range speaker before sending the deepest frequencies to the subwoofers.

For sophisticated multi-subwoofer theaters, this level of control provides tremendous flexibility during system design and calibration.

Trinnov WaveForming

The Altitude platform also supports Trinnov WaveForming, the company's advanced approach to low-frequency reproduction in properly designed multi-subwoofer rooms.

WaveForming is intended to control how bass energy propagates through the room rather than simply correcting the response at one listening position.

When the room, subwoofer locations, and system are designed appropriately, WaveForming can provide substantially more consistent low-frequency performance across multiple seats while addressing the room modes that traditionally make bass difficult to control.

For a purpose-built private cinema, WaveForming can become part of the room design itself rather than something added after construction.

Native High-Resolution Processing

Altitude16 uses 64-bit floating-point audio processing and processes high-resolution audio natively at up to 24-bit/96kHz.

The processor's DAC section operates at 24-bit/192kHz, with Trinnov specifying a 115 dB A-weighted signal-to-noise ratio for both A/D and D/A conversion.

This architecture gives the Altitude16 the computational precision required for sophisticated decoding, optimization, routing, crossover, and bass-management functions while maintaining reference-level audio performance.

HDMI 2.1 – 8K/60 & 4K/120

The Altitude16 incorporates Trinnov's HDMI 2.1 architecture with eight HDMI inputs and two HDMI outputs.

All inputs and outputs support bandwidth up to 40Gbps, with video capability including:

• 8K/60Hz
• 4K/120Hz
• HDR10
• HDR10+
• Dolby Vision
• HLG
• ARC / eARC
• HDCP 2.3

Trinnov's modular approach to HDMI is specifically intended to help protect the Altitude platform against obsolescence as video standards continue to evolve.

Extensive Analog & Digital Connectivity

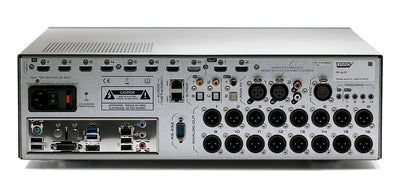

Altitude16 provides 16 balanced XLR analog outputs along with stereo balanced XLR and unbalanced RCA analog inputs.

Digital connectivity includes four S/PDIF inputs—two optical and two coaxial—and two S/PDIF outputs.

A dedicated 5-pin XLR microphone connection is provided for Trinnov's 3D calibration microphone.

Remote Access & Long-Term Support

A professionally installed theater needs to remain serviceable after the installation is complete.

Trinnov provides secure remote access to Altitude processors, allowing authorized integrators to access system parameters remotely for adjustments, diagnostics, and troubleshooting.

Trinnov's own support teams in the United States and France can also provide higher-level remote assistance.

This means many system adjustments and service issues can be handled without requiring an immediate on-site visit.

Designed to Evolve

One of the defining characteristics of the Altitude platform is its software-based architecture.

Trinnov has continued adding capabilities to existing processors through software updates rather than requiring owners to replace their hardware every time a major feature becomes available.

The expansion of the Altitude16 from 16 to 20 discrete channels is a perfect example—the +4 Channels capability was provided to existing Altitude16 owners as a free software update.

For a component at the center of a high-end private cinema, that long-term approach to product development matters.

Specifications & Features

• Type: Reference Immersive Sound AV Processor
• Maximum Discrete Channels: 20
• Balanced Analog Outputs: 16 × XLR
• Additional Channel Capability: +4 using analog and S/PDIF outputs
• Dolby Atmos: Up to 20 discrete channels
• DTS Pro: Up to 20 discrete channels
• Auro-3D: Up to 13.1 channels
• IMAX Enhanced: Yes
• Speaker Layout Support: Unrestricted within available channel count
• Trinnov Optimizer: Yes
• Trinnov 3D Remapping: Yes
• WaveForming: Supported
• Advanced Bass Management: Yes
• Processing Precision: 64-bit floating point
• Maximum Native Processing Rate: 96kHz
• DAC Resolution / Sampling Rate: 24-bit / 192kHz
• ADC Resolution / Sampling Rate: 24-bit / 96kHz
• D/A Signal-to-Noise Ratio: 115 dB A-weighted
• A/D Signal-to-Noise Ratio: 115 dB A-weighted
• HDMI Inputs: 8
• HDMI Outputs: 2
• HDMI: HDMI 2.1 / HDCP 2.3
• HDMI Bandwidth: 40Gbps
• Maximum Video Resolution: 8K/60Hz and 4K/120Hz
• HDR: HDR10, HDR10+, Dolby Vision and HLG
• ARC / eARC: Yes, HDMI Output 1
• S/PDIF Inputs: 4 – 2 optical / 2 coaxial
• S/PDIF Outputs: 2 – 1 optical / 1 coaxial
• Balanced Analog Inputs: 1 × Stereo XLR
• Unbalanced Analog Inputs: 1 × Stereo RCA
• Calibration Microphone Input: 5-pin XLR
• Processor: Intel multi-core, hyper-threaded
• Power Supply: Separate supplies for audio and processing
• Power Requirement: 100–240V auto-selecting
• Maximum Power Consumption: 76W
• Dimensions: 17.25" W × 5.5" H × 17.94" D
• Rack Size: 3U
• Rack Ears: Included
• Weight: 24.9 lbs / 11.3 kg
• Standard Warranty: 5 Years
• Warranty Transferable: Yes

Experience Trinnov Altitude16 at The Grid HiFi

The Altitude16 isn't a processor you buy simply because you need more channels. Its real advantage is what it allows an experienced theater designer and calibrator to do with those channels.

Speaker locations, subwoofer placement, crossover design, bass management, room acoustics, amplification, seating positions, and final calibration all determine how much performance the Altitude16 ultimately delivers.

The Grid HiFi is your Trinnov and high-performance private cinema expert in Houston, providing complete theater design, equipment specification, installation, programming, acoustic integration, and professional system calibration.

Our team can design the speaker and subwoofer architecture around the Altitude16, engineer a Trinnov WaveForming system where appropriate, specify amplification, integrate the processor with Control4 and the rest of the home's technology, and professionally calibrate the finished room using Trinnov's advanced Optimizer tools.

From speakers, subwoofers and amplification to projection, screens, acoustic treatment, lighting, seating, networking, automation, equipment racks, installation, and final calibration, The Grid can design and deliver the entire private cinema.

Contact The Grid HiFi for Trinnov Altitude16 pricing, demonstrations, system design, WaveForming design, installation, upgrades, and professional calibration.
