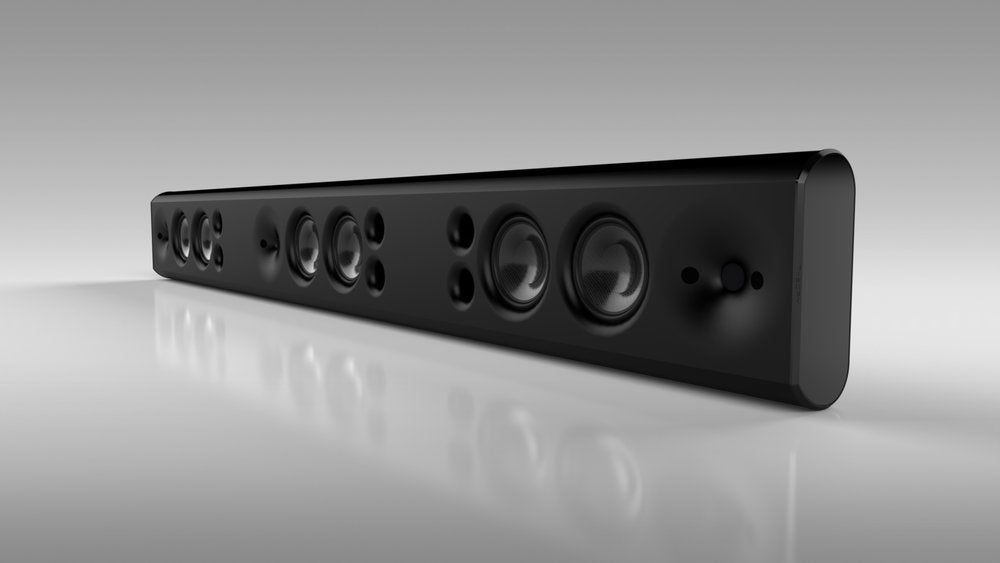

Theory Audio Design sb85 Three-Channel Soundbar

The Theory Audio Design sb85 is a high-output, three-channel passive soundbar engineered to deliver cinematic performance in luxury home theaters and premium living spaces. Designed to complement 85-inch televisions, it combines six 5-inch carbon-fiber woofers, three 1.4-inch compression drivers and three independently ported enclosures in a slim, architectural aluminum cabinet.

With bass extension to 54 Hz, wide 125-degree dispersion and more than 124 dB of maximum combined output, the sb85 offers the dynamic capability of a dedicated front speaker system without the visual footprint of separate left, center and right loudspeakers. Paired with compatible Theory amplification and model-specific DSP processing, it provides a streamlined solution for demanding home theater installations.

Theory Professional

Three Independent Channels for Cinematic Sound

The sb85 houses three separate ported enclosures, each containing two 5-inch carbon-fiber low-frequency drivers and a 1.4-inch Advanced Polymer compression driver. This arrangement provides dedicated left, center and right channels for accurate stereo imaging, clear dialogue and powerful soundtrack reproduction.

Its ported design extends low-frequency response to 54 Hz (-6 dB), delivering substantial bass performance from a cabinet measuring just 3.8 inches deep. The sb85 can also be paired with Theory subwoofers and surround speakers to create a complete multichannel home theater system.

High-Output Performance and Wide Dispersion

Combined maximum output

124+ dB

Three channels driven

Sound coverage

125°

Conical dispersion

Frequency response (-6 dB)

54 Hz–23 kHz

Continuous power handling

400 W

Per channel

Manufacturer-published specifications.

Theory Professional

Each channel can deliver up to 117 dB SPL at one meter, with combined output exceeding 124 dB when all three channels are driven. This substantial output capability provides the dynamic headroom required for action-packed movie soundtracks and high-resolution music.

The sb85's 125-degree conical dispersion helps maintain tonal consistency across wide seating arrangements, making it suitable for expansive living rooms and dedicated media spaces.

Architectural Design for 85-Inch Displays

Measuring 75.2 inches wide, the sb85 is proportioned to complement an 85-inch television, creating a cohesive appearance in premium entertainment installations.

Its powder-coated and anodized aluminum enclosure provides a rigid foundation for the nine-driver array, while a black fabric grille maintains a discreet architectural aesthetic.

The slim 3.8-inch cabinet can be installed directly against a wall using the included Theory Z-Clip brackets, resulting in a total installed depth of just 3.93 inches. An optional sb-STAND accessory allows placement on entertainment consoles, tabletops and other suitable flat surfaces.

Dedicated Theory Amplification and DSP

Unlike conventional powered soundbars, the sb85 requires three channels of compatible Theory loudspeaker controller amplification with model-specific Theory-certified DSP processing.

Each channel operates independently, allowing the controller to provide appropriate equalization, crossover management and loudspeaker protection. This architecture also enables the sb85 to become the front soundstage of a larger Theory surround sound system.

Technical Specifications

Theory Professional

Key Features

• Three independent left, center and right speaker channels

• Six 5-inch carbon-fiber low-frequency drivers

• Three 1.4-inch Advanced Polymer compression drivers

• Three individually ported enclosures for extended bass response

• Designed to complement 85-inch televisions

• Greater than 124 dB SPL with all three channels driven

• 400-watt continuous and 800-watt peak power handling per channel

• Wide 125-degree conical coverage

• Frequency response extending to 54 Hz (-6 dB)

• Slim, 3.8-inch-deep aluminum enclosure

• Black fabric grille

• Integrated Theory VersaSlot mounting system

• Included Z-Clip wall-mounting brackets

• Optional sb-STAND for tabletop placement

• Requires three channels of Theory amplification and model-specific DSP processing

Installation and System Integration

The included Z-Clip brackets provide low-profile wall mounting, while the optional sb-STAND accommodates installations using entertainment consoles or other suitable flat surfaces.

For a complete home theater, the sb85 can be paired with compatible Theory subwoofers, surround loudspeakers and multichannel amplification.

Custom Home Theater Design at The Grid HiFi

The Grid HiFi in Houston, Texas, designs and installs premium Theory Audio Design systems for luxury residences, dedicated home theaters and sophisticated living spaces. Our team provides speaker placement, compatible amplification, DSP calibration and Control4 integration to create a complete entertainment system tailored to your room.

Whether you're designing an elegant living room around an 85-inch television or building a fully integrated surround sound system, The Grid can help incorporate the Theory sb85 into a professionally engineered home theater.
