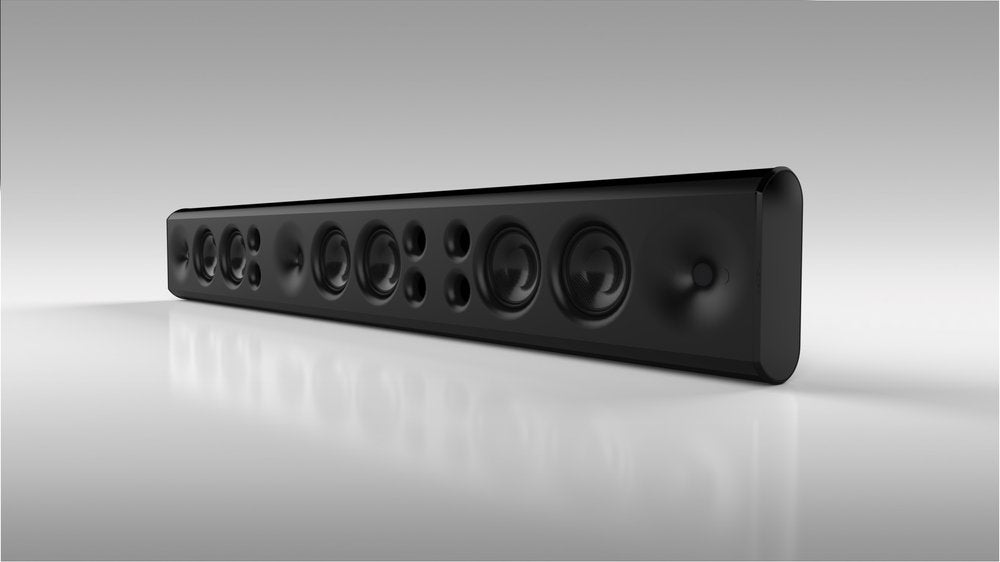

Theory Audio Design sb75 High-Output Three-Channel Soundbar

The Theory Audio Design sb75 delivers the power, clarity and dynamics of a dedicated home theater system in a sleek architectural soundbar designed to complement 75-inch televisions. Featuring six 5-inch carbon-fiber woofers, three 1.4-inch compression drivers and three independently ported enclosures, the sb75 provides true left, center and right channel reproduction without the visual footprint of conventional speakers.

Unlike typical powered soundbars, the sb75 is a passive, high-performance loudspeaker system designed to operate with three channels of Theory amplification and model-specific DSP processing. Its extended bass response, wide dispersion and substantial dynamic capability make it suitable for luxury living rooms, dedicated media rooms and custom home theater installations.

Theory Professional

Three Independent Channels for Cinematic Sound

The sb75 incorporates three separate ported enclosures, each housing two 5-inch carbon-fiber low-frequency drivers and a 1.4-inch Advanced Polymer compression driver. This configuration provides dedicated left, center and right channels, delivering stereo separation, clear dialogue and the dynamic range required for demanding movie soundtracks.

Its ported design extends bass response to 54 Hz (-6 dB), providing substantial low-frequency performance from a cabinet measuring just 3.8 inches deep. Paired with compatible Theory subwoofers and surround speakers, the sb75 can serve as the front soundstage of a complete multichannel home theater.

High-Output Performance and Wide Dispersion

Combined maximum output

124+ dB

All three channels driven

Horizontal and vertical coverage

125°

Conical dispersion

Frequency response (-6 dB)

54 Hz–23 kHz

Continuous power handling

400 W

Per channel

Manufacturer-published specifications.

Theory Professional

With a maximum output of 117 dB SPL per channel at one meter and more than 124 dB with all three channels operating, the sb75 offers substantial headroom for cinematic soundtracks and high-resolution music.

Its 125-degree conical dispersion helps maintain consistent tonal balance across wide seating arrangements, making it well suited to larger living rooms and dedicated media spaces.

Architectural Design for 75-Inch Displays

Measuring 66 inches wide, the sb75 is proportioned to match the width of a typical 75-inch television, creating a cohesive appearance in premium entertainment installations.

Its powder-coated and anodized aluminum enclosure provides a rigid foundation for the six woofers and three compression drivers. A black fabric grille conceals the driver array, maintaining a clean architectural aesthetic.

The slim 3.8-inch cabinet can be installed directly against a wall using the included Theory Z-Clip brackets, resulting in a total installed depth of approximately 3.93 inches. An optional sb-STAND accessory allows placement on entertainment consoles, tabletops and other suitable flat surfaces.

Dedicated Theory Amplification and DSP

The sb75 requires three channels of compatible Theory loudspeaker controller amplification with model-specific Theory-certified DSP processing.

Each of its three channels operates independently, allowing the controller to apply the appropriate equalization, crossover management and loudspeaker protection.

This architecture also allows the sb75 to be integrated into larger surround sound systems using compatible Theory architectural speakers and subwoofers.

Technical Specifications

Theory Professional

Key Features

• Three independent left, center and right channels

• Six 5-inch carbon-fiber low-frequency drivers

• Three 1.4-inch Advanced Polymer compression drivers

• Three individually ported enclosures for extended bass response

• Designed to complement 75-inch televisions

• More than 124 dB SPL with all three channels driven

• 400-watt continuous and 800-watt peak power handling per channel

• Wide 125-degree conical coverage

• Frequency response extending to 54 Hz (-6 dB)

• Slim, 3.8-inch-deep aluminum enclosure

• Black fabric grille

• Integrated Theory VersaSlot mounting system

• Included Z-Clip wall-mounting brackets

• Optional sb-STAND for tabletop placement

• Requires three channels of Theory amplification and model-specific DSP processing

Installation and System Integration

The included Z-Clip brackets provide a low-profile wall installation, while the optional sb-STAND accommodates installations using entertainment consoles or other suitable flat surfaces.

For a complete home theater, the sb75 can be paired with compatible Theory subwoofers, surround loudspeakers and multichannel amplification.
