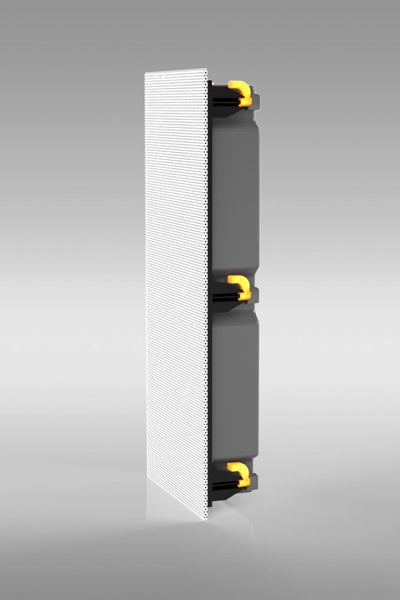

Theory Audio Design iw25 In-Wall Loudspeaker

The Theory Audio Design iw25 is a high-output architectural in-wall loudspeaker engineered to deliver the performance of a premium cabinet speaker without occupying valuable floor space. Combining dual 5-inch carbon-fiber woofers, a 1.4-inch compression driver and an integrated sealed enclosure, the iw25 delivers powerful, wide-bandwidth sound for luxury residences, dedicated home theaters and commercial audio installations.

Based on Theory's sb25 loudspeaker, the iw25 retains its acoustic performance in a purpose-built, flush-mounted design. With exceptionally wide dispersion, a frequency response extending to 51 Hz and up to 123 dB peak output, it is designed for applications requiring substantial dynamics, accurate reproduction and minimal visual impact.

Theory Professional

High-Output Performance in an Architectural Design

The iw25 features two 5-inch Theory carbon-fiber low-frequency drivers paired with a 1.4-inch Advanced Polymer compression driver. This driver configuration provides the output and dynamic capability required for demanding foreground music and home theater applications while maintaining the discreet appearance of an architectural loudspeaker.

Its integrated enclosure helps deliver consistent acoustic performance regardless of the surrounding wall cavity. With bass extension to 51 Hz (-6 dB) and a maximum peak output of 123 dB SPL at one meter, the iw25 is designed to reproduce everything from delicate musical passages to demanding movie soundtracks.

Wide, Uniform Sound Coverage

The iw25 delivers 125-degree conical coverage at -6 dB and 160-degree coverage at -12 dB, providing consistent sound across a broad listening area.

This dispersion makes it suitable for expansive living rooms, open-concept spaces, dedicated media rooms and commercial environments where uniform coverage is essential. Its controlled off-axis response is designed to maintain tonal consistency as listeners move away from the primary listening position.

Theory's published Klippel measurements demonstrate the loudspeaker's broad horizontal and vertical dispersion, including extended high-frequency coverage across a wide listening area.

Theory Professional

Fully Enclosed, Low-Profile Installation

The iw25 uses a molded ABS frame with an integrated powder-coated steel back can. Its fully enclosed design eliminates the need to rely on the wall cavity as an acoustic enclosure, helping provide predictable performance across different installation environments.

With an installed depth of just 3.4 inches, the iw25 can be incorporated into a wide range of architectural designs. Six retractable mounting clamps secure the loudspeaker in place, while the included white rectangular metal grille provides a clean, discreet appearance.

An optional paintable all-weather grille is also planned for installations requiring additional environmental protection. Confirm accessory availability before ordering.

Flexible Low-Impedance and Distributed Audio Operation

The iw25 supports conventional 4-ohm operation as well as selectable 70V/100V distributed audio through its integrated transformer.

Transformer taps of 60W, 30W, 15W and 7.5W at 70V allow the loudspeaker to accommodate a variety of system designs, from dedicated residential listening rooms to larger commercial installations.

The iw25 requires a compatible Theory amplified loudspeaker controller and model-specific Theory-certified DSP processing to achieve its intended performance.

Technical Specifications

Theory Professional

Key Features

• Dual 5-inch carbon-fiber low-frequency drivers

• 1.4-inch Advanced Polymer compression driver

• Fully enclosed architectural in-wall design

• Frequency response extending to 51 Hz (-6 dB)

• Up to 123 dB peak SPL

• Wide 125-degree conical coverage

• Selectable 4-ohm and 70V/100V operation

• Integrated transformer with multiple power taps

• Shallow 3.4-inch installation depth

• Powder-coated steel back can

• Six retractable mounting clamps

• Euroblock connector with parallel output

• Included white rectangular grille and cutout template

• Compatible with Theory-certified DSP processing

Included Accessories

The iw25 includes a white rectangular indoor grille and installation cutout template. Optional accessories include a white paintable indoor grille and a paintable all-weather grille, which the manufacturer lists as coming soon.

Custom Architectural Audio at The Grid HiFi

The Grid HiFi in Houston, Texas, designs and installs high-performance Theory Audio Design systems for luxury residences, dedicated home theaters and commercial environments. Our team can integrate the iw25 into a complete architectural audio system with carefully planned speaker placement, compatible Theory amplification, DSP calibration and Control4 automation.

Whether you're designing a discreet two-channel listening system or a fully integrated home theater, The Grid provides professional system design and installation tailored to your space.
