Overview

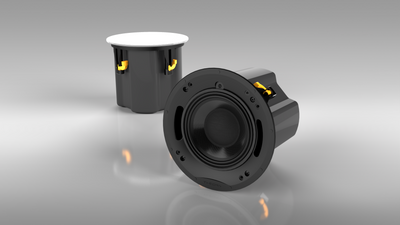

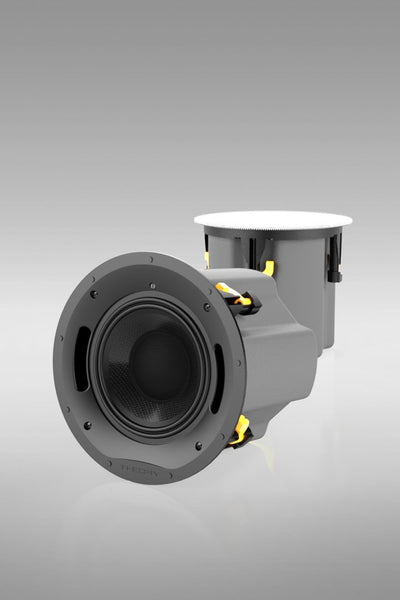

The Theory ic6 high-output in-ceiling loudspeaker will change your expectations of small-format, high-efficiency in-ceiling loudspeakers. Via careful processing and computer-optimized tuned ports, the ic6 delivers exceptional low-frequency bandwidth, punch and resolution. Even when used in foreground music applications - no subwoofer is necessary.
But that’s not all. The ic6 offers extremely wide dispersion to highest frequencies (refer to the ic6 Pendant measurements for data), so the coverage area is massive, even when installed in low ceilings.
This is the highest performance 6” ceiling speaker available.
16-ohm and 70V/100V operation.
| Description: | 6.5” High-output Weather Resistant In-Ceiling Loudspeaker System |
| Operation: | Passive, Requires 1 Theory Loudspeaker Controller Amp Channel |
| 16-ohms or 70V/100V Operation, Selectable | |
| DSP Requirements: | Requires Model-Specific Theory-Certified DSP Loudspeaker Processing |
| Drivers: | 1 x 6.5" THEORY Coaxial Driver: |
| 6.5” Carbon Fiber Low Frequency Driver | |
| 1.4" THEORY AdvancedPoly™ Compression Driver | |
| Enclosure: | Molded ABS Frame with Powder Coated Steel Integral Back Can |
| Terminals: | Euroblock Connector with Parallel Output |
| Outdoor Capability: | Indoor and Outdoor Use (when used with optional ic6 all-weather grille) |
| Mounting Points: | 4 x Retractable Dog Ears |
| Bandwidth: | 68Hz -23kHz, -6dB; |
| 58Hz - 25kHz, -10dB | |
| Coverage: | 125 Degrees Conical (-6dB @ 10kHz) |
| 172 Degrees Conical (-12dB @ 9.8kHz) | |
| Sensitivity: | 92dB (LF); 106dB (HF) SPL/2.83V/1m |
| Power Handling: | 100W (AES); |
| 200W (Continuous); | |
| 400W (Peak) | |
| Minimum Recommended Power: | 50W rms |
| Maximum Output: | 112dB SPL / 1m (based on AES power rating) |
| 118dB SPL / 1m (peak) | |
| Nominal Impedance: | 16-ohms; Hi-Z (70V/100V) Selectable |
| Transformer Taps: | 60W, 30W, 15W, (7.5W, 70V) |
| Colors: | White Perforated Paintable Metal Grille |
| Dimensions: | Speaker: 9.2" DIAMETER (234mm) x 8.6" D (218mm) |
| Round Grille: 9.4” DIAMETER (239mm) x 0.16” D (4mm) | |
| Square Grille: 9.4” SQ. (239mm) x 0.16” D (4mm) | |
| Cutout: 8-9/16” DIAMETER (217mm) | |
| Total Installed Depth: | 8.5" (216mm) |
| Maximum Wall Thickness: | 1.5" (38mm) |
| Net Weight: | 12.5 lbs. (5.67kg) |
| Included Accessories: | White Paintable Round Indoor Grille |
| White Paintable Square Indoor Grille | |
| Cutout Template | |
| Optional Accessories: | Pre-construction Bracket |
| Ceiling Tile Bridge | |
| Pendant Housing - Matte White | |
| Pendant Housing - Matte Black | |
| White Paintable All-Weather Grille | |
| Safety Certifications: | UL-2043, CAN/ULC S142 |
| Safe for use in air handling spaces |
