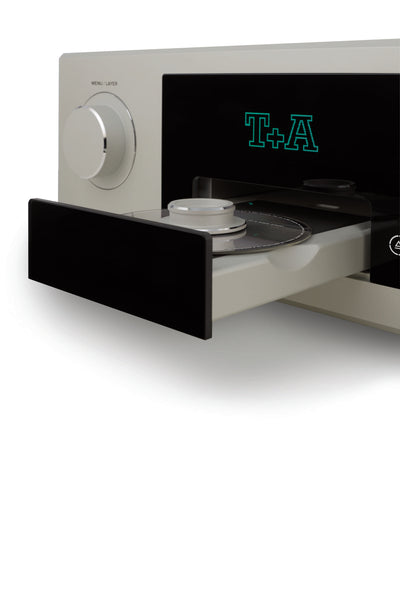

T+A PDT 3100 HV Reference CD/SACD Transport

HV Series Reference Disc Transport • Precision Linear-Tracking Mechanism • Dual-Laser CD/SACD Playback • High-Resolution IPA Link • AES/EBU, BNC, Coaxial and Optical Digital Outputs • Solid Aluminum Construction

Complimentary White Glove Delivery • Private Auditions • Travel Reimbursement Available*

The T+A PDT 3100 HV is a reference-grade CD and SACD transport engineered in Germany for uncompromising digital disc playback. Unlike conventional CD players, the PDT 3100 HV contains no internal digital-to-analog converter. Its sole purpose is to read Compact Discs and Super Audio CDs with exceptional mechanical precision and deliver their digital audio data to an external reference DAC.

At its core is T+A's proprietary high-precision linear-tracking disc mechanism, featuring separate laser systems for CD and SACD, a heavily shielded aluminum drive assembly and a sophisticated three-point suspension system.

The PDT 3100 HV provides AES/EBU, coaxial RCA, BNC and optical digital outputs, along with T+A's proprietary high-resolution IPA Link, which transfers both PCM and DSD data to compatible T+A HV Series converters.

Designed to partner with the T+A SD 3100 HV and SDV 3100 HV, the PDT 3100 HV is a dedicated digital source for reference two-channel audio systems built around physical music collections.

Precision Linear-Tracking CD/SACD Mechanism

The PDT 3100 HV uses a purpose-built disc mechanism developed specifically for high-performance audio playback.

Its precision linear-tracking drive incorporates advanced servo control, high-performance motors and a dual GaAlAs laser system with separate wavelengths for each disc format:

• 785nm laser: CD playback

• 650nm laser: SACD playback

T+A's Optimized Speed mechanism controls disc rotation and data retrieval to support reliable reading of both formats.

The transport supports standard CDs, recordable and rewritable CDs, stereo SACDs and compatible CD/SACD text information.

Massive Aluminum Drive Assembly and Mechanical Isolation

The PDT 3100 HV's transport mechanism is housed inside a substantial shielded enclosure machined from solid aluminum.

The complete mechanism is supported by two precision linear bearings mounted to a thick carrier plate. That assembly connects to the central chassis through only three carefully engineered mounting points.

This mechanically decoupled architecture reduces the transmission of external vibration into the disc mechanism and limits interaction between moving components and sensitive electronics.

The transport's solid aluminum chassis provides additional structural rigidity and electromagnetic shielding. At 29kg (approximately 64 pounds), the PDT 3100 HV is built around mechanical stability rather than compact packaging.

High-Resolution IPA Link for PCM and DSD

T+A's proprietary IPA Link (LVDS) provides a dedicated digital connection between the PDT 3100 HV and compatible T+A reference DACs.

Unlike conventional S/PDIF connections, which generally transmit the CD-compatible PCM layer of hybrid SACDs, the IPA Link is designed to transfer native PCM and DSD digital data from the disc mechanism to compatible T+A converters.

This makes the PDT 3100 HV an ideal companion for the SD 3100 HV and SDV 3100 HV, allowing these systems to reproduce the high-resolution DSD content of SACD recordings.

For conventional CD playback, the transport also provides multiple standard digital outputs for integration with other high-performance DACs.

AES/EBU, BNC, Coaxial and Optical Digital Connectivity

The PDT 3100 HV includes a comprehensive selection of digital outputs:

• AES/EBU: Professional balanced digital audio connection

• Coaxial RCA: Standard S/PDIF digital output

• BNC: High-quality coaxial digital connection

• Optical TOSLINK: Optical S/PDIF connection

• IPA Link: Proprietary high-resolution PCM/DSD connection

The conventional AES/EBU and S/PDIF outputs support digital signals up to 24-bit/192kHz, subject to the source format and output configuration.

LAN and dual H-Link connections support communication and integration within compatible T+A HV Series systems.

HV Series Reference Construction

The PDT 3100 HV follows T+A's High Voltage Series engineering philosophy, combining precision electronics with substantial mechanical construction.

Its enclosure uses closely toleranced aluminum components, a rigid internal structure and extensive shielding to minimize unwanted interaction between the transport mechanism and external electrical or mechanical disturbances.

Available in Silver 47 and Titanium 64 finishes, the PDT 3100 HV matches the industrial design of T+A's reference amplifiers, preamplifiers and digital converters.

Technical Specifications

Specification	Details
Brand	T+A
Model	PDT 3100 HV
Series	HV Series
Product Type	Reference CD/SACD Transport
Design	Dedicated Digital Disc Transport
Internal DAC	None, External DAC Required
Drive Mechanism	High-Precision Linear Tracking
Drive Technology	Optimized Speed
Laser System	Dual GaAlAs Lasers
CD Laser Wavelength	785nm
SACD Laser Wavelength	650nm
Supported Disc Formats	CD, CD-R, CD-RW, Stereo SACD
Text Support	CD Text, SACD Text
CD Frequency Range	2Hz–20kHz
CD Dynamic Range	100dB
SACD Frequency Range	2Hz–44kHz
SACD Dynamic Range	110dB
AES/EBU Digital Output	1 × AES/EBU
Coaxial RCA Output	1 × S/PDIF
BNC Digital Output	1 × S/PDIF
Optical Digital Output	1 × TOSLINK
Conventional Digital Output Capability	32–192kHz, 16–24 Bit
Proprietary Digital Output	1 × IPA Link (LVDS)
IPA Link Signal Support	PCM and DSD
Network Connection	LAN
System Control	2 × H-Link
Mechanism Enclosure	Shielded, Machined Aluminum
Mechanism Support	Dual Linear Bearings
Mechanical Isolation	Three-Point Suspended Carrier Assembly
Chassis	Solid Aluminum
Power Requirements	110–120V or 220–240V AC, 50/60Hz
Operating Power Consumption	40W
Standby Power Consumption	Less Than 0.5W
Height	6.69" / 170mm
Width	18.11" / 460mm
Depth	18.11" / 460mm
Net Weight	63.9 lb / 29kg
Available Finishes	Silver 47, Titanium 64
Included Accessories	Power Cord, F 3100 Remote Control, CD Stabilizer, IPA Bus Cable
Optional Accessories	Power Three HD Carbon, Power Bar, Audio Triax Carbon, HV Individual Finish

T+A PDT 3100 HV at The Grid HiFi

Reference Digital Audio System Design

The Grid HiFi specializes in reference digital audio, ultra-high-end two-channel systems and complete listening room engineering.

The T+A PDT 3100 HV is designed for collectors who want to preserve and enjoy their CD and SACD libraries through a dedicated, precision-engineered transport.

Our team can configure complete T+A HV Series systems incorporating the PDT 3100 HV, SD 3100 HV or SDV 3100 HV digital converters, P 3100 HV preamplifier and matching reference power amplifiers.

The Grid HiFi provides:

• Private reference audio consultations

• CD/SACD transport and DAC matching

• High-resolution PCM and DSD system integration

• Digital interconnect and power system selection

• Complete two-channel audio system design

• Professional installation and commissioning

• Nationwide concierge service for qualifying purchases

Private Auditions and White Glove Ownership

Complimentary White Glove Delivery • Travel Reimbursement Available*

Qualifying purchasers may receive airfare reimbursement for a private audition when completing an eligible purchase.

Considering the T+A PDT 3100 HV? Let The Grid HiFi build your reference digital playback system. Call (713) 218-8120 to arrange a private consultation.

*Restrictions apply. Contact The Grid HiFi for eligibility and details.

Frequently Asked Questions

What is the T+A PDT 3100 HV?

The T+A PDT 3100 HV is a reference CD/SACD transport featuring a precision linear-tracking mechanism, dual-laser optical pickup and mechanically isolated aluminum drive assembly. It reads digital audio discs and sends their data to an external DAC.

Does the T+A PDT 3100 HV have a built-in DAC?

No. The PDT 3100 HV is a dedicated digital transport without an internal digital-to-analog converter. An external DAC is required for analog audio playback.

Can the PDT 3100 HV play SACDs?

Yes. It supports stereo Super Audio CDs as well as standard CDs, CD-R and CD-RW discs. Native SACD DSD transmission requires the proprietary IPA Link and a compatible T+A DAC.

Which DACs work with the PDT 3100 HV?

The PDT 3100 HV is designed for reference systems using T+A's SD 3100 HV and SDV 3100 HV converters through IPA Link. Its conventional AES/EBU, coaxial RCA, BNC and optical outputs also allow CD-compatible digital playback with many other external DACs.

What is T+A IPA Link?

IPA Link is T+A's proprietary high-resolution digital interface using LVDS transmission. It transfers PCM and DSD data between compatible T+A components, including SACD data that conventional S/PDIF connections do not normally carry.
