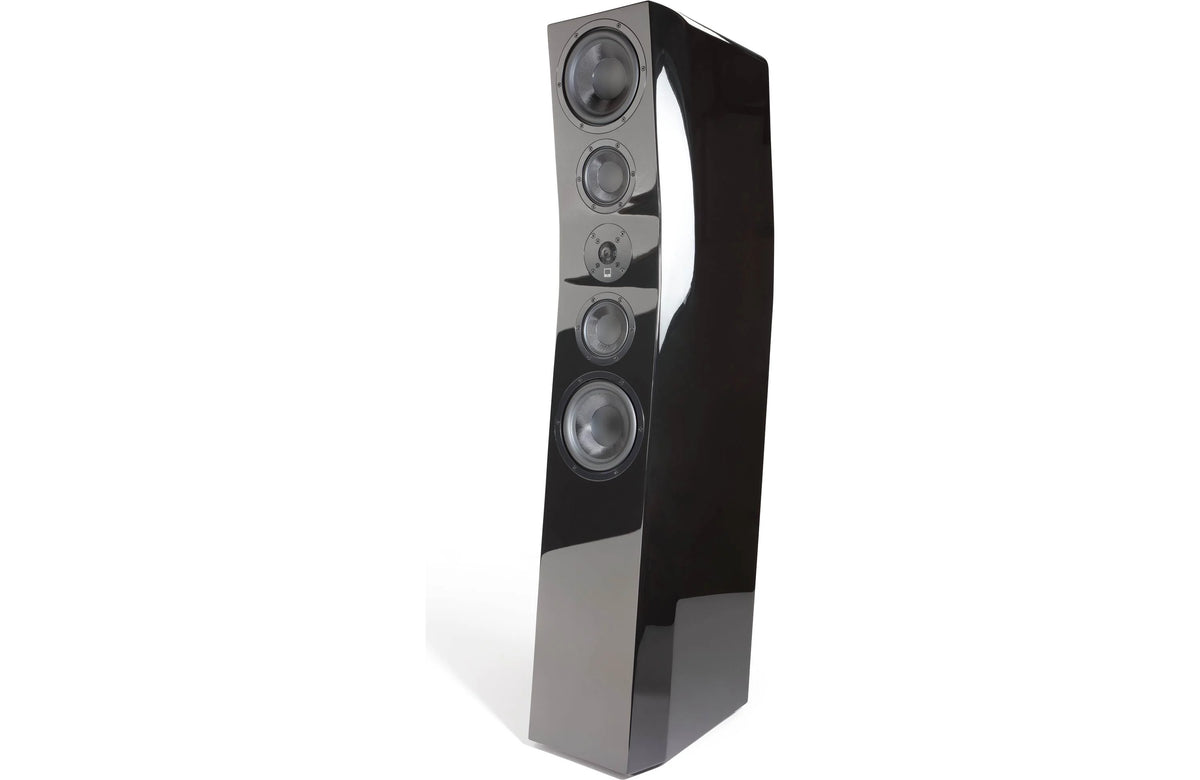

SVS Ultra Evolution Titan – 3-Way Floorstanding Speaker in Gloss Black

Reference-level engineering. Effortless dynamics. Bass you can feel without sacrificing the details.

The SVS Ultra Evolution Titan brings together advanced driver technology, innovative cabinet design, and serious low-frequency capability in a floorstanding speaker built for both high-performance stereo and immersive home theater.

At its heart is an ambitious eight-driver configuration: four 6.5-inch woofers, two dedicated 4.5-inch midrange drivers, a diamond-coated aluminum dome tweeter, and a cabinet designed to bring their output into precise acoustic alignment.

The Titan sits just below the flagship Ultra Evolution Pinnacle, delivering much of the same engineering philosophy in a slightly smaller enclosure. With bass extension down to 27Hz and a frequency response reaching 40kHz, it's designed to reproduce music and movie soundtracks with scale, precision, and authority.

Key Features

• Acoustically Centered Time Alignment: A curved front baffle positions the drivers to improve phase coherence, imaging, and soundstage accuracy.

• Diamond-Coated Aluminum Dome Tweeter: Vapor-deposited diamond-like carbon increases dome rigidity for extended, detailed high-frequency reproduction.

• Quad 6.5-Inch Glass-Fiber Woofers: Four long-stroke drivers arranged in force-balanced opposing pairs deliver powerful, controlled bass.

• Dual 4.5-Inch Midrange Drivers: Dedicated glass-fiber drivers reproduce vocals and instruments with clarity and dynamic precision.

• Force-Balanced Woofer Architecture: Opposing front- and rear-firing woofers counteract mechanical vibration transmitted to the cabinet.

• Symmetrical Driver Arrangement: Midrange and woofer arrays surround the tweeter to support consistent dispersion and coherent imaging.

• Precision 3-Way Crossover: Premium components integrate the drivers across the frequency spectrum.

• 27Hz–40kHz Frequency Response: Extended bandwidth for demanding music and home theater applications.

• Acoustically Tuned Internal Chambers: Separate enclosures isolate the midrange drivers and optimize woofer performance.

• Premium Cabinet Finishes: Piano Gloss Black, Piano Gloss White, and real Black Oak Veneer.

Acoustically Centered Time Alignment

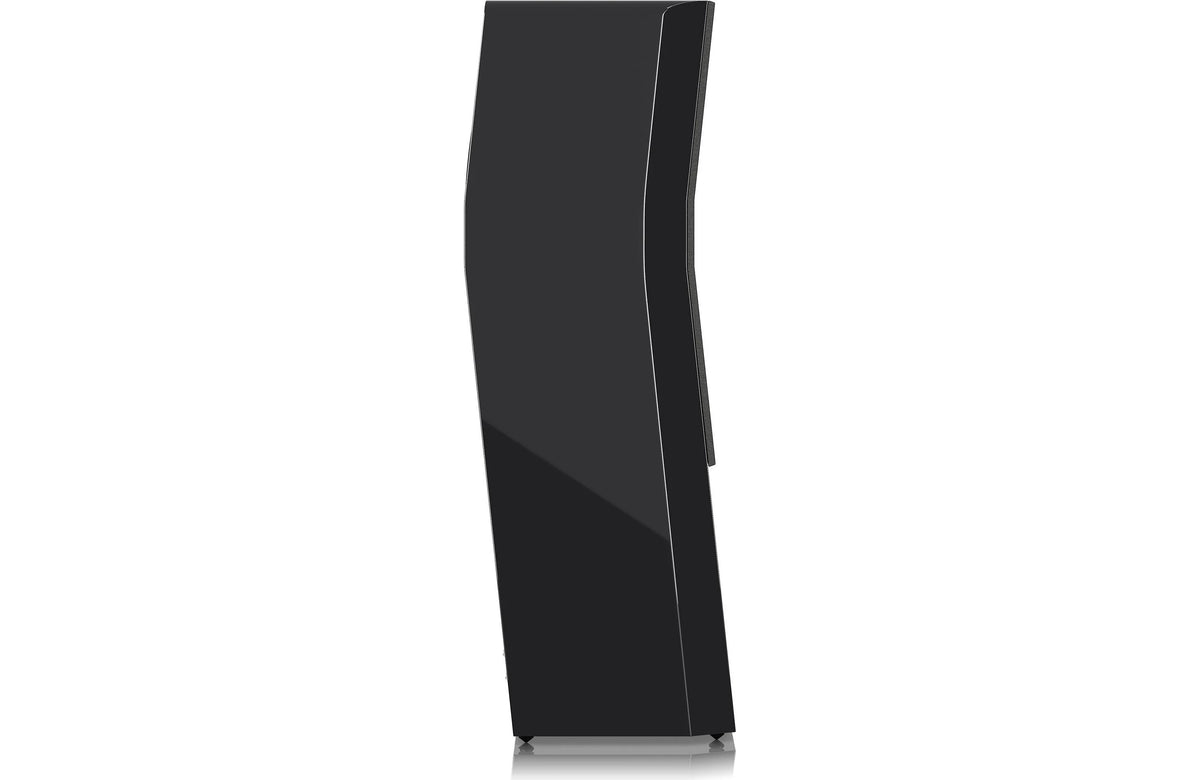

The Ultra Evolution Titan's distinctive curved cabinet isn't simply a styling exercise.

Its front baffle is shaped to align the acoustic centers of the drivers, helping their output reach the listening position in a more synchronized manner.

The tweeter occupies the center of a symmetrical driver arrangement, with the midrange drivers and woofers positioned above and below it.

This geometry is designed to improve phase coherence and create a more unified presentation, helping instruments, vocals, and effects occupy clearly defined positions within the soundstage.

For two-channel listening, that means a design focused on precise imaging and spatial realism. For home theater, it supports a cohesive presentation across complex soundtracks.

Diamond-Coated Tweeter: Detail Without Compromise

At the center of the Titan's driver array is a 1-inch diamond-coated aluminum dome tweeter.

SVS applies a diamond-like carbon coating to the aluminum dome through vapor deposition. This increases rigidity while retaining the lightweight properties necessary for fast, accurate high-frequency reproduction.

An FEA-optimized Organic Cell Lattice Diffuser helps manage dispersion and support a consistent response across the listening area.

The tweeter is engineered to reproduce subtle musical details, delicate high-frequency textures, and demanding cinematic effects with precision.

Four Woofers. One Powerful Low-Frequency Foundation.

The Titan uses four 6.5-inch glass-fiber woofers arranged in two opposing pairs.

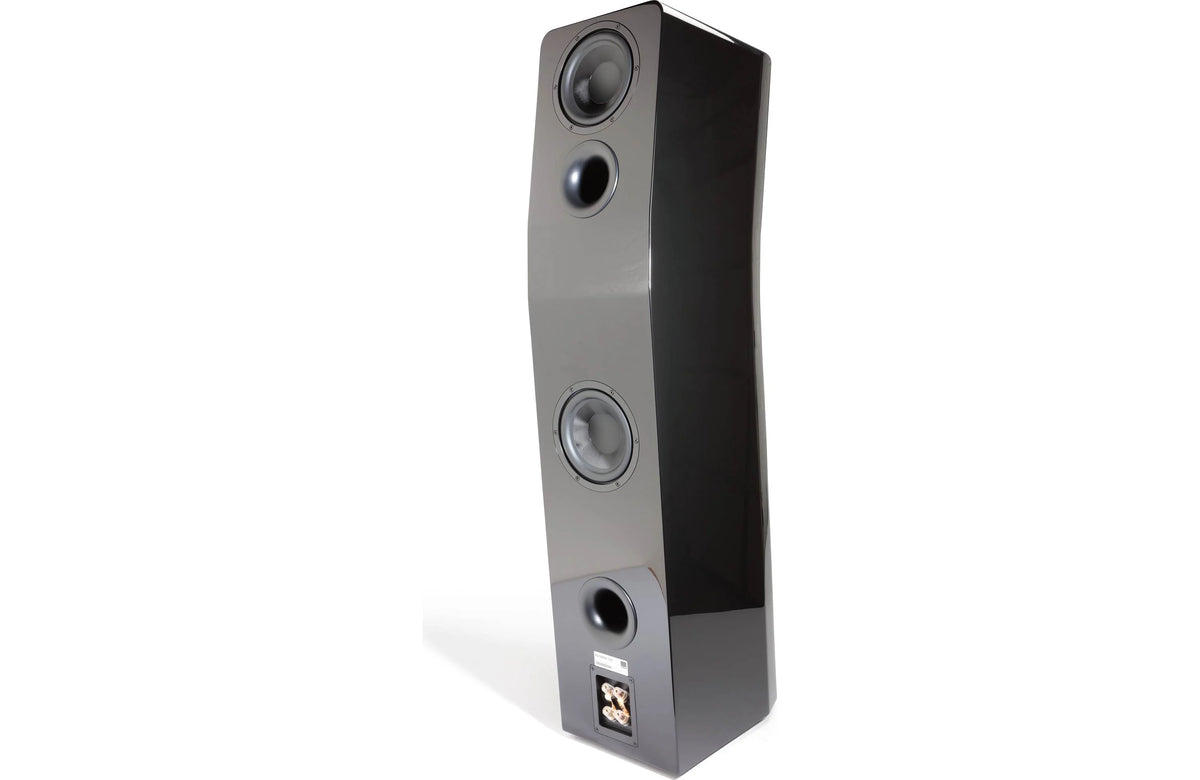

Each front-firing woofer is mechanically balanced by a rear-firing woofer. As the drivers move, their opposing forces help cancel cabinet vibration that could otherwise interfere with the sound.

This force-balanced architecture allows the Titan to generate substantial bass output while minimizing unwanted mechanical coloration.

Dual rear-firing ports and carefully tuned internal chambers support the speaker's extended low-frequency response.

The result is a design intended to deliver the weight of a kick drum, the texture of an acoustic bass, and the impact of a movie soundtrack without sacrificing control.

A Dedicated Midrange for the Music That Matters

The Titan's dual 4.5-inch composite glass-fiber midrange drivers operate in their own sealed acoustic chamber.

By isolating these drivers from the pressure generated by the woofers, SVS helps preserve clarity in the frequencies responsible for vocals, dialogue, guitars, piano, and many other instruments.

The symmetrical placement of the midrange drivers around the tweeter also contributes to the speaker's acoustically centered design.

Whether you're listening to an intimate vocal recording or a complex orchestral passage, the Titan is engineered to keep the midrange articulate and well defined.

Built for Serious Two-Channel HiFi and Home Theater

The Ultra Evolution Titan is designed to be equally comfortable in a dedicated listening room or a high-performance home theater.

In a stereo system, its sophisticated driver arrangement, time-aligned cabinet, and extended bass response make it a compelling choice for listeners seeking a full-range presentation.

In a home theater, the Titan can serve as a formidable front left/right speaker, delivering the dynamic range and low-frequency authority required by demanding movie soundtracks.

Pair it with other speakers from the SVS Ultra Evolution Series for a cohesive multichannel system. A dedicated SVS subwoofer can extend the system's deepest bass and handle the LFE channel.

Technical Specifications

Experience the SVS Ultra Evolution Titan at The Grid HiFi

The Ultra Evolution Titan combines innovative acoustic engineering, substantial bass capability, and refined detail in a floorstanding speaker designed for serious listening.

Whether you're creating a dedicated two-channel system or building a reference-quality home theater, The Grid HiFi in Houston can help you select the right amplification, source components, and complementary speakers.

Contact The Grid for pricing, finish availability, and system recommendations.
