Key Features

• Seven-driver, three-way design: One tweeter, two midrange drivers, and four woofers in each speaker.

• 1-inch diamond-coated aluminum dome tweeter: Designed for extended high-frequency response and detail.

• Dual 5.25-inch glass-fiber midrange drivers: Dedicated drivers for vocals and instruments.

• Four 8-inch glass-fiber woofers: Opposed, force-balanced configuration for powerful bass with reduced cabinet vibration.

• Acoustically centered time alignment: Curved baffle and symmetrical driver arrangement improve acoustic coherence.

• 24Hz–40kHz frequency response: Wide bandwidth with substantial low-frequency extension.

• Dual rear-firing ports: Wide-flared design supports deep bass output.

• Premium three-way crossover: Carefully integrates the bass, midrange, and treble drivers.

• Bi-wire/bi-amp terminals: Dual gold-plated five-way binding posts.

• Three premium finishes: Piano Gloss Black, Piano Gloss White, and real Black Oak Veneer.

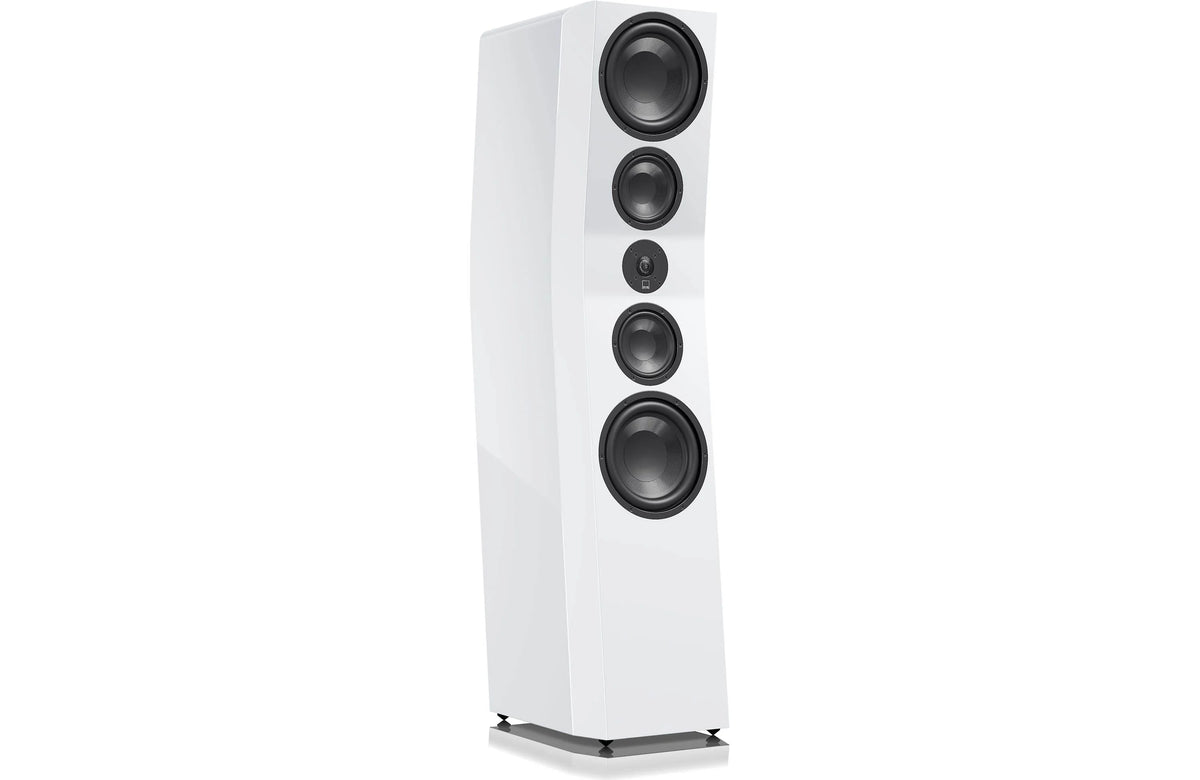

Seven Drivers Working as One

The Ultra Evolution Pinnacle uses an ambitious driver configuration designed to reproduce the entire musical spectrum with clarity and scale.

A centrally positioned tweeter is flanked by two dedicated midrange drivers, while four 8-inch woofers handle the lowest frequencies.

The symmetrical arrangement helps create a cohesive presentation, allowing vocals, instruments, and bass to come together as a unified performance.

Whether you're listening to an intimate jazz recording or a full orchestral performance, the Pinnacle is engineered to reproduce subtle details alongside dramatic changes in volume and intensity.

Acoustically Centered Time Alignment

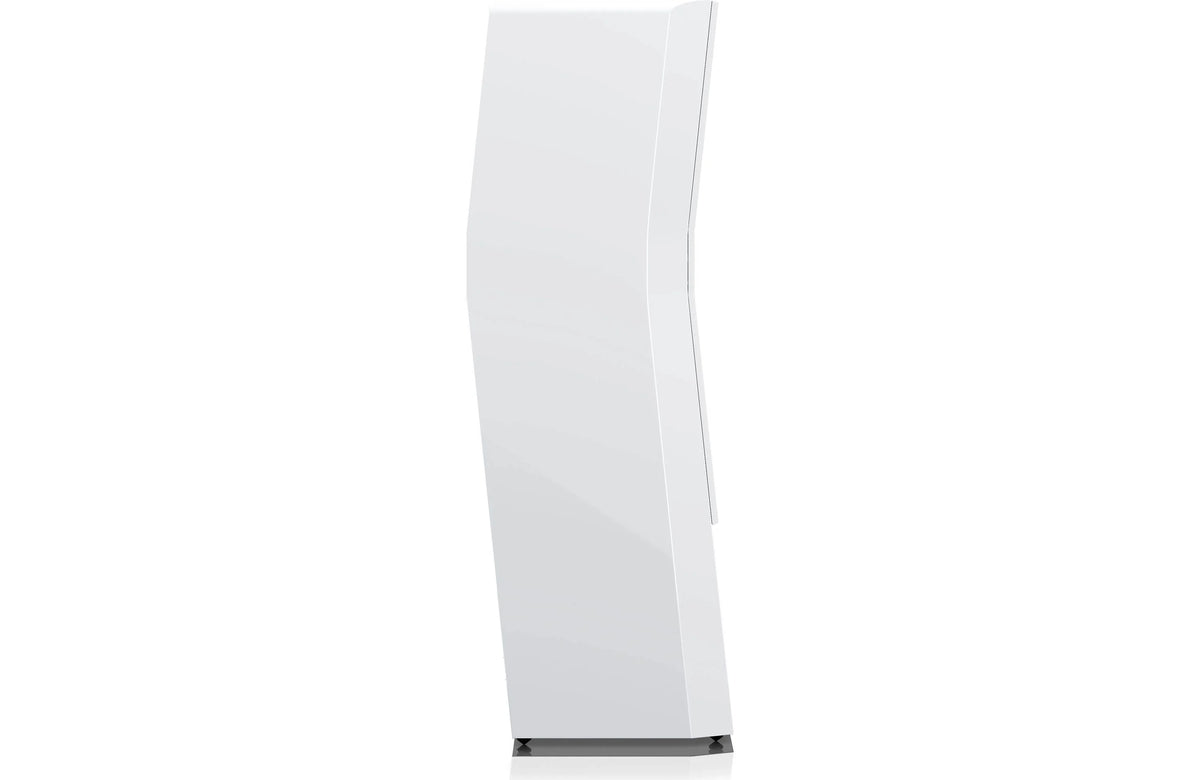

The Pinnacle's curved front baffle is one of its most distinctive engineering features.

Rather than mounting every driver on a flat surface, SVS positions them to align their effective acoustic centers. This helps sound from the tweeter, midrange drivers, and woofers arrive at the listener with improved timing.

The result is designed to improve phase coherence, imaging, and the sense that instruments and voices occupy believable positions within the soundstage.

It's a thoughtful approach to loudspeaker design that serves an acoustic purpose rather than simply creating a dramatic appearance.

Diamond-Coated Tweeter: Detail Without Distraction

The Ultra Evolution Pinnacle features a 1-inch aluminum dome tweeter with a diamond-like carbon coating applied through vapor deposition.

This coating increases the dome's rigidity, helping it maintain its shape during high-frequency movement.

An integrated Organic Cell Lattice diffuser is engineered to improve off-axis response, expanding the useful listening area.

The goal is clear, extended treble that reveals the texture of cymbals, the ambience of a recording venue, and the finest details of a performance without drawing attention away from the music.

Four 8-Inch Woofers. Bass With Authority.

The Pinnacle's bass system is particularly impressive.

Four 8-inch glass-fiber composite woofers are arranged in opposing pairs near the top and bottom of the enclosure. Their force-balanced configuration is designed to cancel mechanical reaction forces that would otherwise contribute to cabinet vibration.

The arrangement provides substantial radiating area for low-frequency reproduction while helping the cabinet remain stable.

With extension down to 24Hz, the Pinnacle can reproduce deep bass fundamentals from orchestral music, electronic recordings, and cinematic soundtracks.

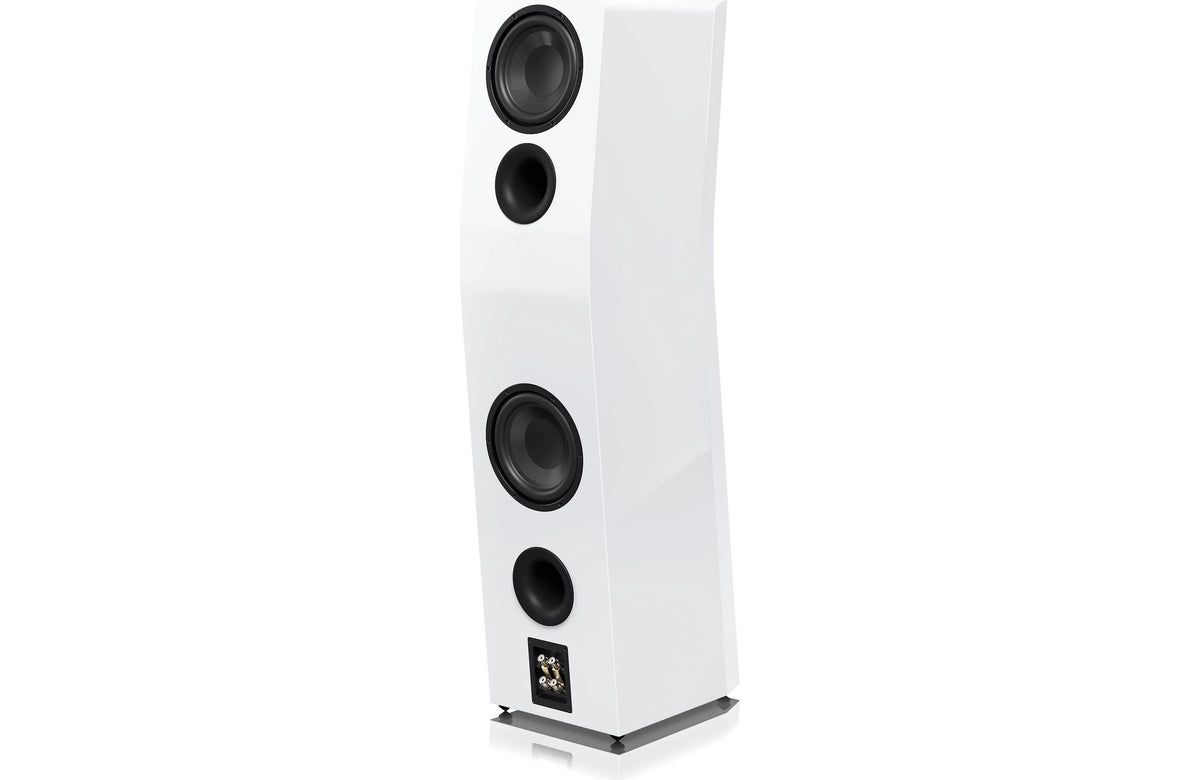

Two rear-firing, wide-flared ports support the system's low-frequency output.

For listeners building a dedicated home theater, a separate subwoofer can still provide additional low-frequency effects and greater placement flexibility.

Built for Serious Listening

The cabinet incorporates dedicated internal chambers for the midrange and woofer systems, extensive bracing, and substantial driver baffles.

A premium three-way crossover blends the seven drivers, with crossover points at 140Hz and 1.8kHz.

Dual gold-plated binding posts support conventional speaker connections as well as bi-wiring or bi-amplification.

Adjustable elastomer feet and metal spikes are included, allowing the speakers to be installed on different flooring surfaces.

At nearly 97 pounds per speaker, the Pinnacle is a substantial loudspeaker that deserves careful positioning and a capable amplifier.

Technical Specifications

Available Finishes

Piano Gloss Black

Piano Gloss White

Black Oak Veneer

Experience the SVS Ultra Evolution Pinnacle at The Grid HiFi

The Ultra Evolution Pinnacle is designed for listeners who want a full-range floorstanding speaker capable of delivering powerful bass, precise imaging, and exceptional detail.

At The Grid HiFi in Houston, we can help you pair the Pinnacle with the right amplification, optimize speaker placement, and build a complete two-channel or home theater system around it.

Contact our team for pricing, availability, and system recommendations.
