SVS Ultra Evolution Elevation – Dolby Atmos & Surround Speaker in Gloss Black

Immersive sound from every direction. Flexible placement. No compromises in speaker engineering.

The SVS Ultra Evolution Elevation brings the advanced driver technology of the Ultra Evolution Series to one of the most important parts of a modern home theater: the speakers that surround you.

Designed for Dolby Atmos height effects and surround sound applications, this compact, angled loudspeaker delivers detailed, dynamic sound while offering exceptional installation flexibility. Mount it on a wall, position it overhead, or configure it for side and rear surround channels using the included multi-angle mounting hardware.

A 5.25-inch glass-fiber composite woofer, diamond-coated aluminum dome tweeter, and precision-engineered two-way crossover deliver an extended frequency response of 48Hz–40kHz.

Unlike upward-firing Atmos modules that rely on sound reflecting off the ceiling, the Ultra Evolution Elevation can be mounted to direct sound toward the listening area, making it an appealing solution for both dedicated theaters and multipurpose media rooms.



Key Features

• Versatile Dolby Atmos and Surround Speaker: Designed for height effects, side surrounds, rear surrounds, and back surround channels.

• Direct-Radiating Design: Can be mounted overhead or high on a wall to direct sound toward the listening area rather than relying on ceiling reflections.

• Diamond-Coated Aluminum Dome Tweeter: Advanced vapor-deposition coating increases rigidity for detailed, extended high-frequency reproduction.

• 5.25-Inch Glass-Fiber Composite Woofer: Engineered for clear midrange, dynamic output, and controlled bass.

• Optimized Angled Front Baffle: Supports effective dispersion in multiple mounting orientations.

• Included Multi-Angle Mounting System: Allows wall or ceiling installation with flexible positioning.

• Organic Cell Lattice Diffuser: Helps optimize tweeter dispersion and off-axis performance.

• 48Hz–40kHz Frequency Response: Wide bandwidth for immersive soundtracks and multichannel music.

• Rigid, Internally Braced Cabinet: Minimizes unwanted resonance and coloration.

• Three Premium Finishes: Piano Gloss Black, Piano Gloss White, and real Black Oak Veneer.






Dolby Atmos That Comes From Above

Dolby Atmos adds height information to a soundtrack, allowing sound designers to place effects above the listener as well as around the room.

There are several ways to reproduce those height channels, but speaker placement matters.

Upward-firing Atmos modules attempt to create overhead effects by bouncing sound off the ceiling. Their effectiveness depends on ceiling height, surface characteristics, and the relationship between the speakers and listening positions.

The Ultra Evolution Elevation offers a different approach.

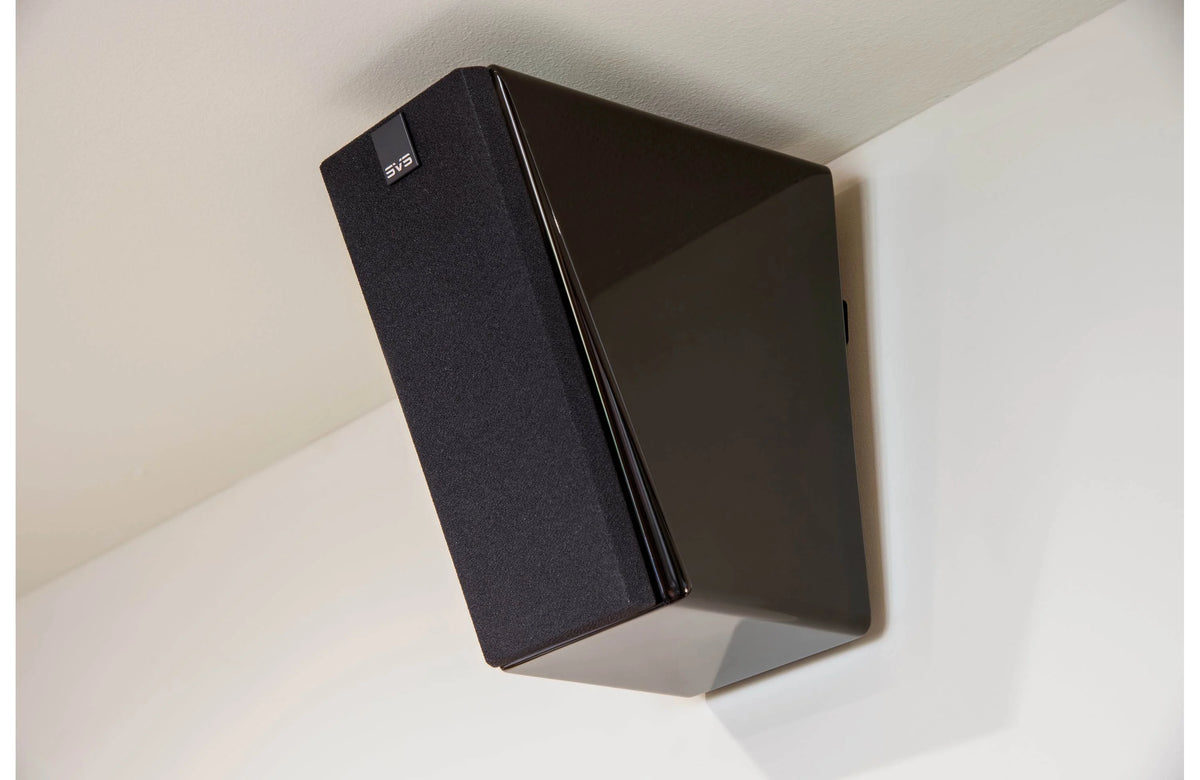

Its included mounting system allows the speaker to be installed directly on the ceiling or high on a wall, directing sound toward the listening area.

That gives home theater designers greater control over speaker placement and makes the Elevation particularly useful when conventional in-ceiling speakers aren't practical.

One Speaker. Multiple Installation Possibilities.

The Ultra Evolution Elevation is designed to adapt to your room rather than forcing your room to adapt to the speaker.

Its angled front baffle and multi-angle mounting bracket support several configurations, including overhead, upward-directed, downward-directed, and side-directed placement.

Use it for front or rear Atmos height channels, side surrounds, or rear surrounds.

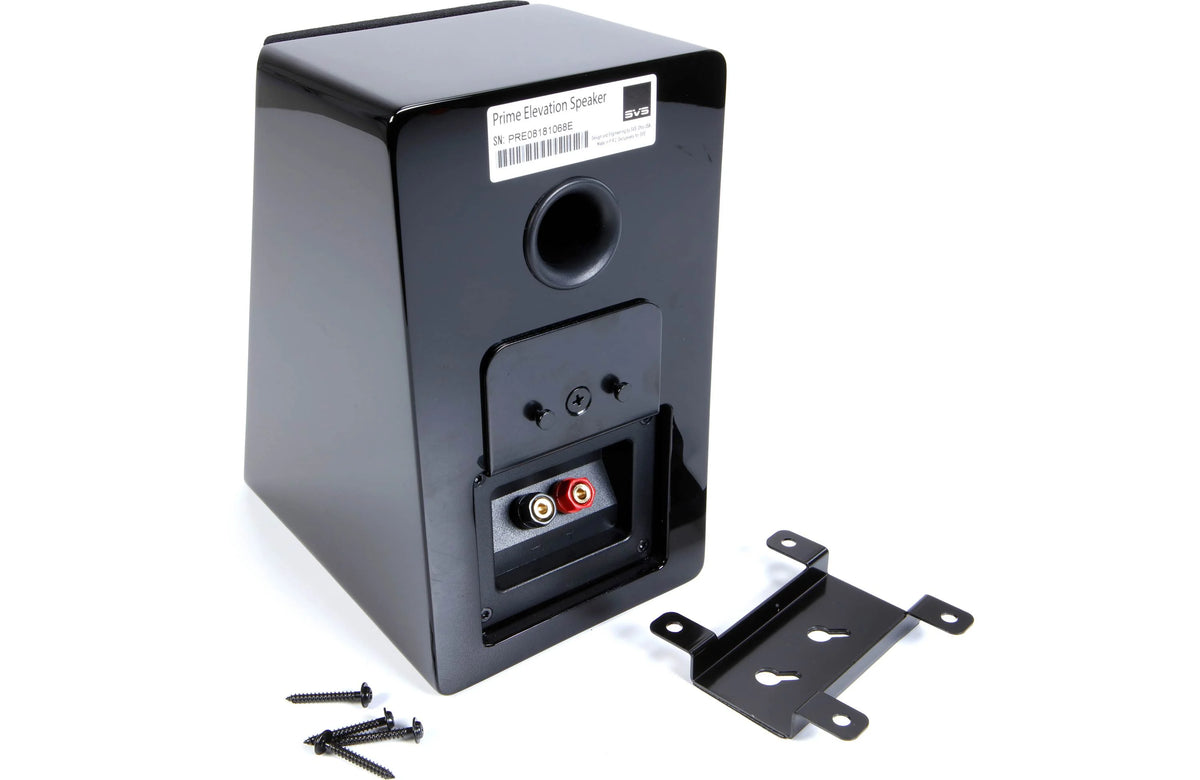

The included hardware supports wall and ceiling mounting, while a magnetic ceiling lock helps secure the speaker in overhead installations.

An integrated 1/4-20 brass insert provides additional mounting compatibility.

This flexibility makes the Ultra Evolution Elevation particularly valuable in rooms with unusual layouts, limited wall space, or architectural constraints.

Diamond-Coated Tweeter: Hear the Details Above and Around You

The Ultra Evolution Elevation features a 1-inch diamond-coated aluminum dome tweeter.

SVS applies a diamond-like carbon coating through vapor deposition, increasing the rigidity of the aluminum dome and extending its high-frequency performance.

An FEA-optimized Organic Cell Lattice Diffuser helps manage dispersion and maintain consistent sound across the listening area.

From rain falling overhead to the subtle ambience of a concert hall, the tweeter is engineered to reproduce the details that help create a convincing immersive experience.

A 5.25-Inch Woofer With Serious Capability

The Ultra Evolution Elevation uses a 5.25-inch glass-fiber composite woofer designed for dynamic output and accurate midrange reproduction.

Its lightweight, rigid cone works with a long-stroke motor and suspension system to reproduce demanding soundtrack information while maintaining control.

A precision-cast aluminum-alloy basket provides structural stability and assists with thermal management.

A vented aluminum voice-coil former helps reduce air compression and manage heat during demanding playback.

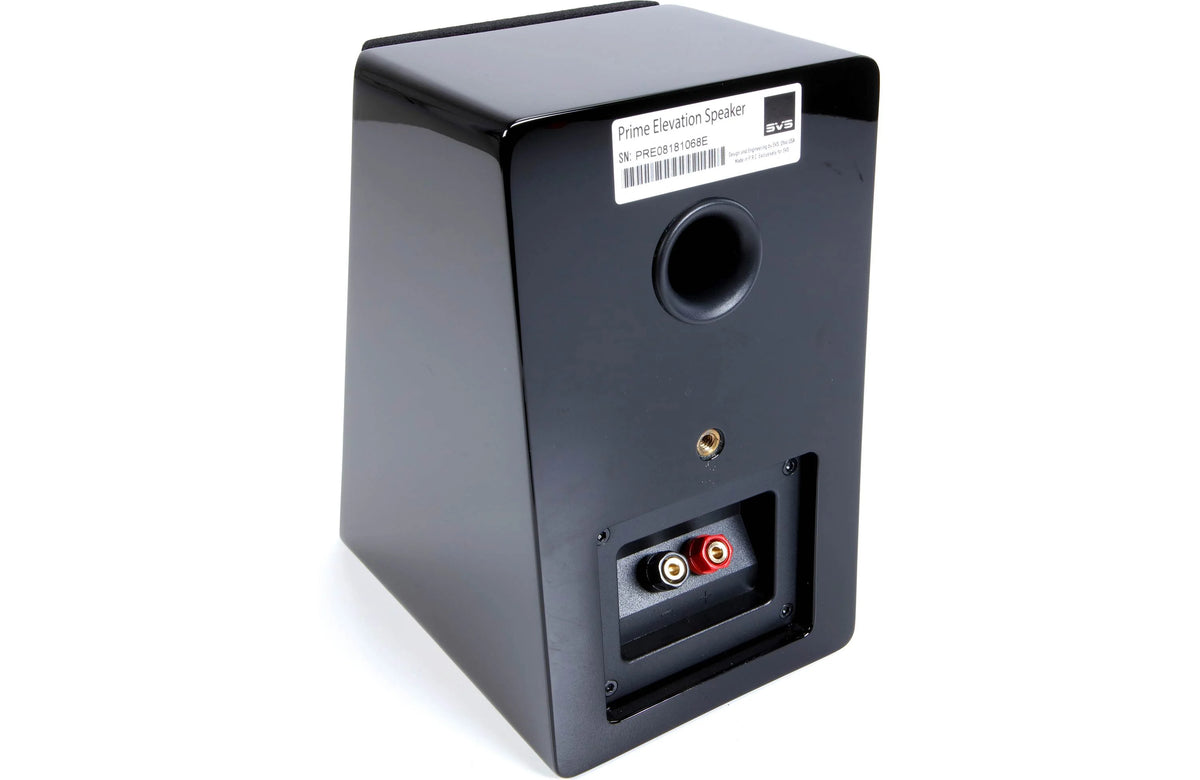

The cabinet's rear-firing port extends the low-frequency response to a specified 48Hz, giving the speaker substantial bandwidth for its compact dimensions.

Engineered for Any Orientation

The Ultra Evolution Elevation's angled front baffle is specifically designed to support different installation positions.

Whether mounted overhead, high on a wall, or used as a surround speaker, the cabinet geometry and crossover are engineered to maintain balanced sound.

The enclosure features a one-inch-thick front baffle, reinforced cabinet walls, internal bracing, and acoustic insulation to minimize unwanted vibration.

Chamfered baffle edges and flush-mounted drivers help reduce diffraction, while the magnetic grille provides a clean, finished appearance.

Even the magnetic SVS logo can be removed and repositioned to suit the speaker's mounting orientation.

Complete Your SVS Home Theater

The Ultra Evolution Elevation is an excellent companion to other speakers in the SVS Ultra Evolution Series.

Pair it with Ultra Evolution floorstanding or bookshelf speakers, a matching center channel, and SVS subwoofers to create a cohesive immersive audio system.

Whether you're planning a 5.1.2 living room setup or a more ambitious dedicated Dolby Atmos theater, The Grid HiFi can help determine the appropriate speaker locations, mounting angles, amplification, and system configuration.

Technical Specifications

Technical specifications sourced from SVS's official product information. Overall depth includes the grille and mounting bracket.

Experience SVS at The Grid HiFi

The SVS Ultra Evolution Elevation combines advanced driver technology, flexible installation, and premium sound quality in a speaker designed for immersive home theater.

At The Grid HiFi, we do more than sell speakers. We design and install complete home theater systems, helping you determine the right speaker locations, mounting configurations, amplification, and calibration for your room.

Whether you're upgrading an existing surround sound system or building a dedicated Dolby Atmos theater, our Houston team can help bring the entire experience together.

Contact The Grid for pricing, finish availability, and home theater design recommendations.
