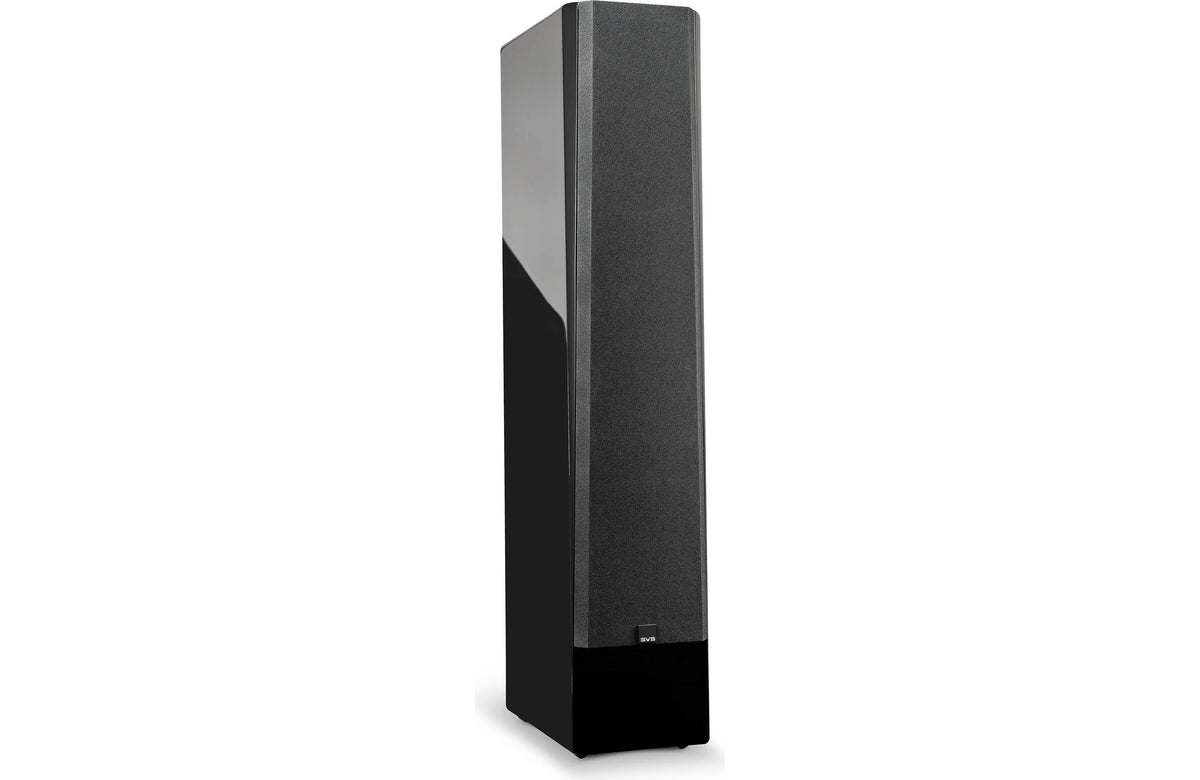

SVS Prime Pinnacle – 3-Way Floorstanding Speaker in Gloss Black

Deep bass. Remarkable clarity. Serious performance for music and movies.

The SVS Prime Pinnacle takes the Prime Series to another level, combining the finesse of a dedicated audiophile loudspeaker with the dynamic impact demanded by a modern home theater.

Featuring three 6.5-inch woofers, a dedicated 5.25-inch midrange driver, and a 1-inch aluminum dome tweeter, the Prime Pinnacle delivers powerful low-frequency performance, natural vocals, and detailed highs from an elegant floorstanding cabinet.

Its sophisticated three-way architecture and individually tuned internal chambers allow each driver to operate within an optimized acoustic environment. The result is a loudspeaker engineered to deliver exceptional clarity and control, whether you're listening to a delicate acoustic recording or experiencing an explosive movie soundtrack.

With bass extension down to 29Hz, the Prime Pinnacle offers impressive full-range performance without requiring an oversized cabinet.

Key Features

• Triple 6.5-Inch Woofers: Three long-stroke polypropylene drivers deliver deep, controlled bass with impressive dynamic output.

• Dedicated 5.25-Inch Midrange: Composite glass-fiber cone reproduces vocals and instruments with excellent clarity and tonal accuracy.

• 1-Inch Aluminum Dome Tweeter: FEA-optimized diffuser promotes detailed high-frequency reproduction and broad dispersion.

• SoundMatch 3-Way Crossover: Precision-engineered crossover integrates all five drivers for cohesive sound and accurate imaging.

• Four Independent Internal Chambers: A sealed midrange enclosure and three separately tuned woofer chambers minimize interference and optimize performance.

• Triple Rear-Firing Ports: Individually tuned, wide-flared ports support smooth, extended bass response.

• 29Hz–25kHz Frequency Response: Wide bandwidth for demanding music and home theater applications.

• Rigid, Internally Braced Cabinet: FEA-optimized construction reduces unwanted resonance and coloration.

• Chamfered Front Baffle: Helps minimize edge diffraction for improved soundstage precision.

• Versatile System Integration: Timbre-matched to integrate with compatible SVS Prime and Ultra Series speakers.

Five Drivers. One Cohesive Sound.

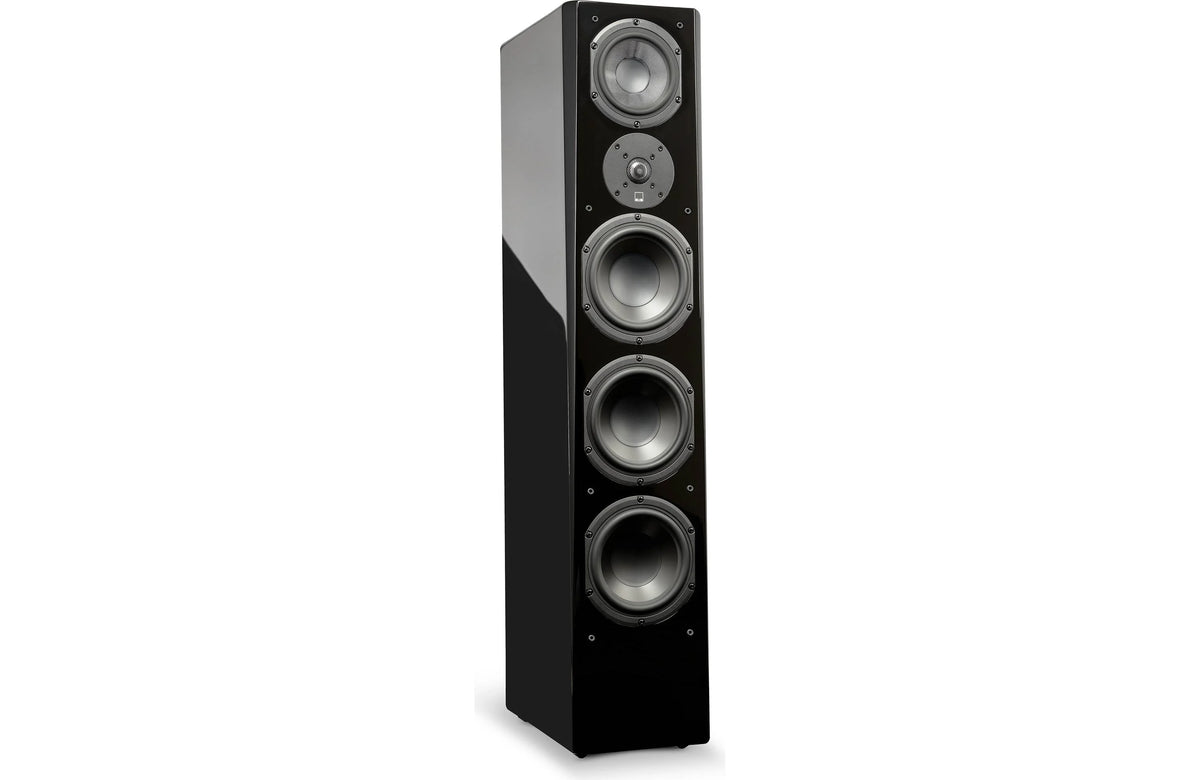

The Prime Pinnacle uses a sophisticated five-driver arrangement, with each driver optimized for a specific part of the frequency spectrum.

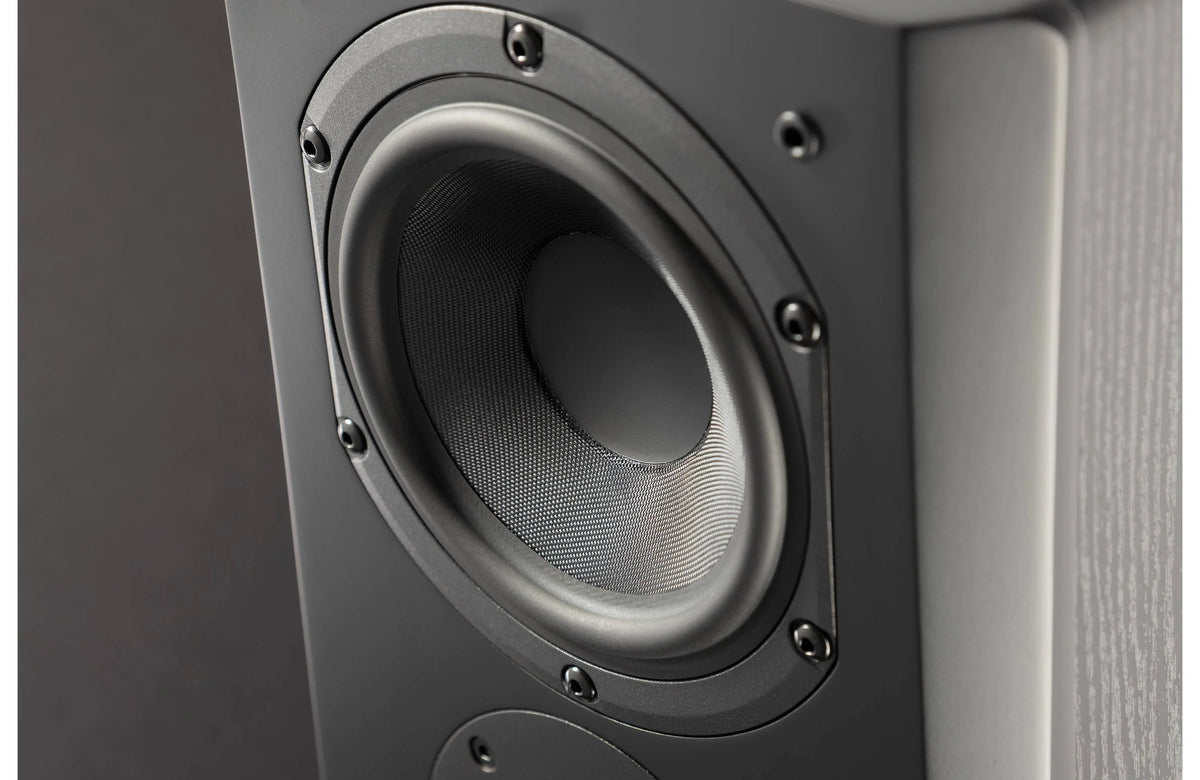

Three 6.5-inch woofers provide the low-frequency foundation, delivering the weight and authority needed for bass-heavy music and cinematic soundtracks.

The dedicated 5.25-inch glass-fiber midrange handles the frequencies where vocals and most instruments live. Its separate sealed enclosure helps isolate it from the pressure generated by the woofers, preserving clarity and detail.

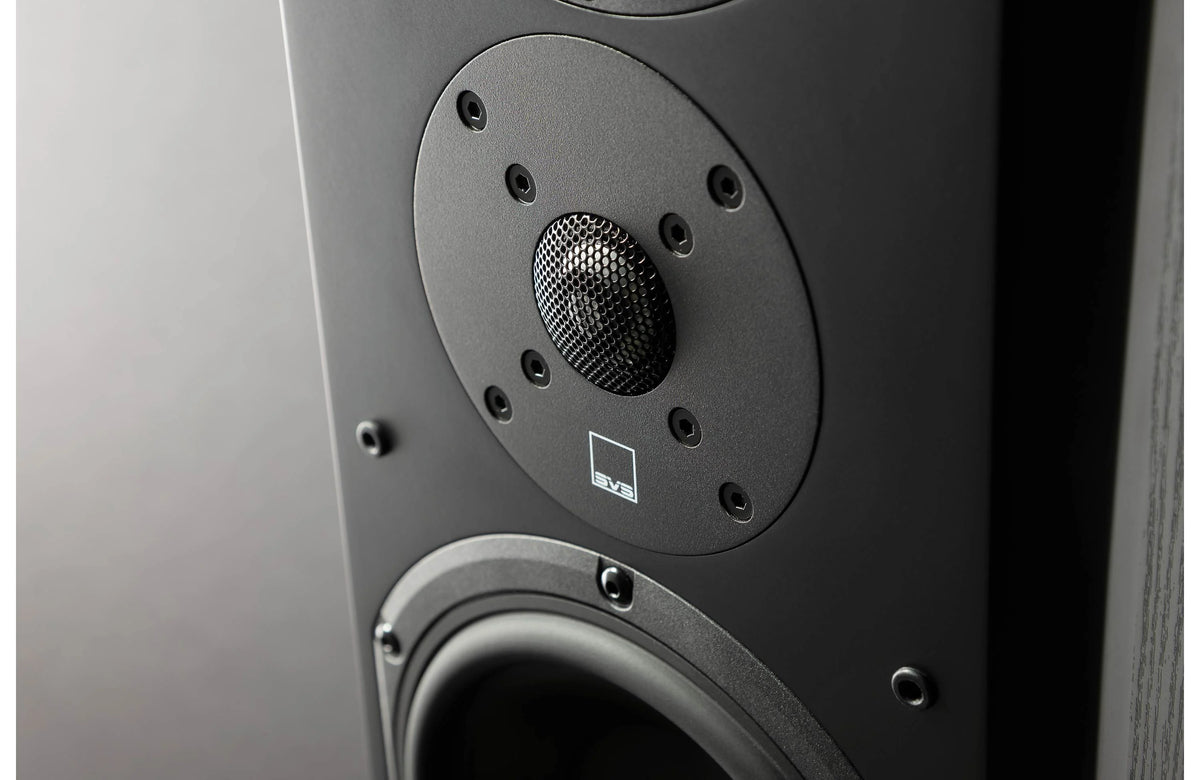

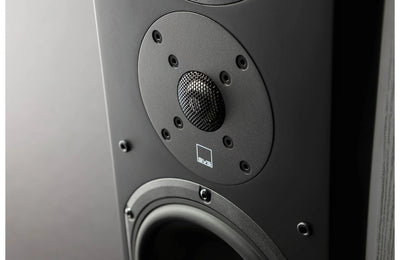

A 1-inch aluminum dome tweeter completes the system, reproducing high frequencies with precision while its optimized diffuser helps maintain consistent sound throughout the listening area.

The SVS SoundMatch crossover ties everything together, creating a seamless transition between drivers.

Deep Bass Without the Oversized Cabinet

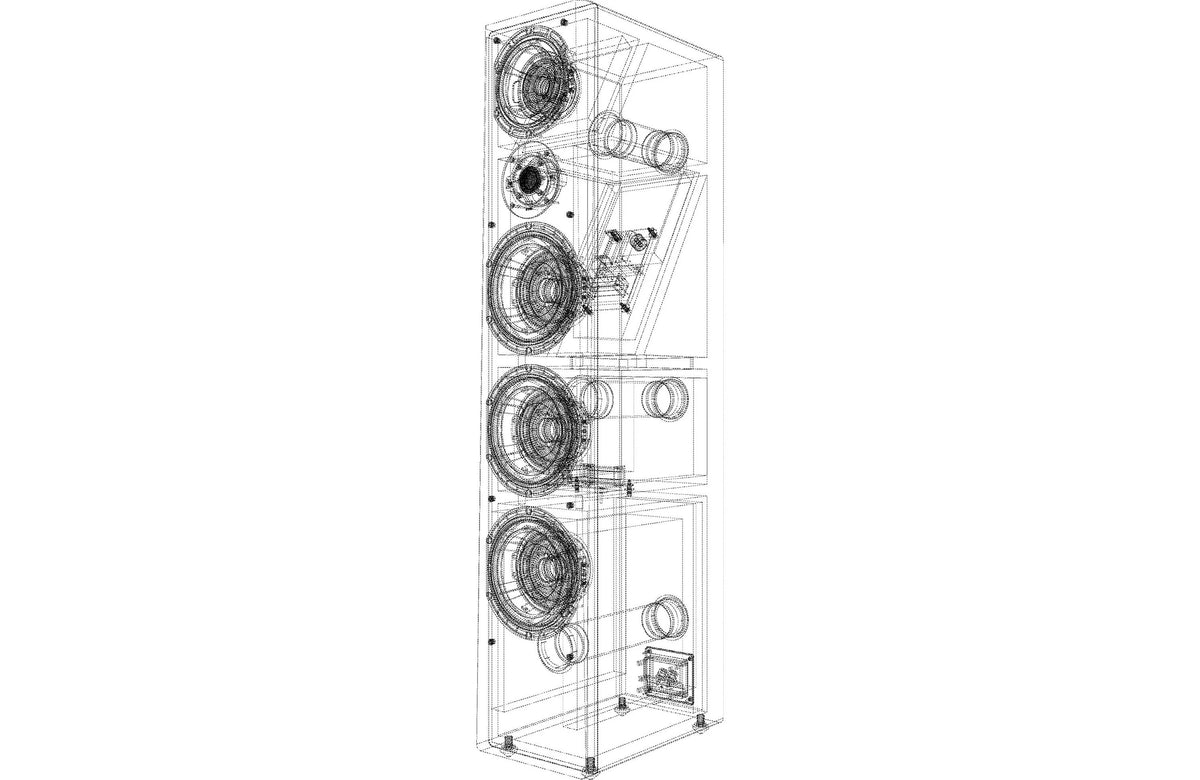

The Prime Pinnacle's cabinet design is more sophisticated than its clean exterior might suggest.

Each of the three woofers operates within its own acoustically tuned internal chamber, complete with a dedicated rear-firing port. This allows SVS engineers to optimize the low-frequency response of each driver independently.

The midrange driver is housed in a separate sealed enclosure to protect it from internal bass pressure.

Extensive cabinet bracing, carefully shaped internal structures, and a chamfered front baffle help minimize unwanted resonance and diffraction.

The result is a floorstanding speaker designed to deliver substantial bass and dynamic output while maintaining a relatively narrow, room-friendly profile.

Built for Two-Channel HiFi and Home Theater

The Prime Pinnacle is equally at home in a dedicated stereo system or a high-performance home theater.

For music, its three-way architecture delivers the scale, imaging, and low-frequency authority needed to reproduce everything from intimate jazz recordings to large orchestral performances.

For movies, the combination of multiple woofers, a dedicated midrange, and wide dynamic range brings dialogue, effects, and soundtracks to life.

Pair the Prime Pinnacle with compatible SVS center and surround speakers to create a cohesive multichannel system. Add an SVS subwoofer for additional low-frequency extension and dedicated LFE reproduction.

Technical Specifications

Experience SVS at The Grid HiFi

The SVS Prime Pinnacle combines powerful bass, refined midrange reproduction, and exceptional versatility in a floorstanding loudspeaker designed for serious music and home theater systems.

Whether you're building a dedicated two-channel setup or planning an immersive home theater, The Grid HiFi in Houston can help you select the ideal amplification, source components, and complementary SVS speakers.

Contact The Grid for pricing, availability, and system recommendations.
