StormAudio PA 8 Ultra MK2 8-Channel Power Amplifier (open box)

8 × 200W into 8Ω • 8 × 400W into 4Ω • Bridgeable to 4 × 800W • Pascal Audio Class D Technology • Balanced XLR Inputs • Ethernet Monitoring • 3U Rack Design

Complimentary White Glove Delivery • Expert Cinema System Design

The StormAudio PA 8 Ultra MK2 is a reference-grade, eight-channel power amplifier engineered for high-performance home theaters and private cinemas. Delivering 200 watts per channel into 8 ohms or 400 watts per channel into 4 ohms with all eight channels driven, it combines substantial output power, low distortion and advanced system monitoring in a compact 3U chassis.

For installations requiring greater output, the PA 8 Ultra MK2 can be configured as a four-channel bridged amplifier delivering 800 watts per channel into either 8 or 4 ohms.

Developed in collaboration with Danish amplifier specialist Pascal Audio, the PA 8 Ultra MK2 incorporates high-efficiency Class D amplification, dedicated power supply technology and network-based monitoring for integration with compatible StormAudio processors.

Designed for demanding Dolby Atmos, DTS and other immersive audio installations, it provides the power, control and installation flexibility required for sophisticated multichannel loudspeaker systems.

Eight Channels of High-Performance Amplification

The PA 8 Ultra MK2 delivers substantial continuous output across all eight channels.

In standard eight-channel operation, each channel provides:

200W RMS into 8Ω

400W RMS into 4Ω

These ratings are specified with all channels driven at 0.1% THD+N, making the amplifier particularly suitable for demanding multichannel applications.

Its eight-channel configuration can power front, surround or height loudspeakers in a reference home theater, or form part of a larger system using multiple StormAudio amplifiers.

Four-Channel Bridged Mode: 800 Watts per Channel

The PA 8 Ultra MK2 supports Bridge Tied Load (BTL) operation, combining its eight amplifier channels into four higher-powered outputs.

In bridged configuration, the amplifier delivers:

4 × 800W RMS into 8Ω

4 × 800W RMS into 4Ω

This provides additional power for demanding front-channel loudspeakers, high-output cinema speakers or compatible passive subwoofers.

The amplifier operates with 26dB gain in standard mode and 32dB gain in bridged mode.

Pascal Audio Class D Technology

The PA 8 Ultra MK2 incorporates advanced Class D amplification developed through StormAudio's collaboration with Pascal Audio.

Its UMAC amplification technology is engineered for high efficiency, rapid transient response and low distortion.

The amplifier achieves a signal-to-noise ratio greater than 115dB and a specified THD+N below 0.005% at 1 watt.

With a damping factor greater than 400, the PA 8 Ultra MK2 provides substantial electrical control over connected loudspeakers.

High-Capacity Power Supply

The PA 8 Ultra MK2 incorporates Pascal Audio's UREC power supply technology, designed to respond rapidly to changing amplifier demands.

Four individual power supply sections provide substantial current reserves for dynamic movie soundtracks and demanding multichannel playback.

The amplifier's power supply architecture is engineered to maintain consistent performance during simultaneous high-output demands across multiple channels.

StormMonitoring Network Integration

The PA 8 Ultra MK2 features Ethernet connectivity for remote amplifier monitoring.

When integrated with compatible StormAudio ISP processors, the amplifier's operating information can be accessed through the processor's web-based interface.

StormMonitoring provides visibility into operating conditions, including amplifier temperature, fan speed, power status and protection alerts.

This functionality is particularly valuable for professionally installed private cinemas, where equipment may be housed in a dedicated rack or remote equipment room.

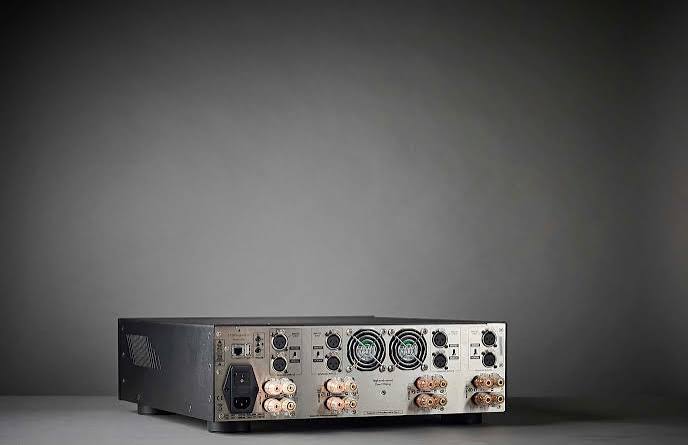

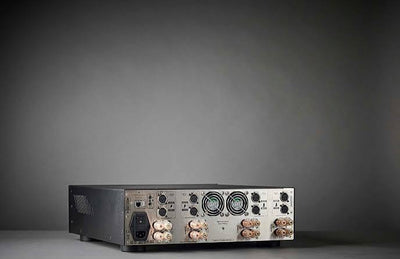

Balanced XLR Inputs and Professional Connectivity

Eight balanced XLR inputs provide reliable signal connectivity with compatible AV processors and preamplifiers.

The amplifier uses substantial three-way loudspeaker binding posts and supports external trigger control for automated power sequencing.

Its professional connectivity and network-monitoring capabilities make the PA 8 Ultra MK2 an excellent match for StormAudio ISP immersive sound processors.

Advanced Protection and Thermal Management

The PA 8 Ultra MK2 incorporates electronically controlled ventilation and multiple protection systems.

Thermal sensors continuously monitor operating conditions, while protection circuitry addresses overheating, overcurrent, overvoltage and DC faults.

Its controlled cooling system is engineered for demanding installations, including equipment racks and enclosed cinema equipment rooms with appropriate ventilation.

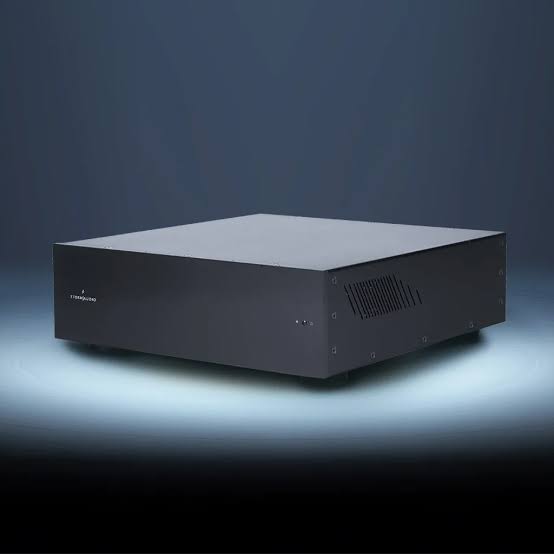

Compact 3U Rack-Mountable Design

The PA 8 Ultra MK2 occupies just three rack units, making it suitable for professional cinema equipment racks.

Its refined aluminum front panel complements StormAudio's immersive processors, creating a cohesive system appearance.

With eight powerful channels in one enclosure, the PA 8 Ultra MK2 reduces the number of individual amplifiers required for complex multichannel installations.

Technical Specifications

Specification	Details
Brand	StormAudio
Model	PA 8 Ultra MK2
Product Type	Multichannel Power Amplifier
Amplifier Technology	Pascal Audio Class D
Amplifier Architecture	UMAC
Power Supply Technology	UREC
Channel Configuration	8-Channel or 4-Channel Bridged
Standard Output, 8Ω	8 × 200W RMS
Standard Output, 4Ω	8 × 400W RMS
Bridged Output, 8Ω	4 × 800W RMS
Bridged Output, 4Ω	4 × 800W RMS
Output Rating Conditions	All Channels Driven, 0.1% THD+N
Standard Mode Gain	26dB
Bridged Mode Gain	32dB
Frequency Response	10Hz–50kHz (-3dB)
Signal-to-Noise Ratio	Greater Than 115dB
THD+N at 1W	Less Than 0.005%
THD, 20Hz–20kHz	Less Than 0.03%
Damping Factor	Greater Than 400
Analog Inputs	8 × Balanced XLR
Speaker Outputs	Three-Way Binding Posts
Network Connectivity	Ethernet
Monitoring	StormMonitoring
Trigger Connectivity	Trigger Input and Output
Cooling	Electronically Controlled Ventilation
Protection	Thermal, Overcurrent, Overvoltage, DC Fault
Power Supply	High-Capacity Switching Supply
Power Supply Capacity	3,200W
AC Voltage	100–240V
Rack Height	3U
Dimensions (W × D × H)	49 × 43.5 × 15cm
Dimensions (Imperial)	19.3 × 17.1 × 5.9"
Weight	21kg / 46.3 lb
Installation	Equipment Rack or Equipment Cabinet
Product Generation	MK2

StormAudio PA 8 Ultra MK2 at The Grid HiFi

Reference Home Theater and Private Cinema Engineering

The Grid HiFi specializes in luxury home theaters, immersive audio systems, high-performance multichannel amplification and complete private cinema design.

The StormAudio PA 8 Ultra MK2 provides a powerful foundation for sophisticated Dolby Atmos and DTS installations requiring reliable multichannel amplification and precise system integration.

Our team designs complete cinema systems incorporating StormAudio immersive processors, reference loudspeakers, architectural audio systems, premium subwoofers and professional acoustic treatments.

From loudspeaker layout and amplifier channel allocation to processor configuration, calibration and rack integration, The Grid HiFi provides comprehensive cinema engineering.

White Glove Delivery and Professional Installation

Complimentary White Glove Delivery • Expert System Configuration Available

Our team can help determine the ideal amplifier configuration, whether operating the PA 8 Ultra MK2 in standard eight-channel mode or bridged four-channel mode.

Building a reference private cinema? Call The Grid HiFi at (713) 218-8120 to discuss your StormAudio system design.
