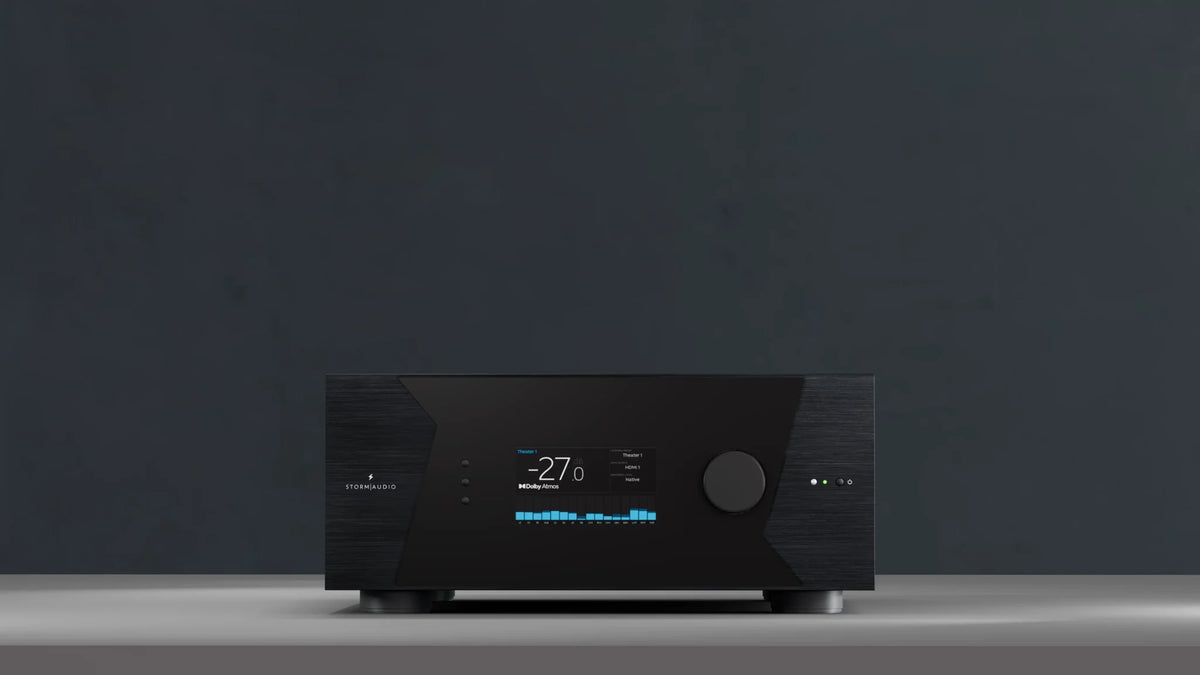

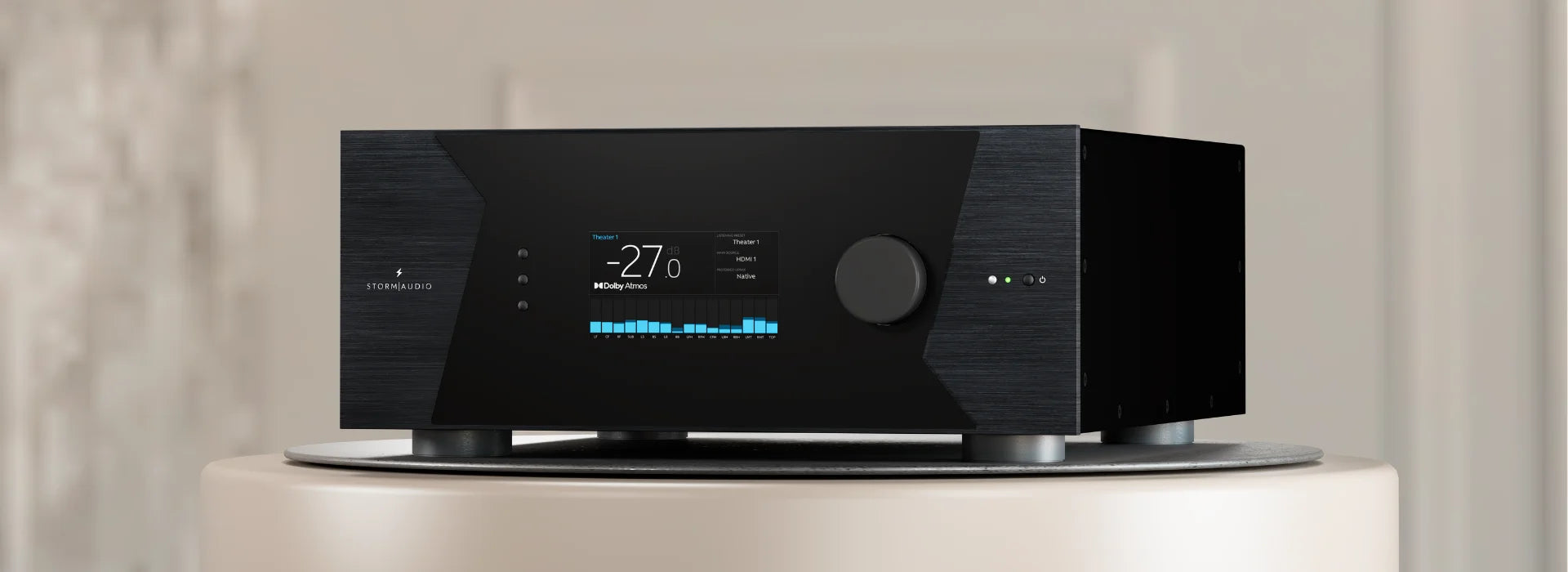

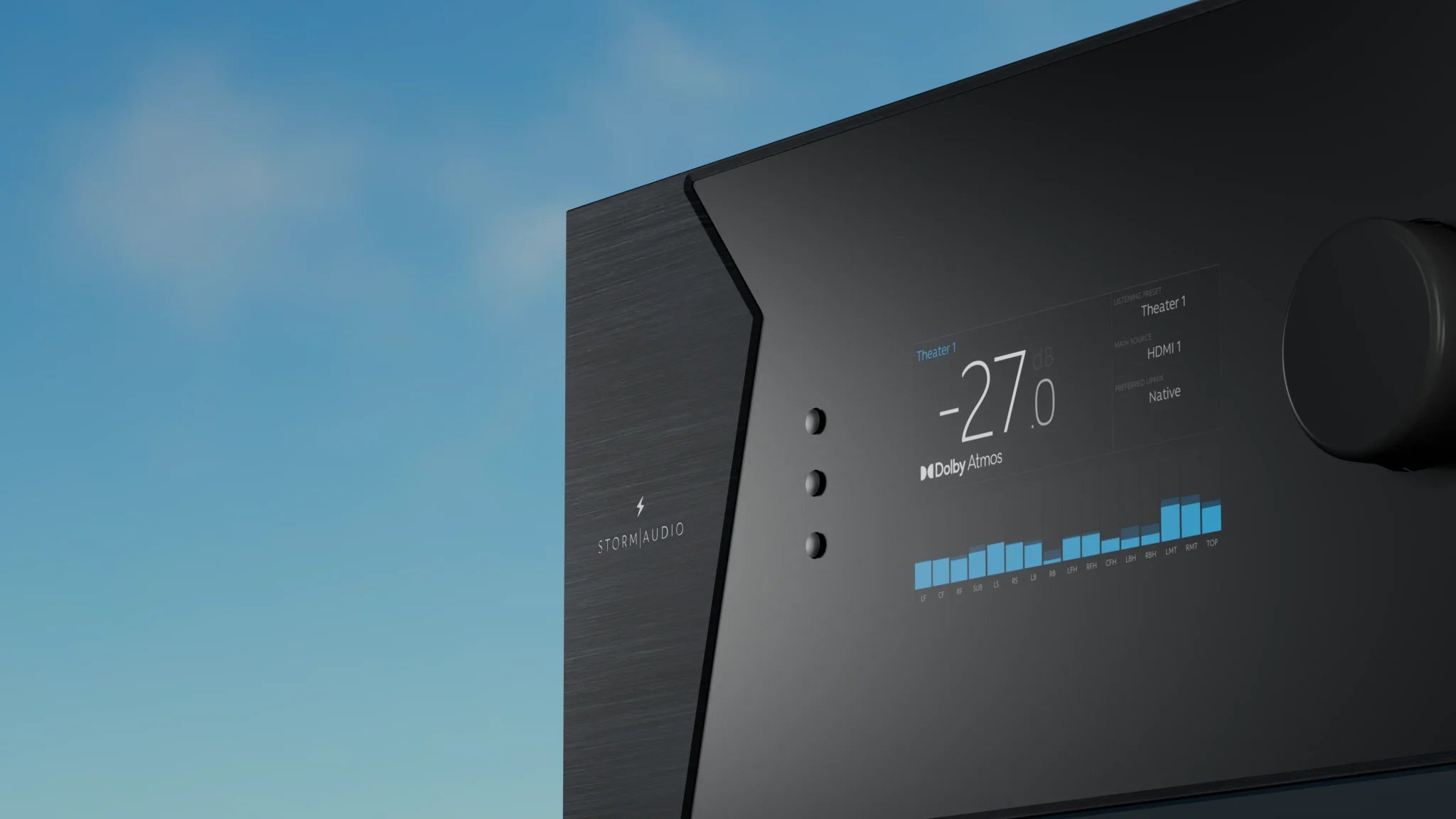

StormAudio ISP Elite 32 Digital AoIP MK3 Immersive Sound Processor

The StormAudio ISP Elite 32 Digital AoIP MK3 combines StormAudio's flagship immersive processing platform with 32-channel Audio over IP connectivity using AES67/Dante, creating an exceptionally powerful foundation for modern network-based private cinemas.

Instead of requiring dozens of individual analog audio cables between components, the AoIP configuration can transmit high-channel-count digital audio across standard network infrastructure.

For large custom installations, distributed equipment architectures, and modern digital-input amplification systems, this can fundamentally change how the theater is designed.

32-Channel AES67 / Dante Audio over IP

The defining feature of this configuration is 32-channel digital Audio over IP input and output.

The AoIP module provides:

• 32 digital input channels
• 32 digital output channels
• AES67 compatibility
• Dante compatibility
• Dual RJ45 network connections

This allows audio to be routed digitally across the network to compatible equipment while dramatically reducing conventional multichannel cabling.

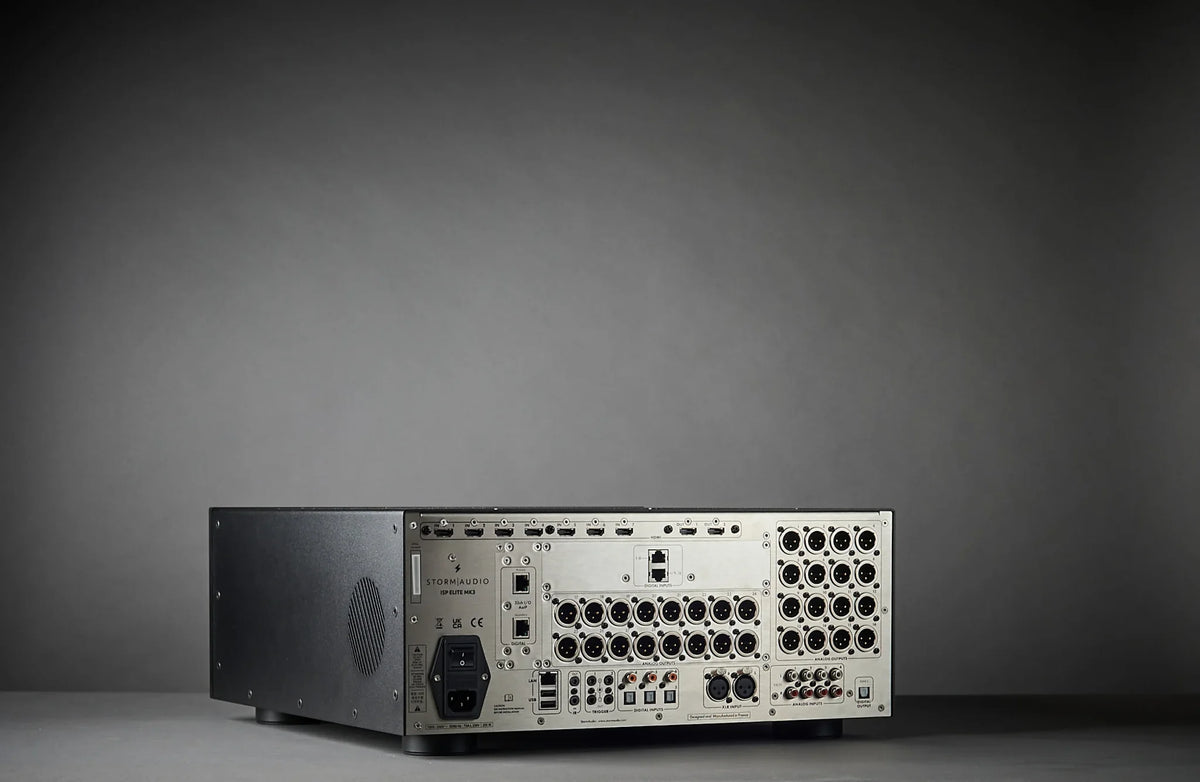

16 Analog Outputs Remain Available

Choosing the Digital AoIP configuration doesn't eliminate conventional analog connectivity.

The processor retains 16 balanced XLR analog outputs, allowing analog and network-based audio architectures to coexist within the same theater.

Optional analog expansion can also increase the system to 24 or 32 balanced XLR outputs if required.

That gives an integrator enormous freedom when designing hybrid systems.

Complete Dirac Live Suite

The ISP Elite AoIP includes StormAudio's complete Dirac Live implementation:

• Dirac Live Room Correction
• Dirac Live Bass Control
• Dirac Live Active Room Treatment

Combined with StormAudio's Expert Bass Management, multi-subwoofer capabilities, flexible bass routing, and multi-way speaker processing, the platform provides exceptional control over large private cinema systems.

32-Channel Immersive Processing

The Elite platform supports up to 32-channel processing and today's major immersive formats, including:

• Dolby Atmos
• DTS Pro
• Auro-3D
• IMAX Enhanced
• MPEG-H
• Sony 360 Reality Audio
• StormXT

This makes the AoIP version equally suitable for large conventional immersive theaters and more advanced network-based cinema architectures.

HDMI 2.1 & 8K

Video connectivity includes seven HDMI inputs and two outputs, with HDMI 2.1, HDCP 2.3 and bandwidth up to 40Gbps.

The system supports 4K and 8K video along with HDR10+, Dolby Vision, HLG and ARC/eARC.

Built for Modern Custom Integration

The AoIP version is particularly compelling for professionally engineered installations.

Network-based audio can simplify rack architecture, reduce large analog cable bundles, provide greater flexibility in equipment placement, and allow compatible devices to exchange multichannel digital audio across structured network infrastructure.

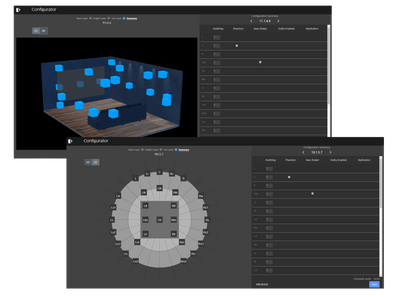

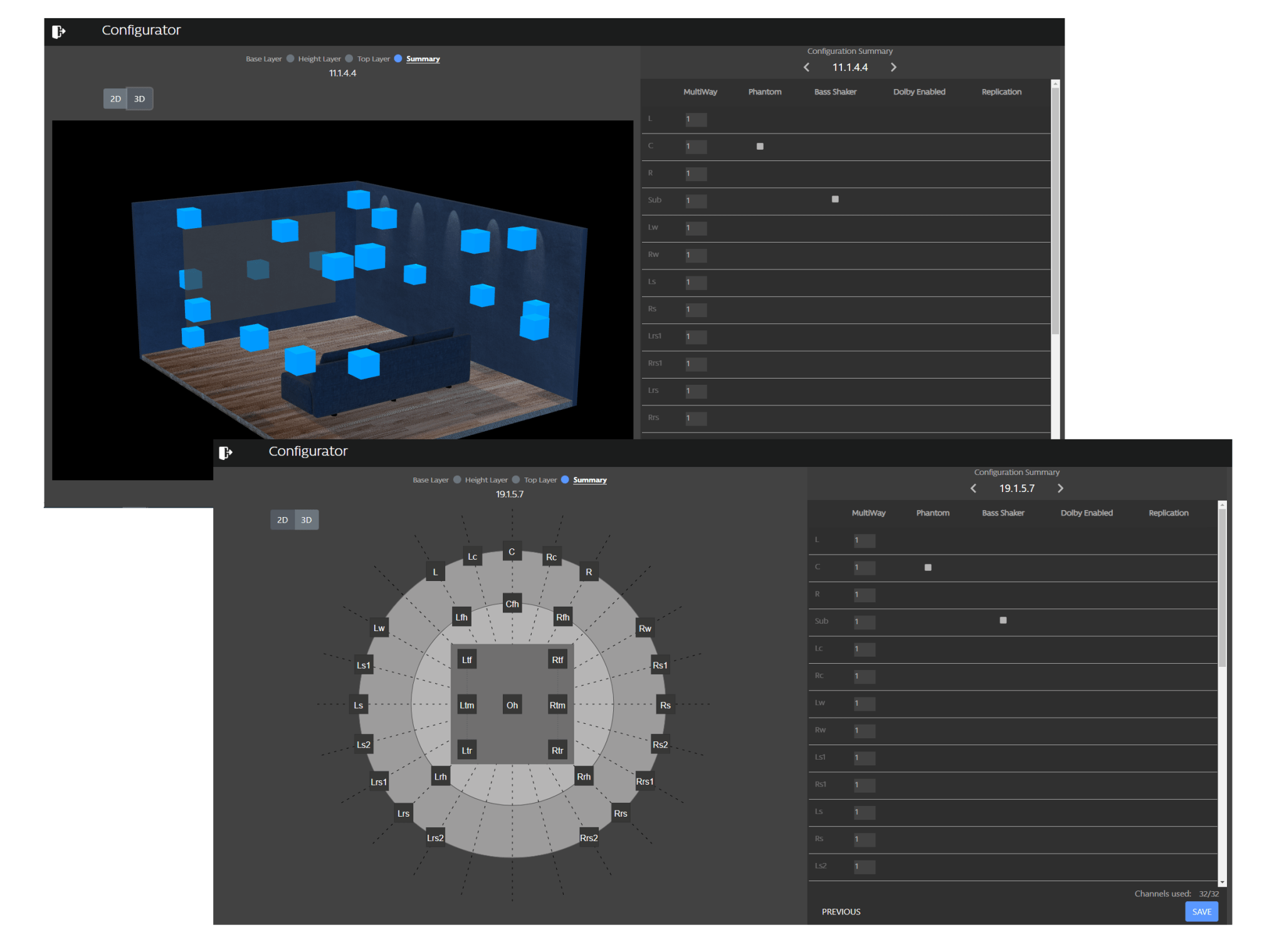

StormAudio also provides integration with Control4, Crestron, Savant, RTI, URC and Nice, along with IP control, web-based configuration, StormRemote applications and StormMonitoring.

Specifications & Highlights

• Model: ISP Elite 32 Digital AoIP MK3
• Digital Audio over IP: AES67 / Dante
• AoIP Inputs: Up to 32 channels
• AoIP Outputs: Up to 32 channels
• AoIP Connections: 2 × RJ45
• Analog Outputs: 16 balanced XLR
• Optional Analog Expansion: 24 or 32 XLR
• Processing: Up to 32 channels
• Dirac Live Room Correction: Included
• Dirac Live Bass Control: Included
• Dirac Live Active Room Treatment: Included
• Dolby Atmos: Yes
• DTS Pro: Yes
• Auro-3D: Yes
• IMAX Enhanced: Yes
• MPEG-H: Yes
• Sony 360 Reality Audio: Yes
• StormXT: Yes
• Roon Ready: Yes
• Bass Management: Standard & Expert
• Multi-Way Speaker Processing: Up to 4-way
• HDMI: 7 inputs / 2 outputs
• HDMI 2.1 / HDCP 2.3: Yes
• Bandwidth: 40Gbps
• 8K: Yes
• StormMonitoring: Yes
• Warranty: 5 years

Build a Networked StormAudio Cinema with The Grid HiFi

The ISP Elite 32 Digital AoIP is exactly the kind of processor where professional system engineering matters.

Audio over IP, amplification, network architecture, speaker and subwoofer layouts, Dirac calibration, control, and equipment-rack design all need to be planned together.

The Grid HiFi is your StormAudio and high-performance private cinema expert in Houston, providing complete theater engineering, networking, Control4 integration, equipment specification, installation, programming, acoustic integration, and professional calibration.

From speakers, subwoofers and amplification to projection, screens, acoustic treatment, seating, lighting, networking, automation, equipment racks, installation, and final calibration, The Grid can design and deliver the complete private cinema.

Contact The Grid HiFi for StormAudio ISP Elite 32 Digital AoIP MK3 pricing, demonstrations, Dante/AES67 system design, installation, and professional calibration.
