Stewart Luxus G2 120" 16:9 StudioTek 130 G4 1.3 Gain Electric Projector Screen

120" Diagonal • 58.75" × 104.5" Image • 16:9 HDTV • StudioTek 130 G4 • 1.3 Gain • White Case

Stewart Part Number: LUXG2120HST13G4SBW-12-2-5

The Stewart Luxus G2 120-inch electric projector screen combines a retractable below-ceiling design with StudioTek 130 G4 reference screen material. This QuickShip configuration features a 58.75" × 104.5" 16:9 viewing area, 1.3 gain, white case, 12-inch top masking, 12V trigger and three-button keypad.

Built for premium home theaters, media rooms and custom AV systems. The screen disappears when not in use while delivering the image quality expected from a Stewart Filmscreen reference surface.

StudioTek 130 G4

StudioTek 130 G4 is Stewart's fourth-generation 1.3-gain reference front-projection material.

It delivers increased image brightness while maintaining excellent color accuracy, uniformity and fine detail. The G4 optical coating is engineered to minimize visible texture and sparkle with high-resolution and HDR projection.

1.3 peak gain provides additional image luminance compared with a unity-gain screen.

An 80-degree half-gain angle maintains strong brightness across wide seating areas.

StudioTek 130 G4 is optimized for controlled-light home theaters and private cinemas.

120-Inch 16:9 Viewing Area

This configuration provides a 120-inch diagonal image measuring 58.75" high × 104.5" wide.

The 16:9 HDTV aspect ratio is ideal for streaming, television, gaming and modern home video.

StudioTek 130 G4's 1.3 gain makes this size especially attractive for high-performance 4K, 8K and HDR projection systems.

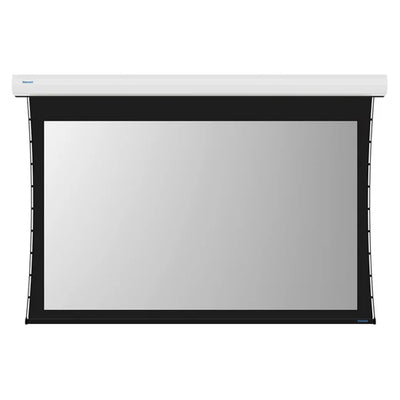

Luxus G2 Retractable Design

The Luxus G2 is a motorized, below-ceiling projection screen designed for wall or ceiling mounting.

The projection surface retracts completely into the housing when not in use. Ideal for luxury media rooms and multipurpose spaces where a permanent fixed-frame screen is not desired.

Sliding Mounting System

Stewart's sliding mounting bracket runs along the top and rear of the case.

The housing can be repositioned horizontally during installation for precise alignment with the projector, screen centerline and room architecture.

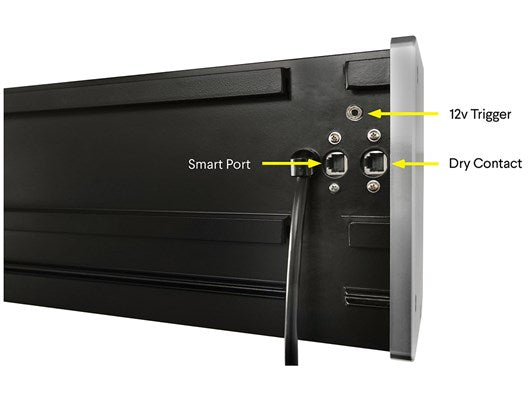

IMC 100 Intelligent Motor Control

The integrated Stewart IMC 100 provides extensive automation and control capability.

IR • Serial • RF • IP • 12V Trigger • Dry Contact

This QuickShip configuration includes a 12V trigger and three-button keypad.

Luxus G2 can integrate with the projector or a complete home theater control system.

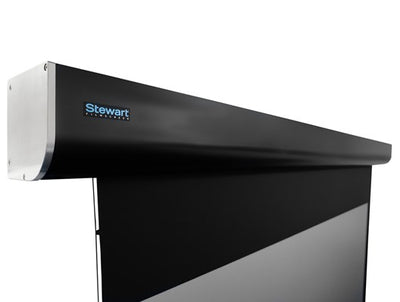

Removable Case Bonnet

A removable case bonnet provides access to the screen assembly, motor and control electronics.

Rear access simplifies power and control connections and makes future service easier without removing the entire screen housing.

12-Inch Top Masking

This configuration includes 12 inches of black top masking.

The additional drop positions the 120-inch image lower than the screen housing. This is important for proper viewing height when the case is mounted close to the ceiling.

16K+ Projection Surface

StudioTek 130 G4 is engineered as a 16K+ projection surface.

Its fine optical structure preserves image detail without introducing coarse screen texture. Ideal for today's 4K and 8K projectors with resolution capability well beyond current residential projection standards.

Technical Specifications

Is StudioTek 130 G4 Right for Your Theater?

Choose StudioTek 130 G4 for a controlled-light theater where image accuracy and additional brightness are priorities.

Its 1.3 gain supports larger images, HDR projection and calibrated projector modes. The 80-degree half-gain angle also makes it excellent for wider seating arrangements.

For maximum neutrality in a fully dark theater, consider StudioTek 100. For rooms with more ambient or reflected light, FireHawk G5 may be the better choice.
