Overview
SPL Phonitor se Headphone Amplifier with DAC768xs – Black
The SPL Phonitor se with DAC768xs combines a high-performance audiophile headphone amplifier with an integrated high-resolution digital-to-analog converter. Built in Germany and powered by SPL's proprietary 120V VOLTAiR technology, the Phonitor se delivers exceptional dynamic range, low distortion, and precise control for demanding high-end headphones.
The installed DAC768xs adds USB, coaxial, and optical digital inputs, supporting PCM audio up to 32-bit/768kHz and DSD256 via USB. This makes the Phonitor se a complete desktop headphone listening solution for computers, dedicated digital transports, and other digital audio sources.
Key Features
-
120V VOLTAiR Technology: SPL's high-voltage analog circuitry provides exceptional headroom, low noise, and effortless dynamic reproduction.
-
Integrated DAC768xs: High-resolution digital-to-analog conversion supporting PCM up to 32-bit/768kHz and DSD256 through USB.
-

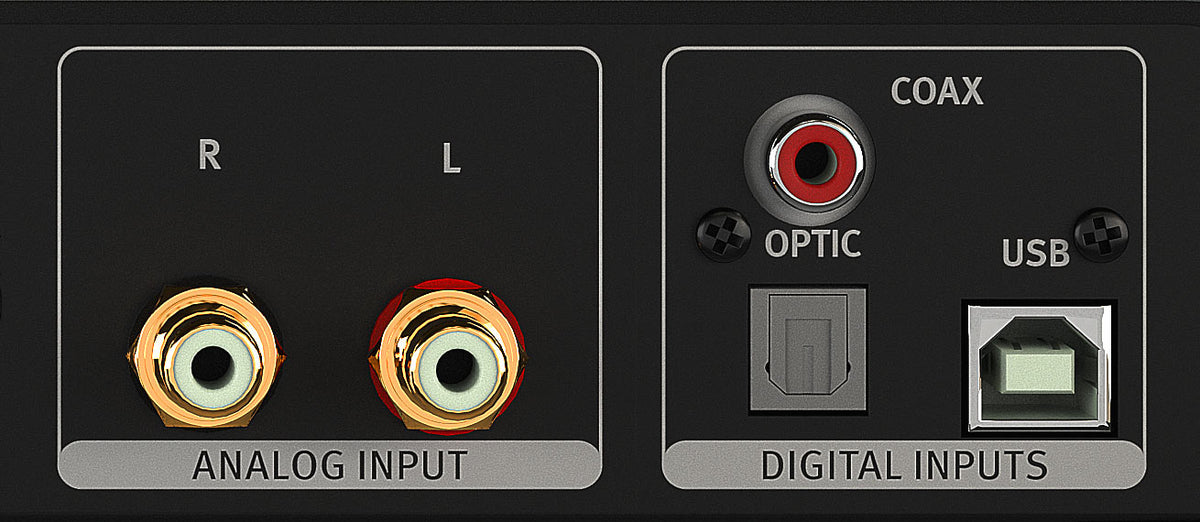

Three Digital Inputs: USB-B, coaxial S/PDIF, and optical Toslink connections.
-
Phonitor Matrix: Two selectable crossfeed presets create a more natural, loudspeaker-like stereo presentation through headphones.
-
High-Output Headphone Amplification: Delivers up to 5 watts per channel into 250 ohms and 1 watt per channel into 32 ohms.
-
Precision Analog Volume Control: Premium ALPS RK27 “Big Blue” potentiometer for smooth, accurate adjustment.
-
Analog RCA Input: Connect a separate DAC or analog source alongside the integrated digital inputs.
-
German Engineering: Designed and manufactured in Germany with SPL's Professional Fidelity technology.
-
Black Finish: Understated styling suited to premium desktop and dedicated headphone systems.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Phonitor se with DAC768xs |
| Type | Headphone amplifier with integrated DAC |
| Color | Black |
| Amplifier Technology | SPL 120V VOLTAiR |
| DAC | SPL DAC768xs |
| Maximum PCM Resolution | 32-bit/768kHz via USB |
| DSD Support | Up to DSD256 via USB |
| Analog Input | Stereo RCA |
| Digital Inputs | USB-B, coaxial S/PDIF, optical Toslink |
| Headphone Output | 6.35mm (1/4-inch) stereo jack |
| Output Power at 250 Ohms | 2 × 5W |
| Output Power at 32 Ohms | 2 × 1W |
| Dynamic Range | 135.5dB |
| Headphone Output Impedance | 0.18 ohms |
| Phonitor Matrix | Off, C1, C2 |
| Volume Control | ALPS RK27 analog potentiometer |
| Dimensions (W × H × D) | 278 × 57 × 300mm |
| Weight | 2.8kg (6.17 lbs) |
| Country of Manufacture | Germany |
High-Resolution Digital Audio Meets Reference Headphone Amplification
The DAC768xs allows direct playback from digital sources without requiring an external DAC. Its USB connection supports high-resolution PCM and DSD playback, while the coaxial and optical inputs accommodate compatible digital audio components.
SPL's Phonitor Matrix addresses the exaggerated stereo separation that can occur during headphone listening. Its two selectable crossfeed settings introduce a more natural spatial presentation, helping recordings sound closer to a conventional loudspeaker system.
At the heart of the Phonitor se is the same VOLTAiR amplification approach used in SPL's larger Phonitor models. Its high-voltage architecture offers substantial headroom and clean, controlled reproduction across a wide range of headphone impedances.
Discover SPL at The Grid HiFi. Order online for delivery throughout the United States or contact our Houston showroom for expert headphone and source-component recommendations.
