Overview
Sonus faber PW-662
The Beauty of Sonus faber. Built Into Your Walls.
Premium 2-Way Sealed-Box In-Wall Loudspeaker
The Sonus faber PW-662 brings the elegance and musical character of Italian high-fidelity audio into a beautifully discreet architectural loudspeaker. Part of the Palladio Level 6 collection, it combines sophisticated driver technology, premium materials, and thoughtful installation features to deliver an elevated listening experience without the visual presence of a traditional speaker cabinet.

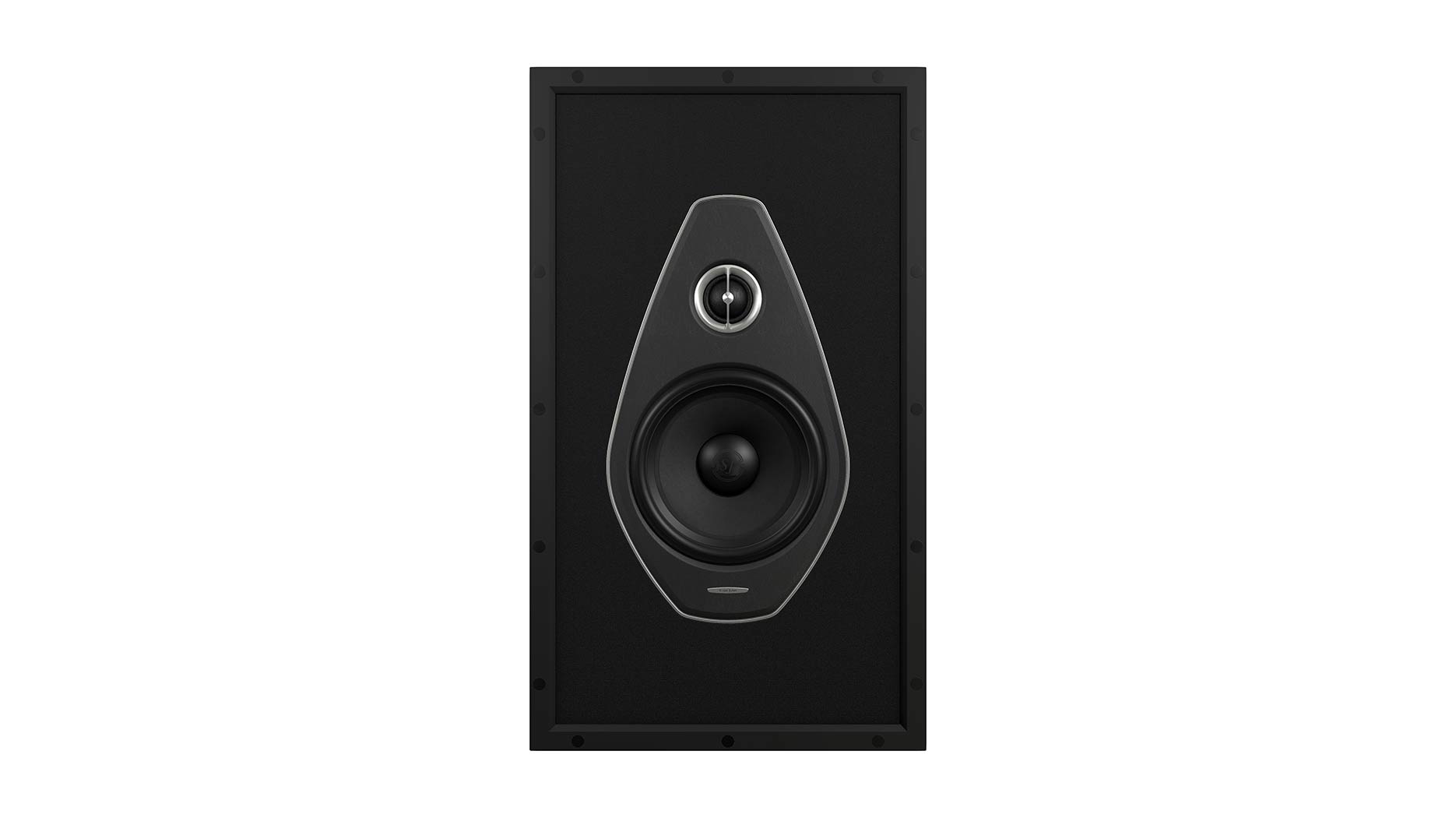

Inspired by the design language of the Olympica Nova collection, the PW-662 features a 1.1-inch Damped Apex Dome (D.A.D.) tweeter, a 6.5-inch midwoofer, and distinctive leather detailing. Its dedicated sealed enclosure provides a controlled acoustic environment, while the included paintable magnetic grille allows the speaker to blend naturally into its surroundings.
Whether creating a refined two-channel music system, a sophisticated media room, or a whole-home audio installation, the PW-662 offers a compelling combination of acoustic engineering and architectural elegance.
High-Fidelity Sound, Thoughtfully Engineered

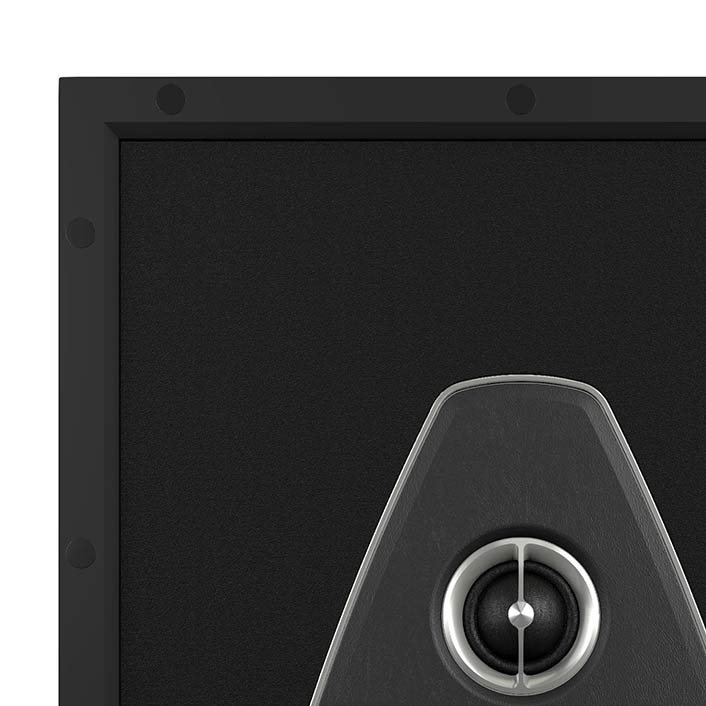

1.1-Inch D.A.D. Tweeter
Sonus faber's Damped Apex Dome technology incorporates a mechanical damping element that helps control the dome's apex behavior.
Designed for refined high-frequency reproduction, the 29 mm tweeter contributes the detail and articulation needed to reproduce delicate musical textures, vocal nuances, and the subtle ambience of a recording.
6.5-Inch Midwoofer
A dedicated 165 mm midwoofer handles both bass and midrange reproduction, providing the foundation for natural vocals, expressive instruments, and satisfying musical weight.
Working alongside the D.A.D. tweeter, the two-way architecture is designed to create a cohesive presentation across the frequency spectrum.
Unlike open-back architectural speakers that depend on the characteristics of the surrounding wall cavity, the PW-662 incorporates its own sealed enclosure.
This provides a defined internal acoustic volume, reducing the variability associated with different wall constructions and helping deliver more consistent performance across installations.
Inspired by the Olympica Nova Collection
The PW-662 is more than an architectural loudspeaker. It is an extension of Sonus faber's approach to craftsmanship and design.
Drawing visual inspiration from the Olympica Nova collection, the speaker incorporates leather detailing around its driver assembly, creating a connection to the materials and aesthetic traditions found in the company's freestanding loudspeakers.
For installations where the speaker is intended to become a visible design element, an optional premium kit adds a natural wood front mask, Sonus faber's signature string grille, and a paintable magnetic frame.
This allows the PW-662 to be presented in two distinct ways: discreetly integrated into the wall or deliberately showcased as a piece of Italian audio craftsmanship.
Designed to Blend In. Or Stand Out.
Discreet Integration

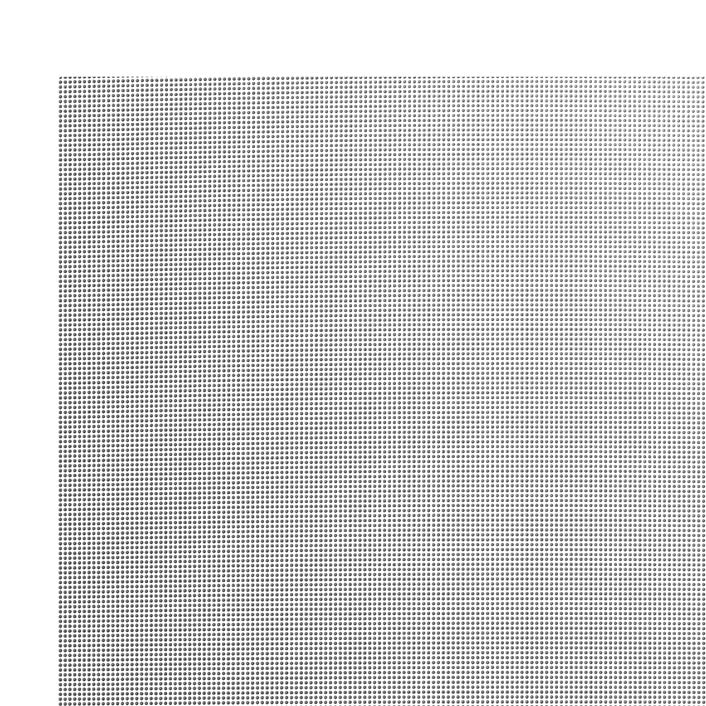

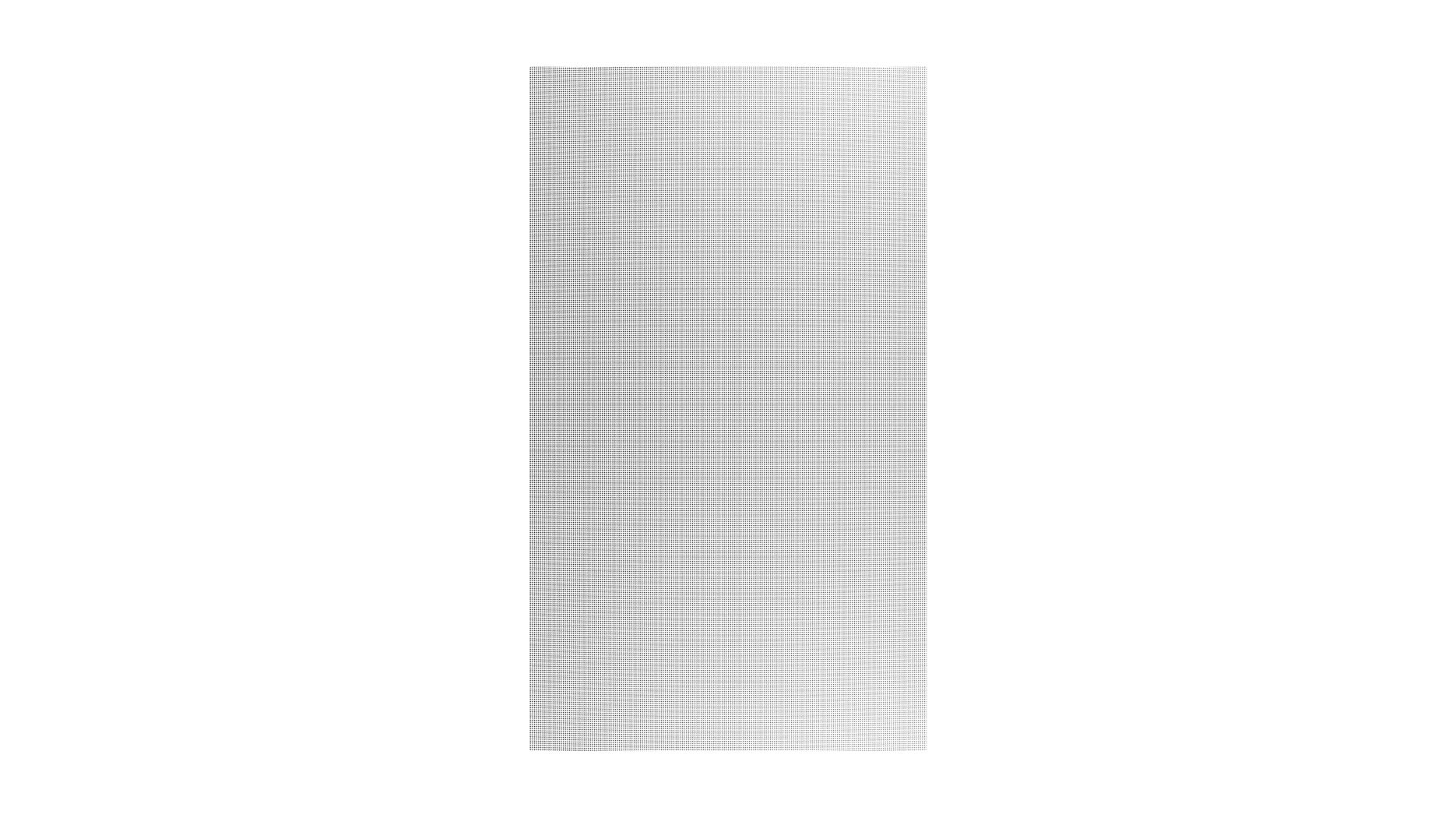

The included edgeless metal grille attaches magnetically and can be painted to complement the surrounding wall finish.
Premium Wood Finish
The optional premium kit introduces natural wood and the distinctive Sonus faber string grille for a more expressive architectural presentation.
The ability to customize the PW-662 makes it particularly appealing for luxury residential projects where interior design is as important as audio performance.
A minimalist living room may call for a painted grille that virtually disappears into the wall. A dedicated listening space, on the other hand, may benefit from the visual warmth of the optional wood finish.
Either approach preserves the same underlying loudspeaker engineering.
Installation Flexibility Without Compromising the Design
The PW-662 was developed with professional custom installation in mind.

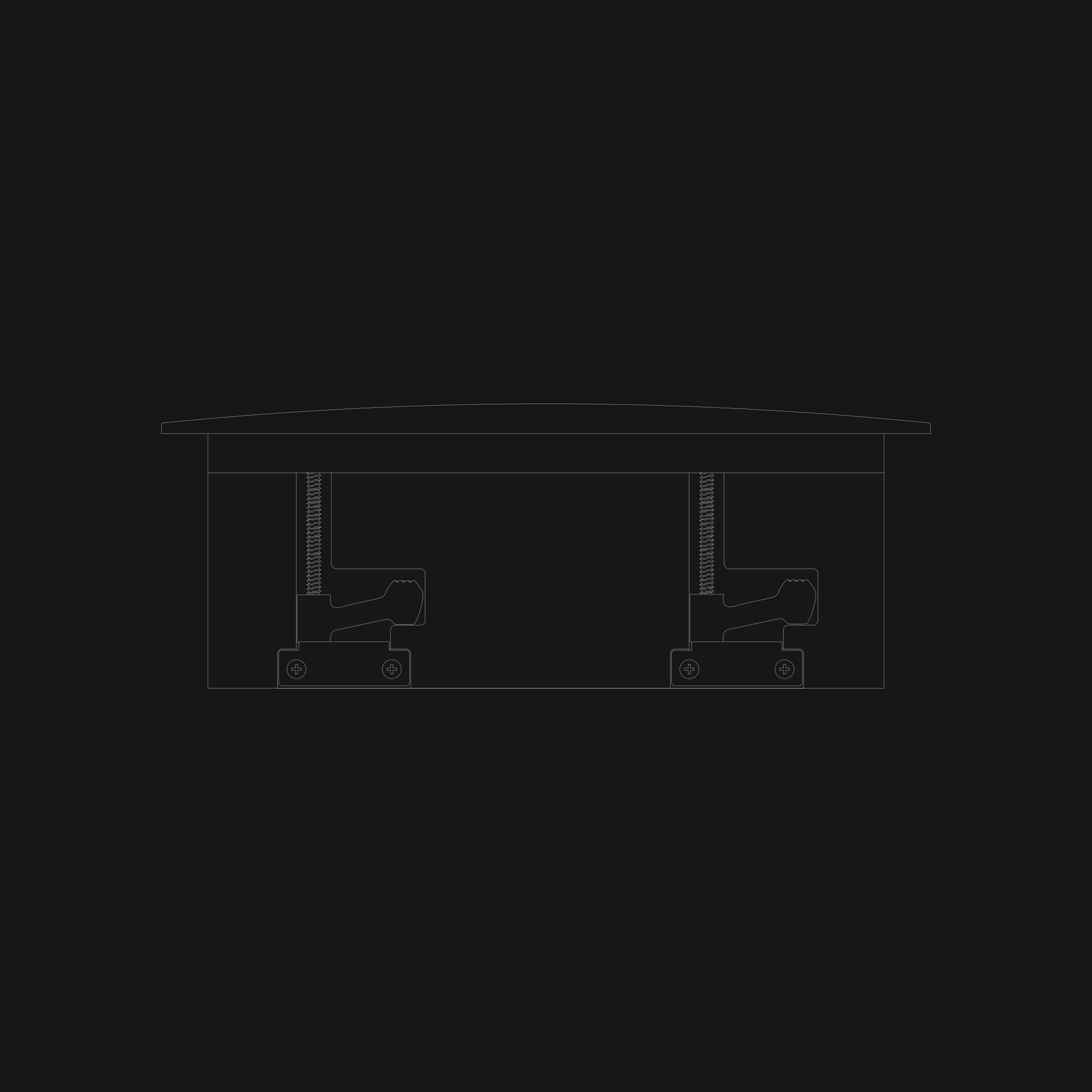

Its swing-out dog mounting system allows the speaker to be secured to suitable plasterboard surfaces, simplifying the installation process while providing a stable mounting arrangement.
With a required depth behind the mounting surface of approximately four inches, the PW-662 can be accommodated in appropriately designed wall assemblies.
Its rectangular format makes it suitable for vertically oriented installations, while the magnetic grille provides a clean finish without visible grille fasteners.
For new construction and renovation projects, The Grid HiFi can coordinate speaker placement, framing requirements, wiring, and installation details during the design phase to help achieve a seamless finished result.
A Versatile Foundation for Premium Residential Audio
The PW-662 is well suited to installations where the customer wants the performance of a dedicated loudspeaker without introducing freestanding cabinets into the room.
Its two-way design and sealed enclosure make it an option for a variety of applications, including architectural stereo systems, distributed music, and custom home theater installations.
With a manufacturer-recommended amplifier range of 40–200 watts, the PW-662 can be integrated with appropriately selected amplification and control systems.
In a dedicated media room, it can also be paired with a properly configured subwoofer to extend low-frequency performance and support the dynamic demands of movie soundtracks.
The result is a system designed around how the room will actually be used, whether that means relaxed background listening, focused music sessions, or immersive entertainment.
Technical Specifications
Sonus faber PW-662
|
Specification |
Details |
|---|---|
|
Speaker Type |
2-way in-wall loudspeaker |
|
Enclosure |
Sealed box |
|
Tweeter |
1 × 1.1" (29 mm) D.A.D. |
|
Midwoofer |
1 × 6.5" (165 mm) |
|
Recommended Amplifier Power |
40–200 W, undistorted signal |
|
Frame Dimensions (H × W) |
19.5" × 11.3" |
|
Cutout Dimensions (H × W) |
18.6" × 10.4" |
|
Required Depth Behind Surface |
4" (100 mm) |
|
Protrusion |
0.59" (15 mm) |
|
Mounting System |
Swing-out dogs |
|
Included Grille |
Paintable, edgeless magnetic metal |
|
Optional Premium Kit |
Natural wood mask, string grille, paintable magnetic frame |
|
Shipping Weight |
22 lbs (10 kg) |
Specification note
Sonus faber's product page does not publish frequency response, sensitivity, or nominal impedance for the PW-662. Those figures have been intentionally excluded rather than estimated.
Experience Sonus faber at The Grid HiFi
Architectural audio should be designed around the way you live, the character of your home, and the performance you expect.
At The Grid HiFi in Houston, we specialize in premium audio systems, custom home theaters, and whole-home integration. Our team can help you select the appropriate Sonus faber Palladio loudspeakers, determine optimal placement, and integrate them with amplification, streaming, control, and other elements of your entertainment system.
As a Sonus faber Reference Dealer, we bring together product knowledge, system design, and professional installation to create audio experiences that complement both the architecture and the people who enjoy them.
Contact The Grid HiFi to discuss your custom Sonus faber architectural audio project.
