Beautiful Sound. Nothing in the Way.

Premium 2-Way In-Wall Loudspeaker | Palladio Level 5 Collection

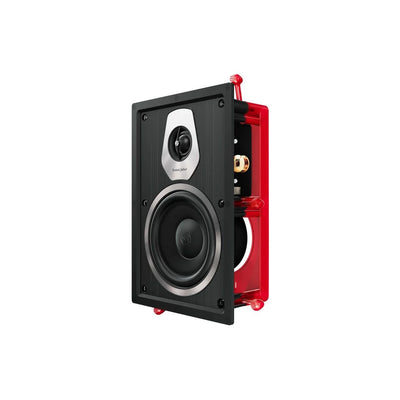

The Sonus faber PW-562 brings the musical character of Italian high-fidelity audio into a beautifully discreet architectural design. Part of the Palladio Level 5 collection, this two-way in-wall loudspeaker combines Sonus faber's signature acoustic engineering with clean, contemporary styling inspired by the Sonetto loudspeaker collection.

At its heart, a 1.1-inch Damped Apex Dome (D.A.D.) tweeter works alongside a 6.5-inch midwoofer to reproduce music and movie soundtracks with the natural tonal character associated with Sonus faber. Satin aluminum trim frames the drivers, creating a refined appearance that reflects the brand's attention to detail.

With a shallow four-inch installation depth, paintable magnetic grille, and versatile infinite-baffle architecture, the PW-562 allows high-quality sound to become part of the home without compromising its interior design.

Whether specified for a dedicated stereo system, premium whole-home audio, or a custom media room, the PW-562 brings the Sonus faber listening experience into spaces where traditional loudspeakers may not be practical.



Inspired by Sonetto. Engineered for Your Walls.

The PW-562 draws inspiration from the Sonetto collection, translating elements of Sonus faber's freestanding loudspeaker design into an architectural format.

Satin aluminum trim surrounds the tweeter and midwoofer, giving the speaker a sophisticated appearance that distinguishes it from conventional architectural loudspeakers.

At the center of the design is Sonus faber's D.A.D. tweeter, an important element of the company's approach to natural sound reproduction.

The result is an architectural speaker that maintains a visual and acoustic connection to the broader Sonus faber family, making it an appealing choice for installations combining traditional and built-in loudspeakers.

High-Fidelity Engineering Behind the Grille

Designed to Disappear Into the Room

One of the greatest advantages of architectural audio is the ability to enjoy a dedicated sound system without allowing the equipment to define the room.

The PW-562 includes an edgeless square metal grille that attaches magnetically to the speaker frame.

The grille can be painted to coordinate with the surrounding wall, allowing it to blend naturally with interior finishes and architectural details.

For luxury residential projects, this flexibility makes the PW-562 particularly appealing in living rooms, dining areas, bedrooms, and entertainment spaces where visual simplicity is a priority.

Behind the grille, the speaker retains the distinctive design elements and acoustic engineering associated with Sonus faber.

The result: a listening experience that makes its presence known through sound rather than appearance.

A Natural Fit for Custom Installation

The PW-562 was developed with practical installation requirements in mind.

Its swing-out dog mounting system allows the speaker to be secured to suitable plasterboard surfaces, simplifying installation while maintaining a clean finished appearance.

The speaker requires a rectangular cutout measuring approximately 7.6 inches wide by 11.8 inches high, with four inches of clearance behind the mounting surface.

Once installed, the frame protrudes approximately 0.47 inches from the wall.

These compact dimensions make the PW-562 a versatile option for appropriately constructed wall assemblies in both new construction and renovation projects.

For custom installations, The Grid HiFi can coordinate speaker placement, wiring, framing, and acoustic considerations during the design phase to help achieve the intended performance and aesthetic.

One Speaker. Multiple Possibilities.

The PW-562 is designed to accommodate a wide variety of residential audio applications.

Its combination of a 6.5-inch midwoofer, D.A.D. tweeter, and architectural form factor makes it a flexible choice for projects where performance and discretion are equally important.

Premium two-channel audio

Install a pair of PW-562 loudspeakers in an appropriately designed stereo configuration to enjoy dedicated music reproduction without conventional bookshelf or floorstanding speakers.

Whole-home music systems

Incorporate the PW-562 into a distributed audio system, allowing music to become part of living spaces, bedrooms, and entertainment areas while maintaining a consistent architectural appearance.

Custom home theater

Use the PW-562 as part of a professionally designed multichannel system where discreet speaker placement is a priority. Properly selected subwoofers can extend low-frequency performance, while appropriate amplification and calibration help integrate the system into the room.

With a manufacturer-recommended amplifier power range of 40–200 watts, the PW-562 can be paired with suitable amplification to meet the requirements of the installation.

Technical Specifications

Experience Sonus faber at The Grid HiFi

Great architectural audio should complement the home rather than compete with it.

At The Grid HiFi in Houston, we specialize in premium audio systems, custom home theaters, and whole-home integration that bring together exceptional equipment and thoughtful design.

As a Sonus faber Reference Dealer, our team can help you explore the Palladio collection, select the appropriate loudspeakers, and develop a complete system incorporating amplification, streaming, control, and professional installation.

From initial design and speaker placement to final calibration, we bring every element together to create a listening experience tailored to your home.

Contact The Grid HiFi to discuss your Sonus faber architectural audio project.
