Sonus faber Palladio PS-G101 In-Wall Subwoofer

Deep Bass Without Taking Over the Room

The Sonus faber Palladio PS-G101 brings serious low-frequency performance into the architecture of the room.

Designed as a 10-inch passive in-wall subwoofer, the PS-G101 is built to integrate with Sonus faber's Palladio Level 5 and Level 6 architectural loudspeakers. It delivers the foundation and scale of a dedicated subwoofer while keeping the enclosure largely out of sight.

This is Palladio's approach to bass: substantial performance, discreet installation, and a finished appearance that can blend into the architecture.

A 10-Inch Subwoofer Behind the Wall

At the center of the PS-G101 is a 250 mm / 10-inch woofer designed specifically for in-wall installation.

The PS-G101 uses an infinite-baffle configuration, allowing the architecture behind the speaker to become part of the acoustic design rather than requiring a conventional floor-standing enclosure.

The result is a subwoofer that occupies very little visible space while providing the additional low-frequency foundation needed by a serious music or home theater system.

Designed for Palladio Level 5 and Level 6

The PS-G101 was developed specifically to complement Palladio Level 5 and Level 6 loudspeakers.

That makes it more than a generic architectural subwoofer. It is intended to function as part of a complete Palladio installation, allowing the main speakers and low-frequency system to be designed together.

For a dedicated home theater, whole-home audio system, or high-performance architectural music system, the PS-G101 provides a way to add substantial bass without introducing a conventional subwoofer cabinet into the room.

200–800 Watts of Amplifier Power

Unlike Sonus faber's Gravis subwoofers, the PS-G101 is passive and requires an external amplifier.

Sonus faber specifies 200–800 watts of recommended amplifier power, giving system designers considerable flexibility in choosing amplification appropriate to the installation.

That also means the PS-G101 can be incorporated into a larger distributed amplification system rather than requiring a separate powered subwoofer connection.

Built to Disappear

Palladio was designed around the idea that architectural loudspeakers should complement the room rather than compete with it.

The PS-G101 uses a magnetic, edgeless metal grille that can be painted to match the surrounding wall.

Sonus faber provides three visual configurations:

• Without Grille — expose the speaker itself
• With Rounded Grille — a softer architectural appearance
• With Squared Grille — a more geometric, integrated appearance

The grille attaches magnetically, eliminating visible mounting hardware and making the finished installation clean and discreet.

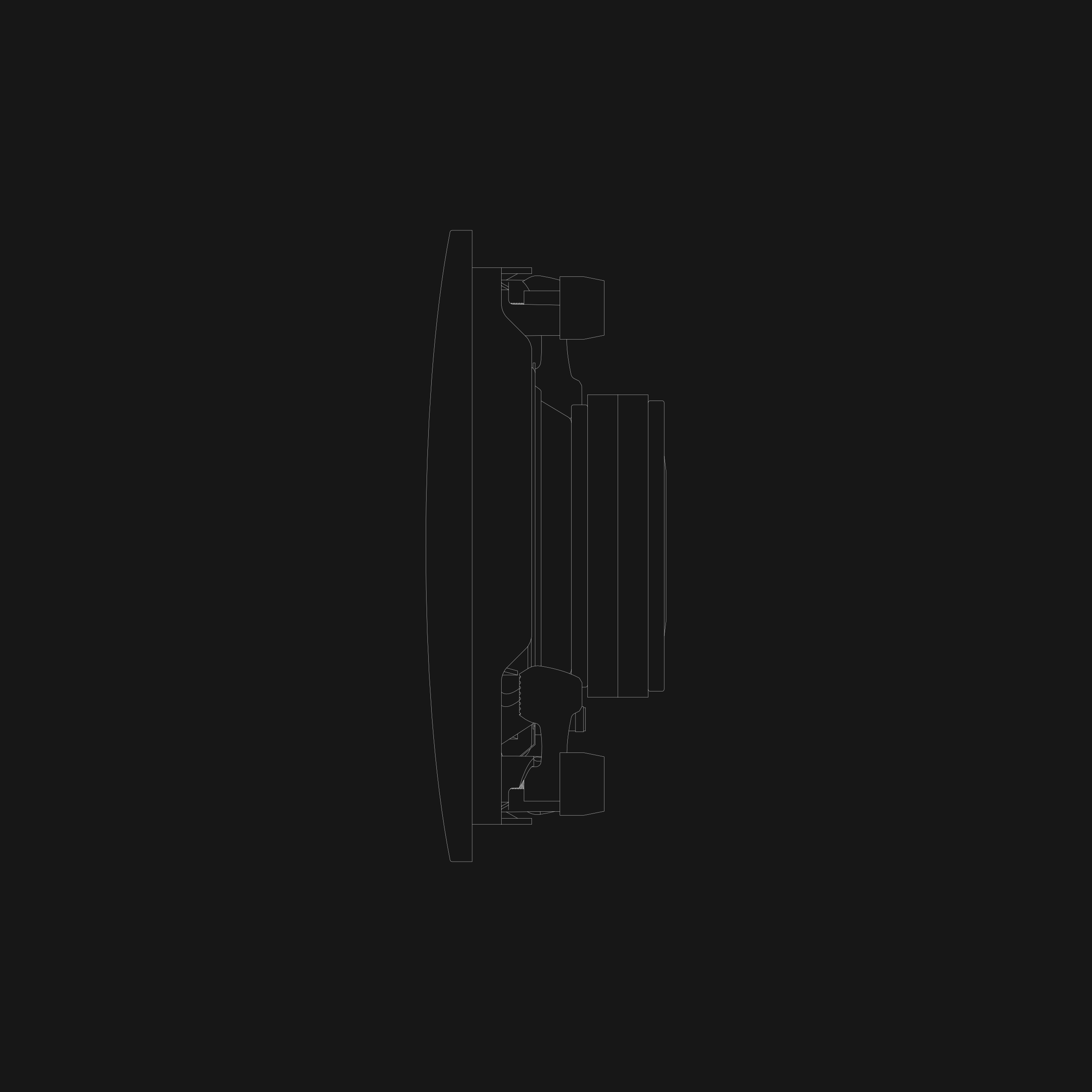

Remarkably Shallow Installation

One of the PS-G101's most compelling features is how little depth it requires.

The speaker requires only 98 mm / 3.9 inches of depth behind the finished surface, making it substantially easier to incorporate into architectural spaces where wall depth is limited.

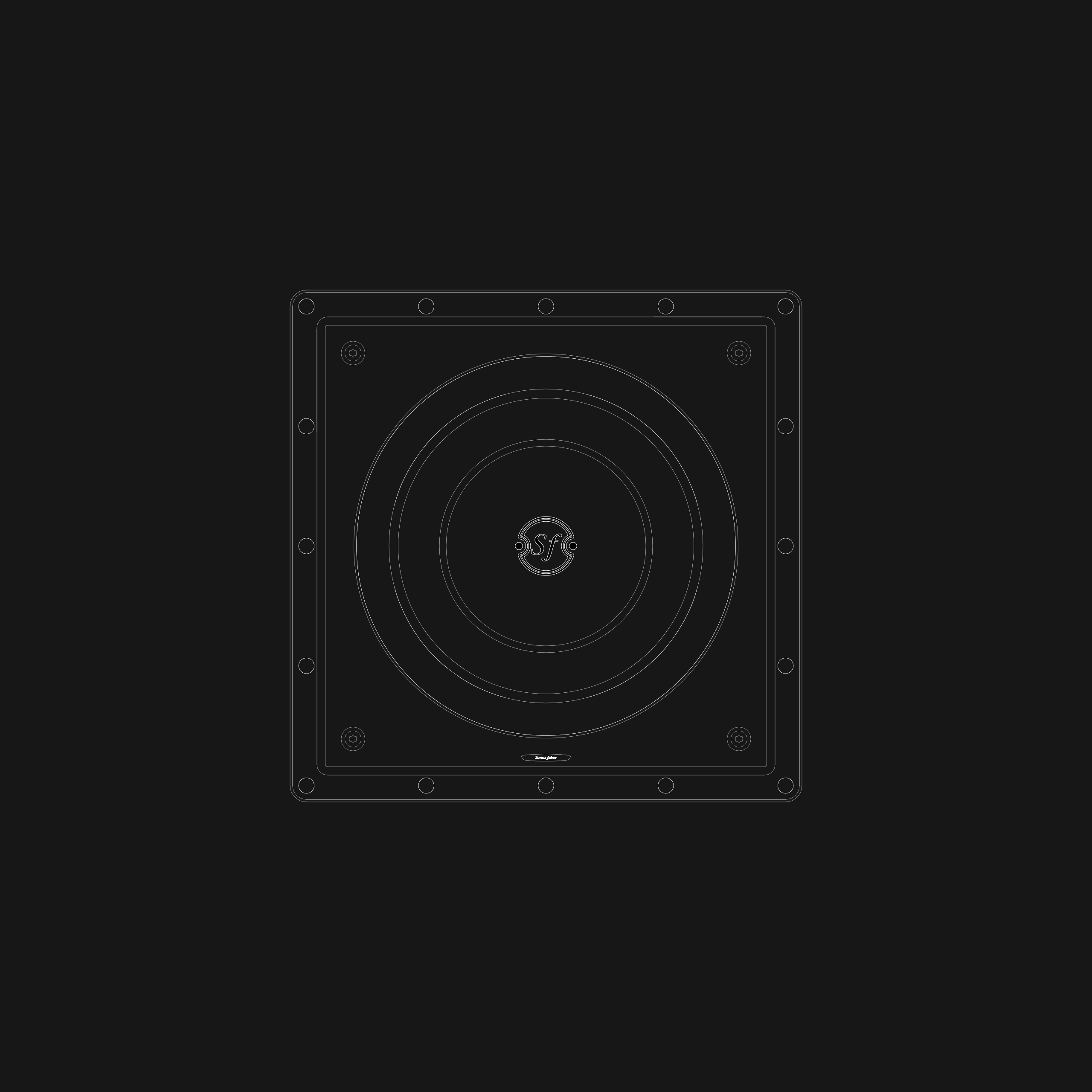

The frame measures 310 × 310 mm / 12.2 × 12.2 inches, with a 280 × 280 mm / 11 × 11-inch cutout.

The speaker protrudes only 23 mm / 0.9 inches from the finished surface.

Fast, Secure Installation

The PS-G101 uses Palladio's swing-out dogs fixing system, allowing the speaker to be secured quickly and effectively into plasterboard.

That makes the PS-G101 suitable for both new construction and retrofit architectural projects where the installation needs to be clean and efficient.

Once installed and finished with the appropriate grille, the subwoofer becomes part of the room rather than another piece of equipment occupying floor space.

The Palladio Philosophy

The Palladio Collection takes its inspiration from Italian Renaissance architecture, emphasizing balance and symmetry while bringing Sonus faber's Natural Sound philosophy into architectural installations.

The PS-G101 applies that same thinking to low frequencies.

Instead of asking where to put a conventional subwoofer, the system allows the bass to become part of the room itself.

Key Features

• Palladio Collection
• Passive in-wall subwoofer
• Infinite-baffle design
• 250 mm / 10-inch woofer
• Designed for Palladio Level 5 and Level 6 systems
• 200–800 W recommended amplifier power
• Magnetic, edgeless metal grille
• Rounded and square grille options
• Paintable grille for architectural matching
• Swing-out dogs fixing system
• Only 98 mm / 3.9 inches installation depth
• 23 mm / 0.9-inch surface protrusion
• Designed for high-performance architectural audio and home theater

Technical Specifications

Specification	Sonus faber Palladio PS-G101
Type	In-wall passive subwoofer
Acoustic Design	Infinite baffle
Woofer	250 mm / 10"
Recommended Amplifier Power	200–800 W
Outer Frame	310 × 310 mm / 12.2 × 12.2"
Cutout	280 × 280 mm / 11 × 11"
Depth Behind Surface	98 mm / 3.9"
Surface Protrusion	23 mm / 0.9"
Grille	Magnetic, edgeless metal
Grille Options	Rounded or squared
Mounting	Swing-out dogs fixing system
Weight	10.85 kg / 24.0 lb

Specifications verified against Sonus faber's official PS-G101 product page.

Sonus faber Palladio PS-G101 at The Grid HiFi

The Palladio PS-G101 is for installations where bass performance needs to be substantial—but the subwoofer itself shouldn't become part of the room's visual design.

With a 10-inch woofer, infinite-baffle architecture, up to 800 watts of recommended amplifier power, and an installation depth of less than four inches, the PS-G101 provides a remarkably discreet way to build serious low-frequency performance into the structure of a room.

Experience Sonus faber Palladio at The Grid HiFi in Houston.
