Directional Sound. Double the Drivers. Discreet by Design.

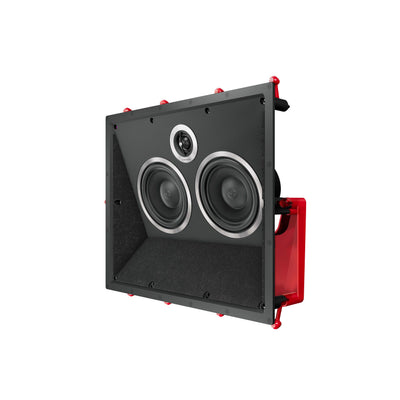

Premium 2-Way Directional In-Ceiling Loudspeaker | Palladio Level 5

The Sonus faber PC-563P takes architectural audio in a more purposeful direction. Designed for installations where speakers must remain discreetly overhead while directing sound toward the listening area, this sophisticated Palladio Level 5 loudspeaker combines an angled driver configuration with dual 6.5-inch midwoofers and Sonus faber's signature 1.1-inch Damped Apex Dome (D.A.D.) tweeter.

Inspired by the acclaimed Sonetto collection, the PC-563P brings Italian acoustic engineering and refined architectural styling into a versatile in-ceiling design. Its dual-midwoofer configuration provides additional radiating area, while the angled driver assembly directs acoustic energy toward the intended listening position rather than simply firing straight down.

With a recommended amplifier power range of 40–250 watts, paintable magnetic grilles, and an installation-friendly mounting system, the PC-563P offers a compelling solution for luxury home theaters, premium music systems, and custom residential audio.

For spaces where the speaker location is dictated by architecture but the sound needs to reach a specific listening area, the PC-563P offers a thoughtful alternative to conventional downward-firing ceiling speakers.

Point the Sound Where It Belongs

Ceiling speakers present a unique challenge: the ideal installation location isn't always directly above the listener.

Lighting fixtures, HVAC systems, structural framing, furniture arrangements, and room geometry can all influence where a speaker can be installed. In a home theater, the relationship between the loudspeaker and the listening position becomes even more important.

The PC-563P addresses this challenge through its angled driver configuration, directing sound toward the listening area.

Rather than relying entirely on the dispersion of a conventional downward-firing design, the PC-563P allows system designers to account for the intended direction of acoustic output when planning speaker placement.

This makes it particularly useful for immersive audio installations, dedicated media rooms, and premium music systems where ceiling-mounted speakers must serve a specific listening position.

The result is greater freedom in architectural placement without losing sight of the listener.

Three Drivers. Two-Way Acoustic Engineering.

Sonetto-Inspired Design. Architectural Freedom.

The Palladio Level 5 collection draws visual inspiration from Sonus faber's Sonetto loudspeakers, translating elements of the company's freestanding designs into architectural formats.

The PC-563P follows this philosophy by combining a purposeful acoustic configuration with understated styling that complements contemporary interiors.

Its distinctive driver arrangement provides substantial performance potential behind a clean architectural grille, allowing the speaker to remain visually discreet without sacrificing the presence of a dedicated high-fidelity loudspeaker.

For projects that combine traditional Sonus faber loudspeakers with architectural audio, the Palladio collection provides a way to maintain a consistent design philosophy throughout the home.

Invisible When You Want It to Be

The PC-563P is designed to integrate naturally into the surrounding ceiling.

Its paintable magnetic grille allows the speaker to coordinate with interior finishes, while the choice of round or square grille provides flexibility when working alongside recessed lighting, ventilation fixtures, and other ceiling details.

Once installed, the loudspeaker becomes an understated part of the architecture, allowing the sound to take center stage.

Designed for Professional Installation

The PC-563P incorporates practical features intended to simplify professional installation.

Its swing-out dog mounting system allows the speaker to be secured to suitable plasterboard ceiling surfaces, providing a clean and efficient installation method.

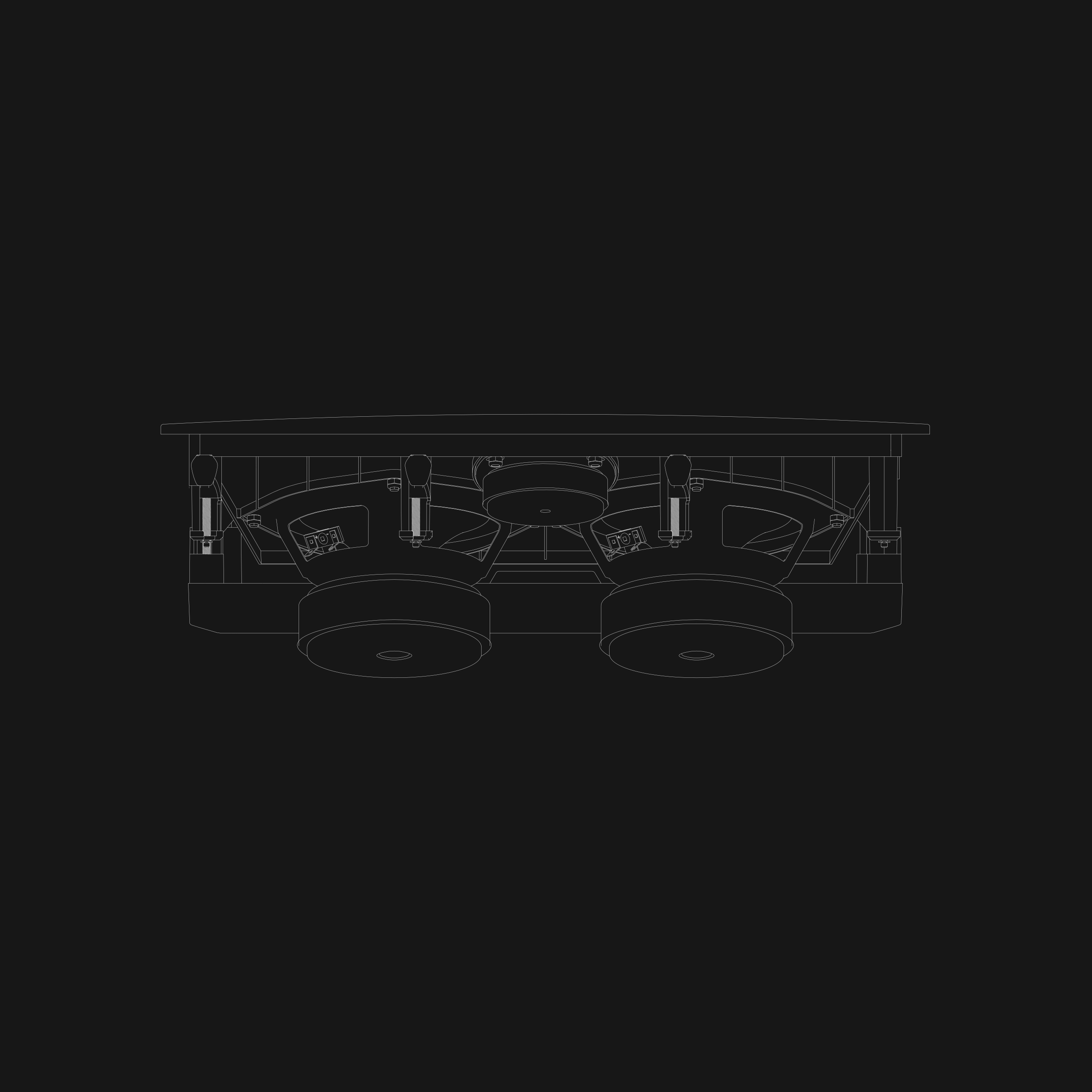

The rectangular frame measures approximately 18.1 inches high by 15.1 inches wide, with a required cutout of 17 inches by 14.1 inches.

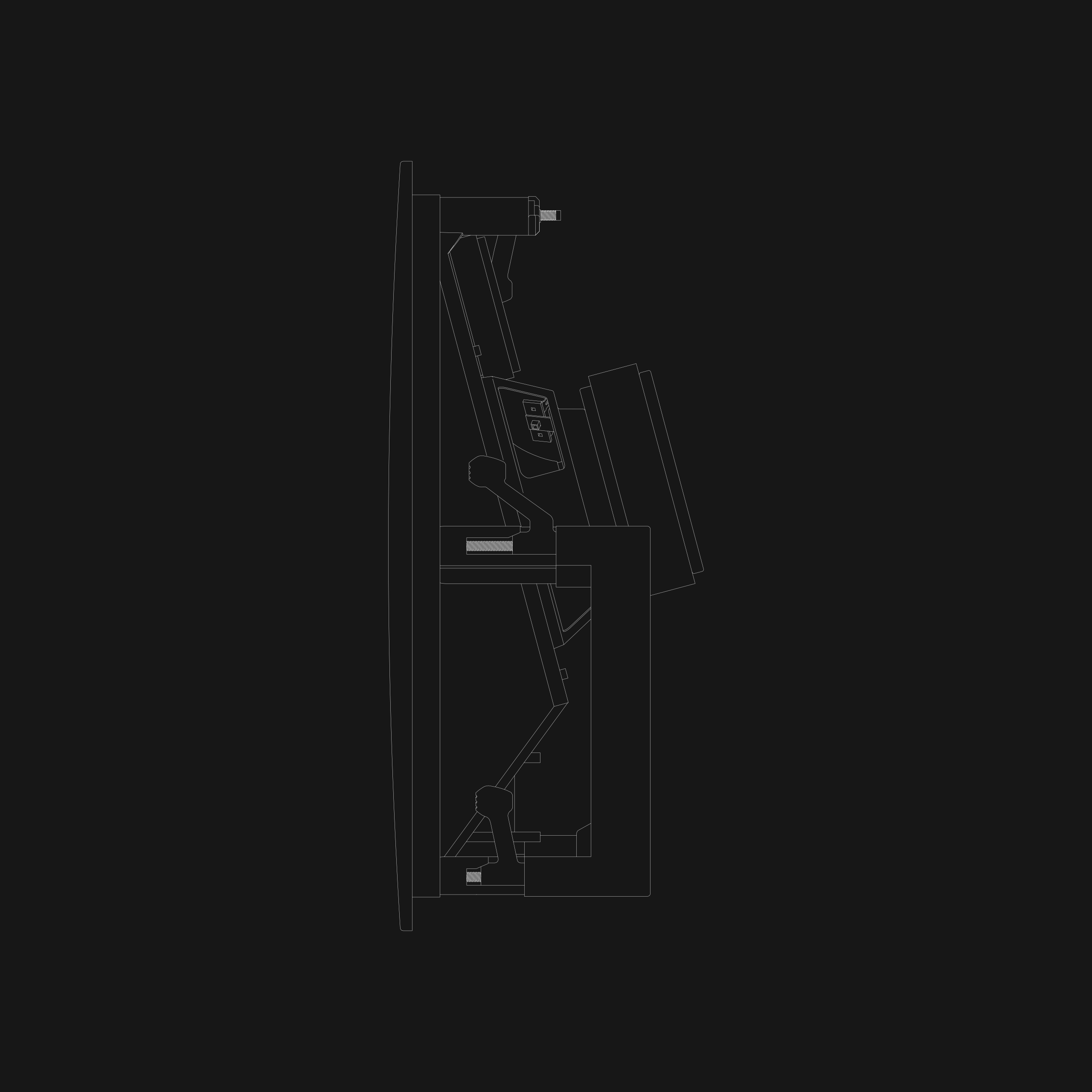

A depth of 5.82 inches is required behind the mounting surface, while the frame protrudes just 0.51 inches once installed.

These dimensions should be considered during the planning stage, particularly when coordinating speaker placement with ceiling framing, lighting, HVAC components, and other architectural systems.

At The Grid HiFi, we can incorporate these requirements into the overall audio and lighting design to ensure the finished installation is both acoustically and visually considered.

A Versatile Solution for Immersive Audio

The PC-563P's directional design and dual-midwoofer architecture make it a flexible option for demanding residential audio applications.

Immersive home theater

The angled driver configuration allows sound to be directed toward the intended listening area, providing additional placement flexibility for overhead channels in professionally designed immersive audio systems.

Premium music systems

For living rooms and entertainment spaces where traditional loudspeakers are undesirable, the PC-563P can be incorporated into a dedicated architectural music system.

Its dual 6.5-inch midwoofers provide a substantial foundation for musical reproduction, while the D.A.D. tweeter handles high-frequency detail.

Whole-home audio

The Palladio collection can be integrated into a coordinated residential audio system, allowing different rooms to benefit from Sonus faber's approach to natural sound while maintaining a discreet architectural appearance.

With a recommended amplifier power range of 40–250 watts, the PC-563P can be paired with appropriately selected amplification as part of a complete system.

Technical Specifications
