Sonus faber Gravis V Active Subwoofer

Power, Depth and Italian Craftsmanship

The Sonus faber Gravis V brings serious low-frequency authority to a high-end music or home theater system without sacrificing the design and craftsmanship expected from Sonus faber.

Designed to acoustically and visually complement the Sonus faber Homage Collection, Gravis V combines a large long-throw driver, 850 watts of Class AB amplification, sophisticated digital control, and the unmistakable Sonus faber combination of wood, leather and aluminum.

This is not simply a subwoofer added to a system. The Gravis V is designed to become part of it—extending the system's bass response while maintaining the speed, control and tonal character of the main loudspeakers.

Designed for the Sonus faber Homage Collection

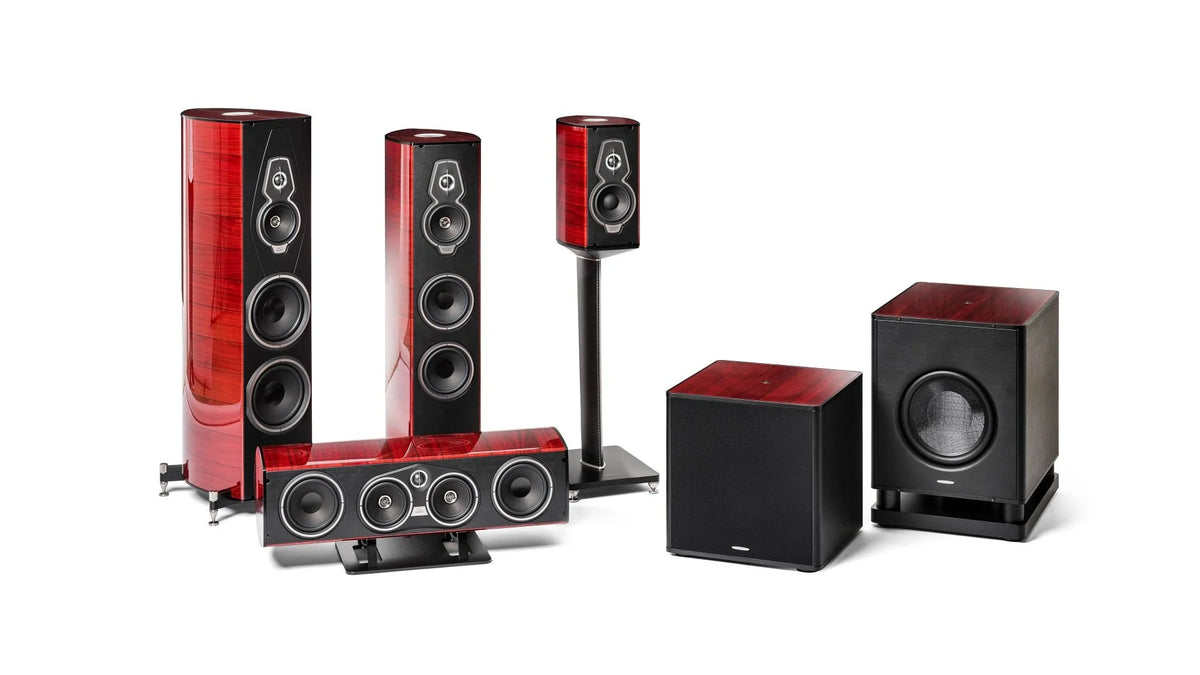

The Gravis V was specifically developed to pair with the Sonus faber Homage Collection, both acoustically and visually.

Its clean, squared enclosure is intentionally understated, allowing the materials to do the work. An artisan-crafted wood or lacquer top is paired with Sonus faber's signature black leather sides and aluminum detailing.

The result is a subwoofer that looks like it belongs beside a pair of premium Italian loudspeakers rather than looking like an afterthought.

A 320 mm Long-Throw Driver

At the heart of the Gravis V is a 320 mm long-throw low-frequency driver featuring a sandwich honeycomb cone and wide rubber surround.

The sandwich construction is designed to provide a combination of rigidity and low moving mass, allowing the driver to move substantial amounts of air while maintaining control.

The result is deep bass with the definition necessary for both demanding music playback and cinematic effects.

850 Watts of Class AB Power

The Gravis V incorporates a high-performance Class AB amplifier rated at 850 watts RMS and 1,200 watts peak.

That power reserve gives the driver the headroom necessary to reproduce demanding low-frequency passages without making the subwoofer feel slow or disconnected from the main system.

The Gravis V is specified to extend down to 20 Hz at -6 dB, with the upper frequency limit continuously adjustable to integrate with the rest of the system.

Sophisticated System Integration

Gravis V provides a wide range of connection and adjustment options for both two-channel and home theater systems.

Inputs include:

• Left and Right/LFE RCA inputs
• Balanced XLR inputs
• High-level input via a 4-pole Neutrik Speakon connection

The subwoofer can therefore be integrated into everything from a high-end stereo system to a sophisticated home theater installation.

App-Based Control and Room Calibration

The Gravis V can be controlled through Sonus faber's dedicated app for iOS and Android.

The app provides extensive adjustment capabilities, including:

• Four selectable presets
• Volume control
• Continuously adjustable crossover from 40–150 Hz
• 24 dB/octave filtering slope
• Phase adjustment from 0–360°
• Up to eight parametric EQ filters
• Delay adjustment from 1–20 ms
• Automatic room calibration
• Selectable automatic power-on/off threshold

This level of control makes it possible to integrate the Gravis V far more precisely into the acoustics of a listening room.

Wireless Capability

The Gravis V can also be paired wirelessly with Sonus faber's Gravis Transmitter, eliminating the need for a physical signal cable between the source or processor and the subwoofer.

The Gravis Transmitter is designed specifically for wireless connection to the Gravis III, Gravis V and Gravis VI.

Available Finishes

The Gravis V is offered in an extensive selection of Sonus faber finishes, allowing it to coordinate with different Homage Collection configurations.

Wood & Lacquer Finishes

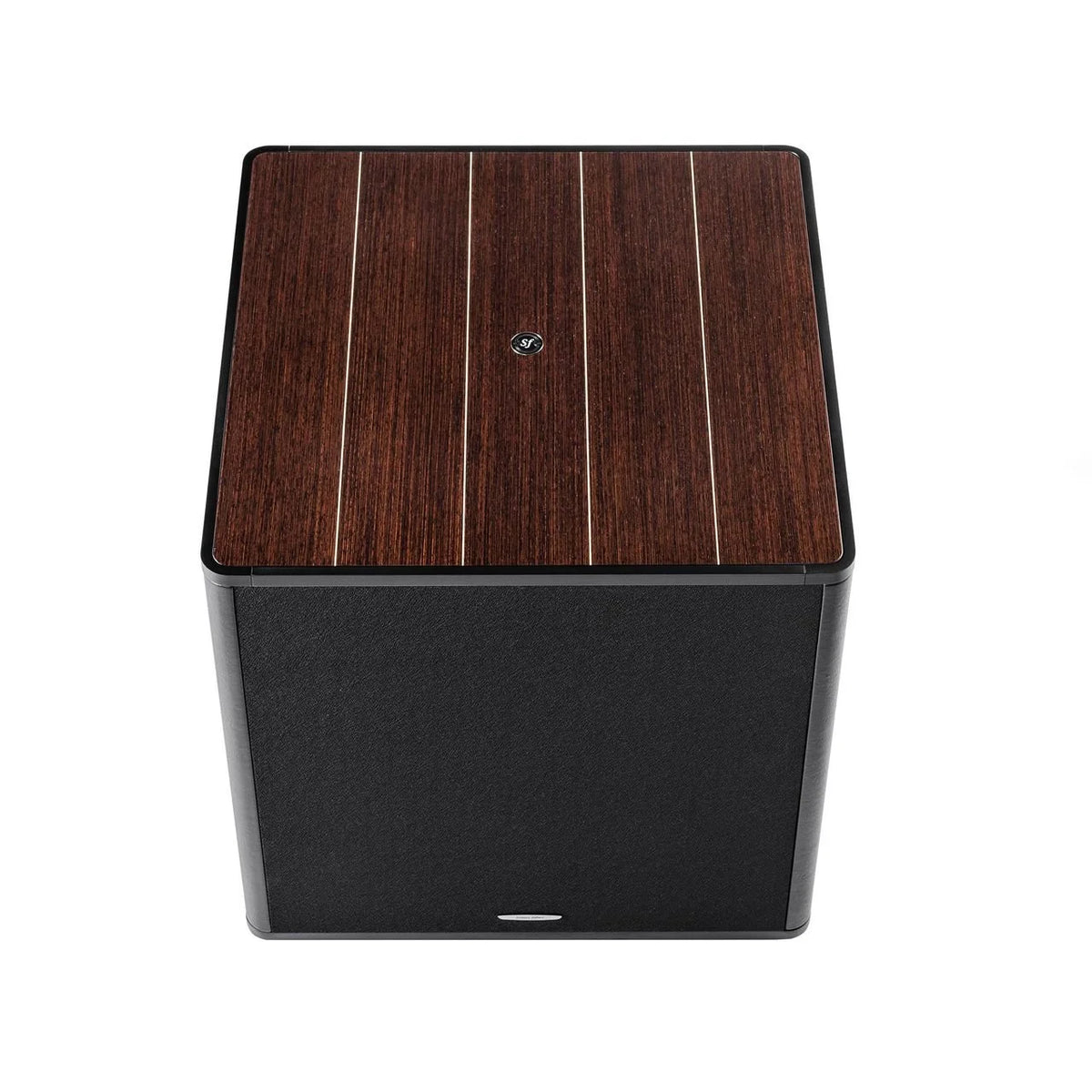

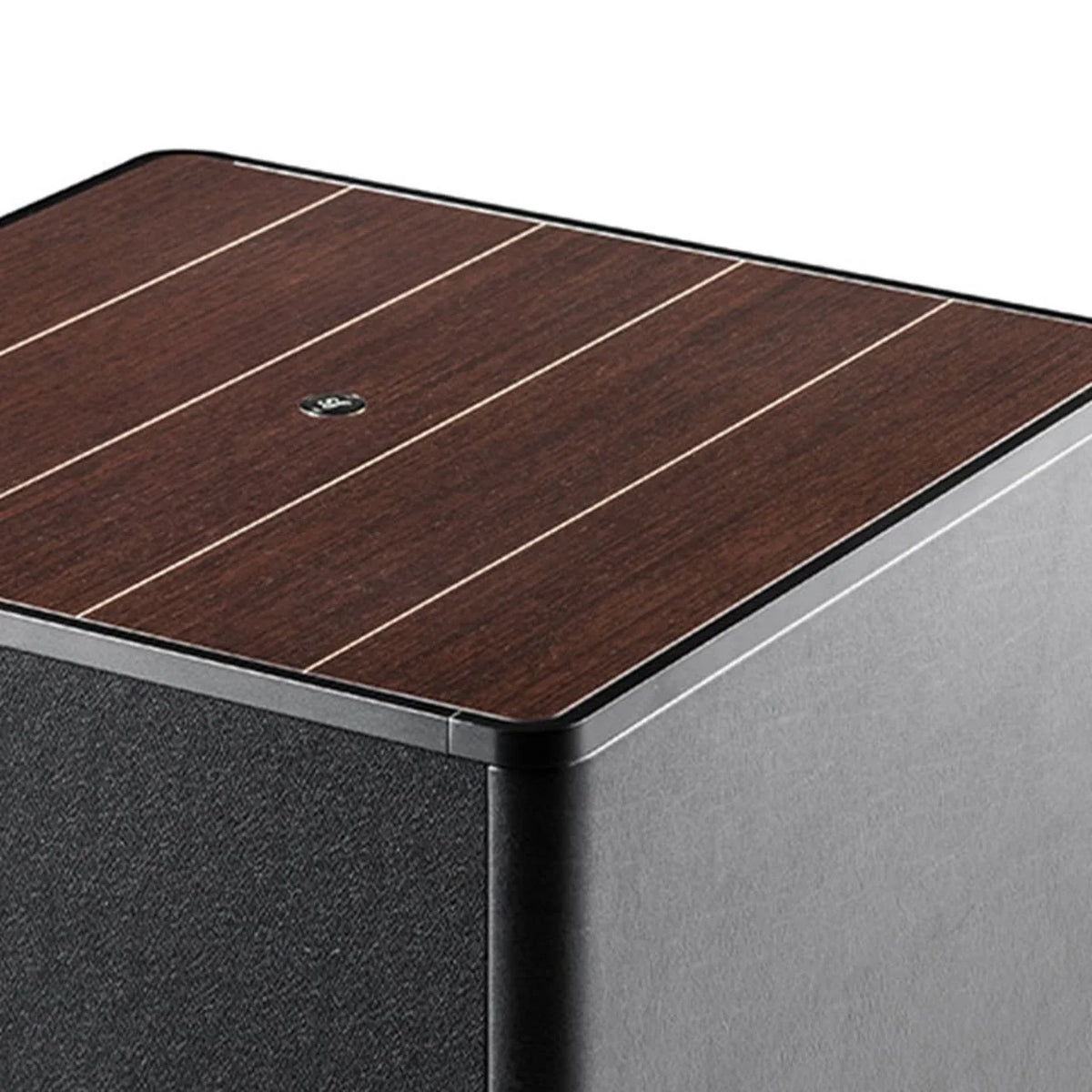

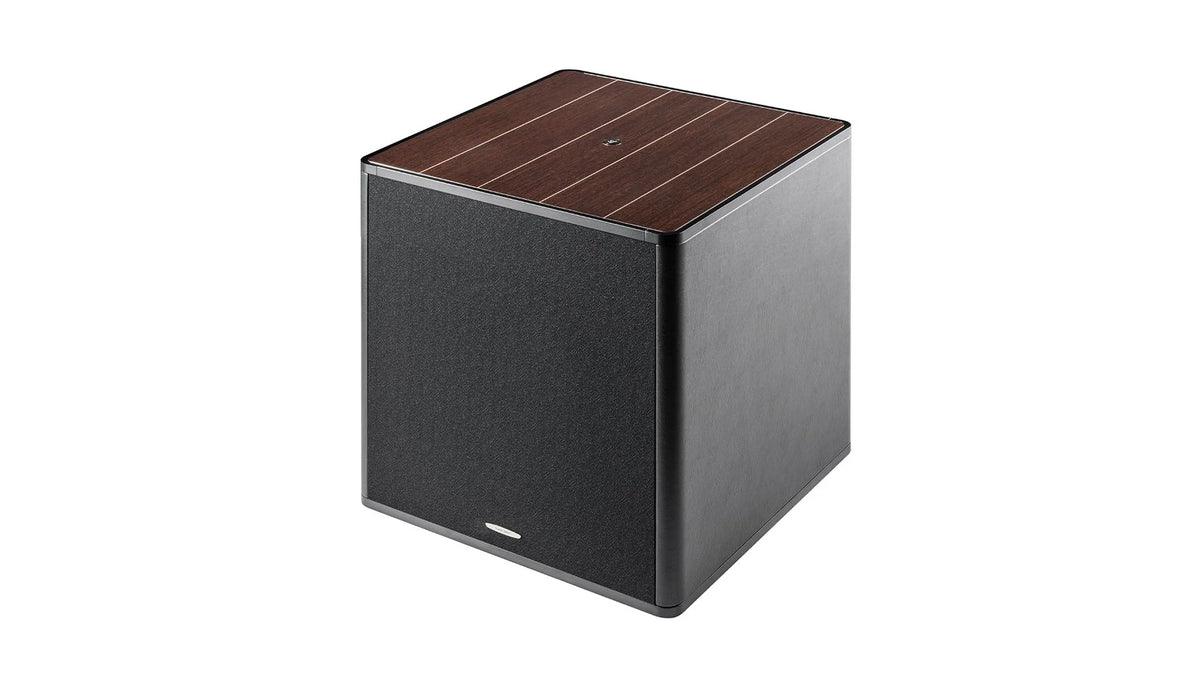

• Wenge High Gloss – Black Leather

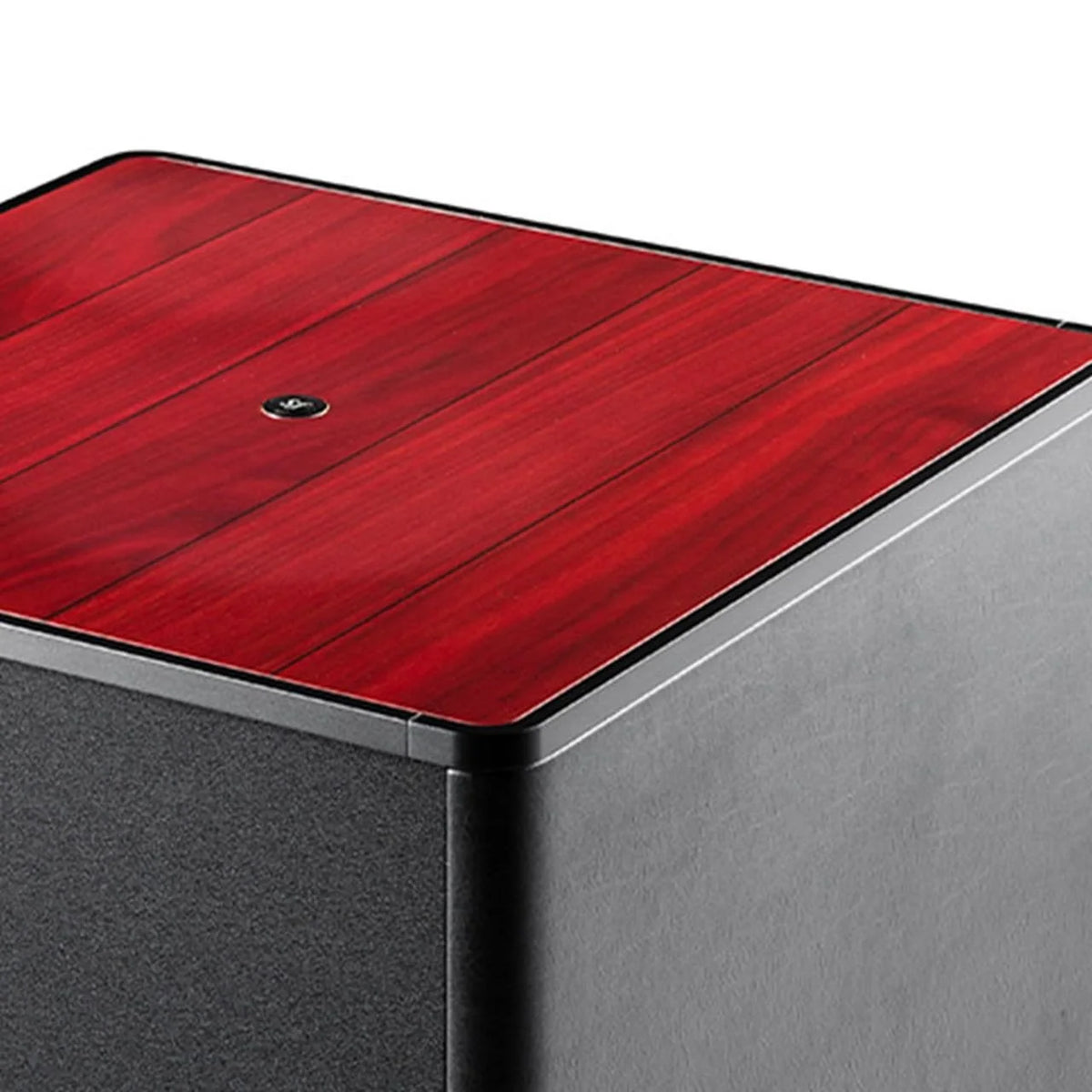

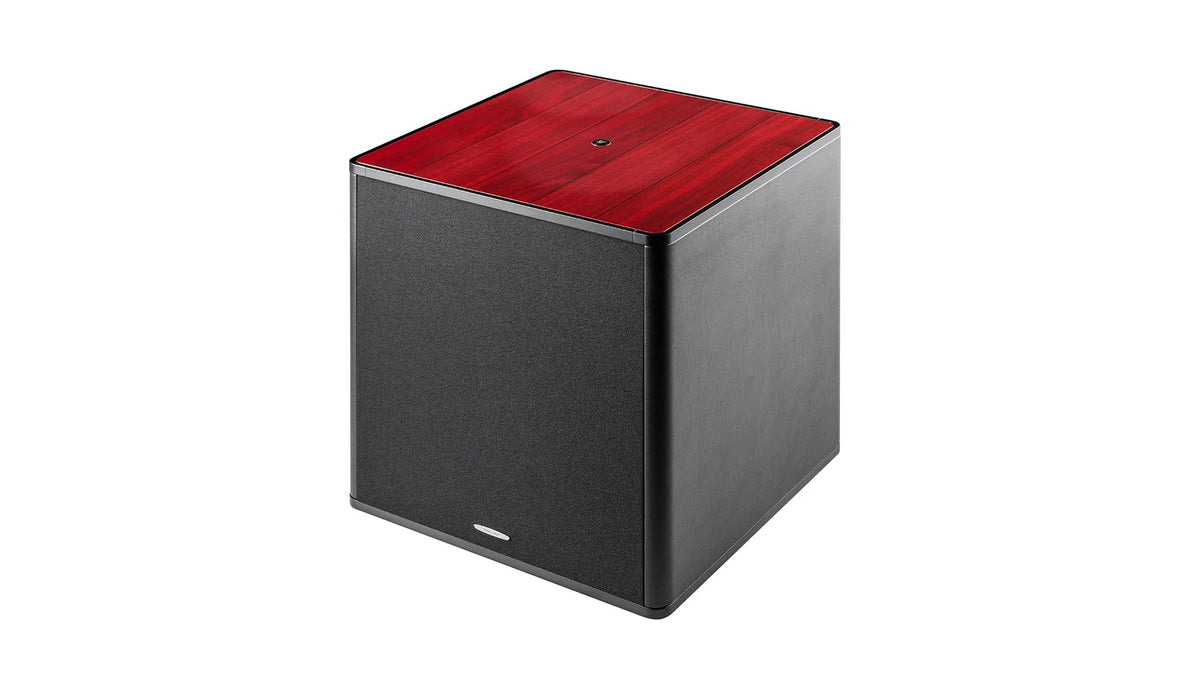

• Red High Gloss – Black Leather

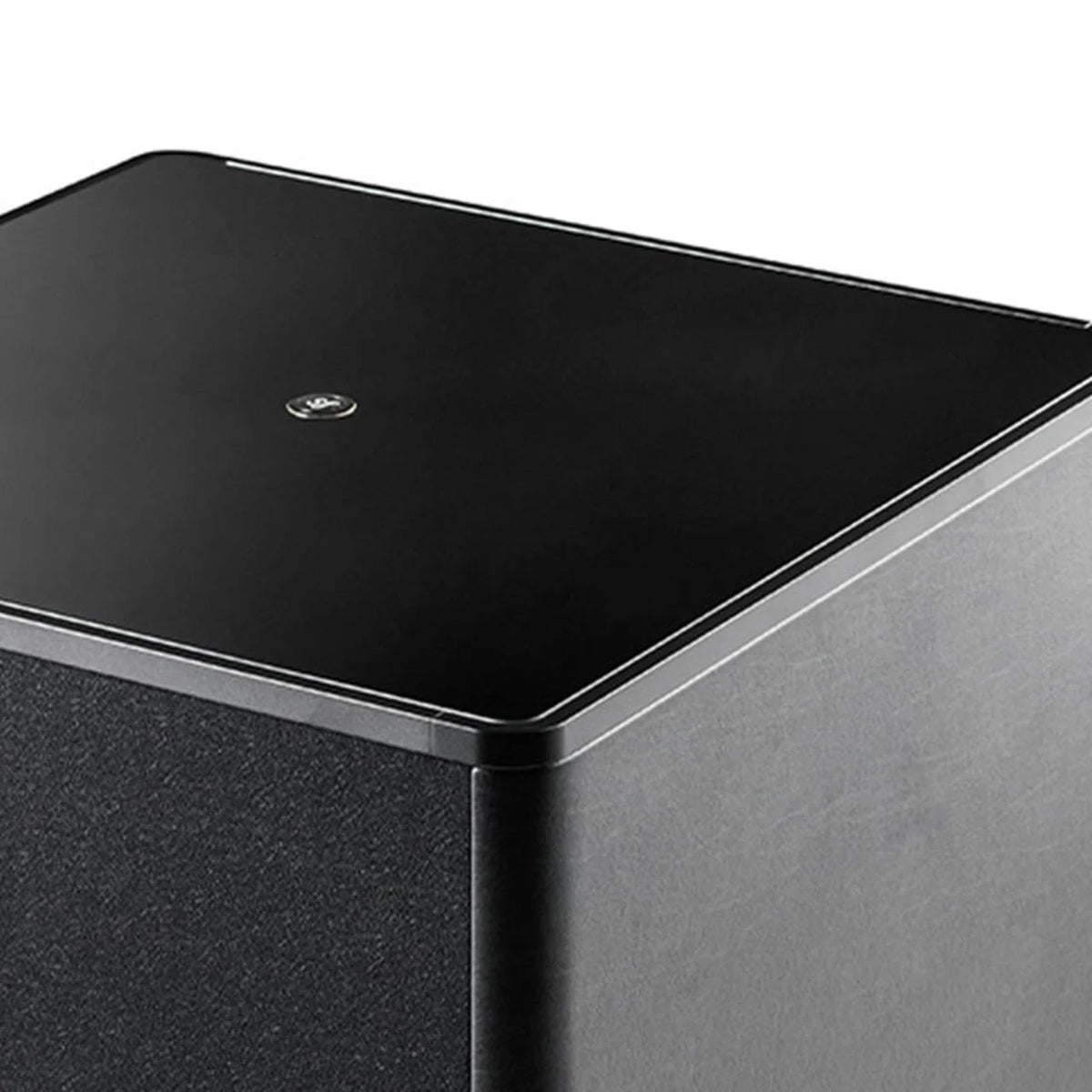

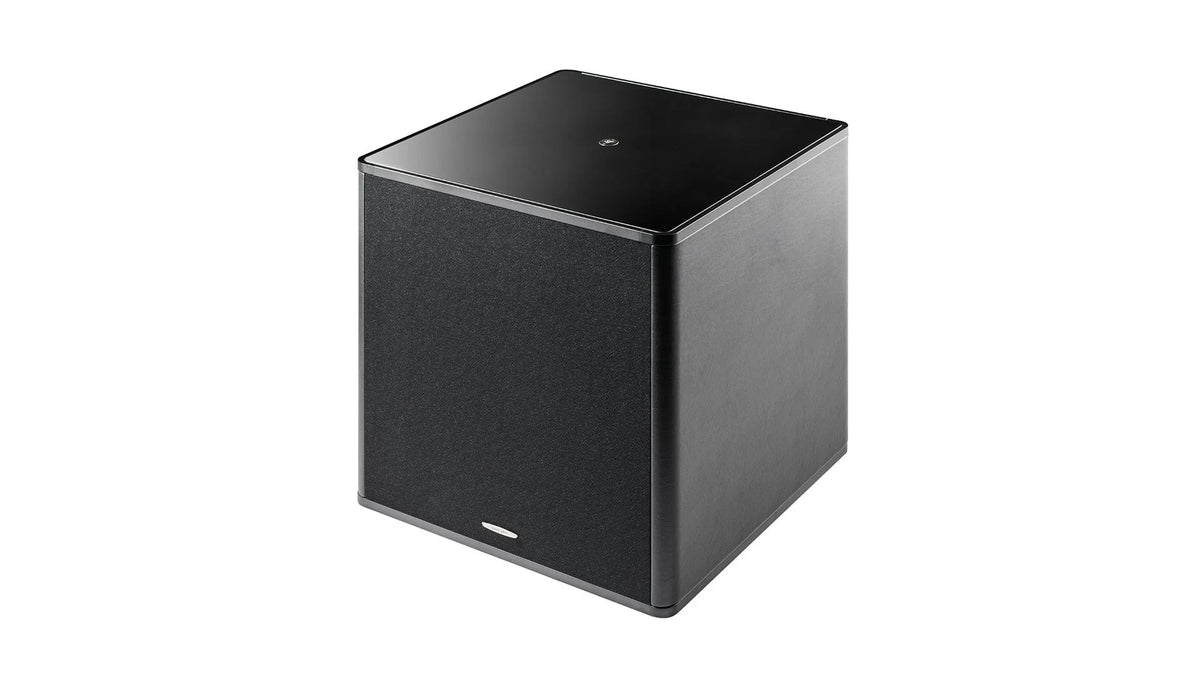

• Piano Black High Gloss – Black Leather

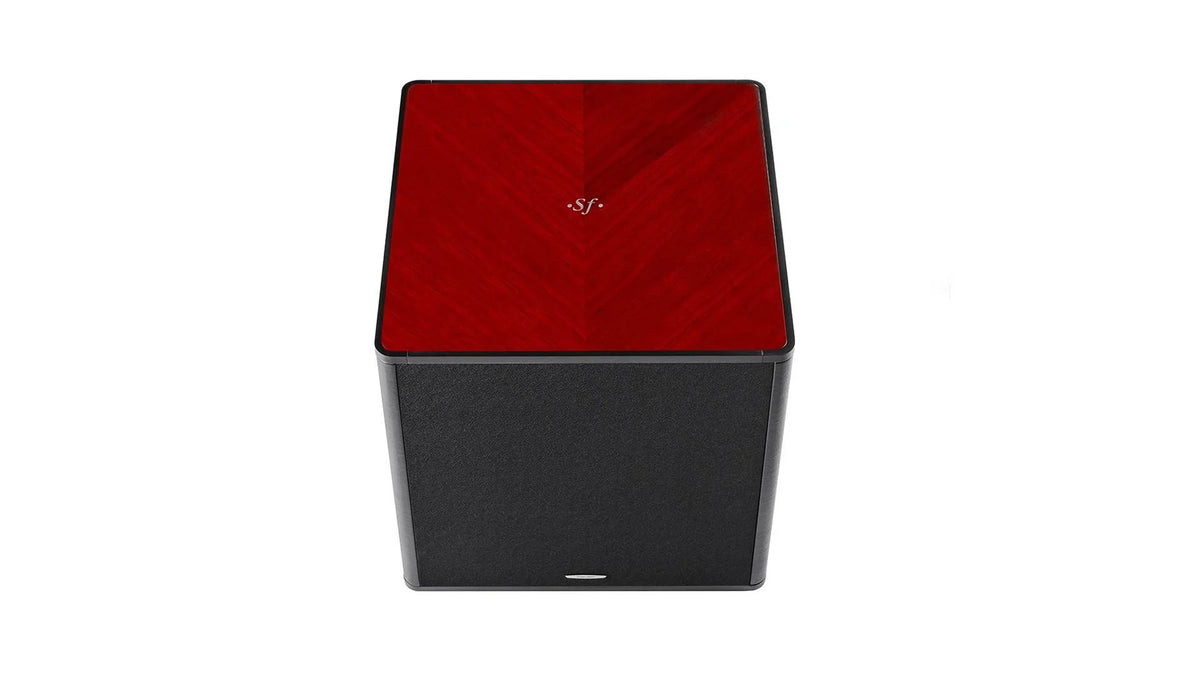

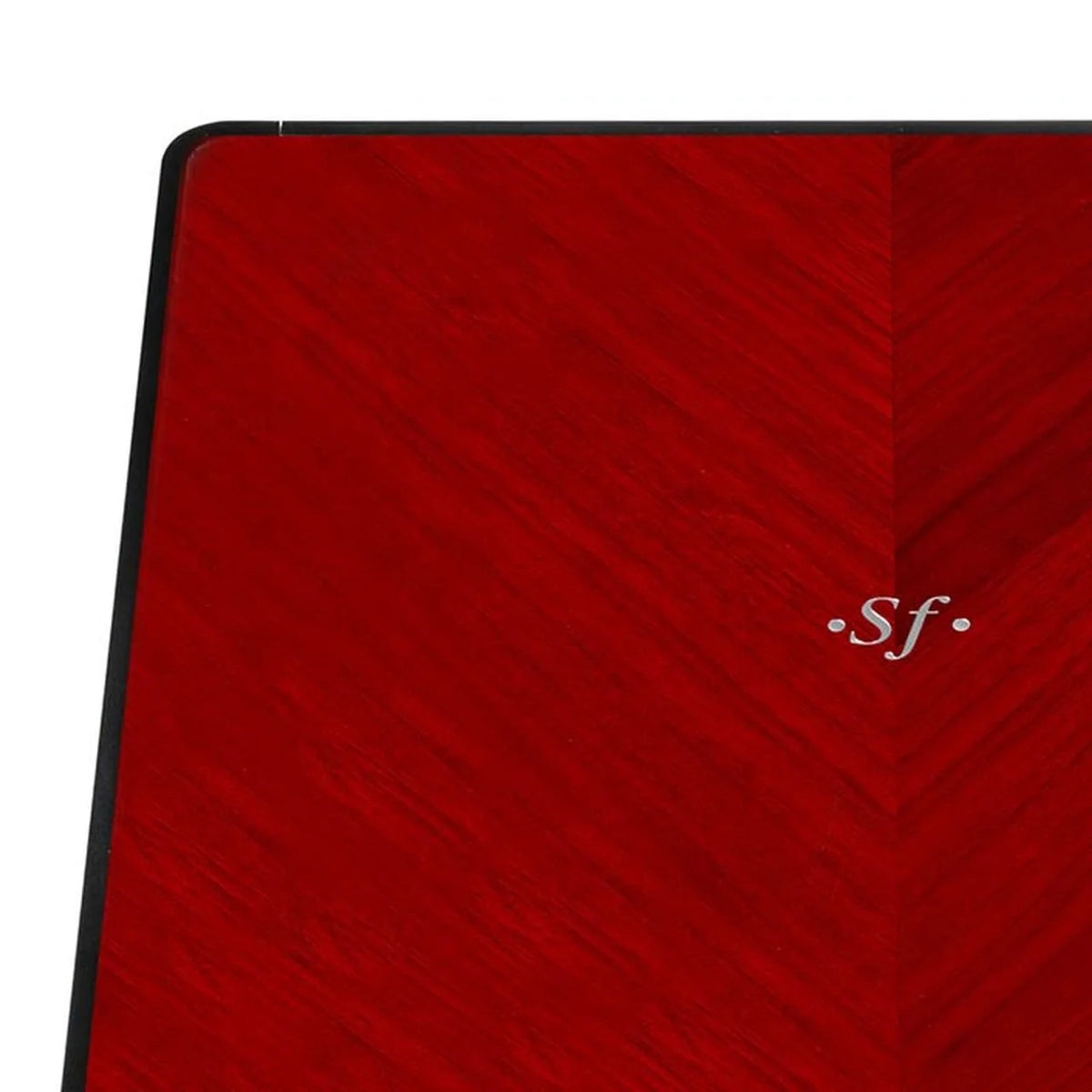

• Red High Gloss with 45° Grain – Inlaid Sonus faber Logo – Black Leather

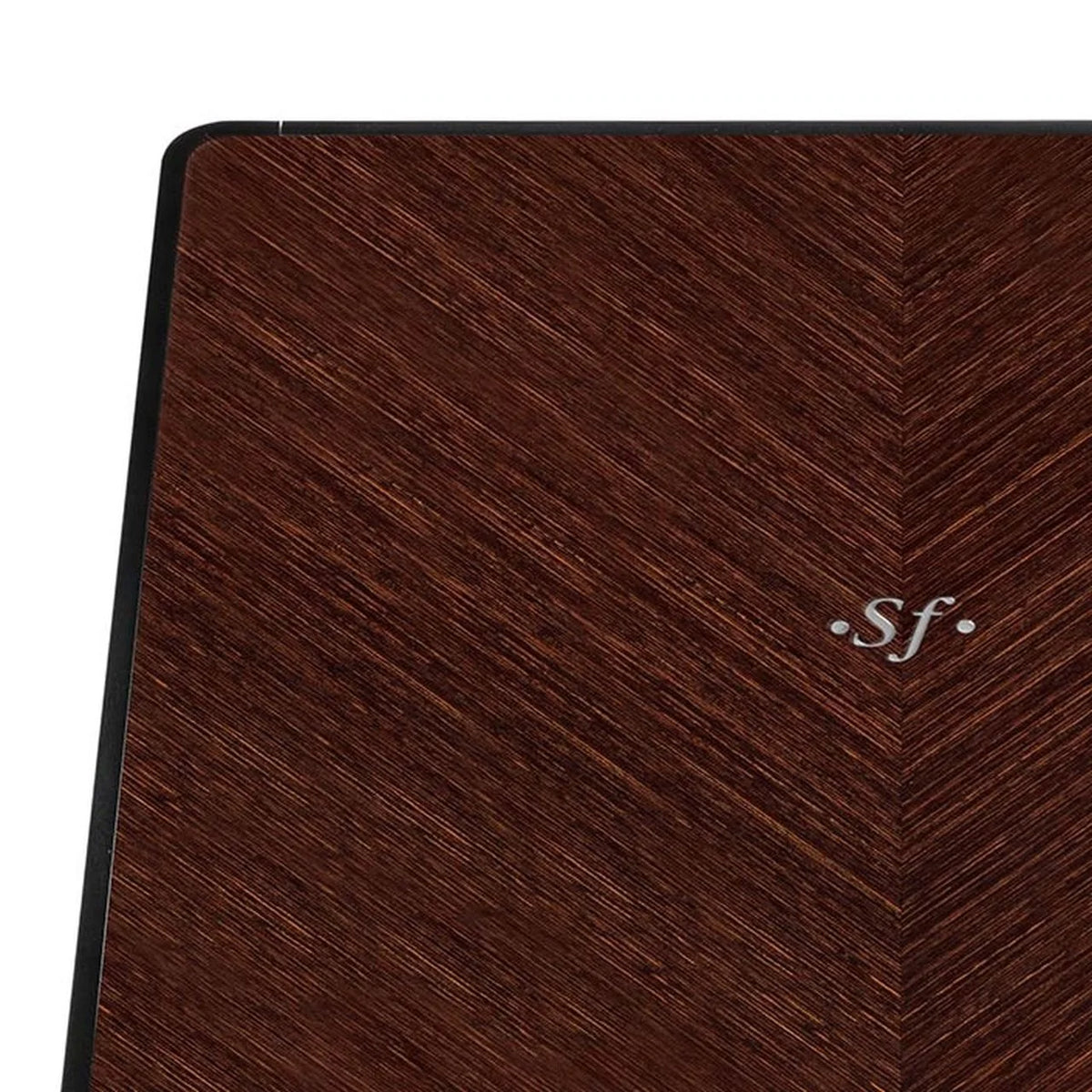

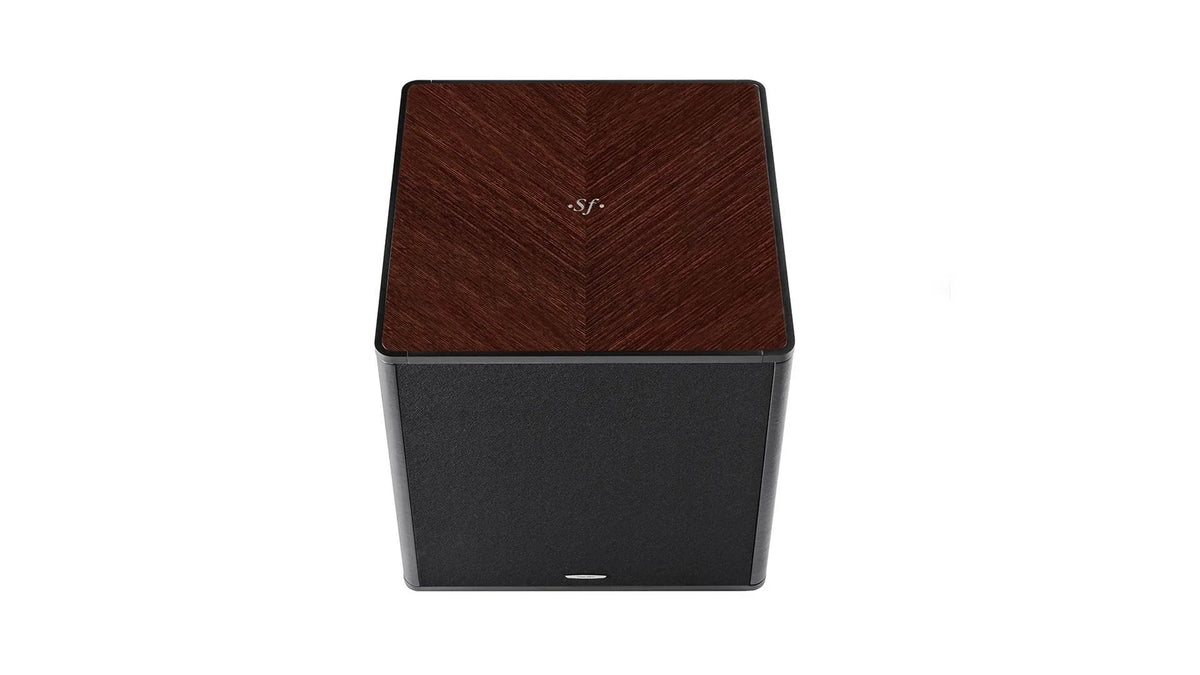

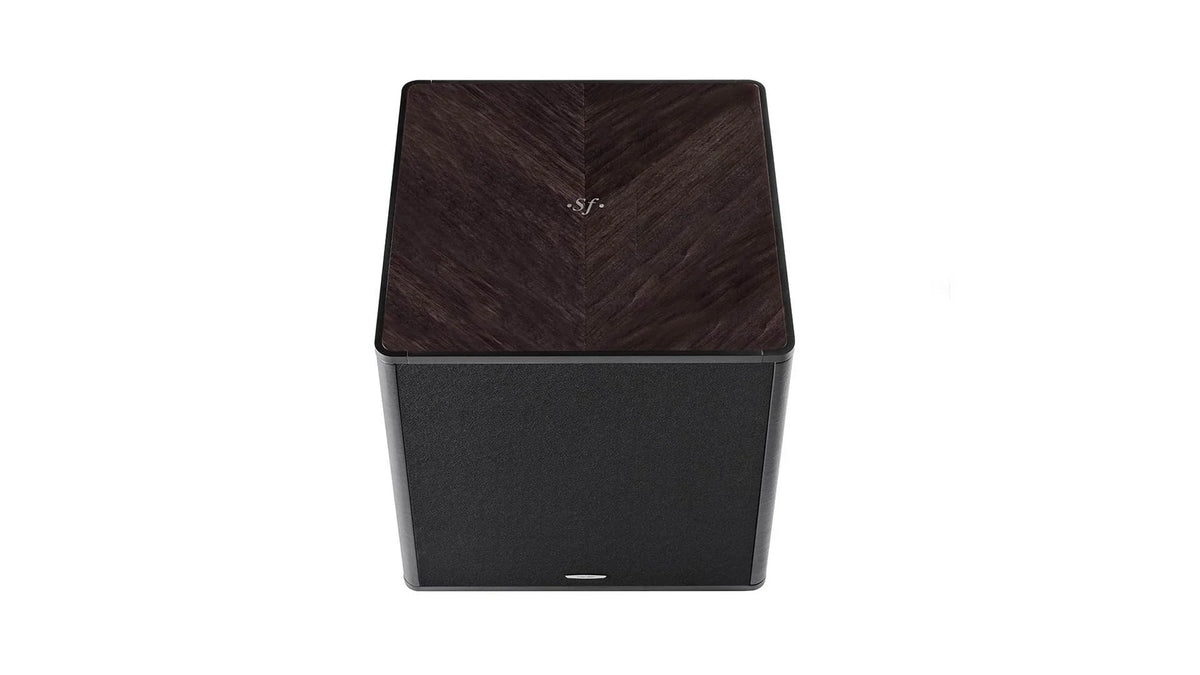

• Wenge High Gloss with 45° Grain – Inlaid Sonus faber Logo – Black Leather

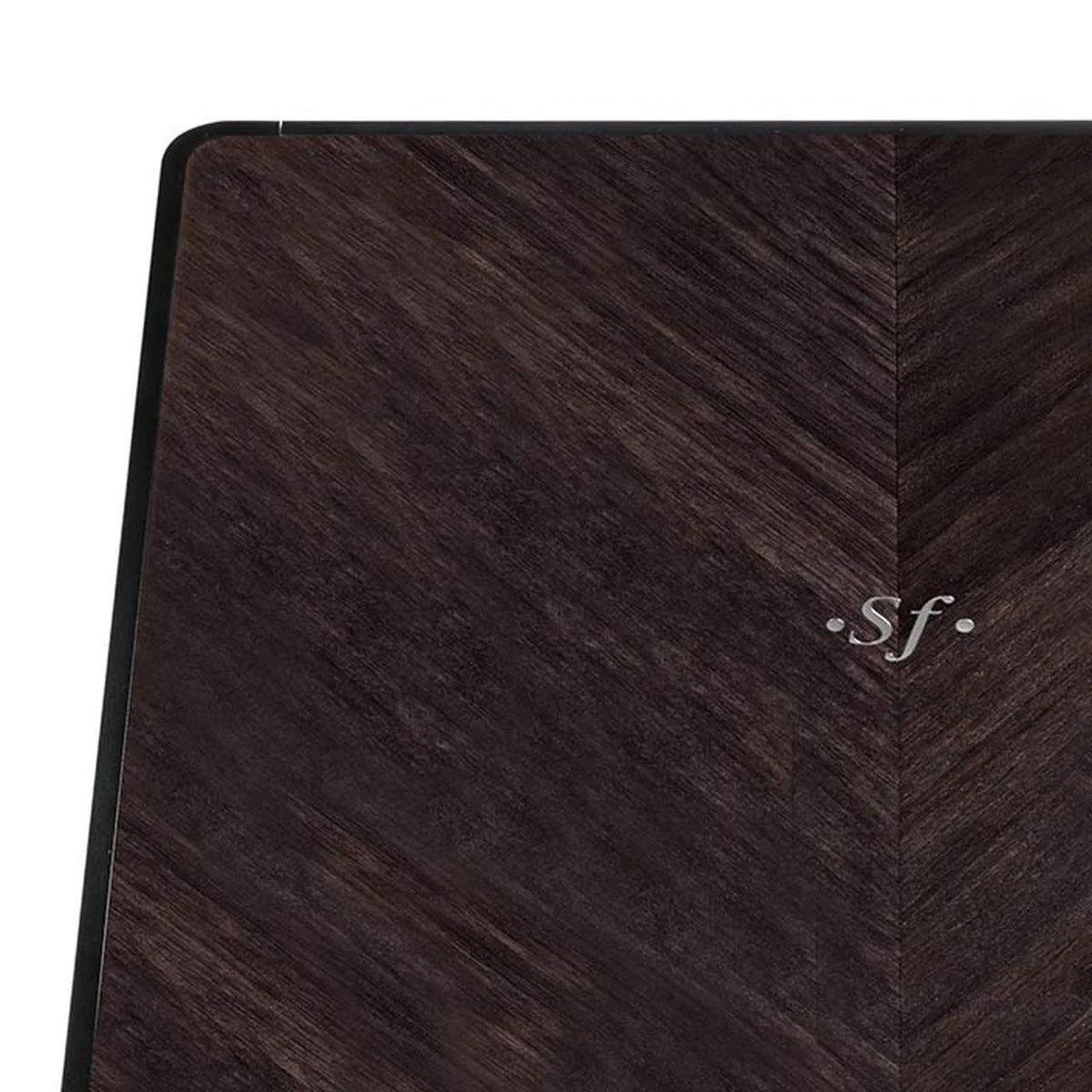

• Graphite High Gloss with 45° Grain – Inlaid Sonus faber Logo – Black Leather

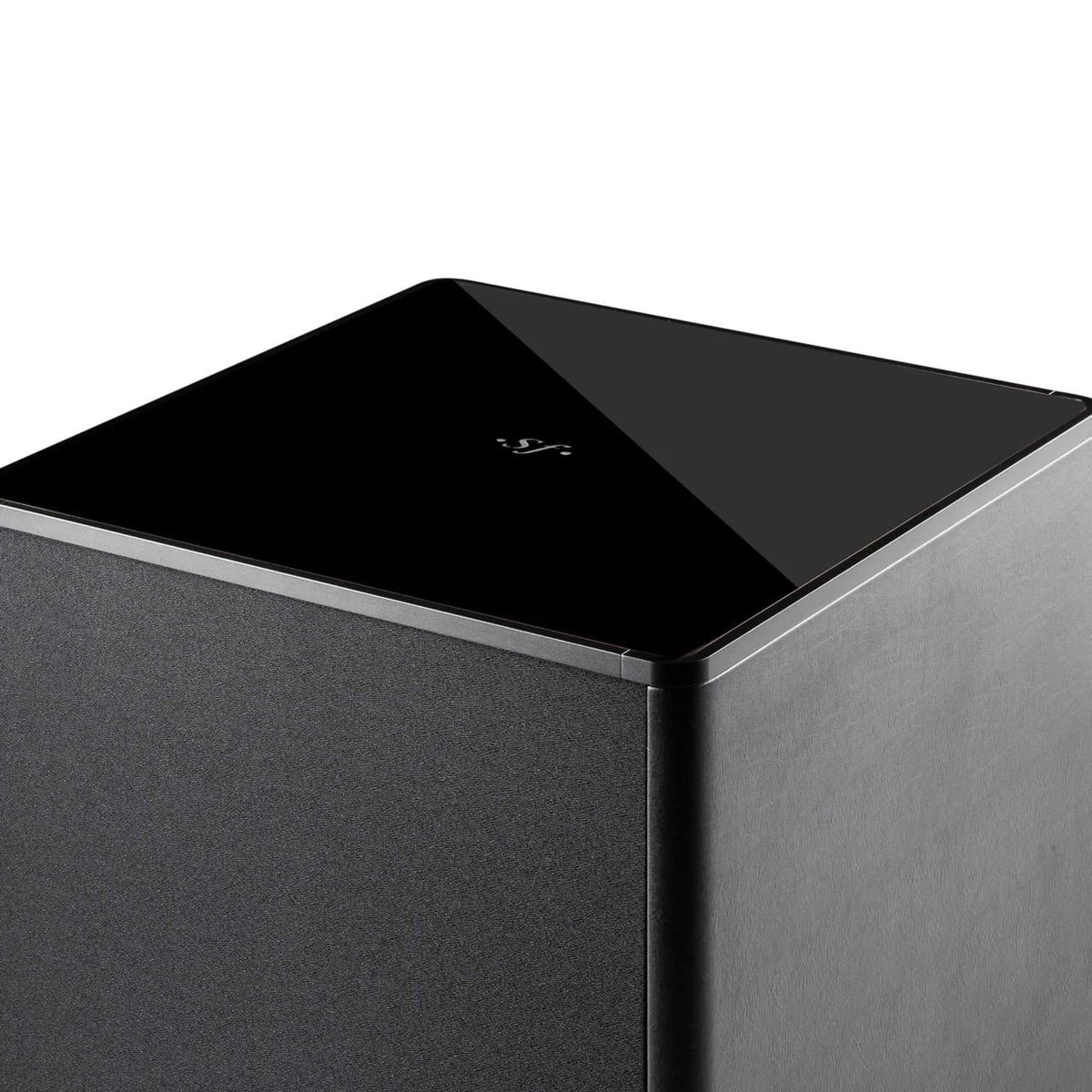

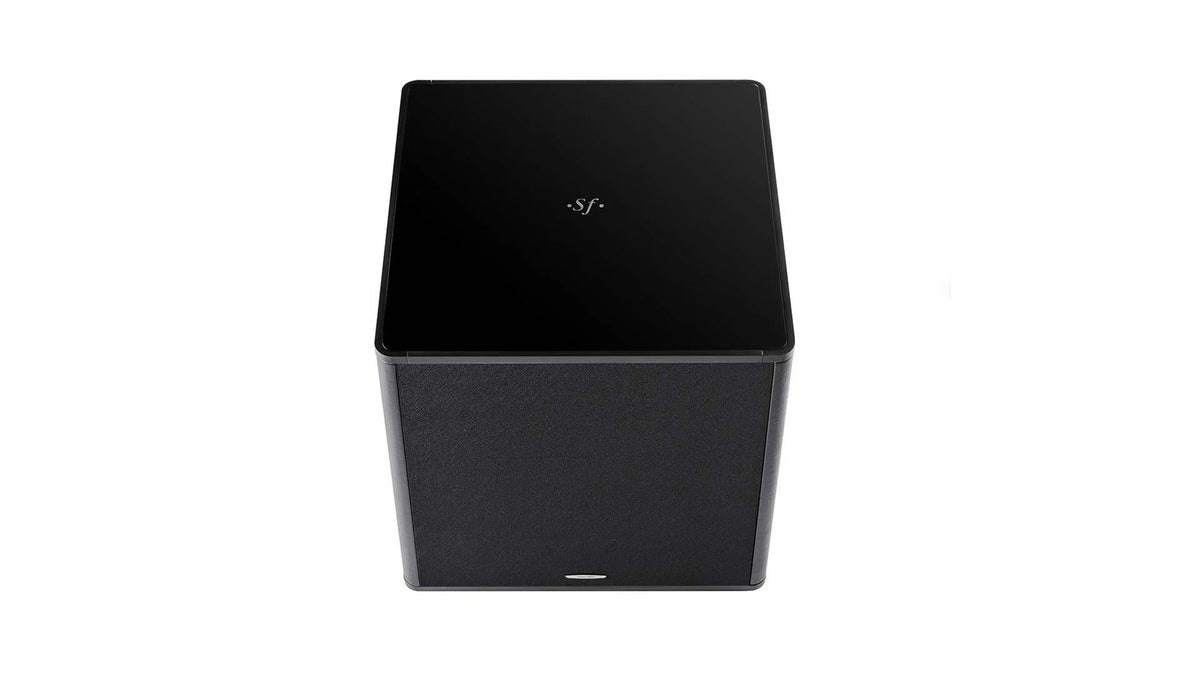

• Piano Black High Gloss – Inlaid Sonus faber Logo – Black Leather

The finish combinations range from understated Piano Black and Wenge to the more distinctive Red and Graphite configurations, with select versions featuring the 45-degree grain treatment and inlaid Sonus faber logo.

Key Features

• Active sealed-box subwoofer
• Designed to complement the Sonus faber Homage Collection
• 320 mm long-throw woofer
• Sandwich honeycomb cone
• Wide rubber surround
• 850 W RMS Class AB amplifier
• 1,200 W peak output
• 20 Hz–Fc frequency response at -6 dB
• Continuously adjustable crossover
• Four selectable presets
• Up to eight parametric EQ filters
• Automatic room calibration
• 0–360° phase adjustment
• 1–20 ms adjustable delay
• RCA, XLR and high-level inputs
• Dedicated iOS/Android control app
• Optional wireless operation with Gravis Transmitter
• High-gloss wood/lacquer and black leather construction
• Rubber isolation pad

Technical Specifications

Specifications verified against Sonus faber's official Gravis V technical specifications.

Experience the Sonus faber Gravis V at The Grid

The Sonus faber Gravis V is built for systems where bass needs to be more than simply powerful. Proper integration should make the subwoofer disappear into the system while allowing the entire presentation to gain greater scale, depth and impact.

Visit The Grid HiFi in Houston to explore Sonus faber and discuss the right subwoofer integration for your system.
