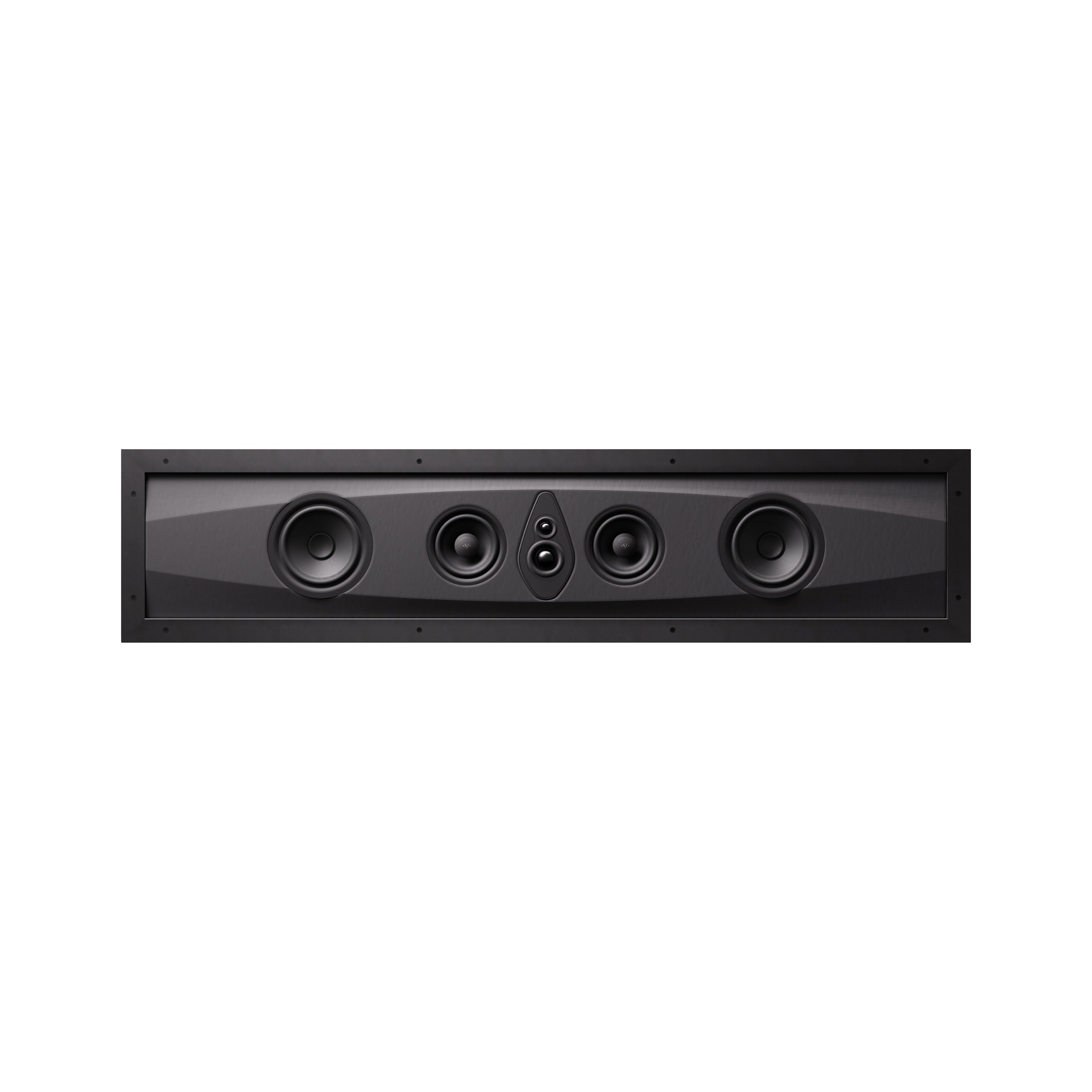

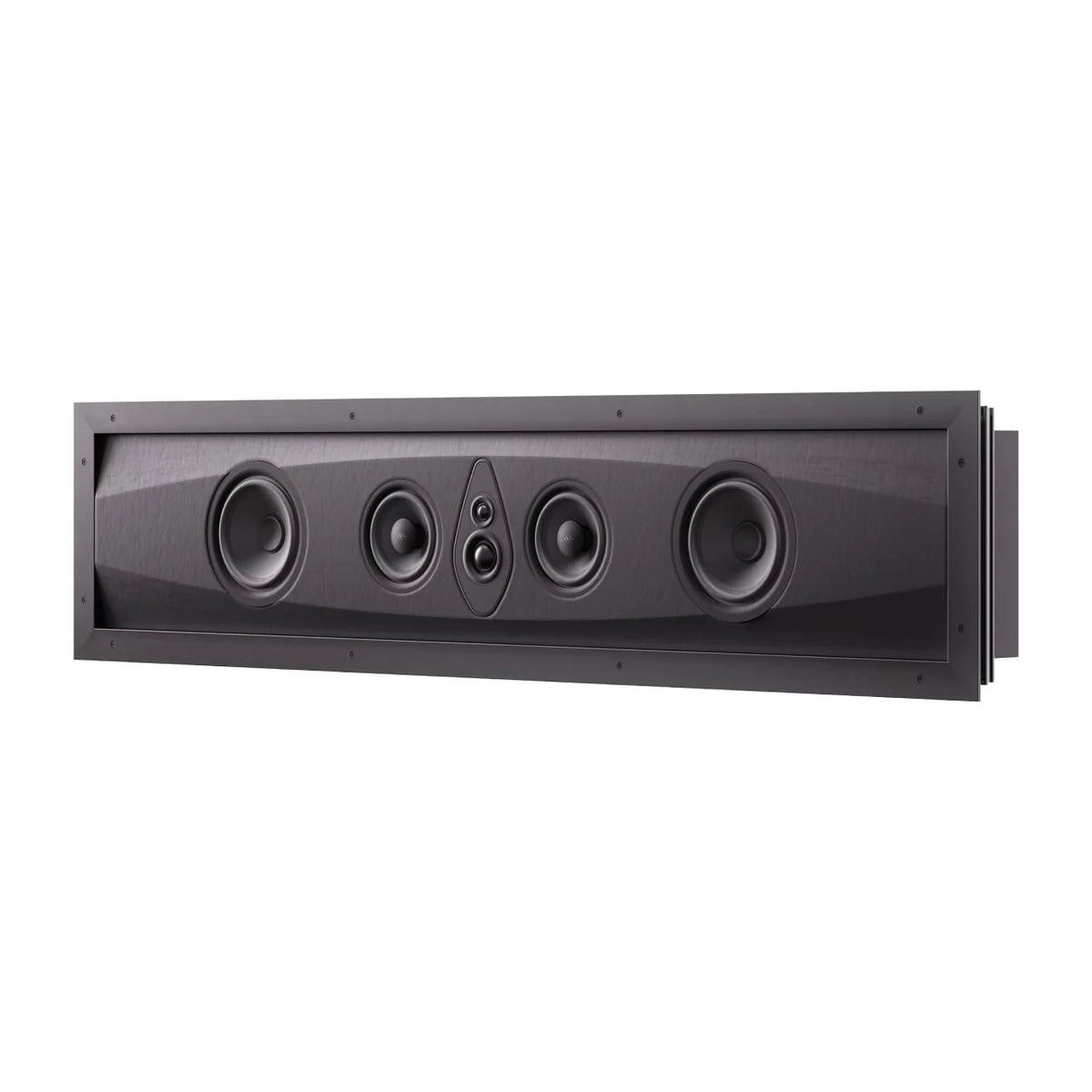

Sonus faber Arena 30H

Monumental Cinema Sound. Architectural Perfection.

High-Performance 4-Way In-Wall Loudspeaker for Luxury Home Cinema and MicroLED Displays

The Sonus faber Arena 30H represents a powerful convergence of high-fidelity audio engineering and contemporary architectural design. Created specifically for premium home theaters and entertainment spaces featuring large-format MicroLED displays, this sophisticated four-way loudspeaker delivers the scale, dynamics, and refinement of a reference-level cinema system while integrating discreetly into the room.

At its heart is a formidable six-driver configuration featuring dual 8-inch woofers, dual 6.25-inch midrange drivers, a 1.5-inch tweeter, and a dedicated 0.75-inch super tweeter. Together, they deliver a specified frequency response of 40 Hz to 32,200 Hz, with exceptional output capability reaching 122 dB at one meter.

With 94 dB sensitivity and recommended amplifier power of up to 600 watts, the Arena 30H is engineered for installations where effortless dynamic range, precise dialogue reproduction, and commanding musical performance are essential.

The result is a loudspeaker that allows the picture to dominate the room while the sound delivers the full emotional and physical impact of the cinematic experience.



Six Drivers. Four Ways. Extraordinary Scale.

The Arena 30H uses a sophisticated four-way acoustic architecture to distribute the demands of the audio spectrum among specialized drivers.

Purpose-Built for the MicroLED Cinema Revolution

Large-format MicroLED displays are changing the way luxury home theaters are designed.

Unlike conventional projection systems that can accommodate speakers behind acoustically transparent screens, direct-view LED displays create a solid visual surface. This makes speaker placement and integration especially important when designing a system that delivers convincing dialogue localization and a cohesive front soundstage.

The Arena 30H was specifically developed for configurations featuring MicroLED screens. Its tall, narrow architectural format allows system designers to position high-performance loudspeakers around the display while maintaining the clean, contemporary appearance of the room.

With a cabinet measuring approximately 69.8 inches tall and just 12.6 inches wide, the Arena 30H delivers substantial driver capacity without the visual footprint of a conventional freestanding loudspeaker.

The result is a solution that brings reference-level audio ambitions to modern entertainment spaces where picture quality, sound, and interior design must work together.



122 dB of Cinematic Capability

A truly immersive cinema experience requires more than volume. It demands the ability to reproduce sudden dynamic changes, complex soundtracks, and powerful effects without sacrificing clarity.

The Arena 30H's specified maximum output of 122 dB at one meter provides substantial acoustic headroom for demanding installations.

Its 94 dB sensitivity and recommended amplifier power of up to 600 watts give system designers flexibility when selecting amplification, while the nominal 4-ohm impedance makes appropriate amplifier matching essential.

For the most demanding home theater systems, the Arena 30H can be integrated with dedicated subwoofers, advanced surround processors, acoustic treatment, and professional room calibration to achieve the desired performance throughout the listening area.

A Complete Acoustic Enclosure Within the Wall

The Arena 30H is built around a closed-box acoustic architecture.

Rather than depending on the unpredictable volume and construction of a wall cavity, its self-contained enclosure provides a defined acoustic environment for the six drivers.

This is especially important in custom cinema installations, where consistent loudspeaker performance and predictable integration are essential to the overall system design.

The cabinet incorporates leather and aluminum, reflecting Sonus faber's commitment to combining acoustic engineering with premium materials.

Despite its substantial driver complement and 130.1-pound weight, the Arena 30H requires a mounting depth of approximately 6.4 inches.

Proper structural support, installation clearances, and mounting requirements should be incorporated into the theater design from the beginning.



Designed to Be Heard, Not Seen

Exceptional home theater design should feel intentional.

The Arena 30H features an optional square magnetic grille designed to protect the loudspeaker components while providing a clean architectural appearance.

Its vertical proportions allow the speaker to integrate alongside large-format displays and into custom wall treatments, preserving the visual harmony of the room.

Whether installed in a dedicated private cinema or a sophisticated multipurpose entertainment space, the Arena 30H brings high-performance audio into the architecture without demanding that the loudspeakers become the visual centerpiece.

Part of the Sonus faber Arena Collection

The Arena collection brings Sonus faber's approach to high-fidelity sound into custom-installed home theater environments.

With a range of architectural loudspeakers and subwoofers, the collection gives system designers the flexibility to accommodate different room dimensions, screen configurations, seating layouts, and performance requirements.

The Arena 30H addresses a particularly demanding application: high-output cinematic sound integrated into contemporary living spaces featuring MicroLED displays.

Combined with appropriately selected surround loudspeakers, dedicated subwoofers, capable amplification, and a professionally calibrated surround processor, the Arena 30H can form the foundation of a sophisticated multichannel system.

Technical Specifications
