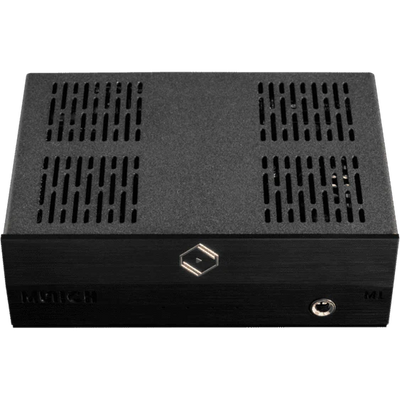

Silent Angel Munich M1 | HiFi Network Music Streamer with DAC & Headphone Amplifier

The Silent Angel Munich M1 is a high-resolution network music streamer that combines an integrated DAC, dedicated headphone amplifier and versatile digital outputs in one compact component. Powered by Silent Angel's VitOS operating system, the M1 provides access to music streaming services, network music libraries and locally stored audio without requiring a computer.

With Roon Ready certification, Qobuz, Spotify Connect, AirPlay and DLNA support, the Munich M1 is designed for flexible integration into modern HiFi systems. Its analog RCA outputs connect directly to an amplifier or powered speakers, while USB Audio, AES/EBU, coaxial and I2S outputs accommodate external DACs. A built-in headphone amplifier adds a dedicated personal listening option.

High-Resolution Streaming with VitOS

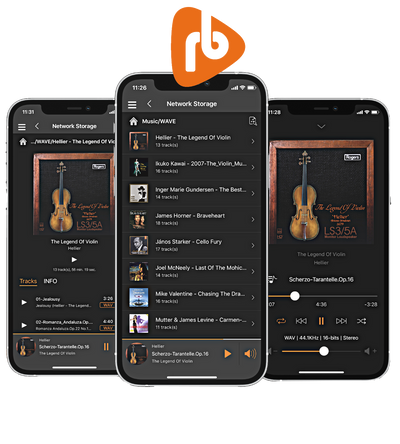

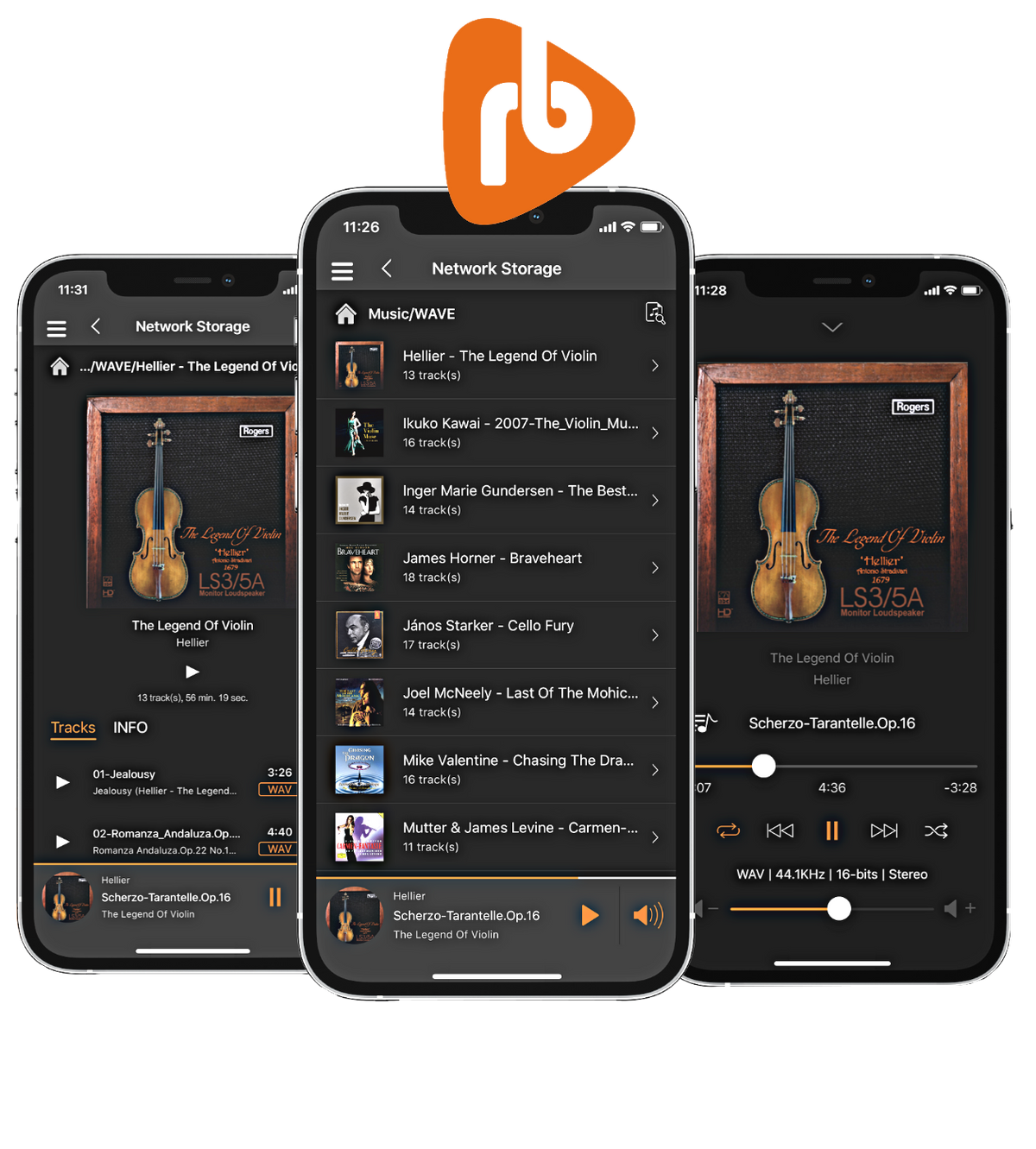

Silent Angel's VitOS operating system is optimized for digital music playback, prioritizing audio processing, low latency and stable network transmission. The VitOS Orbiter mobile application provides access to streaming services, internet radio and music libraries stored on compatible NAS devices or USB drives.

The Munich M1 supports:

• Roon Ready playback

• Qobuz and Spotify Connect

• Apple AirPlay and DLNA

• Internet radio and network music libraries

• Native DSD playback up to DSD256

• Gapless playback for uninterrupted albums and live recordings

Its quad-core ARM Cortex-A72 processor provides the processing power for streaming and music management, while a fanless cooling system eliminates mechanical fan noise.

Integrated DAC and Headphone Amplifier

The Munich M1 features a built-in digital-to-analog converter with stereo RCA outputs, allowing direct connection to an integrated amplifier, preamplifier or powered speakers. Its integrated volume control makes it suitable for streamlined systems that don't require a separate preamplifier.

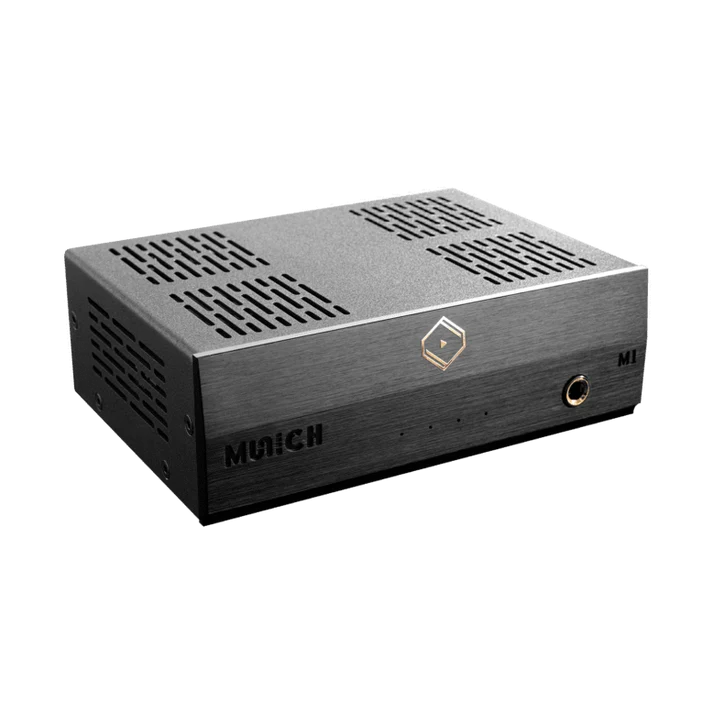

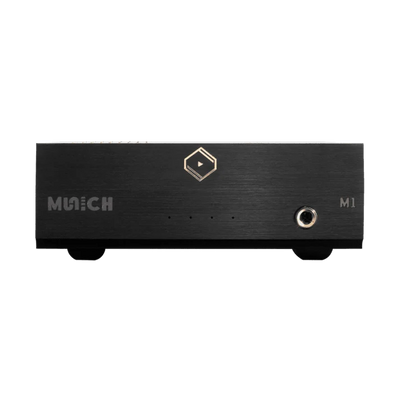

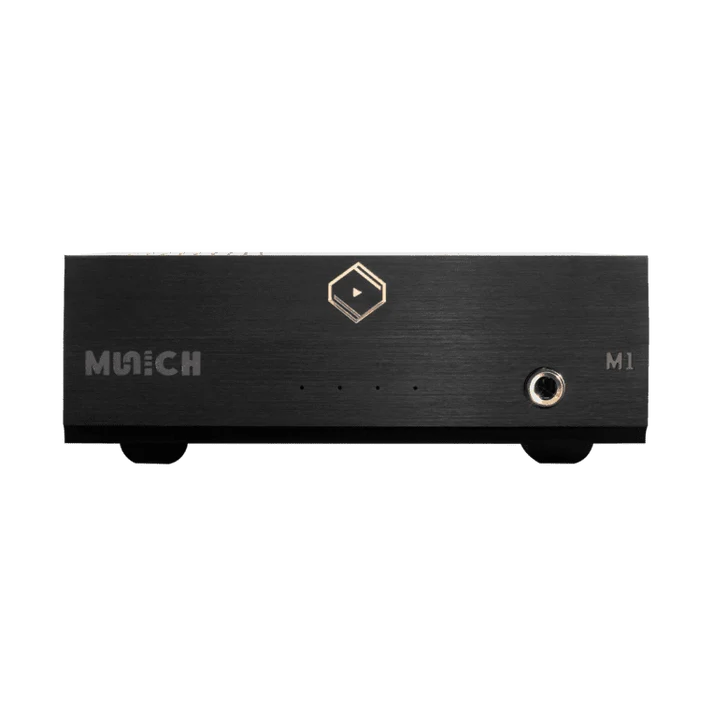

A front-panel 6.35mm headphone output provides a convenient listening option without requiring an external headphone amplifier. This combination makes the M1 suitable for both full-size two-channel audio systems and compact desktop listening setups.

Flexible Digital Connectivity

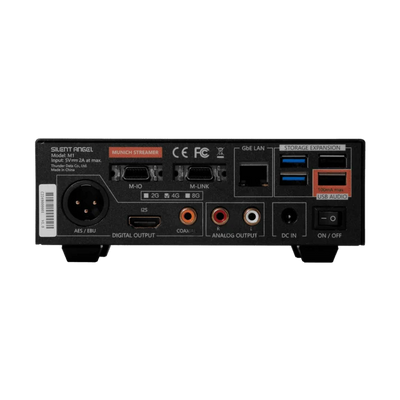

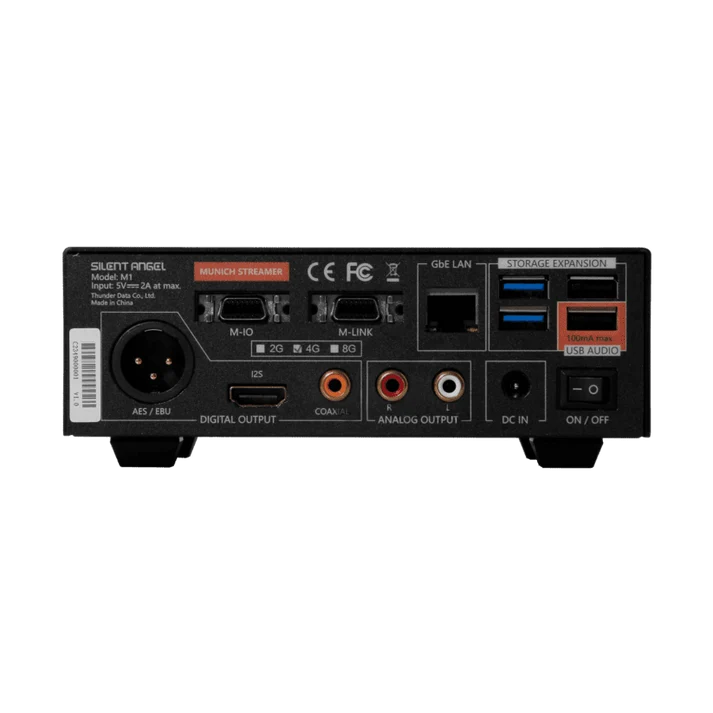

For systems using a dedicated external DAC, the Munich M1 offers multiple digital output options.

• USB Audio: Supports PCM up to 768kHz and native DSD256.

• AES/EBU: Balanced digital connectivity for compatible external DACs.

• Coaxial: S/PDIF digital output for conventional HiFi components.

• I2S: Digital audio output through a compatible HDMI-style connection.

The AES/EBU, coaxial and I2S outputs support PCM up to 384kHz and DSD128. I2S compatibility should be confirmed with the receiving DAC, as the connection does not carry a conventional HDMI signal.

Three additional USB ports accommodate external music storage, allowing playback of locally stored high-resolution audio files.

Audiophile Hardware and Power Supply Upgrades

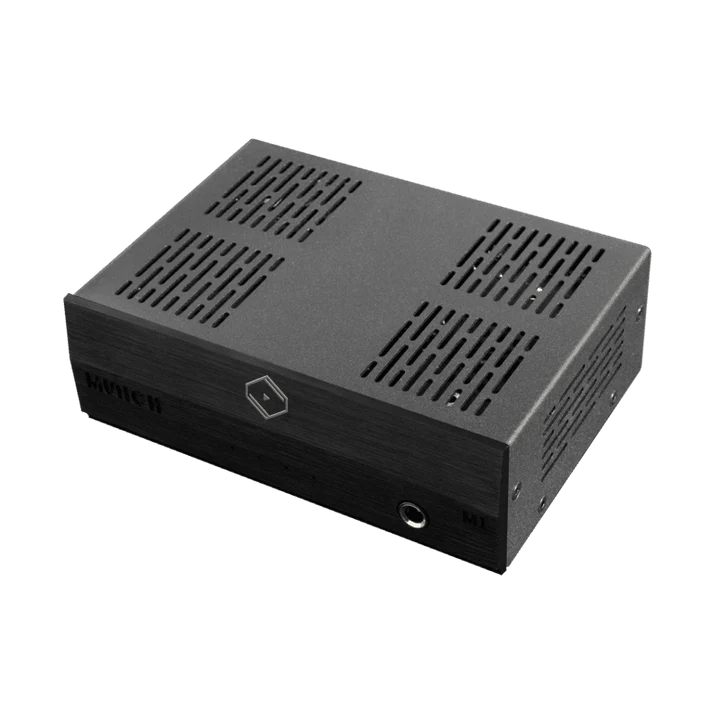

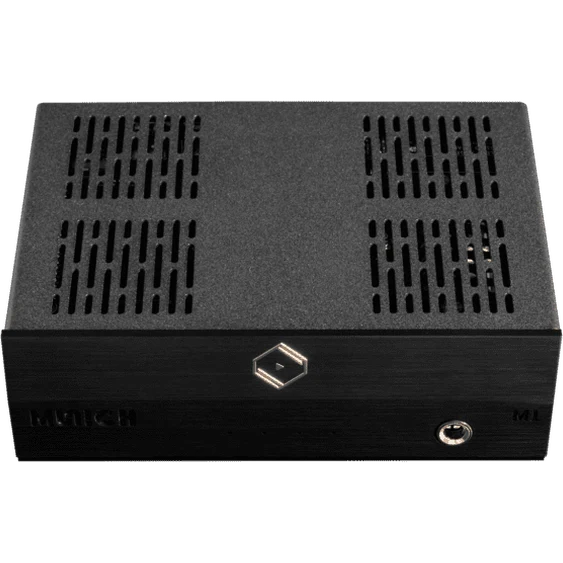

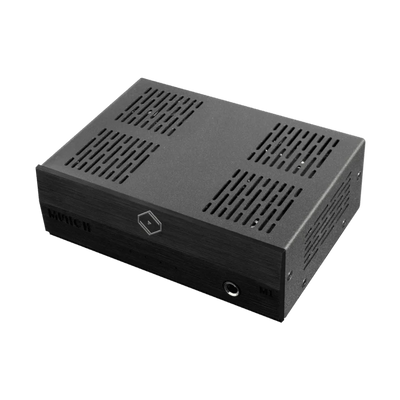

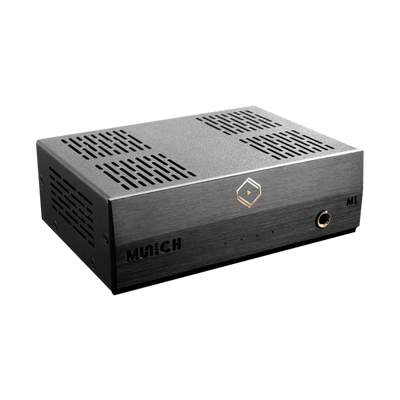

The Munich M1 features a metal enclosure with a solid aluminum alloy front panel, carefully selected internal components and high-permeability EMI-absorbing materials designed to reduce electrical interference.

Its fanless heat dissipation system provides silent operation, making the M1 suitable for dedicated listening rooms and headphone systems.

For additional system flexibility, the M1 can be paired with the Silent Angel Forester F1 linear power supply and Bonn N8 audiophile network switch. These components provide alternative power delivery and dedicated network connectivity for a complete Silent Angel streaming system.

Technical Specifications
