Silent Angel Genesis GX Reference Master Clock

The Silent Angel Genesis GX is a reference-grade audiophile master clock designed to provide precision timing for high-performance digital audio and network streaming systems. Featuring four independent clock circuits, dual 25MHz outputs, dual 10MHz outputs and dedicated temperature-compensated crystal oscillators, the Genesis GX offers flexible integration with compatible audiophile Ethernet switches and digital audio components.

Unlike conventional master clocks with shared oscillator circuitry, the Genesis GX incorporates four electrically isolated clock modules. Each has its own TCXO and dedicated circuitry, reducing interference between outputs while providing independent timing references for connected equipment.

Silent Angel combines this architecture with a specialized low-ripple power supply, electromagnetic interference absorption and a substantial dual-layer chassis. An external 12V DC input also allows the internal power module to be bypassed using a compatible linear power supply.

With its combination of 25MHz and 10MHz outputs, the Genesis GX is designed for sophisticated digital audio systems incorporating multiple clock-compatible components.

Silent Angel

+1

Key Features

• Four independent master clocks: Two 25MHz and two 10MHz outputs, each with its own oscillator and dedicated circuitry.

• Precision TCXO technology: Temperature-compensated crystal oscillators provide stable timing references.

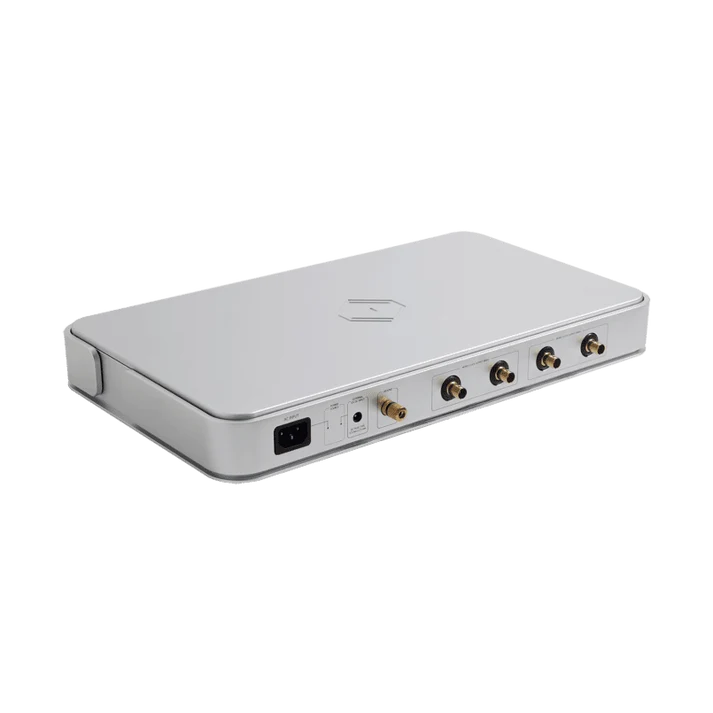

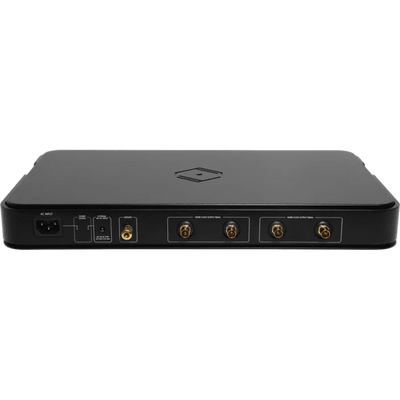

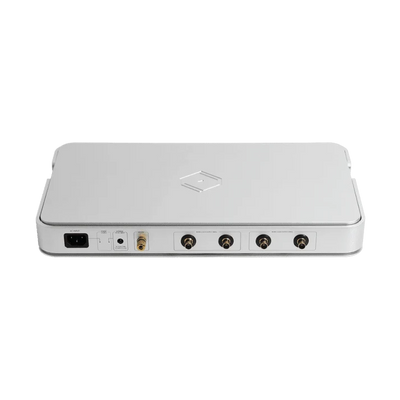

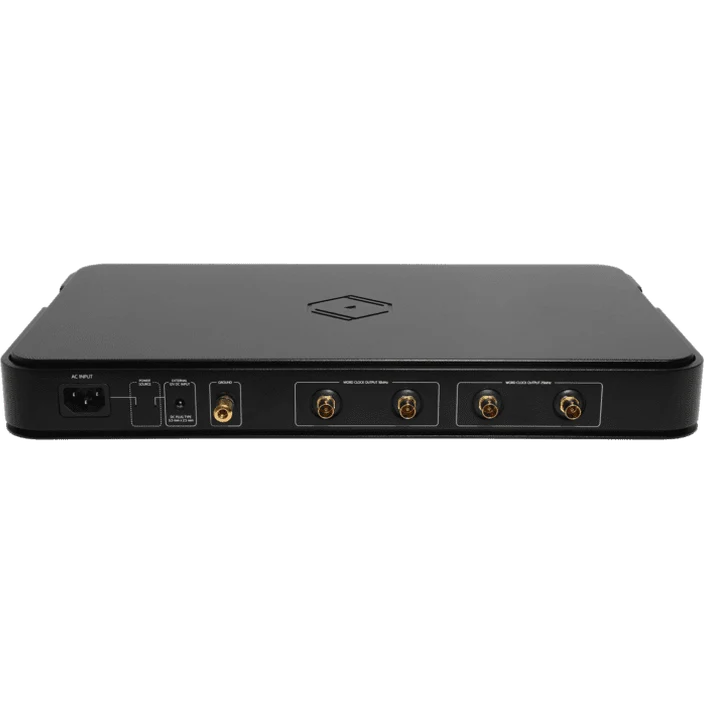

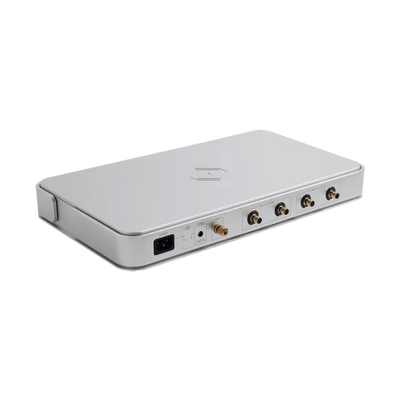

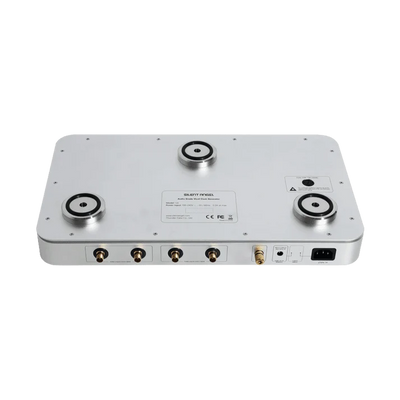

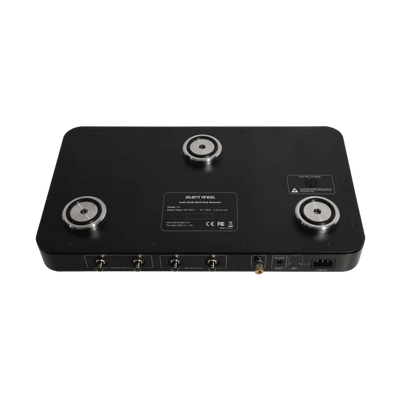

• Gold-plated BNC outputs: Four dedicated clock connections for compatible digital audio equipment.

• Dual-frequency architecture: Supports both 25MHz and 10MHz clock-compatible components.

• Low-noise power supply: Specialized internal switching power module designed for noise-sensitive audio equipment.

• External linear power option: A 12V DC input allows connection to a compatible external power supply.

• Advanced EMI shielding: Dual-layer construction combines a galvanized steel interior with a thick aluminum alloy exterior.

• Dedicated grounding terminal: Gold-plated connection for compatible external grounding systems.

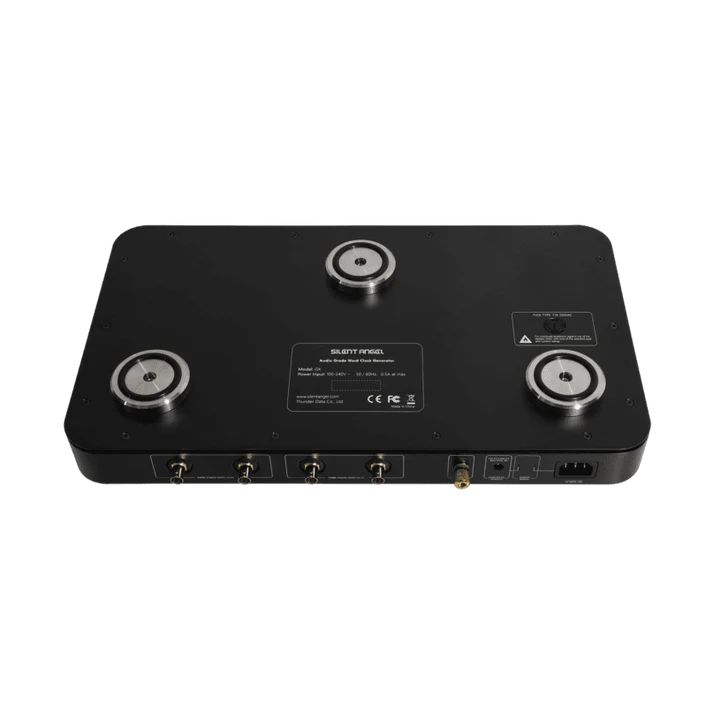

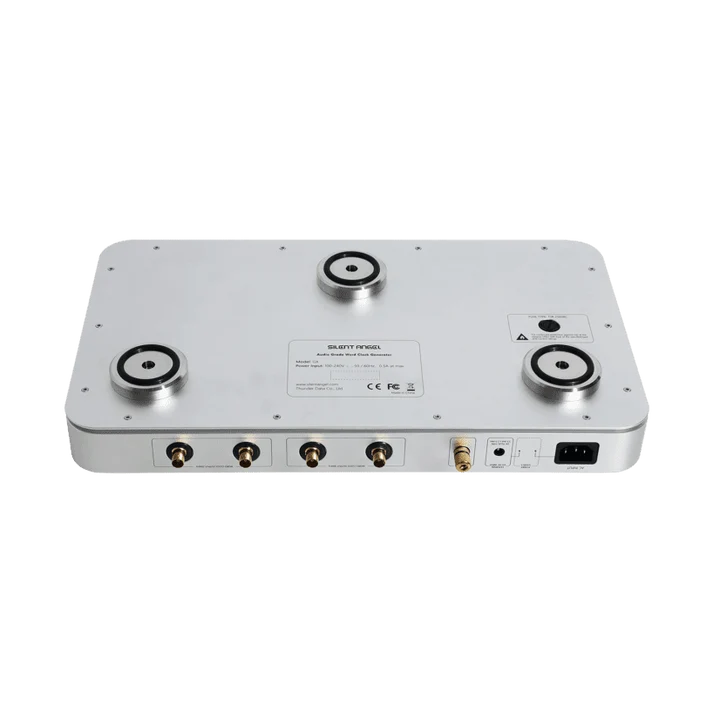

• Resonance Control Feet: Stainless-steel isolation feet designed to manage mechanical vibration.

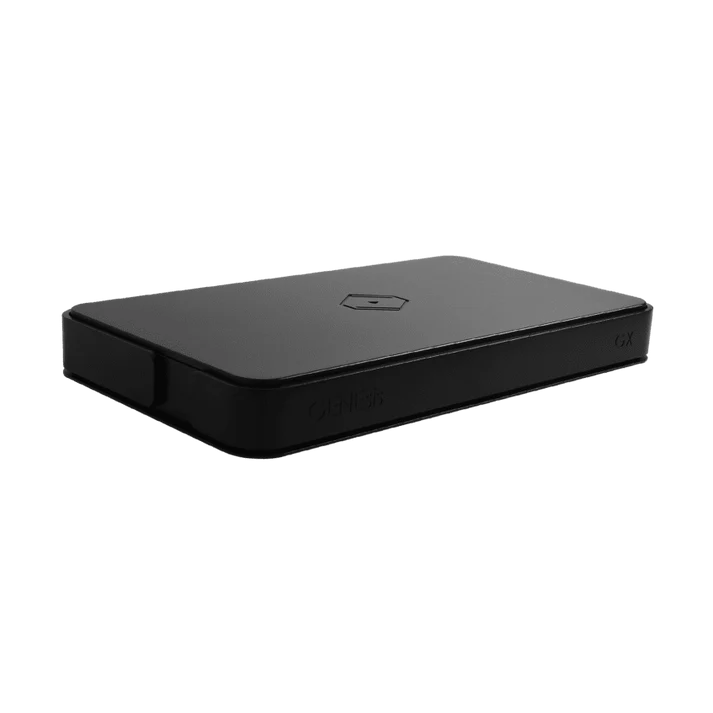

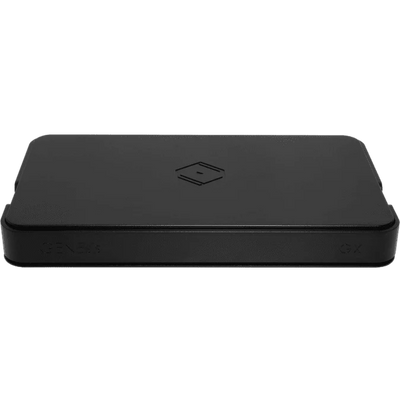

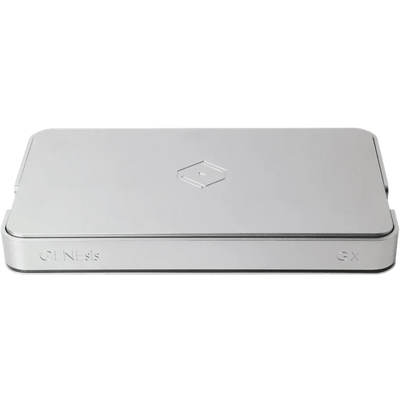

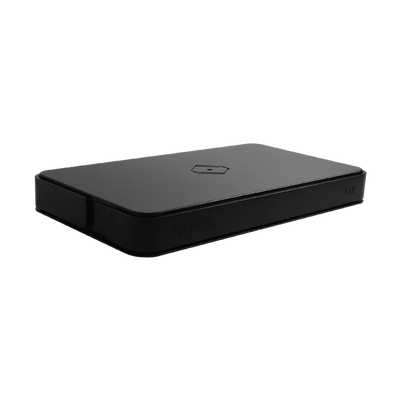

• Black or silver finishes: Two options for integration into reference audio systems.

Silent Angel

+1

Four Independent Precision Clock Circuits

The Genesis GX incorporates four individual master clock circuits within a single chassis. Two operate at 25MHz, while the remaining two provide 10MHz outputs. Each circuit has its own TCXO and dedicated electronics, with physical separation and electrical isolation intended to minimize interference between the clock modules.

This architecture allows the Genesis GX to provide timing references to multiple compatible components without relying on a single shared oscillator.

Silent Angel's native 25MHz approach is particularly relevant to compatible Ethernet networking equipment. By supplying a direct 25MHz reference, the system can avoid the additional frequency conversion circuitry that may otherwise be required when using a 10MHz clock.

The Genesis GX also provides 10MHz outputs for compatible equipment designed around that frequency.

Silent Angel

+1

Advanced Power Supply and Noise Management

The Genesis GX features a specialized internal switching power module developed for noise-sensitive applications. Its circuitry is designed to provide stable, low-ripple power to the four independent clock modules.

For systems using a compatible external linear power supply, the dedicated 12V DC input bypasses the internal switching power module. Silent Angel identifies its Forester F2 as a compatible power supply option.

The dual-layer chassis combines a galvanized steel interior with a thick aluminum alloy exterior. This construction provides electromagnetic shielding and structural rigidity, while the stainless-steel Resonance Control Feet are designed to help manage mechanical vibration.

A gold-plated grounding terminal provides an additional connection option for compatible grounding systems.

Technical Specifications

Silent Angel

+1

Designed for Reference Digital Audio Systems

The Genesis GX is designed to complement high-performance digital audio systems incorporating compatible external-clock-enabled equipment.

It pairs particularly well with the Silent Angel Bonn NX audiophile Ethernet switch, which features a dedicated 25MHz external clock input. The Genesis GX can also provide timing references to other compatible equipment supporting its 25MHz or 10MHz outputs.

Its four independent clock connections allow multiple compatible devices to receive a reference signal from one centralized component.

Compatibility note: Connected components must support an external 25MHz or 10MHz reference clock and the appropriate BNC connection and impedance. The Genesis GX is not a universal word clock for every DAC or digital audio component. Audible improvements depend on the connected equipment and system architecture.
