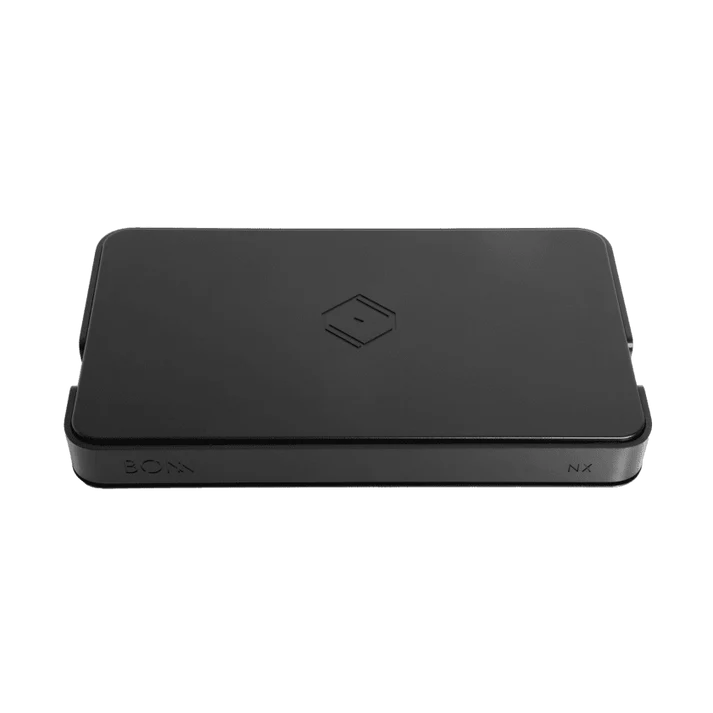

Silent Angel Bonn NX Audiophile Ethernet Network Switch


The Silent Angel Bonn NX is a reference-grade audiophile Ethernet switch designed for high-resolution music streaming and dedicated digital audio networks. Featuring eight gold-plated Gigabit Ethernet ports, precision 25MHz clocking, advanced power regulation and a dual-layer metal chassis, the Bonn NX provides a purpose-built networking solution for demanding two-channel audio systems.

At the heart of the Bonn NX is a temperature-compensated crystal oscillator (TCXO) supported by dedicated power filtering. Its precision clocking architecture is designed to reduce timing variation and electrical interference within the switch. For systems incorporating an external master clock, a dedicated 25MHz BNC input provides an additional upgrade path.

Silent Angel combines its specialized internal power supply with multi-stage filtering, electromagnetic interference absorption and a substantial chassis constructed from galvanized steel and aluminum alloy. The Bonn NX also supports an external 12V linear power supply, allowing owners to expand their digital audio systems with compatible Silent Angel components.

Designed for Roon-based systems, high-resolution streaming services and network-attached music libraries, the Bonn NX connects music servers, network streamers, NAS devices and other Ethernet-enabled audio components within a dedicated audio network.

Silent Angel



Key Features

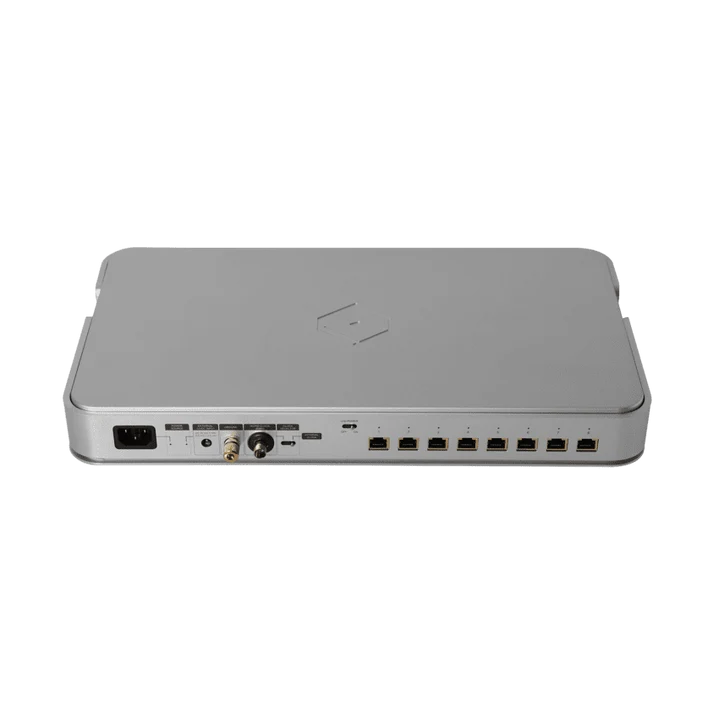

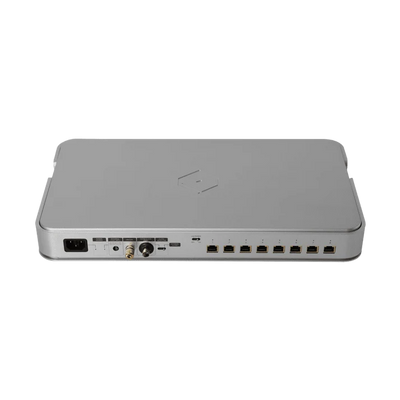

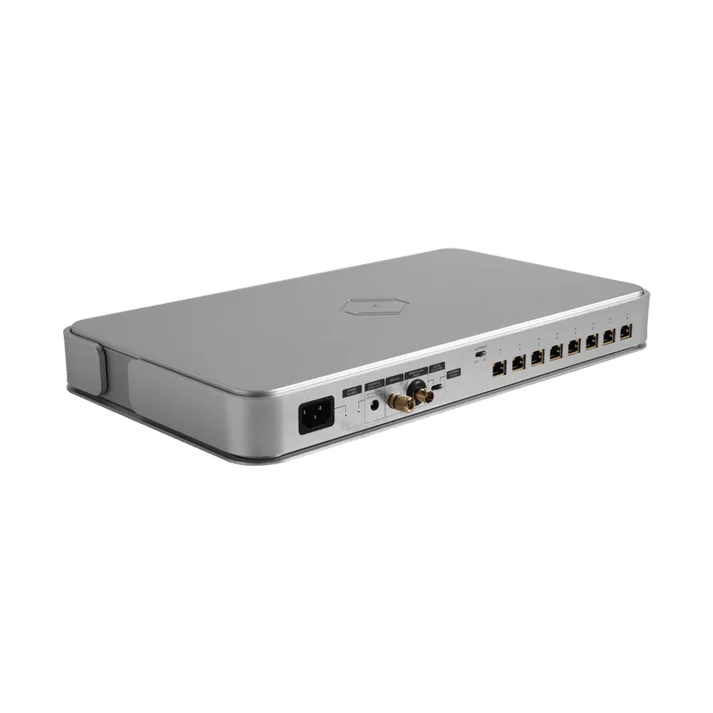

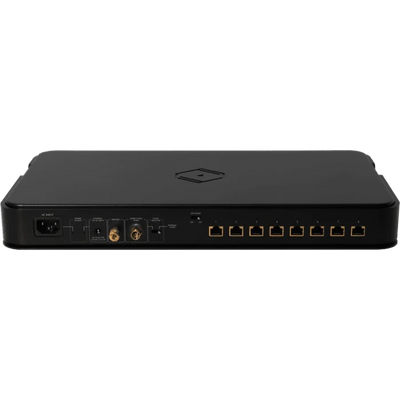

  • Eight gold-plated Gigabit Ethernet ports: RJ45 connections with carefully spaced ports intended to minimize electrical interference.

  • Precision 25MHz TCXO clock: Temperature-compensated oscillator with dedicated multi-stage power filtering.

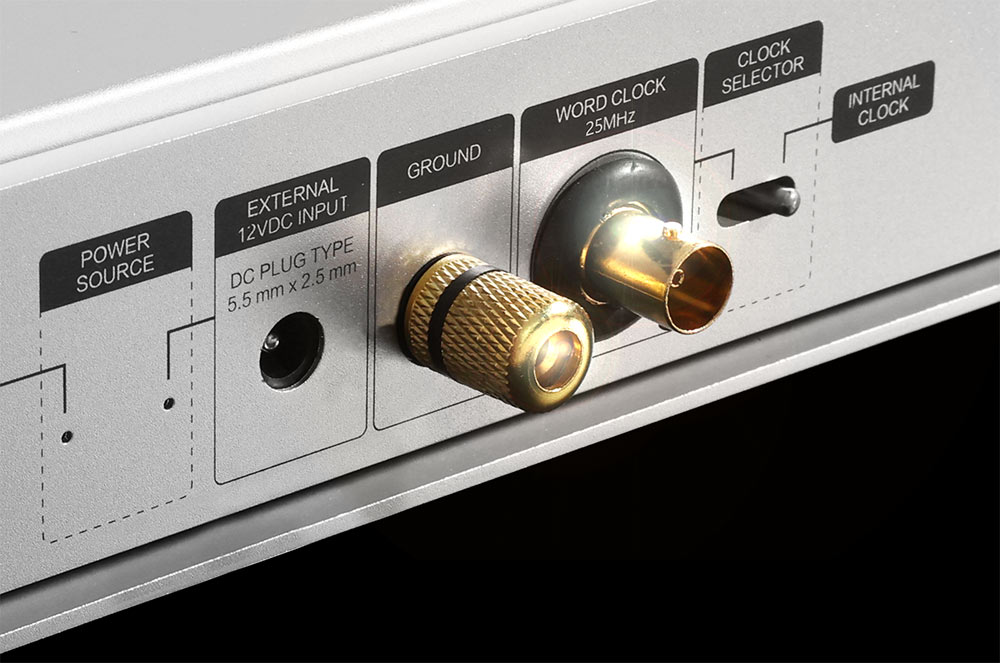

  • External master clock input: 25MHz BNC connection with an internal/external clock selector.

  • Specialized internal power supply: Silent Angel's low-ripple switching power module with dedicated AC filtering.

  • External linear power compatibility: A 12V DC input bypasses the internal power module when used with a compatible external supply.

  • Dual-layer chassis: Galvanized steel interior and thick aluminum alloy exterior provide electromagnetic shielding and vibration control.

  • Dedicated grounding terminal: Gold-plated connection for compatible external grounding systems.

  • Switchable Ethernet indicators: Turn off the network port status LEDs when desired.

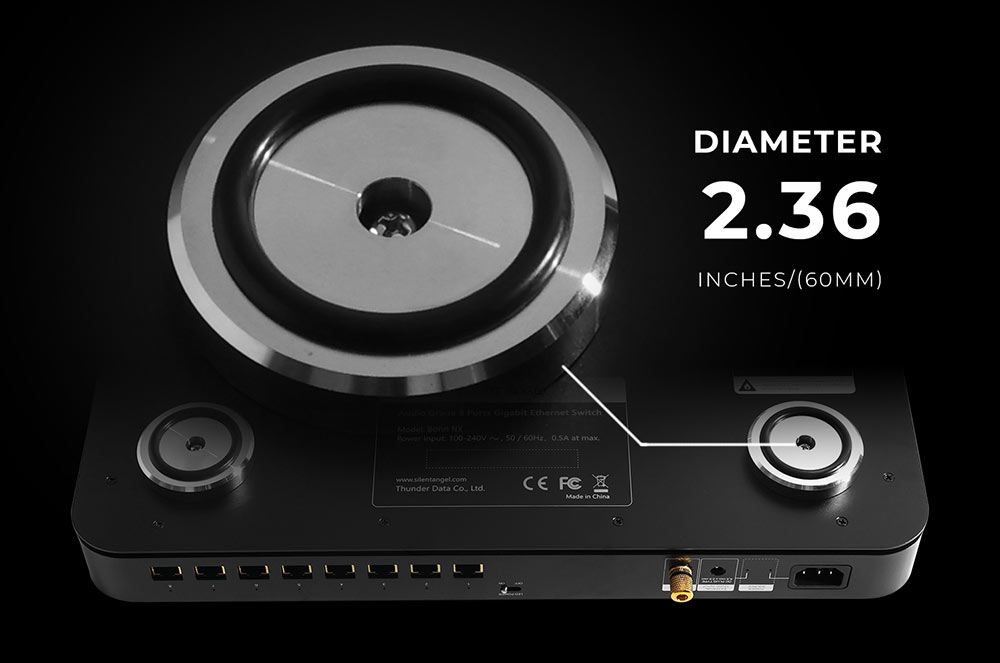

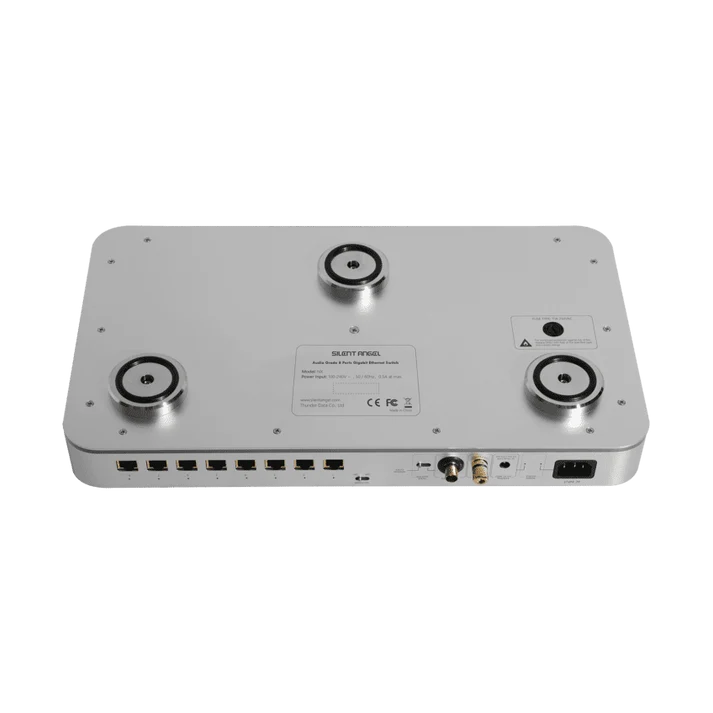

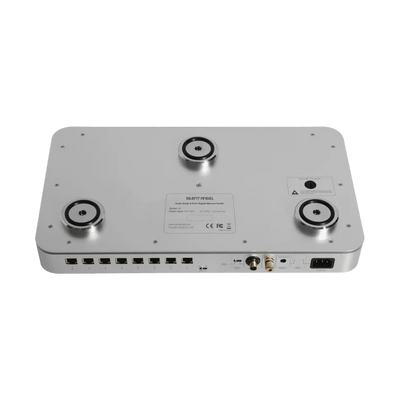

  • Resonance Control Feet: Stainless-steel isolation feet designed to manage mechanical vibration.

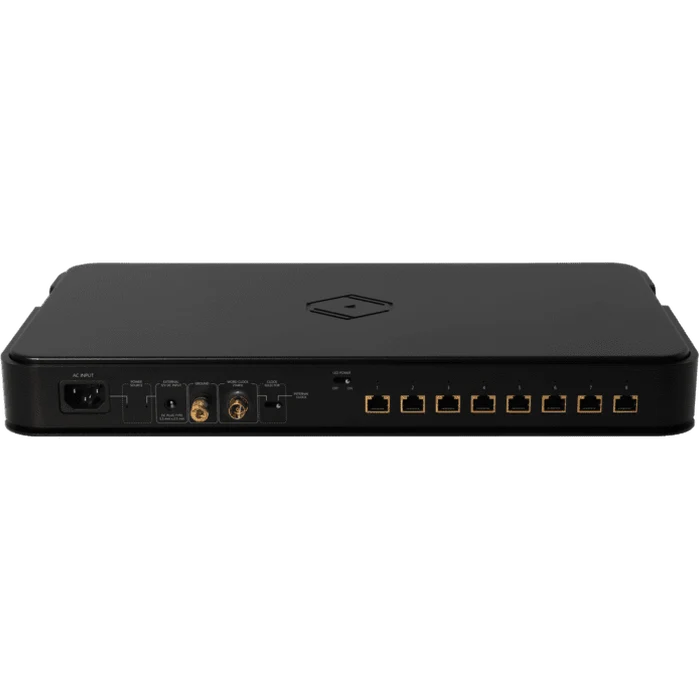

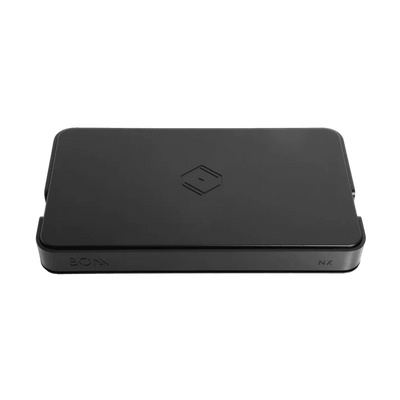

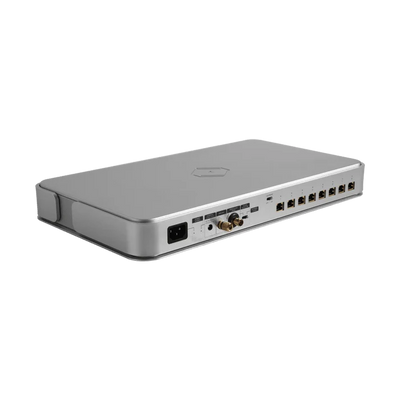

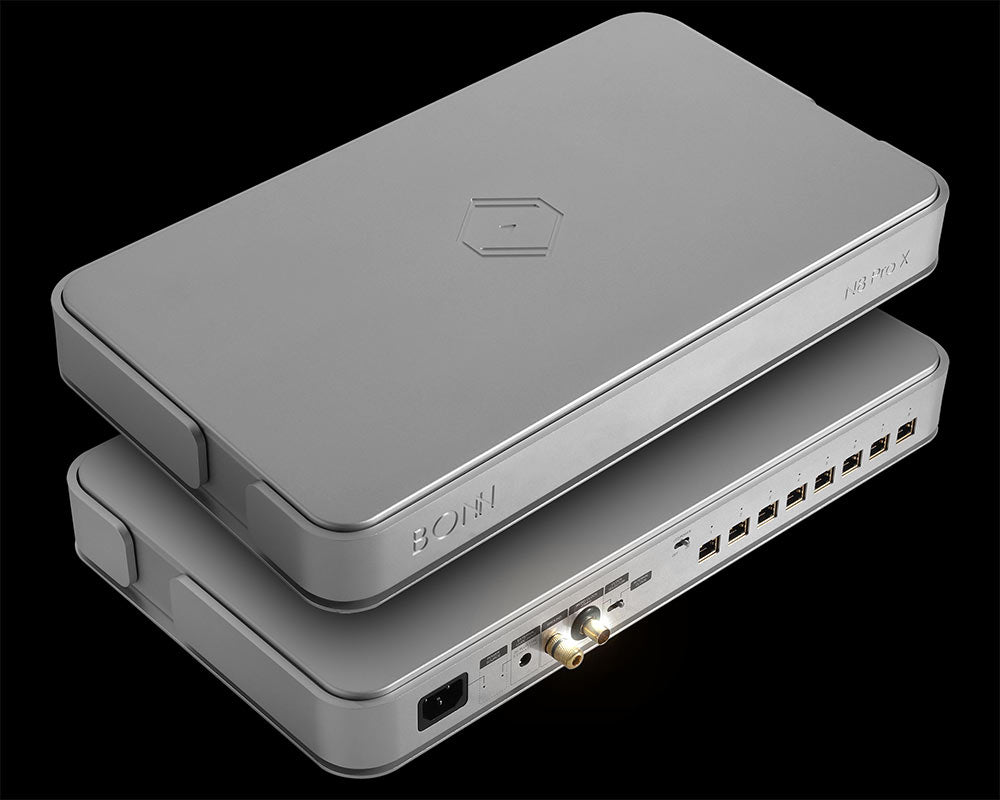

  • Black and silver finishes: Two options for integration into premium audio systems.

    Silent Angel



Precision Clocking and Network Performance

The Bonn NX incorporates a dedicated 25MHz TCXO clock module engineered for stable network timing. Its clock circuitry includes multi-stage power filtering designed to address electrical interference across multiple frequency ranges.

Silent Angel reports network timing measurements of 369 picoseconds for the Bonn NX compared with 705 picoseconds for the conventional switches used in its comparison. These are manufacturer-reported measurements rather than a guarantee of audible improvement in every system.

For further flexibility, the Bonn NX includes a 25MHz BNC external clock input. This allows it to operate with a compatible master clock, including Silent Angel's Genesis series. An integrated selector makes it possible to switch between the internal and external clock sources.

Silent Angel



Advanced Power Supply and Noise Management

The Bonn NX uses a specialized internal switching power supply designed for noise-sensitive audio applications. Its power architecture includes AC input filtering, dedicated regulation for the TCXO clock and a low-noise regulator for the switching circuitry.

For systems using a compatible external linear power supply, the 12V DC input bypasses the internal power module. The Bonn NX can be paired with an appropriate Silent Angel Forester power supply, providing an additional system configuration option.

The switch's substantial dual-layer chassis combines a galvanized steel interior with an aluminum alloy exterior. Electromagnetic interference absorption materials, a gold-plated grounding terminal and stainless-steel Resonance Control Feet complete its noise-management design.

Technical Specifications

Specification

Details

Manufacturer

Silent Angel

Model

Bonn NX

Product type

Audiophile Ethernet network switch

Ethernet ports

8 × gold-plated Gigabit RJ45

Network speed

10/100/1000 Mbps

Internal clock

25MHz TCXO

External clock input

25MHz BNC

Clock selection

Internal/external selector

Internal power supply

Specialized switching power module

AC input

100–240V AC, 50/60Hz

External DC input

12V / 1A

DC connector

5.5 × 2.5mm

Grounding

Gold-plated grounding terminal

LED control

Switchable Ethernet port indicators

Chassis

Galvanized steel interior, aluminum alloy exterior

Isolation

Stainless-steel Resonance Control Feet

Dimensions

17.29" W × 2.49" H × 9.95" D

Weight

14.34 lbs

Operating temperature

32–86°F (0–30°C)

Available finishes

Black, silver

Silent Angel

Designed for High-Resolution Streaming Systems

The Silent Angel Bonn NX can serve as the central Ethernet switch for a dedicated digital audio network, connecting compatible music servers, streamers and network-attached storage devices.

Its eight Gigabit Ethernet ports provide connectivity for systems incorporating Roon, TIDAL, Qobuz, Spotify and locally stored high-resolution music libraries. The switch can also be integrated with other Silent Angel components, including the Rhein music servers, Munich streamers, Forester power supplies and Genesis master clocks.

For customers building a complete Silent Angel digital audio system, the Bonn NX provides a dedicated networking component with external power and clock upgrade options.

Silent Angel at The Grid HiFi

The Grid HiFi in Houston, Texas, specializes in reference two-channel audio, high-resolution music streaming and professionally designed home networks. Our team can help integrate the Silent Angel Bonn NX into a complete digital playback system featuring premium music servers, network streamers, DACs and compatible external power supplies.

Whether you're building a dedicated audiophile network or upgrading an existing streaming system, The Grid provides personalized equipment selection, network design and professional system integration.
