Rotel RMB-1585MKII 5-Channel Power Amplifier

The Rotel RMB-1585MKII 5-Channel Power Amplifier is a high-current Class AB multichannel amplifier engineered for premium home theater, private cinema, and high-performance multichannel audio systems. It delivers 210 watts per channel into 8 ohms and 340 watts per channel into 4 ohms with all five channels driven, backed by dual Rotel-manufactured toroidal transformers and a substantial high-current power supply. Rotel

For systems needing additional front-channel headroom, the RMB-1585MKII can deliver 440 watts per channel into 4 ohms with two channels driven. Balanced XLR and RCA inputs, dedicated Bi-Amp mode, 12V trigger control, active thermal management, and rack-mount capability make it equally suited to dedicated theaters and professionally integrated AV systems. Rotel

340 Watts × 5 Into 4 Ohms

The RMB-1585MKII's five discrete Class AB amplifier channels are rated at 210W/ch into 8 ohms and 340W/ch into 4 ohms with all five channels operating simultaneously. This all-channels-driven specification is particularly meaningful in home theater, where several speakers can demand substantial output at the same moment. Rotel

With only two channels driven into 4 ohms, output increases to 440W/ch, providing substantial dynamic headroom. Rotel's U.S. page also specifies FTC output of 230W/ch with five channels driven into 8 ohms and 270W/ch with two channels driven into 8 ohms. Rotel

Dual Rotel-Manufactured Toroidal Transformers

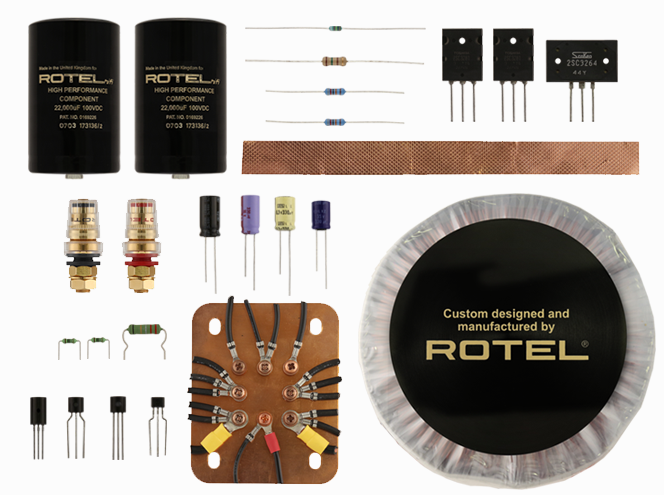

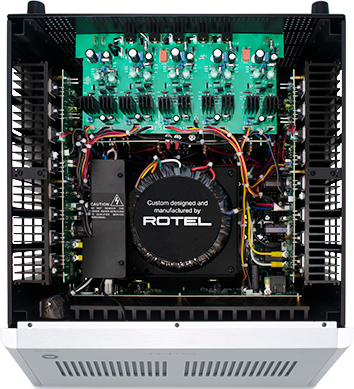

The RMB-1585MKII is built around two massive high-current toroidal transformers manufactured in-house by Rotel. They supply a bank of eight high-efficiency energy-storage capacitors designed to maintain stable current delivery when multiple amplifier channels are working simultaneously. Rotel

This substantial power architecture is a key part of the RMB-1585MKII's ability to deliver its rated output across all five channels rather than relying on short-duration or single-channel power figures.

MKII Class AB Architecture

Rotel's updated MKII architecture incorporates circuit and component upgrades in both the power supply and amplifier stages, with emphasis on low distortion, signal isolation, and high-gain output capability. Rotel

Total harmonic distortion and intermodulation distortion are both rated below 0.03%. Frequency response extends from 10 Hz to 100 kHz (+0.1/-0.3 dB), while a damping factor of 223 contributes to control of connected loudspeaker drivers. Rotel

Dedicated Bi-Amp Mode

A particularly useful feature of the RMB-1585MKII is its dedicated Bi-Amp mode. A rear-panel switch changes the amplifier from normal five-channel operation so Channels 1 + 2 and Channels 4 + 5 receive the same respective input signals. Rotel

With compatible bi-wire/bi-amp loudspeakers, separate amplifier channels can then power the high-frequency and low-frequency sections of the left and right speakers. This allows the RMB-1585MKII to serve double duty as either a five-channel theater amplifier or a powerful bi-amplified solution for the front stereo pair.

Balanced XLR & RCA Inputs

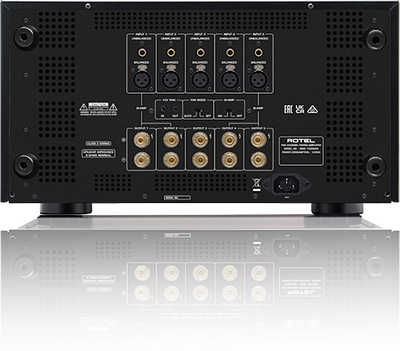

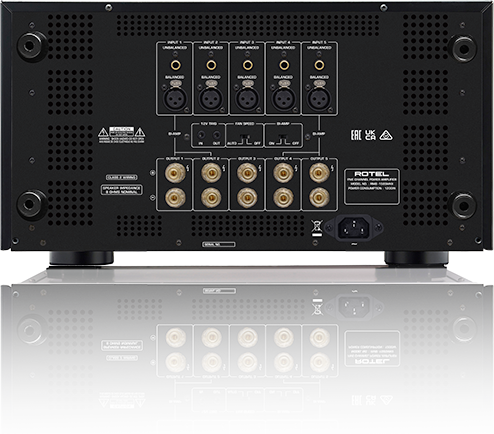

Every channel provides both balanced XLR and unbalanced RCA inputs, allowing straightforward connection to premium AV processors, surround preamplifiers, and other source components with variable analog outputs. Rotel

Input sensitivity is 1.89V unbalanced and 4.7V balanced, with input impedances of 12kΩ RCA and 50kΩ XLR. Overall gain is 26.9 dB, and signal-to-noise ratio is rated at an excellent 120 dB A-weighted. Rotel

Active Thermal Management

Five high-output Class AB channels can generate considerable heat, particularly when driving low-impedance loudspeakers. Rotel equips the RMB-1585MKII with four thermostat-controlled, variable-speed ultra-low-noise fans to maintain proper operating temperature under demanding conditions. Rotel

This makes the amplifier particularly appropriate for dedicated equipment racks and private cinema installations where sustained multichannel output is expected.

12V Trigger & Rack Integration

The RMB-1585MKII includes 12V trigger input and output, allowing automatic power control from a compatible AV processor, preamplifier, or control system. Rotel

Rotel's current U.S. product page specifies rack ears included, while Rotel notes that rack-mount hardware availability varies by region. For a U.S.-market Shopify listing, I would list rack ears included. Rotel

Technical Details

Rotel's current specification sheet and owner's manual agree on the core continuous ratings of 210W/ch into 8Ω, 340W/ch into 4Ω with all five channels driven, and 440W/ch into 4Ω with two channels driven. Rotel

Rotel RMB-1585MKII at The Grid HiFi

The Rotel RMB-1585MKII is built for serious home theater and private cinema systems that need substantial power across the critical front and surround channels. Its combination of 340W/ch into 4 ohms with all five channels driven, dual toroidal transformers, balanced XLR connectivity, dedicated Bi-Amp mode, and active thermal management makes it particularly well suited to high-performance LCR and surround speaker systems.

It can power a complete 5-channel theater, handle the primary bed-layer channels in a larger Dolby Atmos or DTS:X system, or use its Bi-Amp mode to dedicate four amplifier channels to a compatible pair of high-performance front loudspeakers.

The Grid HiFi offers Rotel components to customers throughout the United States, with expert support for matching the RMB-1585MKII to AV processors, loudspeakers, subwoofers, projection systems, acoustics, and complete private cinema installations. Customers can also arrange an in-person Rotel demonstration at our Houston showroom.

Building a high-performance theater around the RMB-1585MKII? Call The Grid HiFi at (713) 218-8120 for expert system design, component matching, and installation.
