Michi P5 Series 2 Stereo Preamplifier & DAC

The Michi P5 Series 2 is the control center for a serious high-performance two-channel system, combining a fully featured analog preamplifier, dual high-end ESS SABRE DACs, MM/MC phono stage and extensive digital connectivity in one beautifully engineered component.

Designed as the natural partner for Michi power amplifiers like the S5 and M8, the P5 Series 2 gives you the flexibility to connect virtually every source in a modern reference audio system without sacrificing the performance expected at this level.

Dual ESS SABRE ES9028PRO DACs

One of the biggest upgrades in the P5 Series 2 is its digital architecture.

Michi uses two ESS SABRE ES9028PRO 32-bit 8-channel DACs, with one DAC dedicated to each channel and configured in mono mode.

Each channel uses eight DAC circuits working together to extract greater detail while maintaining an exceptionally low noise floor and expansive soundstage.

It's an unusually serious digital section for a preamplifier and means a separate DAC isn't automatically required to build a high-end digital system around the P5 Series 2.

High-Resolution Digital Audio

The P5 Series 2 supports a wide range of digital sources.

PC-USB supports:

PCM up to 32-bit / 384kHz

It also supports:

• DSD
• DoP
• MQA
• MQA Studio
• Roon Tested

Coaxial and optical digital inputs support PCM up to 24-bit / 192kHz.

Analog Sources Are Still a Priority

For all its digital capability, the P5 Series 2 remains a serious analog preamplifier.

Both balanced XLR and RCA line-level inputs are provided, making it easy to integrate high-end source components ranging from a dedicated DAC or streamer to a CD player, tape deck or other analog source.

Built-In MM & MC Phono Stage

Vinyl wasn't treated as an afterthought.

The P5 Series 2 includes a phono stage supporting both:

Moving Magnet (MM)
Moving Coil (MC)

MM input sensitivity is 2.5mV with a 47kΩ input impedance, while MC sensitivity is 250µV with a 100Ω input impedance.

That makes the P5 Series 2 capable of becoming the center of a serious analog and digital system without automatically requiring an external phono preamplifier.

aptX HD Bluetooth

For convenient wireless listening, the P5 Series 2 includes Bluetooth with:

• aptX HD
• AAC

Bluetooth isn't going to replace a reference digital source, but it's extremely useful when someone simply wants to connect a phone or tablet and start listening.

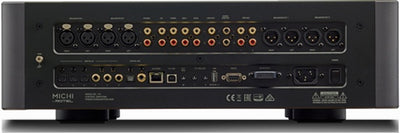

Balanced System Architecture

The P5 Series 2 provides balanced XLR connectivity for pairing with high-performance power amplifiers.

It's a particularly natural match for the Michi S5 stereo amplifier or M8 monoblocks, creating a complete Michi amplification system with tremendous power, low noise and excellent system control.

Exceptionally Low Distortion

Michi rates total harmonic distortion across 20Hz–20kHz at:

Less than 0.002%

Intermodulation distortion is also rated at:

Less than 0.002%

Line-level signal-to-noise ratio reaches 116dB, helping the P5 Series 2 maintain the quiet background required to expose subtle musical information.

Key Specifications

• Type: Stereo Preamplifier / DAC
• DACs: Dual ESS SABRE ES9028PRO
• DAC Architecture: Dual 8-Channel DACs Configured in Mono Mode
• PC-USB: Up to 32-Bit / 384kHz
• Coaxial / Optical: Up to 24-Bit / 192kHz
• DSD / DoP: Supported
• MQA / MQA Studio: Supported
• Roon Tested: Yes
• Bluetooth: aptX HD & AAC
• Phono Stage: Moving Magnet & Moving Coil
• Balanced Analog Inputs: XLR
• Unbalanced Analog Inputs: RCA
• Total Harmonic Distortion: <0.002%
• Intermodulation Distortion: <0.002%
• Line-Level Frequency Response: 10Hz–100kHz ±0.3dB
• Digital Frequency Response: 20Hz–20kHz ±0.3dB
• Phono Frequency Response: 20Hz–20kHz ±0.3dB
• Line-Level S/N Ratio: 116dB
• Digital S/N Ratio: 100dB
• Phono S/N Ratio: 80dB
• MM Input Sensitivity: 2.5mV
• MC Input Sensitivity: 250µV
• MM Input Impedance: 47kΩ
• MC Input Impedance: 100Ω
• XLR Input Impedance: 100kΩ
• RCA Input Impedance: 47kΩ
• XLR Output Level: 2V
• RCA Output Level: 1V
• Tone Controls: ±10dB at 100Hz / 10kHz
• Power Consumption: 40W
• Standby Consumption: <0.5W
• Dimensions: 19" W × 6" H × 17.75" D
• Weight: 50.5 lbs.

The Center of a Complete Michi System

The strength of the P5 Series 2 is how much it can handle without turning a reference system into a collection of unnecessary boxes.

Connect a turntable through the MM/MC phono stage. Run a music server or computer into USB. Connect a transport through coaxial or optical. Add analog sources through RCA or XLR. And when convenience matters, Bluetooth is already onboard.

Then connect the P5 Series 2 to an S5 stereo power amplifier or a pair of M8 monoblocks and you have a complete Michi amplification platform capable of driving a truly high-end loudspeaker system.

Experience the Michi P5 Series 2 at The Grid HiFi

The Grid HiFi is your Michi and high-performance two-channel audio expert in Houston, Texas.

The P5 Series 2 gives you a lot of flexibility, but getting the most from it still comes down to system matching.

The Grid can help match the P5 Series 2 with the right power amplifier, loudspeakers, turntable and cartridge, digital source, cabling and power solution to create a system that works together from source to speaker.

For vinyl systems, we can also help properly match the cartridge to the P5 Series 2's MM or MC input and professionally set up and align the turntable.

Contact The Grid HiFi to experience the Michi P5 Series 2 and let us help design a complete two-channel system around it.
