Michi M8 Reference Monoblock Power Amplifier

The Michi M8 is a no-compromise Class AB monoblock built for systems that demand enormous power, control and dynamic headroom.

Delivering 1,080 watts into 8 ohms and an astonishing 1,800 watts into 4 ohms, the M8 has the current and power reserves to take control of some of the world's most demanding loudspeakers. But raw output isn't really the point. Michi engineered the M8 to deliver that power with refinement, speed and composure.

This is serious amplification for a serious two-channel system.

1,800 Watts Into 4 Ohms

Each M8 is dedicated to powering a single channel.

Continuous output is rated at:

1,080 watts into 8 ohms
1,800 watts into 4 ohms

That kind of power provides enormous dynamic headroom, particularly with large floorstanding speakers and difficult impedance loads.

The goal isn't simply playing louder. It's maintaining control when the music becomes demanding—deep bass, large orchestral passages and sudden dynamic peaks shouldn't cause the amplifier to lose its composure.

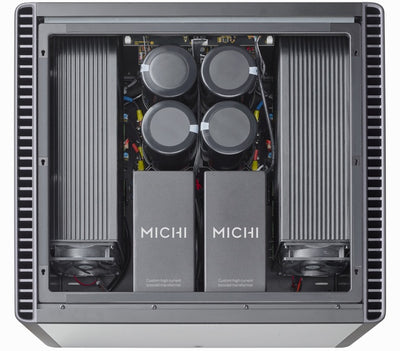

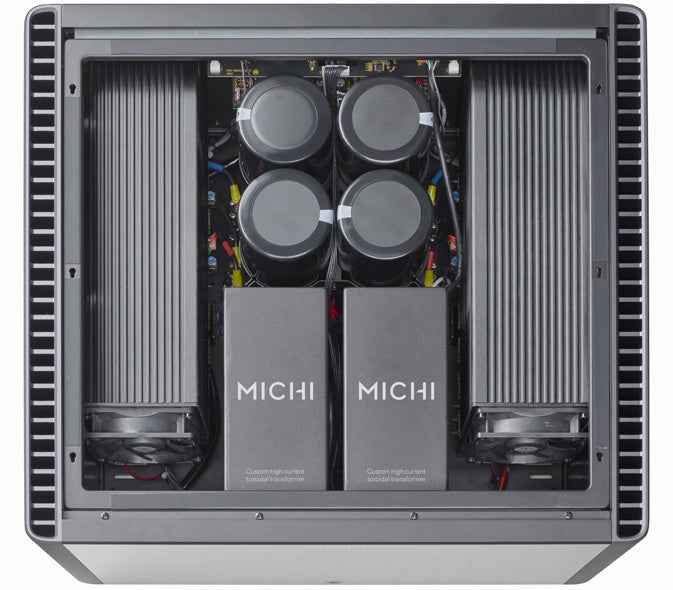

Massive Dual Toroidal Power Supply

At the heart of the M8 are two custom-engineered, low-noise toroidal transformers manufactured in-house.

They're supported by four patented British slit-foil, high-efficiency, low-ESR bulk storage capacitors.

That oversized power supply gives the M8 the energy reserves needed to maintain stable output under demanding loads while providing the current required for authoritative low-frequency control.

32 High-Current Output Transistors

Each M8 uses an array of 32 high-current output transistors.

Spreading the workload across a large output stage reduces the demands placed on each individual device while allowing the amplifier to deliver tremendous current when the loudspeaker requires it.

The result is an amplifier designed to maintain control, timing and musical expression even when operating under extreme conditions.

Fully Balanced Circuit Design

Michi uses a balanced circuit architecture throughout the M8, with critical components carefully selected and acoustically tuned.

The objective isn't simply impressive measurements.

It's to combine the effortless power of a massive monoblock with the detail, resolution and refinement expected from a true high-end amplifier.

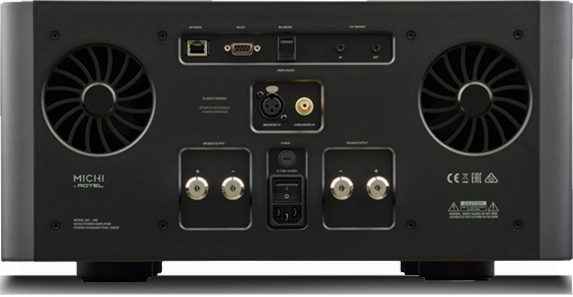

Balanced XLR & RCA Inputs

The M8 provides both:

• Balanced XLR input
• Unbalanced RCA input

Balanced XLR is particularly useful in a reference system where the power amplifiers may be positioned near the loudspeakers and connected to the preamplifier using longer interconnects.

Dual Michi Speaker Outputs

Two sets of custom Michi speaker binding posts provide robust loudspeaker connections and additional system flexibility.

High-Resolution Front Display

The M8's front panel incorporates a high-resolution display capable of showing either a:

• Peak power meter
• Spectrum analyzer

The display gives the otherwise minimalist industrial design a functional visual element while providing real-time information about amplifier operation.

Built for High-End System Integration

Despite its purist two-channel design, the M8 includes modern control and integration capabilities.

Connections include:

• Ethernet
• RS-232
• Remote control
• Network wakeup

This makes the M8 easier to integrate into sophisticated audio and automation systems without compromising its primary purpose as a high-performance analog power amplifier.

Key Specifications

• Type: Monoblock Power Amplifier
• Amplifier Design: Class AB
• Channels: 1
• Continuous Power: 1,080W into 8 Ohms
• Continuous Power: 1,800W into 4 Ohms
• FTC Power Output: 1,170W into 8 Ohms
• Output Transistors: 32 High-Current Devices
• Power Supply: Dual Custom Toroidal Transformers
• Storage Capacitors: 4 Patented British Slit-Foil Capacitors
• THD: <0.018%
• Intermodulation Distortion: <0.03%
• Frequency Response: 20Hz–20kHz +0/-0.15dB
• Extended Frequency Response: 10Hz–100kHz +0/-0.5dB
• Signal-to-Noise Ratio: 120dB
• Damping Factor: 200
• Minimum Speaker Impedance: 4 Ohms
• Balanced Input: XLR
• Unbalanced Input: RCA
• Gain – XLR: 30dB
• Gain – RCA: 34dB
• Input Sensitivity – XLR: 3V
• Input Sensitivity – RCA: 1.85V
• Input Impedance – XLR: 100k Ohms
• Input Impedance – RCA: 12.5k Ohms
• Speaker Outputs: 2 Sets
• Control: Ethernet & RS-232
• Power Consumption: 1,200W
• Standby Consumption: <0.5W
• Dimensions: 19" W × 9.375" H × 18.25" D
• Weight: 130.3 lbs.

Power Isn't the Whole Story

It's easy to look at 1,800 watts and assume the M8 is simply about brute force.

It isn't.

The reason for having this much amplifier is headroom and control. With a difficult loudspeaker, the M8 has the reserves to reproduce large dynamic swings without sounding strained while maintaining control over the drivers during demanding bass passages.

At the same time, Michi's balanced architecture and carefully engineered analog circuitry are designed to preserve the detail and musical information that can easily get lost in an amplifier built primarily around output numbers.

That's what makes the M8 interesting: massive power delivered with the refinement expected from a high-end two-channel amplifier.

Experience the Michi M8 at The Grid HiFi

The Grid HiFi is your Michi and high-performance two-channel audio expert in Houston, Texas.

An amplifier like the M8 deserves to be matched to the right system.

Speaker impedance, sensitivity, room size, listening distance, preamplifier gain and the character of the rest of the system all matter when you're building at this level.

The Grid can help you match the M8 with the right loudspeakers, preamplifier, source components, cabling and power solution to build the system as a whole rather than simply assembling expensive components.

And with 130 pounds of amplifier per channel, proper equipment support, ventilation and installation aren't afterthoughts either.

Contact The Grid HiFi to experience the Michi M8 and let us help design a two-channel system around it.
