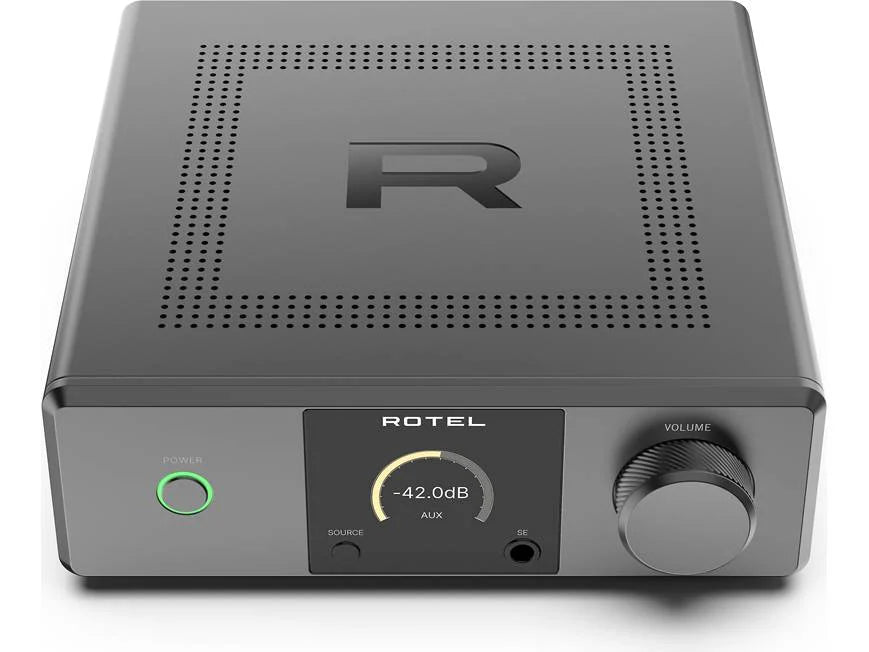

Rotel DX-5 Integrated Amplifier

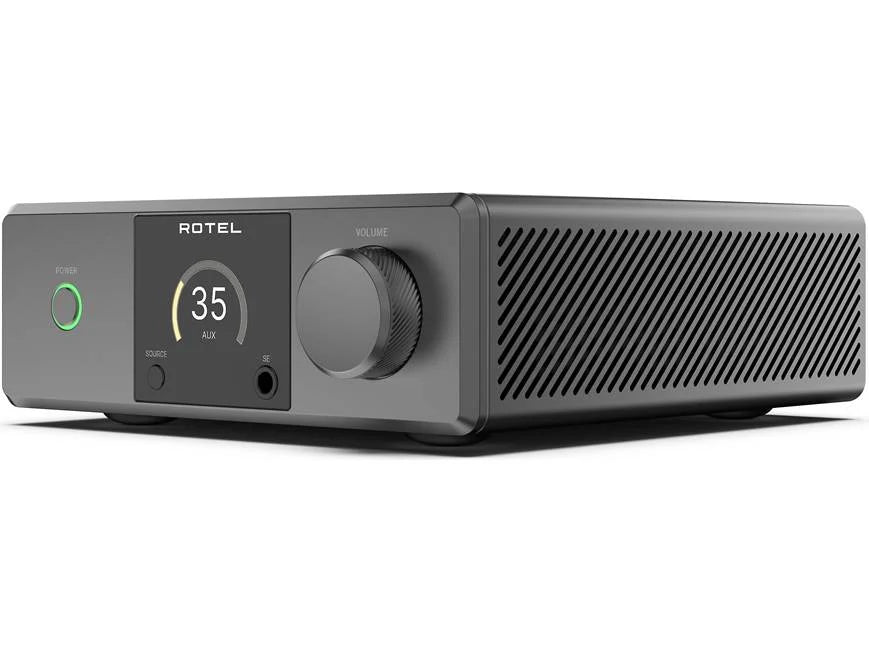

The Rotel DX-5 Integrated Amplifier packs a complete high-performance stereo system into an unusually compact chassis. Measuring just 8.5 inches wide, the DX-5 combines Rotel Class AB amplification, a premium ESS SABRE ES9039Q2M 32-bit DAC, HDMI ARC, PC-USB, Bluetooth aptX HD and AAC, analog and digital inputs, a subwoofer output, headphone output, and Roon Tested compatibility. Rotel

Delivering 25 watts per channel into 8 ohms and up to 33 watts per channel into 4 ohms, the DX-5 is designed for desktop audio, smaller listening rooms, premium office systems, and space-conscious two-channel installations where component size should not dictate sound quality. Rotel

Classic Rotel Class AB Amplification

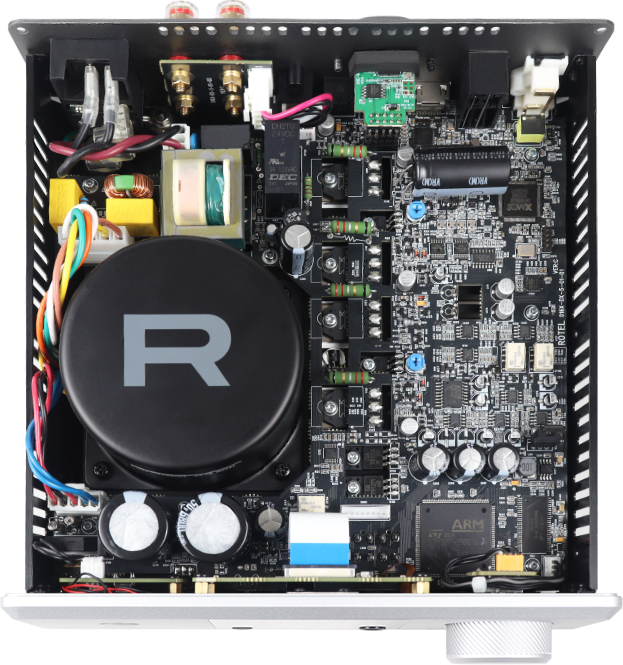

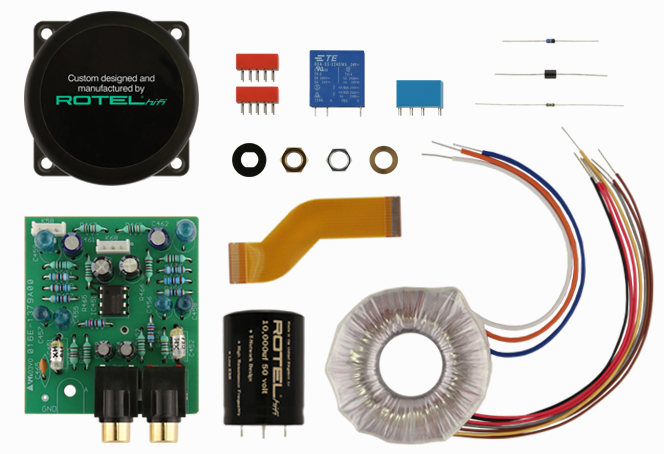

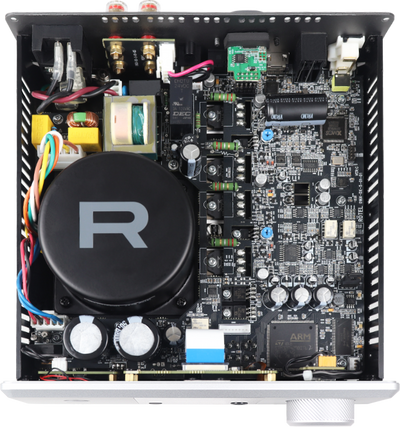

Rather than moving to a compact switching amplifier, Rotel built the DX-5 around a traditional Class AB output stage powered by an in-house wound high-current toroidal transformer.

The amplifier is rated at 25W per channel FTC, 25W per channel continuous into 8 ohms, and a maximum 33W per channel into 4 ohms. A damping factor of 140 provides solid electrical control of compatible loudspeakers. Rotel

ESS SABRE ES9039Q2M DAC

Digital conversion is handled by the ESS SABRE ES9039Q2M, giving the DX-5 a serious digital foundation despite its compact dimensions.

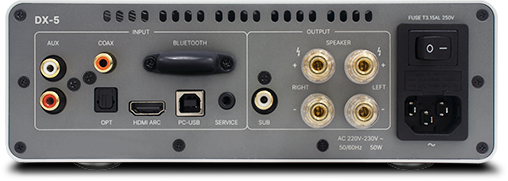

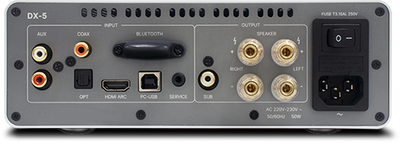

Its PC-USB input supports PCM up to 32-bit/384 kHz, DSD up to 11.2 MHz (DSD256) and DoP up to 5.6 MHz. Coaxial and optical S/PDIF inputs support PCM up to 24-bit/192 kHz. The DX-5 is also Roon Tested. Rotel

HDMI ARC for TV Audio

The inclusion of HDMI ARC with CEC makes the DX-5 especially useful as the center of a compact music and entertainment system.

Connect a compatible television through HDMI ARC and use the DX-5 and a quality pair of stereo speakers for TV, movies, concerts and streaming content—without adding a full-size A/V receiver. Rotel

Bluetooth aptX HD & AAC

For convenient wireless playback, the DX-5 includes Bluetooth with aptX HD and AAC support. This gives phones, tablets and computers an easy wireless path into the system while higher-resolution sources can use USB, coaxial or optical connections. Rotel

Subwoofer & Headphone Connectivity

A dedicated subwoofer output makes it easy to build a compact 2.1-channel system, extending low-frequency performance beyond what smaller bookshelf or desktop speakers can provide.

The front panel also includes a 1/4-inch (6.35 mm) headphone jack, allowing the DX-5 to serve both loudspeaker and personal-audio systems from a single compact component. Rotel

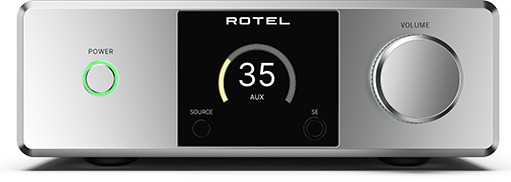

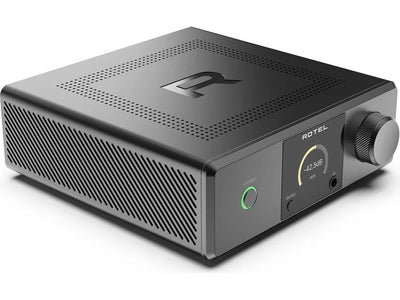

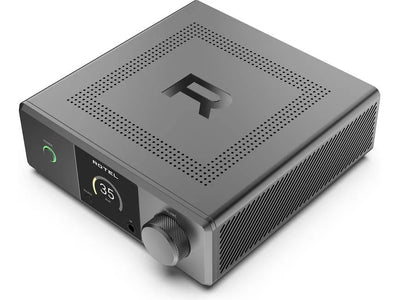

Full-Color Display & Compact Chassis

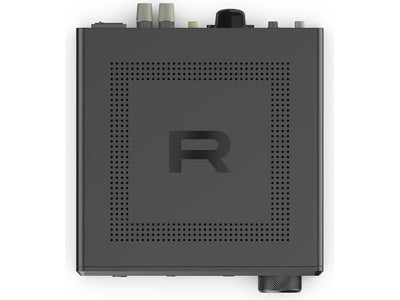

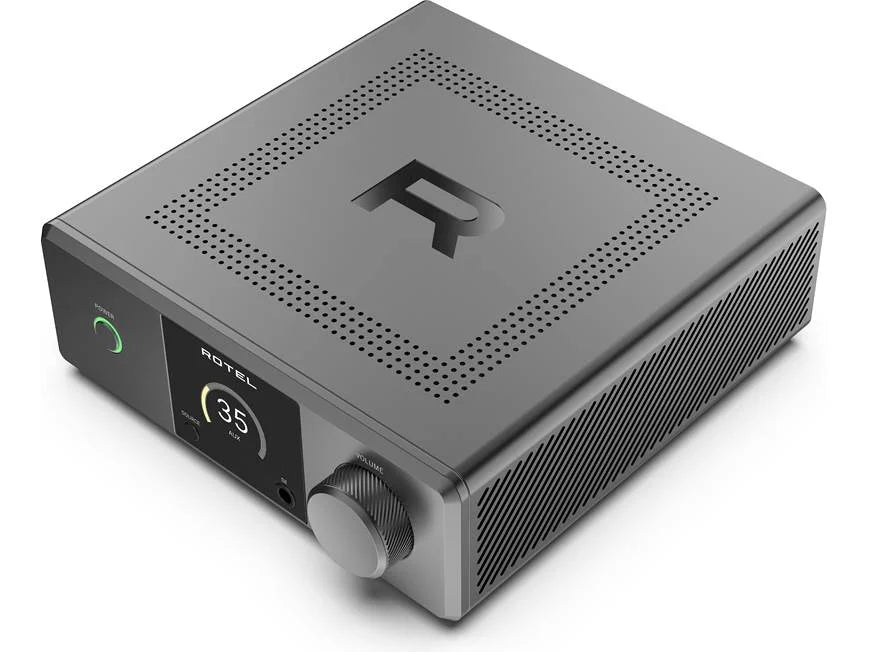

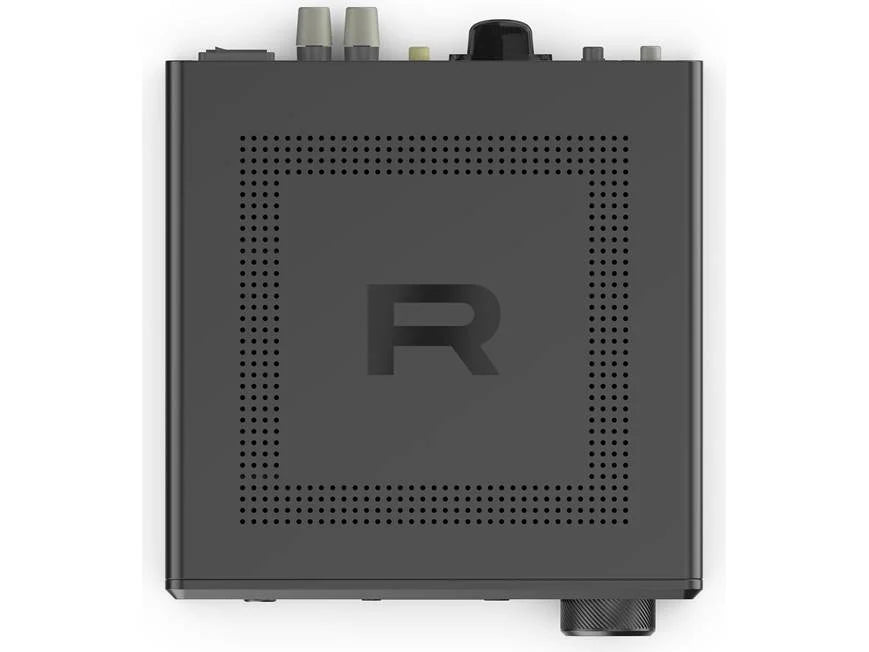

At only 8.5 × 3 × 10 inches, the DX-5 occupies roughly half the width of a traditional hi-fi component while retaining the build and visual character associated with Rotel electronics.

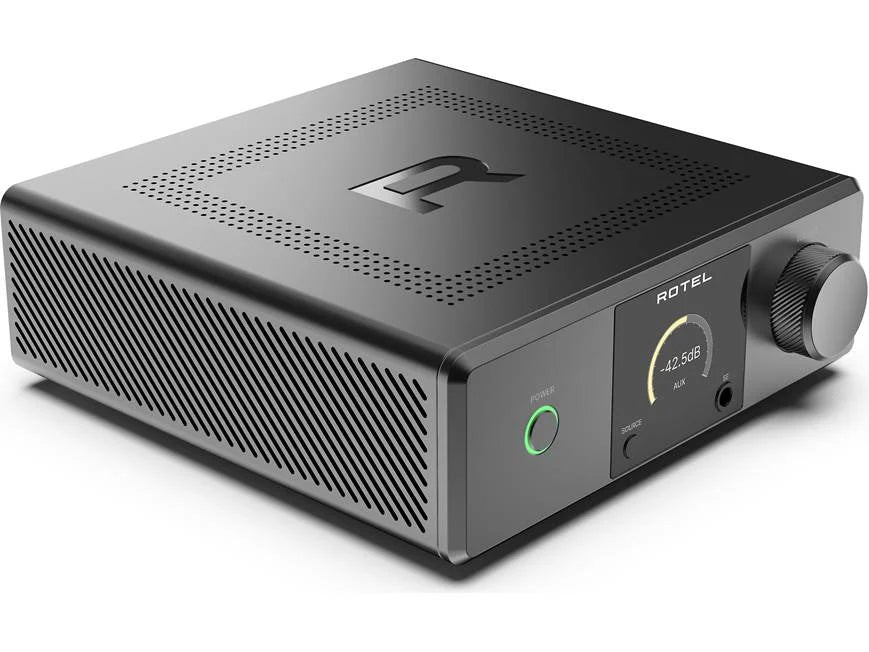

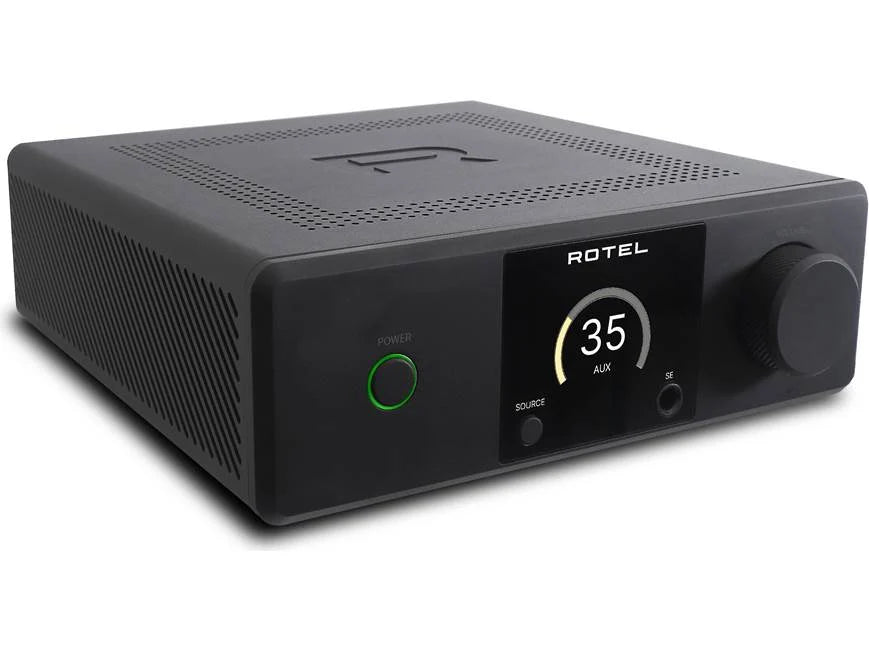

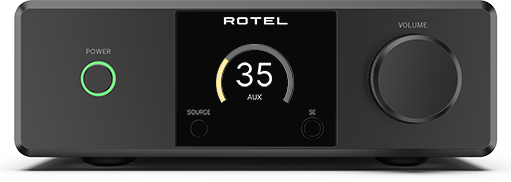

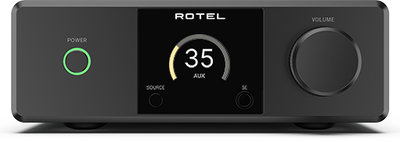

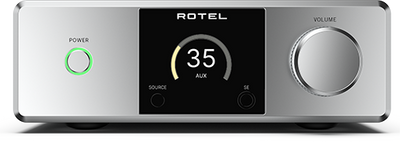

A full-color TFT display, supplied remote control, and availability in black or silver complete a design intended to work equally well on a desktop, credenza, media console or dedicated audio rack. Rotel

Technical Details

Specifications are from Rotel's current DX-5 product page, specification sheet and owner's manual. Rotel

Rotel DX-5 at The Grid HiFi

The Grid HiFi is your source for Rotel high-performance audio, with expert support for matching the DX-5 to the right loudspeakers, subwoofer, digital sources and complete two-channel system.

Its compact dimensions make the DX-5 particularly compelling for desktop HiFi, office audio, bedroom systems, smaller listening rooms and minimalist stereo installations where a traditional full-width amplifier is unnecessary.

The Rotel DX-5 is available from The Grid HiFi for customers throughout the United States, with expert product and system support before and after the sale. Customers who want to hear Rotel in person can also arrange a demonstration at our Houston showroom.

Questions about the Rotel DX-5 or which speakers to pair with it? Call The Grid HiFi at (713) 218-8120 for expert system matching.
