Rotel A12MKII Integrated Amplifier

The Rotel A12MKII Integrated Amplifier combines 60 watts per channel of Class AB amplification with a premium Texas Instruments 32-bit/384 kHz DAC, Moving Magnet phono stage, PC-USB, coaxial and optical digital inputs, wireless aptX Bluetooth, and Roon Tested compatibility. Its combination of analog and high-resolution digital connectivity makes the A12MKII a versatile centerpiece for a modern two-channel HiFi system. Rotel

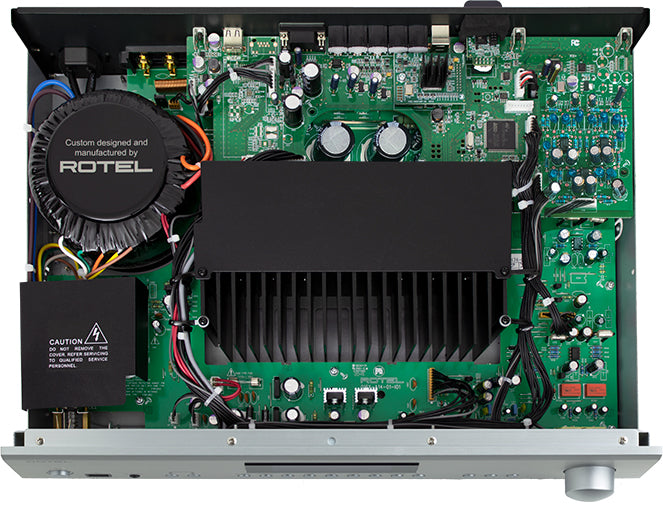

Power comes from an oversized, in-house manufactured Rotel toroidal transformer, supporting 60 watts per channel continuously into 8 ohms and up to 120 watts per channel into 4 ohms. Rotel's current U.S. product page also specifies an FTC output rating of 75 watts per channel into 8 ohms. Rotel

Class AB Amplification

The A12MKII uses Rotel's traditional Class AB amplifier architecture, with the power supply engineered around the company's own toroidal transformer. The design delivers low distortion and substantial current capability without moving to a switching-amplifier topology.

Total harmonic distortion is rated at less than 0.018%, intermodulation distortion at less than 0.03%, and damping factor at 220, giving the A12MKII solid control over compatible bookshelf and floorstanding loudspeakers. Rotel

Texas Instruments 32-Bit/384 kHz DAC

The A12MKII's digital section uses a premium Texas Instruments 32-bit DAC and provides several ways to connect digital music sources. Rotel

PC-USB supports USB Audio Class 2.0 up to 32-bit/384 kHz, while coaxial and optical S/PDIF inputs accept LPCM up to 24-bit/192 kHz. The amplifier is also Roon Tested, making it suitable for integration with a Roon-based digital music system. Rotel

Moving Magnet Phono Stage

A built-in Moving Magnet phono stage allows a compatible turntable to connect directly to the A12MKII.

The phono input provides 3.4 mV sensitivity, 47kΩ input impedance, 50 mV overload capability, and frequency response from 20 Hz–20 kHz ±0.5 dB. Rotel

Extensive Analog & Digital Connectivity

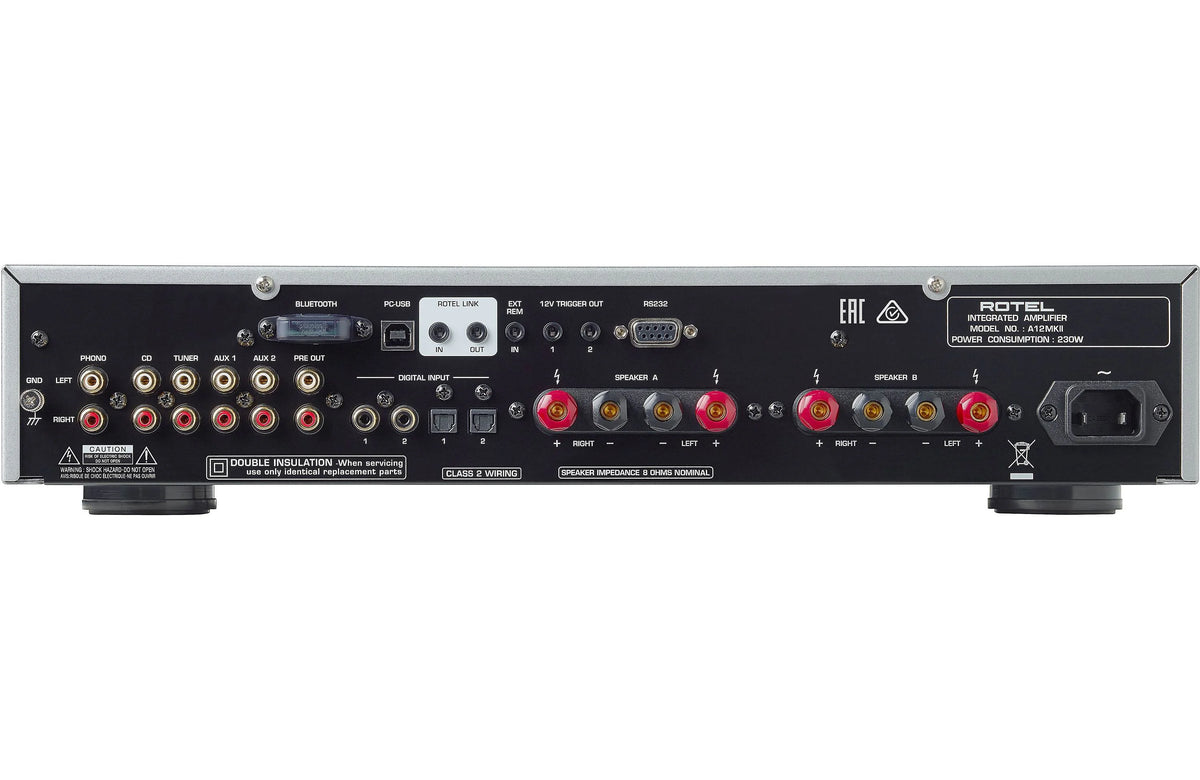

The A12MKII provides four RCA analog inputs, along with its dedicated MM phono input. Digital sources are accommodated through coaxial, optical, and PC-USB connections, while wireless aptX Bluetooth provides convenient playback from compatible mobile devices. Rotel

A preamp output also provides flexibility for adding external amplification or integrating the A12MKII into a more complex audio system.

Home Theater Bypass

Later-production A12MKII units support a Home Theater Bypass function, allowing the amplifier to be incorporated into a combined two-channel and home theater system while a surround processor or AVR controls volume for the designated input.

Rotel specifies that this feature applies beginning with serial number 273-144-1001 for Black units and 773-144-1001 for Silver units. Rotel

System Integration

For custom installations, the A12MKII provides RS232, 12V trigger, Rotel Link, and external remote connections, allowing it to integrate beyond a basic standalone stereo system. Rotel

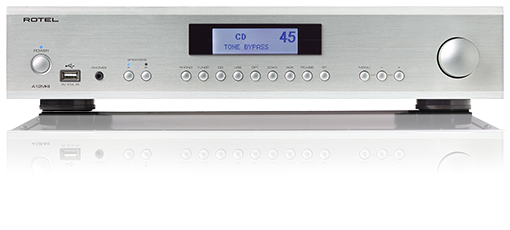

It is available in Black or Silver, maintaining Rotel's understated full-width component design.

Technical Details

Rotel A12MKII at The Grid HiFi

The Rotel A12MKII is a particularly flexible choice for customers who want one amplifier to handle vinyl, analog sources, high-resolution USB audio, traditional digital sources, and wireless playback. Its 120-watt 4-ohm capability also gives it considerably more speaker-matching flexibility than its slim chassis might suggest.

The Grid HiFi offers Rotel components to customers throughout the United States, with expert support for matching the A12MKII with loudspeakers, turntables, streamers, CD players, subwoofers, cabling, and complete two-channel systems. Customers who want to experience Rotel in person can also arrange a demonstration at our Houston showroom.

Building a system around the Rotel A12MKII? Call The Grid HiFi at (713) 218-8120 for expert system matching and support.
