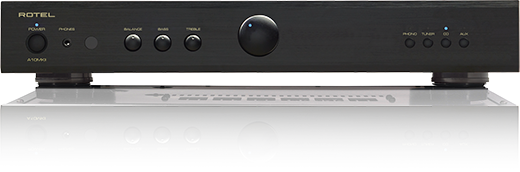

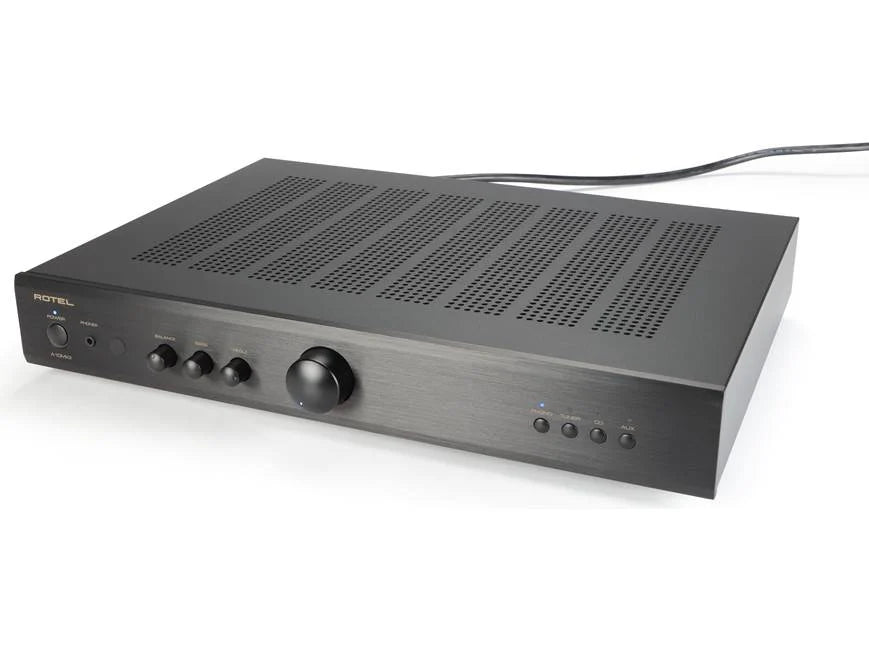

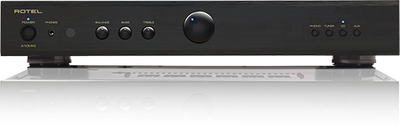

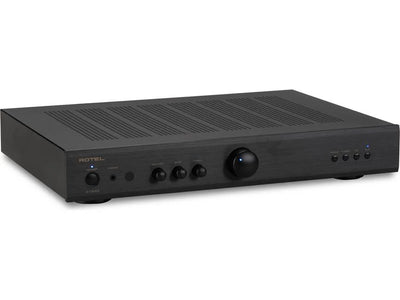

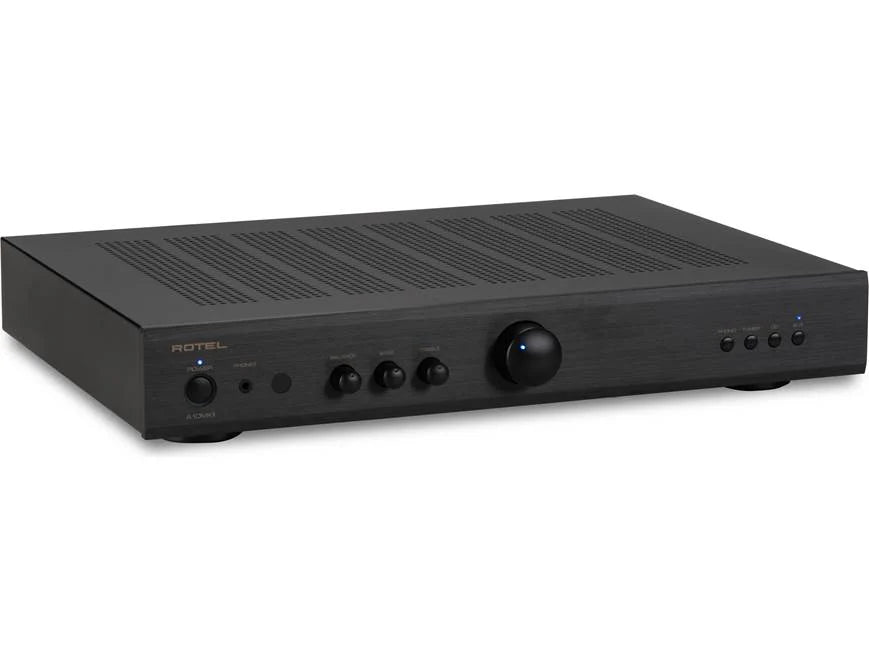

Rotel A10MKII Integrated Amplifier

The Rotel A10MKII Integrated Amplifier is a pure analog Class AB amplifier built for straightforward, high-quality two-channel listening. Delivering 50 watts per channel into 8 ohms and 60 watts per channel into 4 ohms, it combines a Rotel-built toroidal transformer, high-current linear power supply, Moving Magnet phono stage, three RCA line-level inputs, headphone amplifier, and remote-controlled analog volume in a slim full-width chassis. Rotel

With no internal DAC, streaming platform, or Bluetooth circuitry, the A10MKII concentrates on analog sources and amplification—making it an excellent foundation for a turntable-based system or a modern streamer equipped with quality analog outputs.

50-Watt Class AB Amplification

The A10MKII delivers 50 watts per channel into 8 ohms, increasing to 60 watts per channel into 4 ohms. Rotel specifies total harmonic distortion and intermodulation distortion at less than 0.03%. Rotel

A 120 damping factor contributes to loudspeaker control, while the amplifier's ability to increase output into a 4-ohm load gives it useful flexibility when matching bookshelf and floorstanding speakers.

Rotel-Built Toroidal Transformer

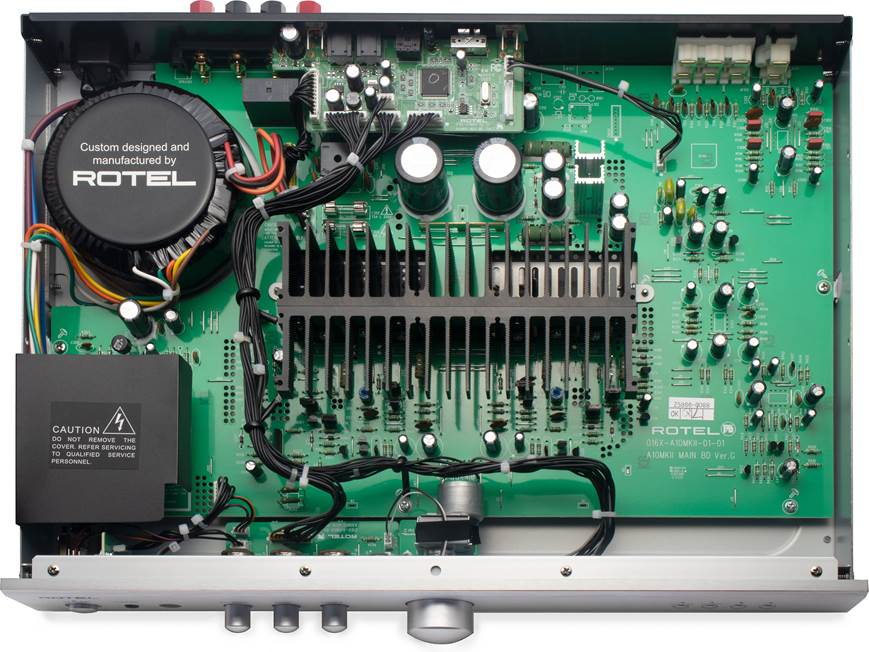

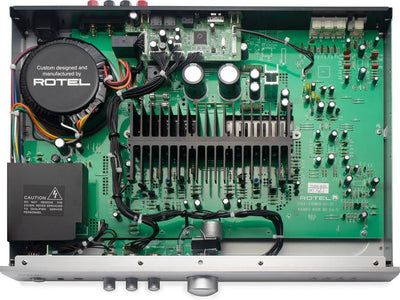

At the center of the A10MKII is a substantial Rotel-manufactured toroidal power transformer feeding a linear high-current power supply. Rotel manufactures its toroidal transformers in-house rather than sourcing a generic off-the-shelf unit. Rotel

The power supply is a significant part of the A10MKII's design, supporting the transient current demands of the Class AB output stage while maintaining a low electrical noise floor.

Moving Magnet Phono Stage

Vinyl listeners can connect a compatible turntable directly to the dedicated Moving Magnet phono input, eliminating the need for a separate phono preamplifier.

The MM input provides 1.5 mV sensitivity, 43kΩ input impedance, 50 mV overload capability, and a specified frequency response of 20 Hz–20 kHz, -0.5/+0.3 dB. Rotel

Pure Analog Connectivity

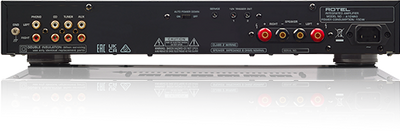

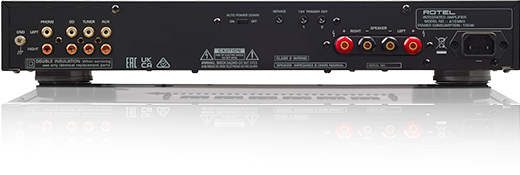

Alongside its MM phono input, the A10MKII provides three RCA line-level inputs for a CD player, tuner, streamer, external DAC, or other analog source. Rotel

This is intentionally an analog integrated amplifier. Customers who want streaming can simply pair it with a dedicated network streamer, allowing the streaming platform to be upgraded independently of the amplifier.

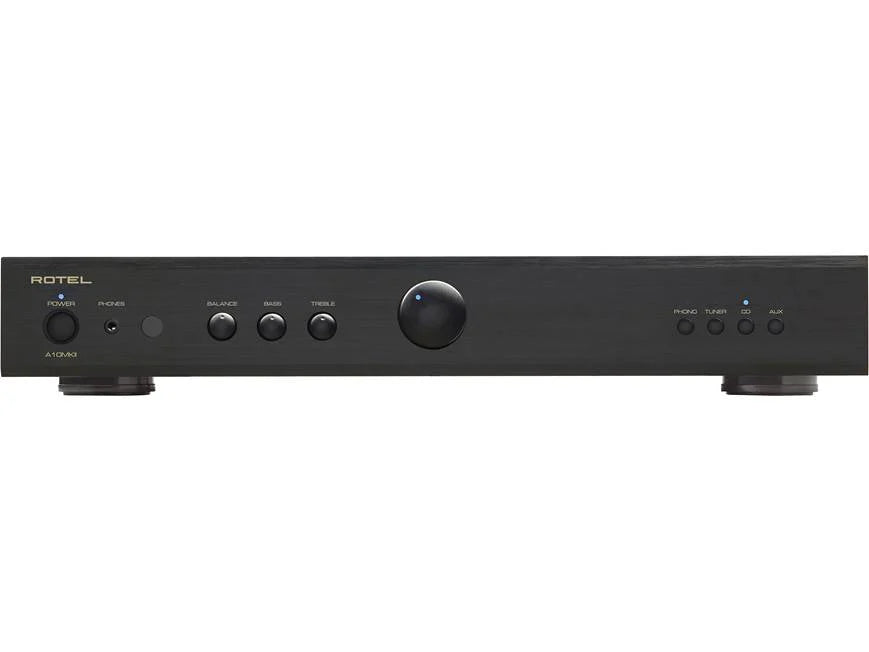

Headphone Amplifier & Hands-On Controls

A front-panel 1/8-inch headphone output with a dedicated headphone amplifier circuit provides private listening directly from the A10MKII. Rotel

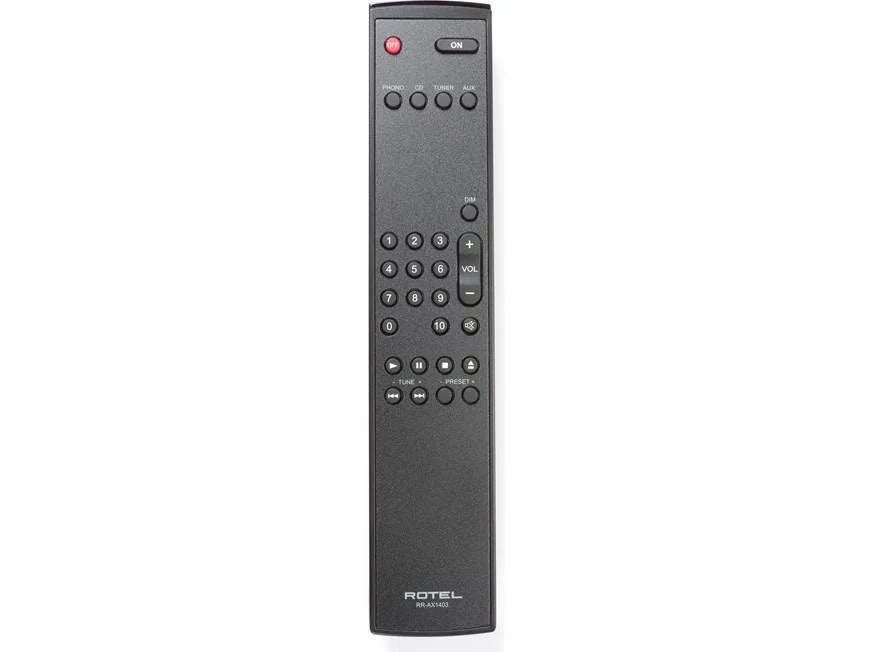

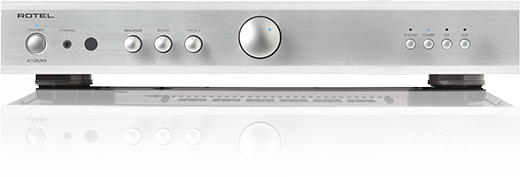

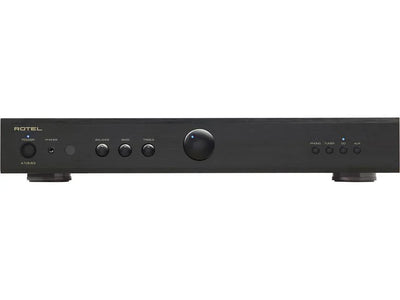

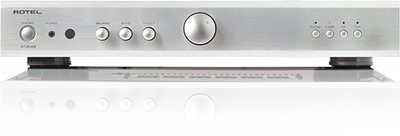

Rotary Bass, Treble, and Balance controls provide immediate adjustment without menus or apps. Bass and treble offer ±6 dB adjustment at 100 Hz and 10 kHz, while a motorized analog volume control allows volume adjustment from the supplied IR remote. Rotel

Technical Details

Rotel's current specification sheet lists the A10MKII at 50 W/ch into 8Ω and 60 W/ch into 4Ω. Rotel

Rotel A10MKII at The Grid HiFi

The Rotel A10MKII is an excellent choice for building a focused analog stereo system around a turntable, CD player, streamer, or external DAC. Its combination of Class AB amplification, MM phono stage, high-current power supply, and simple analog architecture makes it easy to build a capable system without paying for unnecessary features.

The Grid HiFi offers Rotel components to customers throughout the United States, with expert help matching the A10MKII to loudspeakers, turntables, streamers, cabling, and complete two-channel systems. Customers who want to hear Rotel in person can also arrange a demonstration at our Houston showroom.

Need help choosing speakers or sources for the Rotel A10MKII? Call The Grid HiFi at (713) 218-8120 for expert system matching and support.
