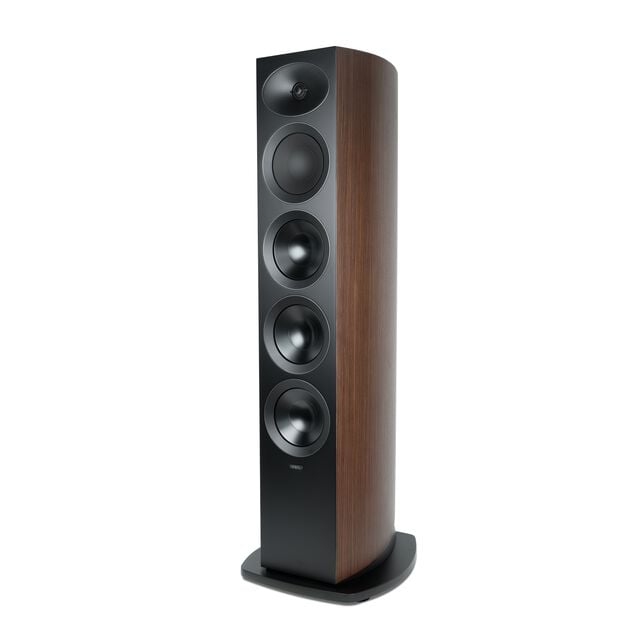

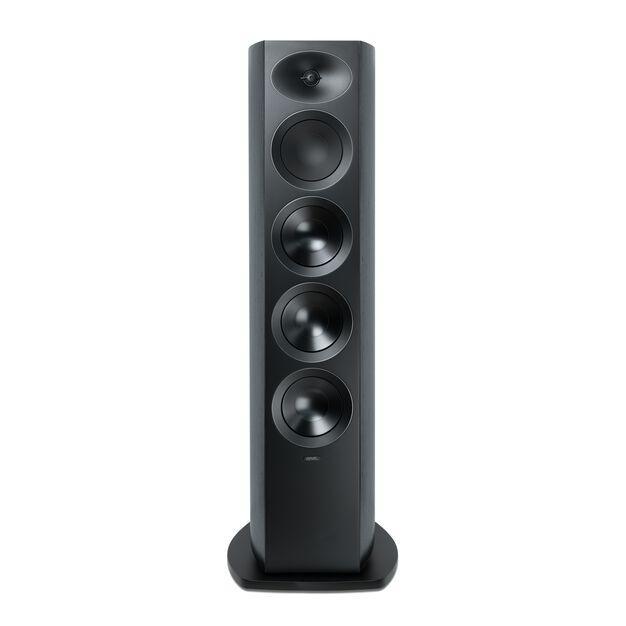

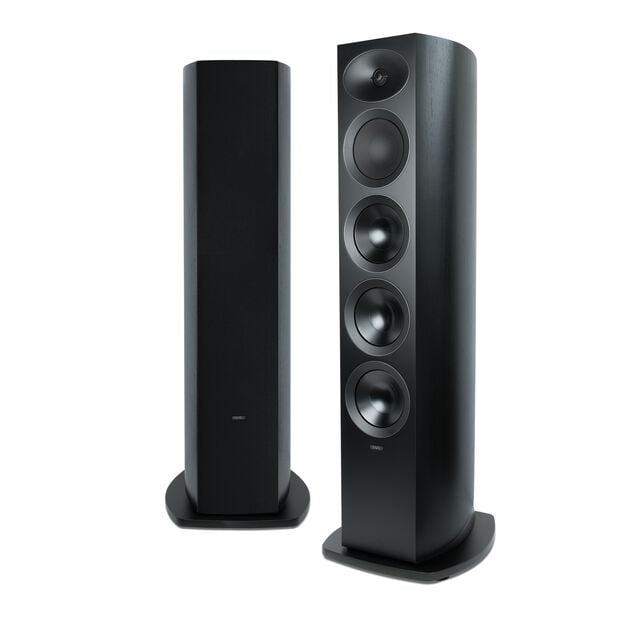

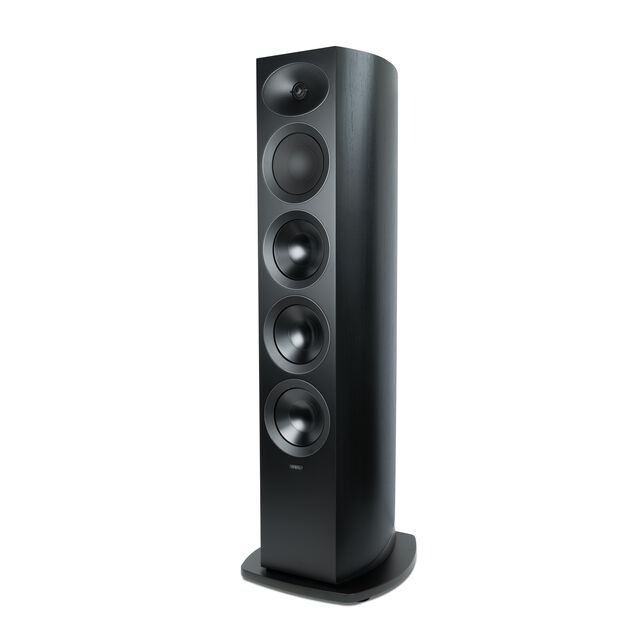

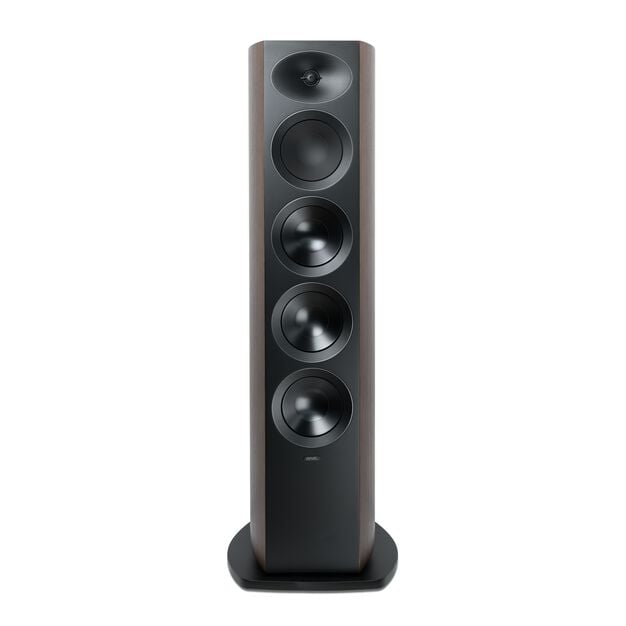

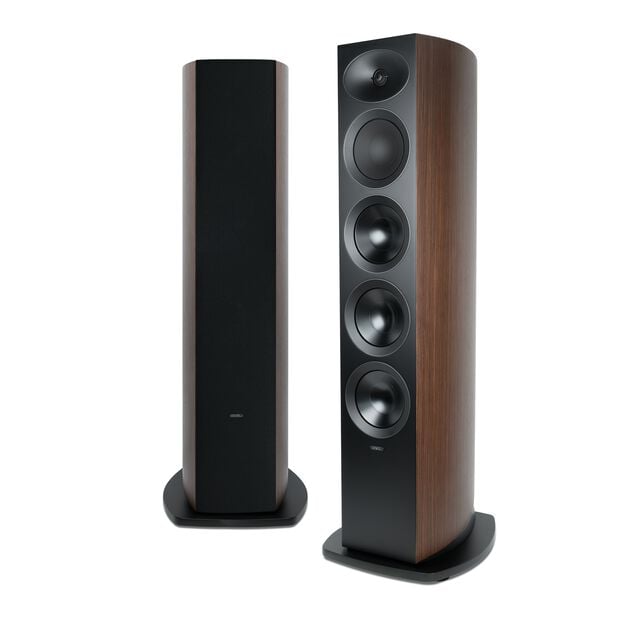

Revel Performa4 F346 Floorstanding Loudspeaker (each)

The Revel Performa4 F346 is the flagship floorstanding speaker in the Performa4 series, featuring a three-way design with three 6.5-inch Micro Ceramic Composite (MCC) woofers, a dedicated 6.5-inch Deep Ceramic Composite (DCC) midrange driver, and a 1-inch DCC dome tweeter. Designed for serious two-channel listening and high-performance home theater systems, the F346 combines substantial bass capability with the precise imaging and consistent tonal balance that define Revel loudspeakers.

Building on decades of acoustic research, the F346 introduces Revel's seventh-generation Acoustic Lens waveguide, newly engineered ceramic composite drivers, and a precision crossover network. Together, these technologies deliver extended frequency response, controlled dispersion, and the dynamic range needed to reproduce everything from intimate vocal recordings to full-scale orchestral performances.

Advanced Ceramic Composite Drivers

The F346's three 6.5-inch MCC woofers are engineered to deliver powerful, controlled low-frequency output. A dedicated 6.5-inch DCC midrange driver handles vocals and instruments, allowing the woofers to concentrate on bass reproduction without compromising midrange clarity.

Both driver types feature inverted surrounds and newly patented cast frames designed to improve airflow, cooling, rigidity, and resonance control. This carefully engineered driver arrangement helps the F346 maintain accuracy and composure during demanding musical passages.

Seventh-Generation Acoustic Lens Waveguide

High frequencies are reproduced by a 1-inch Deep Ceramic Composite dome tweeter mounted in Revel's seventh-generation Acoustic Lens waveguide.

The waveguide controls the tweeter's dispersion and improves its integration with the dedicated midrange driver. By maintaining more consistent off-axis response, the F346 delivers balanced sound across a wider listening area, an important advantage in both dedicated listening rooms and shared entertainment spaces.

Precision Three-Way Crossover

The F346 uses a sophisticated three-way crossover network with crossover frequencies of 275Hz and 1.7kHz. Premium components, including air-core inductors in the midrange and tweeter circuits, support accurate signal reproduction and seamless driver integration.

Revel's high-order crossover design works alongside the Acoustic Lens waveguide to maintain controlled directivity and smooth transitions between the bass, midrange, and high-frequency drivers.

Dual-Ported Cabinet and Premium Wood Veneers

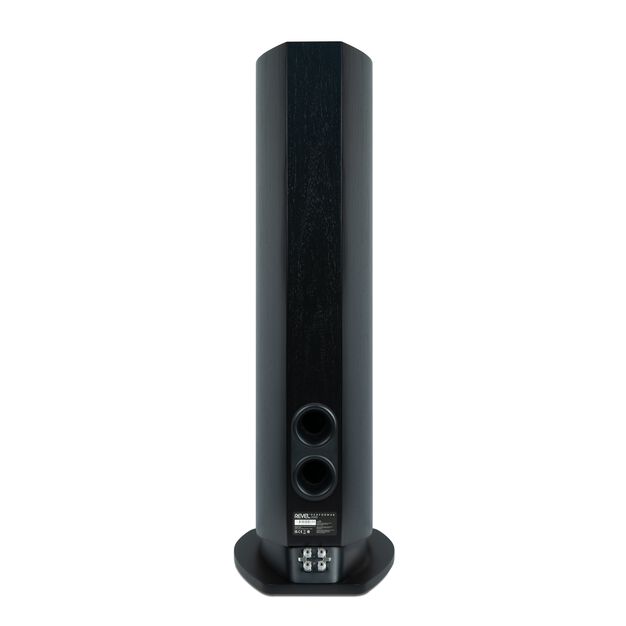

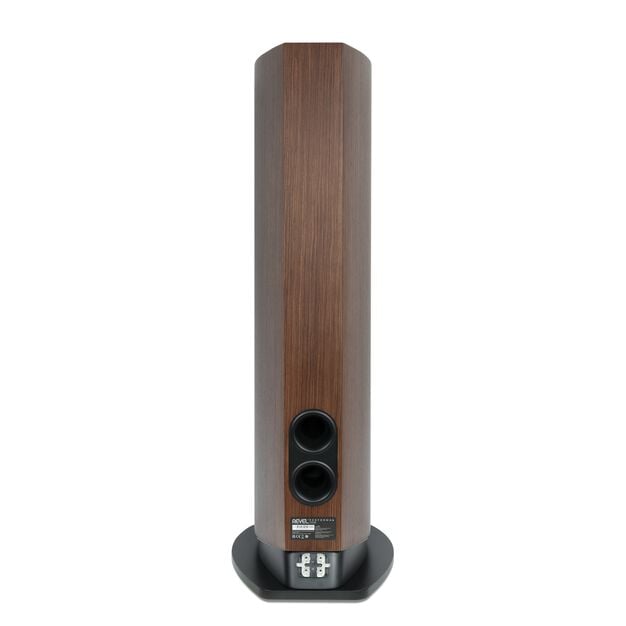

The F346's rigid, cross-braced enclosure incorporates dual rear-mounted bass-reflex ports to extend low-frequency performance. Gently curved cabinet sides and premium wood veneers give the speaker a refined appearance suited to contemporary listening rooms.

Available in Natural Walnut and Black Walnut, the F346 features concealed mounting hardware, integrated driver trim rings, and a magnetically attached grille. Solid aluminum feet with optional floor spikes and floor protectors provide flexible installation options.

Dual five-way crystal brass binding posts support conventional speaker wiring, bi-wiring, and bi-amplification.

All driver, construction, and performance details are based on Revel's published F346 specifications.
