Revel Performa4 F345 Floorstanding Loudspeaker (each)

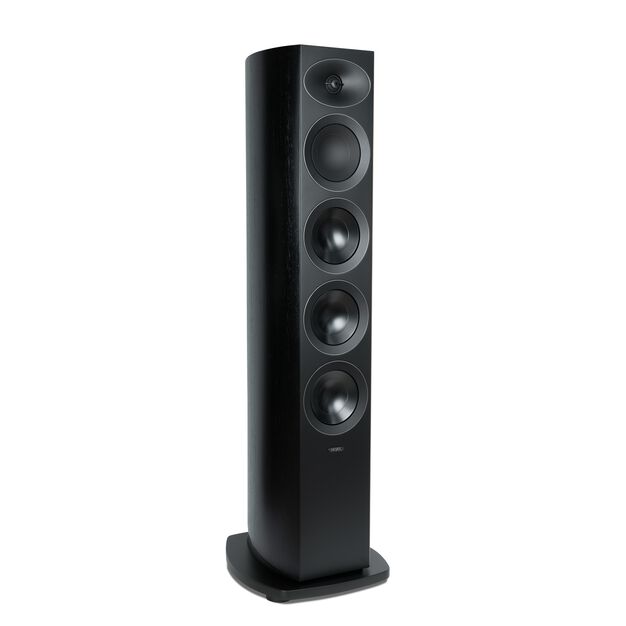

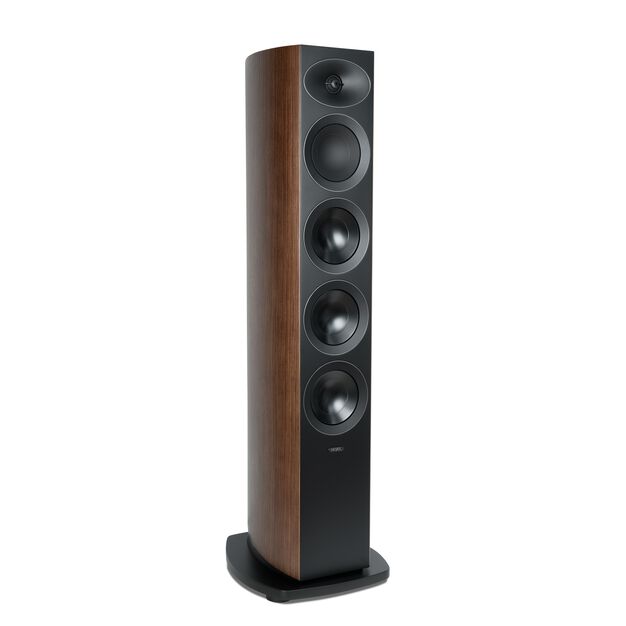

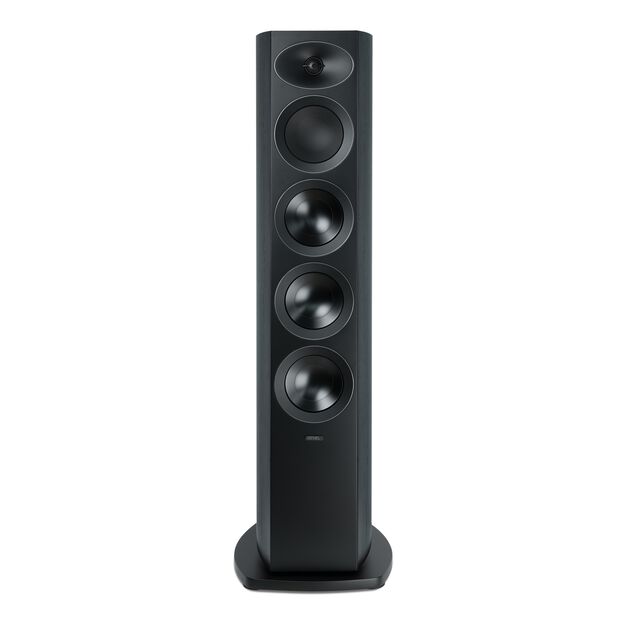

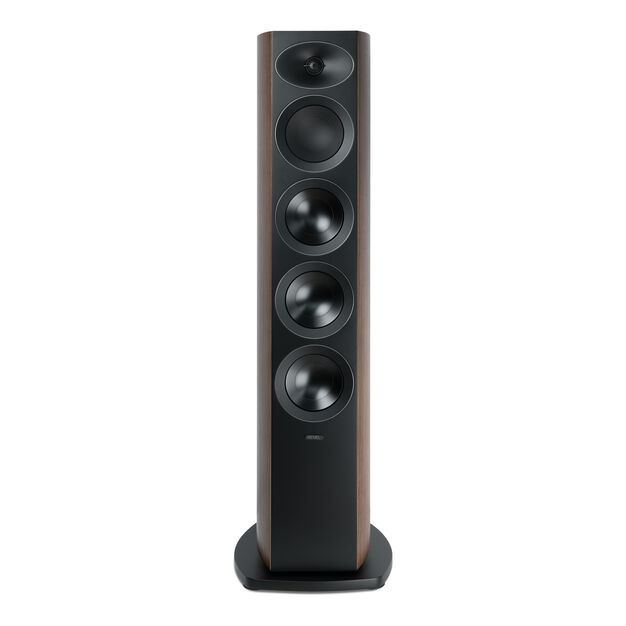

The Revel Performa4 F345 brings the advanced driver technology and acoustic engineering of Revel's Performa4 series to a more compact floorstanding design. Featuring three 5.25-inch Micro Ceramic Composite (MCC) woofers, a dedicated 5.25-inch Deep Ceramic Composite (DCC) midrange driver, and a 1-inch DCC dome tweeter, the F345 is engineered for accurate, full-range music reproduction without the larger footprint of the F346.

Its three-way architecture combines Revel's seventh-generation Acoustic Lens waveguide, a precision crossover network, and a dual-ported bass-reflex enclosure. With bass extension down to 36Hz (±6dB), the F345 offers substantial low-frequency performance while maintaining the clarity, imaging, and tonal consistency expected from a high-performance stereo loudspeaker.

Triple 5.25-Inch MCC Woofers and Dedicated DCC Midrange

The F345 uses three 5.25-inch Micro Ceramic Composite woofers to reproduce low frequencies, providing greater cone area and bass output than a conventional single-woofer design. A separate 5.25-inch Deep Ceramic Composite midrange driver handles vocals and instruments, allowing each driver group to operate within its intended frequency range.

Both the woofers and midrange feature inverted surrounds and newly developed cast frames. These frames are engineered to improve airflow and cooling while increasing rigidity and reducing unwanted resonances.

This combination allows the F345 to deliver controlled bass and articulate midrange reproduction while retaining the relatively compact proportions of its floorstanding cabinet.

Seventh-Generation Acoustic Lens Waveguide

The F345 features a 1-inch DCC dome tweeter mounted in Revel's seventh-generation Acoustic Lens waveguide.

Developed using advanced acoustic modeling, the waveguide controls high-frequency dispersion and improves integration between the tweeter and midrange driver. It is designed to maintain smooth frequency response both on and off axis, helping preserve tonal balance across a wider listening area.

The result is a speaker designed to reproduce fine musical detail and precise stereo imaging without requiring the listener to remain in one narrowly defined seating position.

Precision Three-Way Crossover

Revel equips the F345 with a high-order three-way crossover network featuring air-core inductors in the midrange and tweeter circuits.

Crossover frequencies of 350Hz and 2.1kHz distribute the audio signal between the three woofers, dedicated midrange driver, and tweeter. The crossover works in conjunction with the Acoustic Lens waveguide to maintain smooth driver transitions and consistent dispersion.

This approach is central to Revel's loudspeaker design philosophy, which emphasizes accurate frequency response, controlled directivity, and consistent performance throughout the listening room.

Dual-Ported Cabinet and Premium Wood Veneers

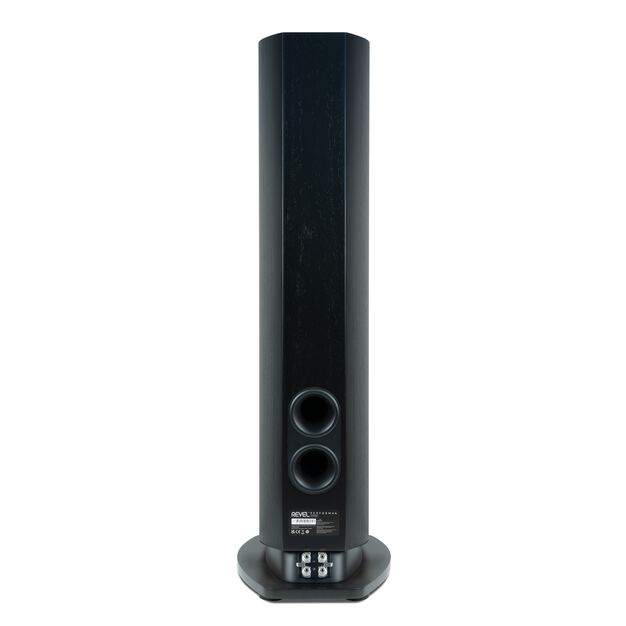

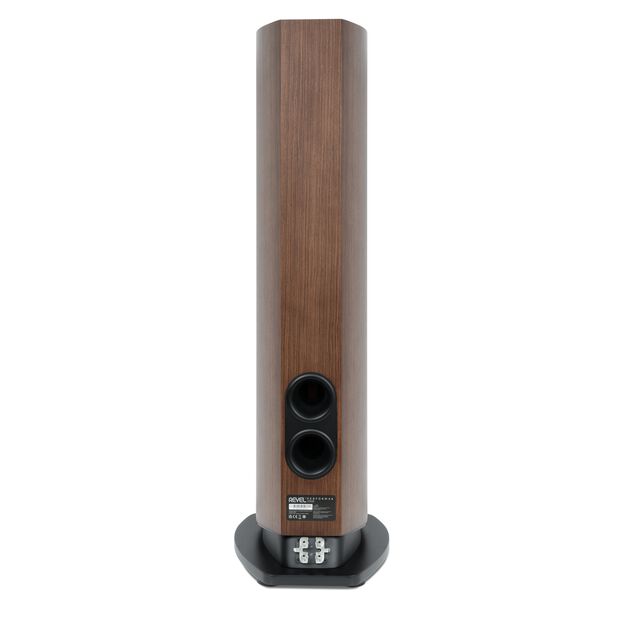

The F345 features a rigid, cross-braced cabinet with gently curved sides and dual rear-mounted bass-reflex ports. Its enclosure is designed to minimize unwanted cabinet vibration while extending low-frequency performance.

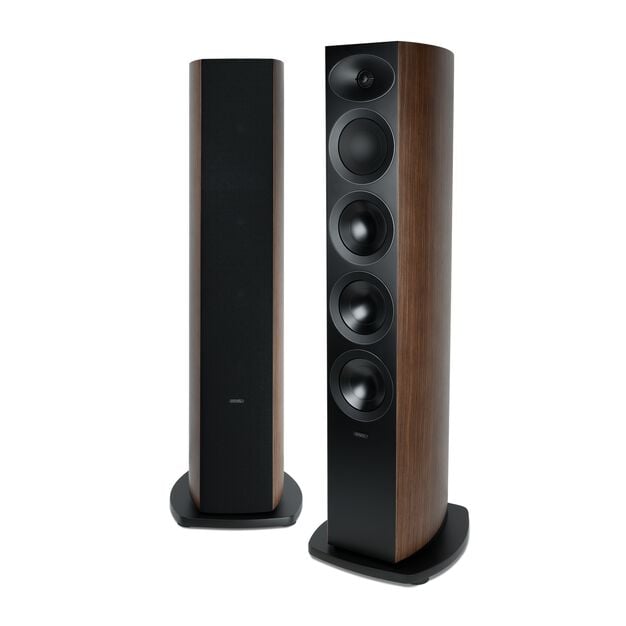

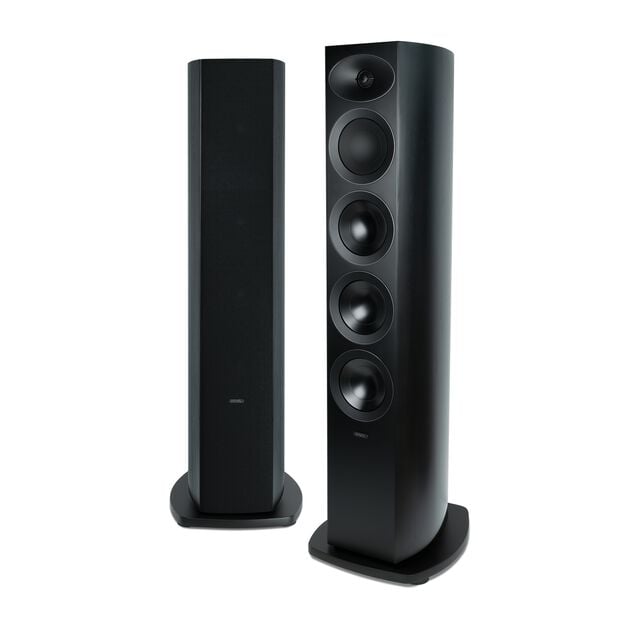

Available in Natural Walnut and Black Walnut wood veneers, the F345 combines traditional cabinet craftsmanship with contemporary design. Concealed driver hardware, integrated trim rings, polished black accents, and a magnetically attached grille give the speaker a clean appearance.

Solid aluminum feet are supplied with optional floor spikes and floor protectors for installation on different flooring surfaces.

Dual five-way crystal brass binding posts with removable shorting straps accommodate conventional speaker wiring, bi-wiring, and bi-amplification.

Technical Specifications

Experience Revel at The Grid HiFi

Explore the Revel Performa4 F345 at The Grid HiFi in Houston, Texas. Whether you're assembling a dedicated two-channel stereo system or incorporating the F345 into a premium home theater, our team can help you select complementary amplification, source components, and speaker placement for your room. Contact The Grid to discuss your Revel system.
