Overview

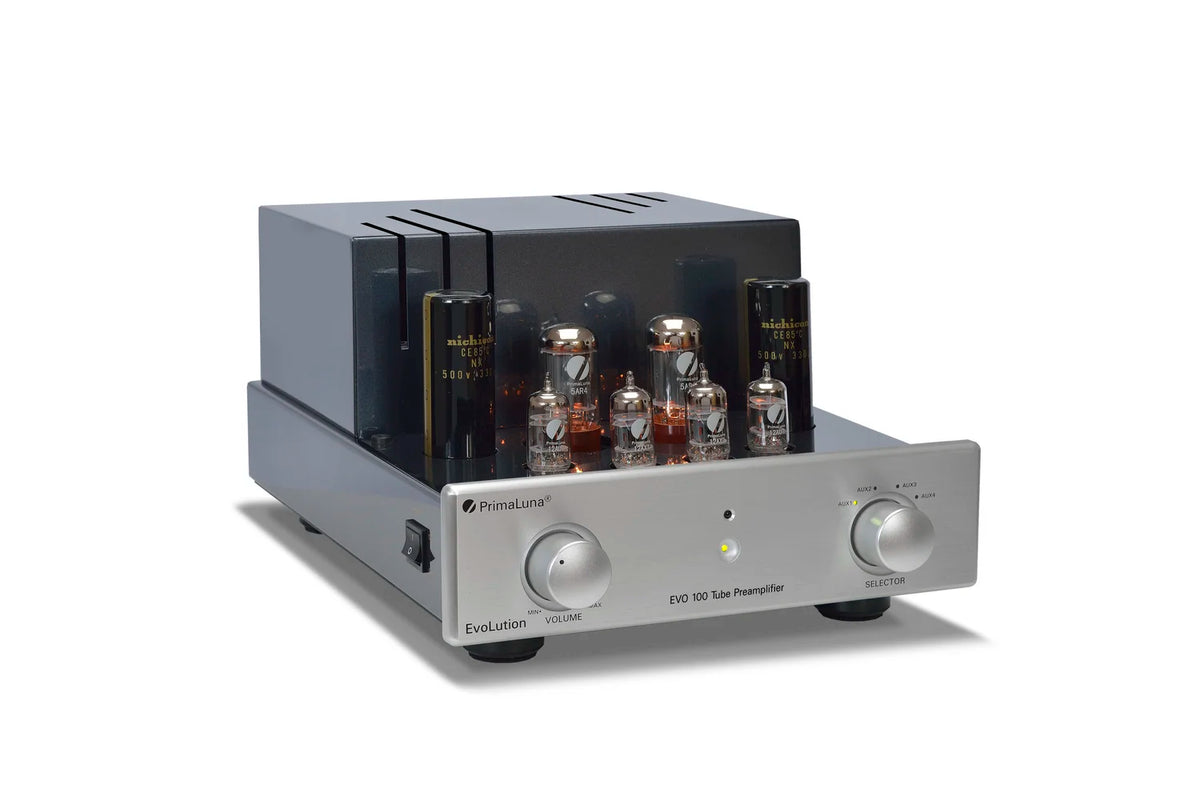

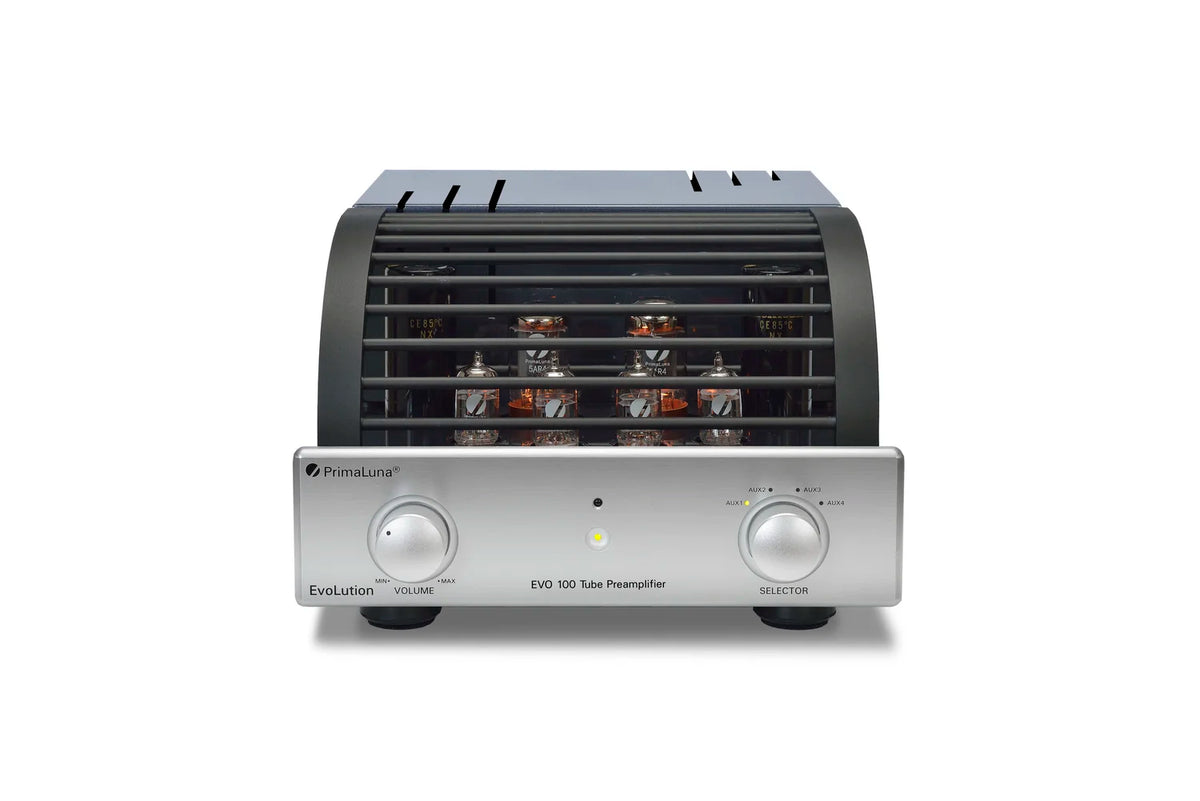

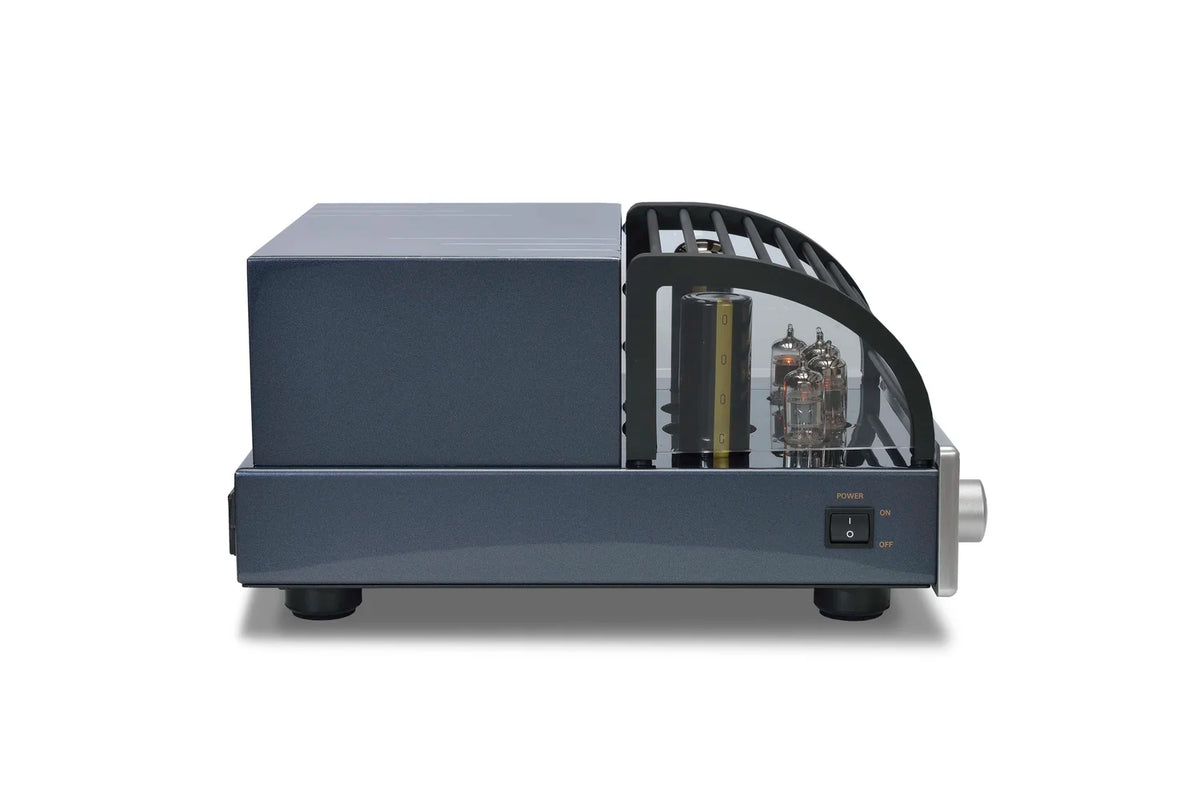

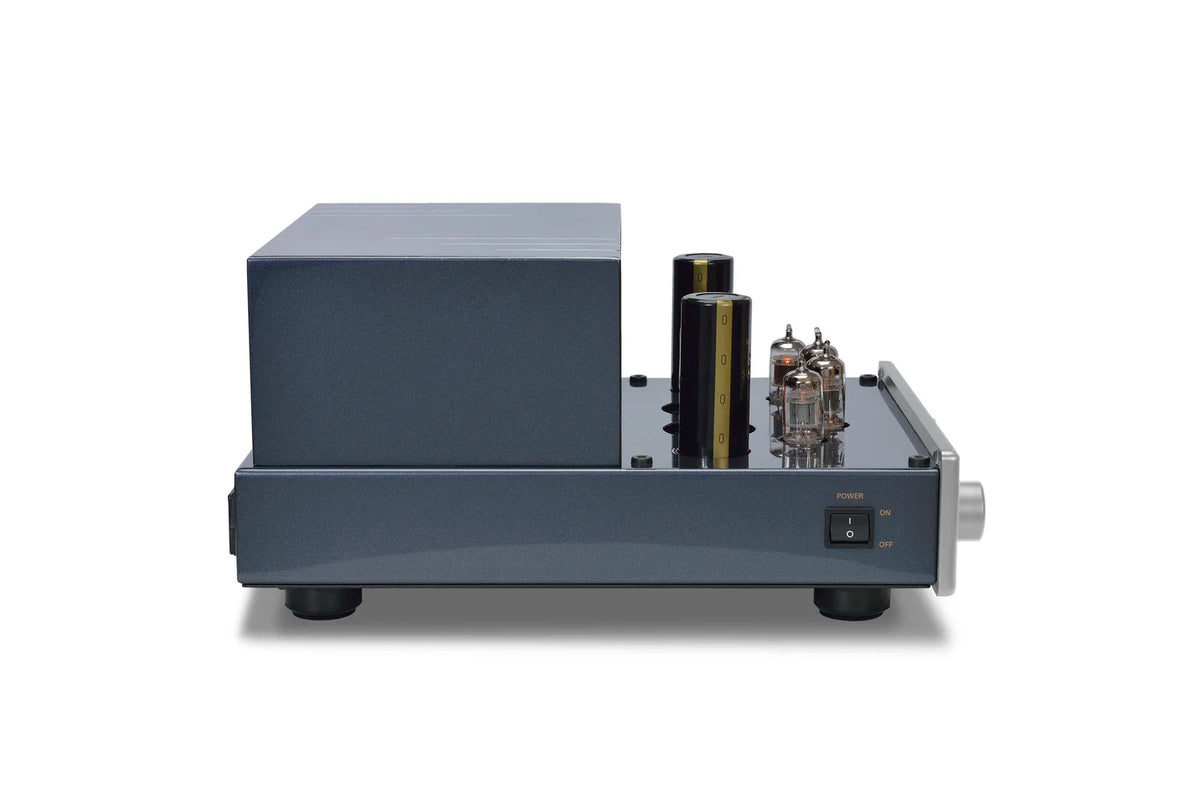

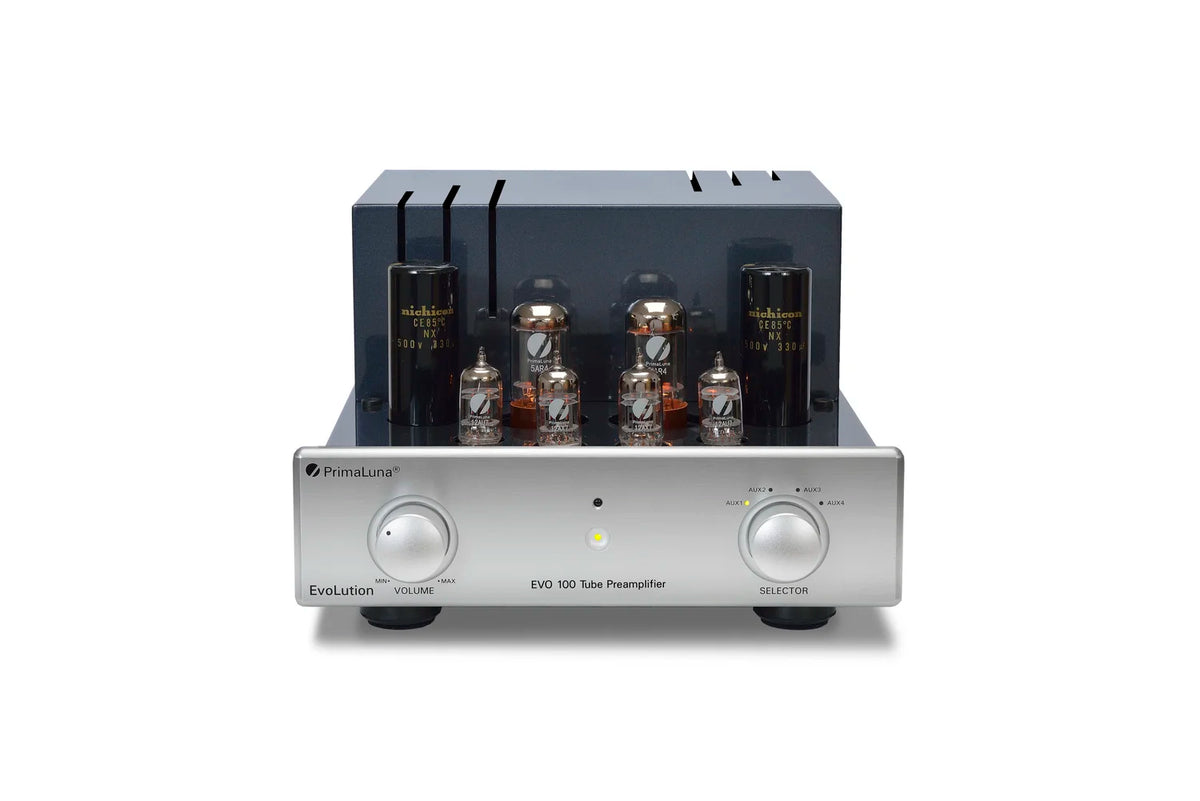

PrimaLuna EVO 100 Tube Preamplifier
Dual-mono architecture. Tube-rectified power supply. Precision analog volume control.
The PrimaLuna EVO 100 brings sophisticated vacuum tube engineering to a compact, dedicated stereo preamplifier. Its dual-mono design features separate toroidal power transformers, six vacuum tubes, and hand-wired point-to-point circuitry.
PrimaLuna's SmartGain circuit provides 10.8dB of gain to help minimize unwanted noise, while the PerfectMatch input circuit is designed to maintain consistent loading for connected source components. Four stereo RCA inputs, an ALPS Blue Velvet volume control, and remote operation complete a straightforward analog design.
Key Features
-
Dual-mono architecture: Separate, potted toroidal power transformers for the left and right channels.
-
Tube rectification: Two 5AR4 rectifier tubes complement two 12AX7 and two 12AU7 signal tubes.
-
SmartGain: 10.8dB gain designed to help reduce noise.
-
PerfectMatch: Input circuitry engineered for consistent source-component loading.
-
SuperQuiet inputs: Rear-mounted sealed relays minimize signal-path length and unwanted interference.
-
ALPS Blue Velvet: Motorized analog volume control with slim remote.
-

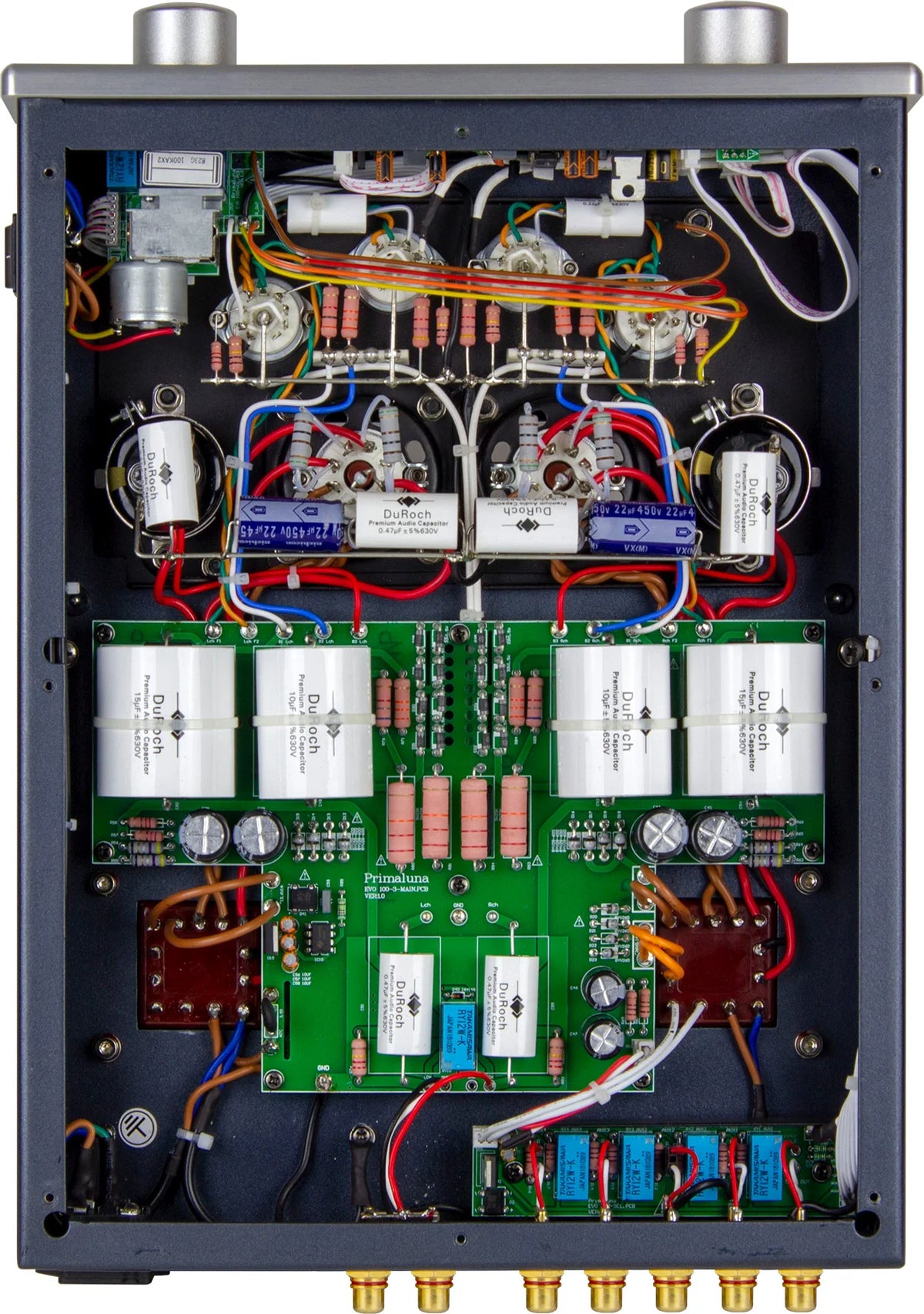

Point-to-point wiring: Hand-wired signal path using heavy-gauge cable.
-
Analog connectivity: Four stereo RCA inputs, two stereo RCA outputs, and a dedicated tape output.
Technical Specifications
|
Specification |
PrimaLuna EVO 100 |
|---|---|
|
Type |
Vacuum tube line preamplifier |
|
Circuit architecture |
Dual mono |
|
Gain |
10.8dB |
|
Frequency response |
15Hz–80kHz ±3dB |
|
Total harmonic distortion |
Less than 0.2% at 2V |
|
Signal-to-noise ratio |
93dB / 100dBA |
|
Input sensitivity |
580mV |
|
Input impedance |
220kΩ |
|
Output impedance |
2,800Ω |
|
Analog inputs |
4 × stereo RCA |
|
Main outputs |
2 × stereo RCA |
|
Tape output |
Stereo RCA |
|
Standard tube complement |
2 × 12AX7, 2 × 12AU7, 2 × 5AR4 |
|
Power consumption |
52W |
|
Dimensions (W × H × D) |
11 × 7.5 × 15.9 in. |
|
Net weight |
30.8 lb |
A Dedicated Analog Preamplifier
The EVO 100 does not include a built-in DAC or phono stage, allowing you to choose separate components for digital playback and vinyl. Unlike the EVO 200, EVO 300, and EVO 400 preamplifiers, it does not feature Home Theater Bypass.
Pair it with the PrimaLuna EVO 100 power amplifier or another compatible power amplifier for a complete two-channel system.
Explore PrimaLuna at The Grid HiFi. Our Houston team can help you select the right amplification, source components, and loudspeakers.
