Overview

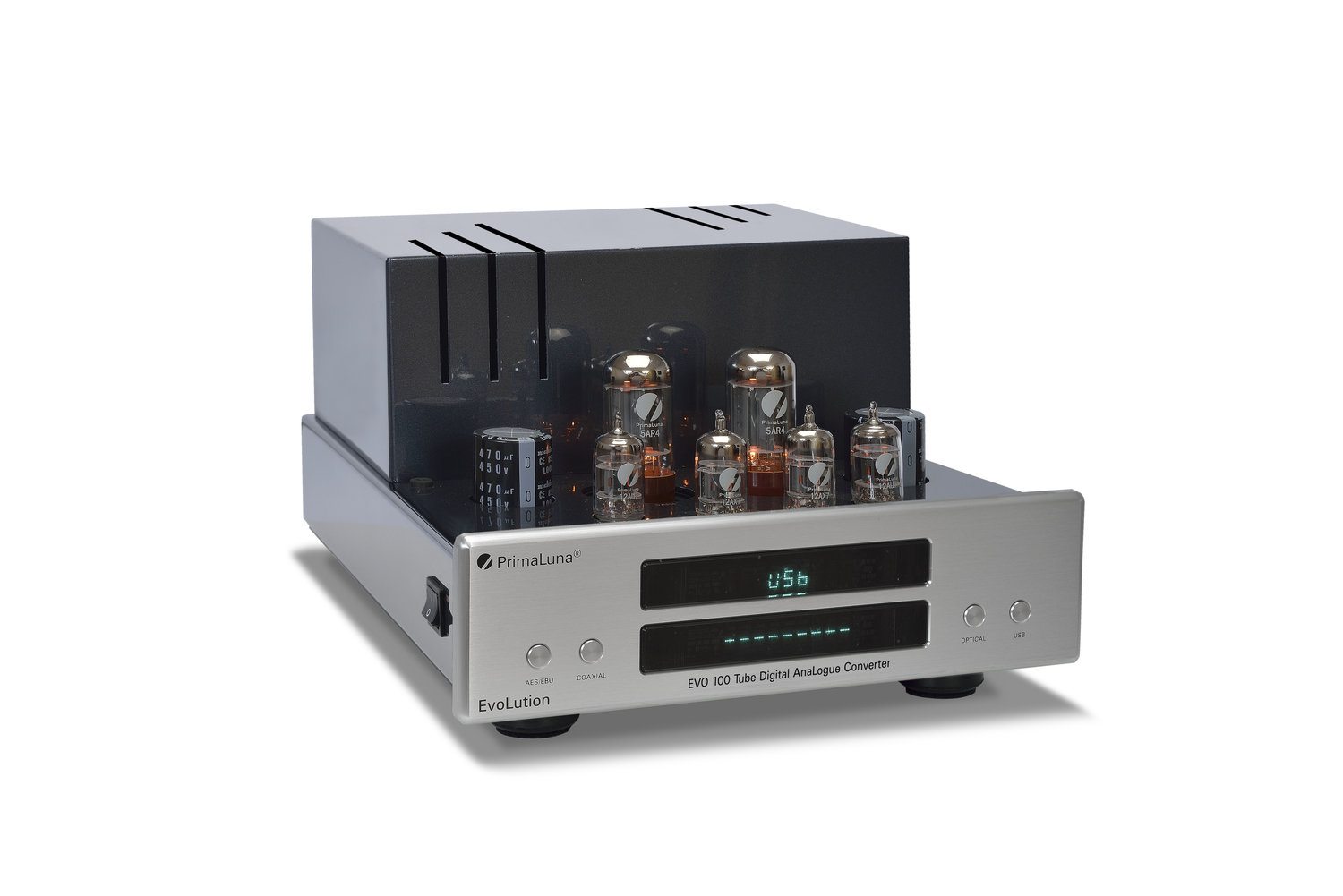

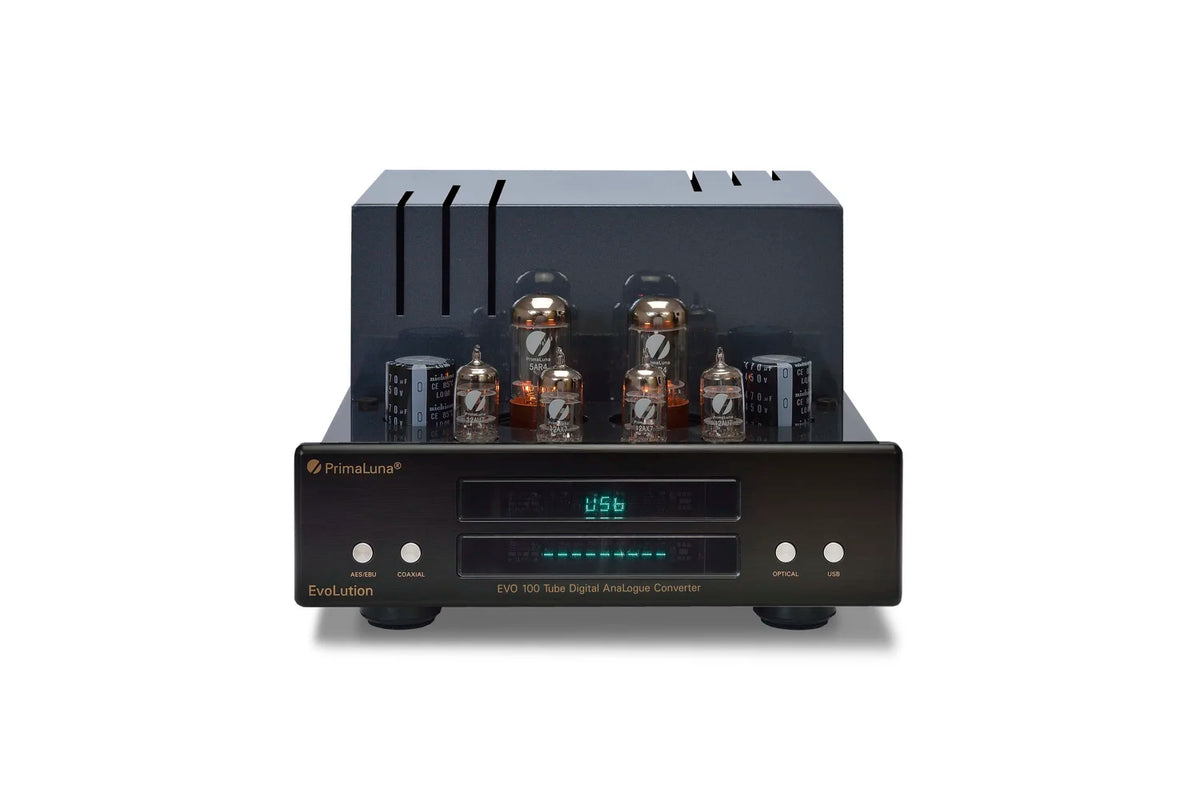

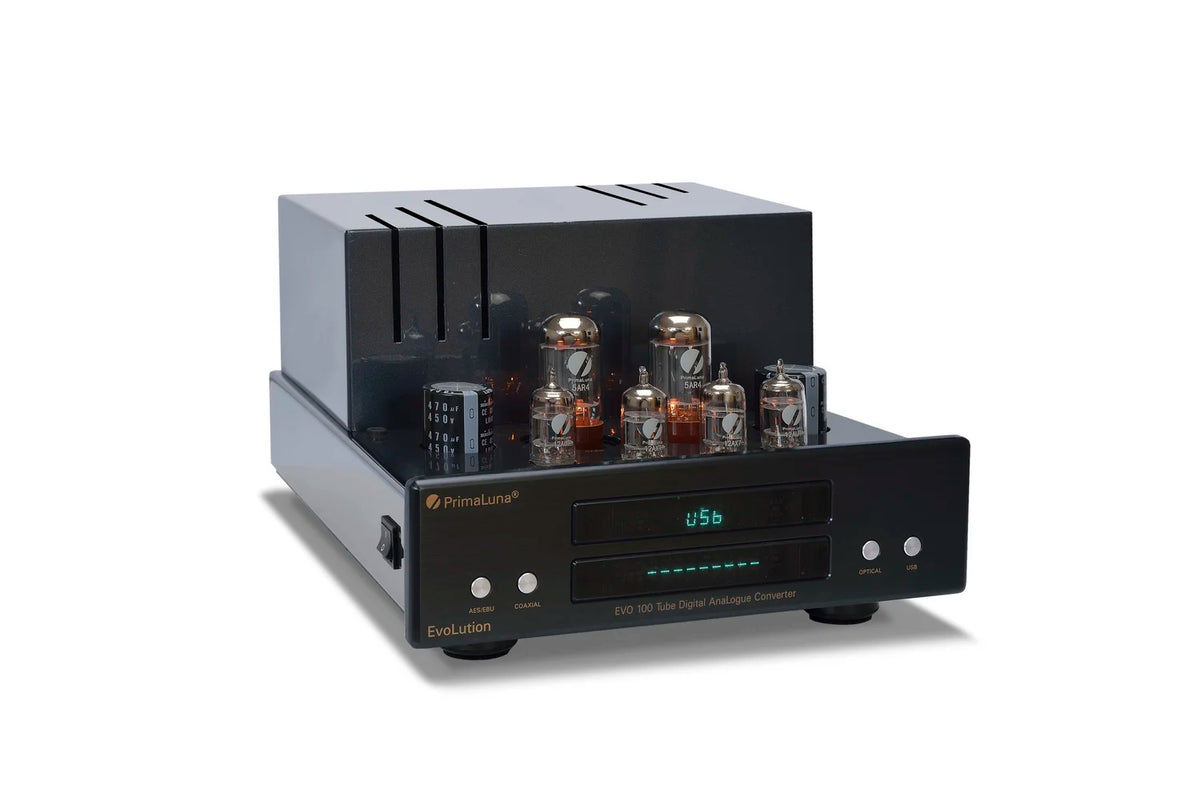

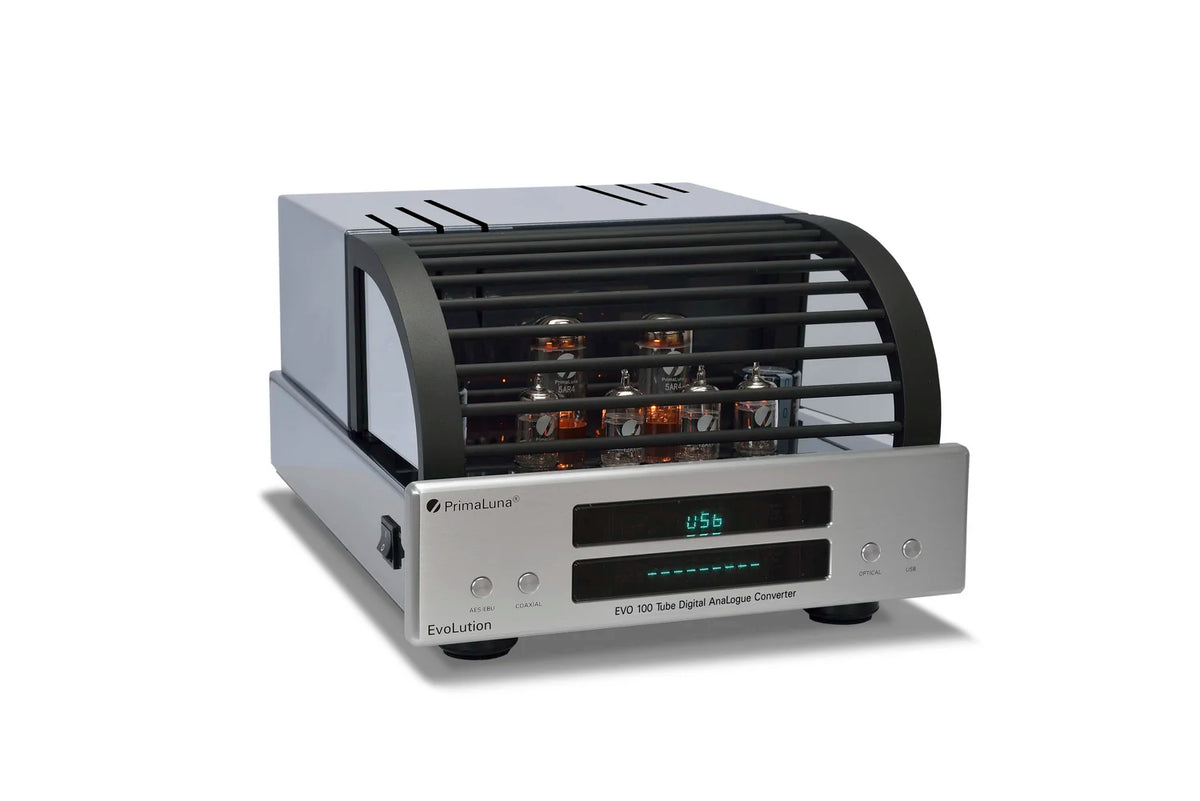

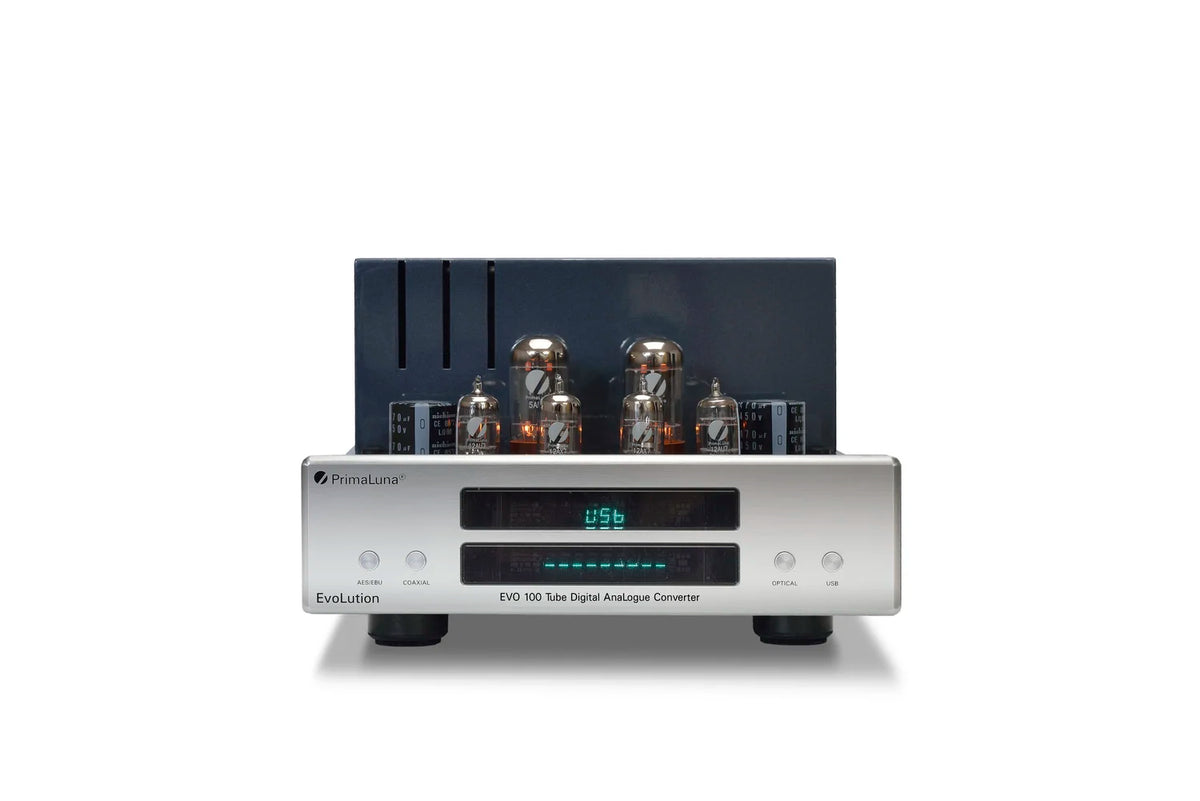

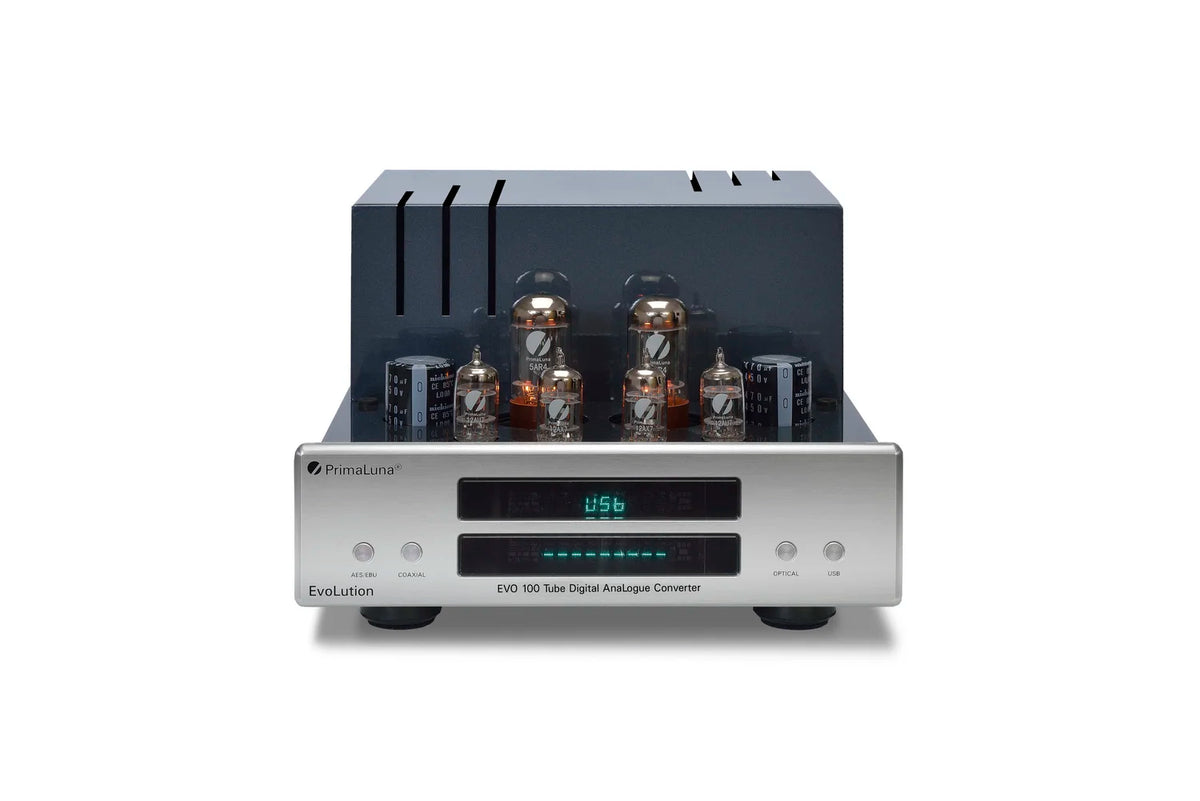

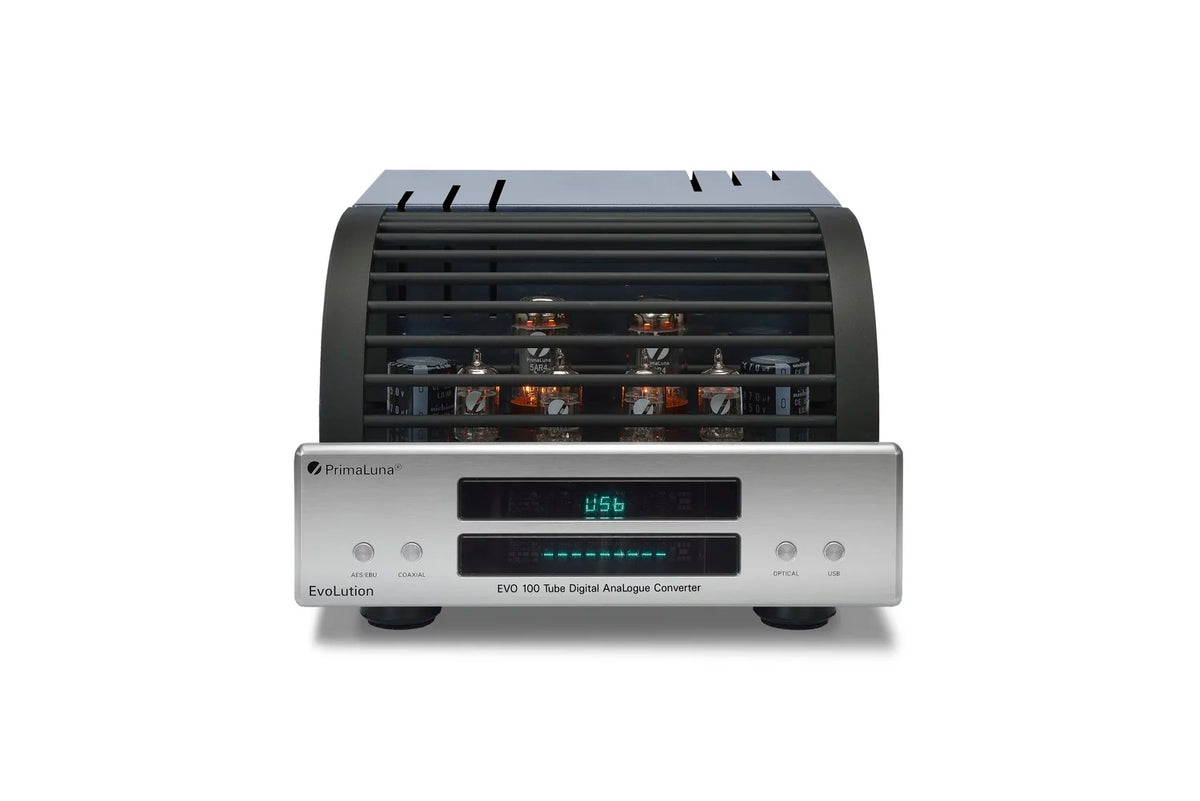

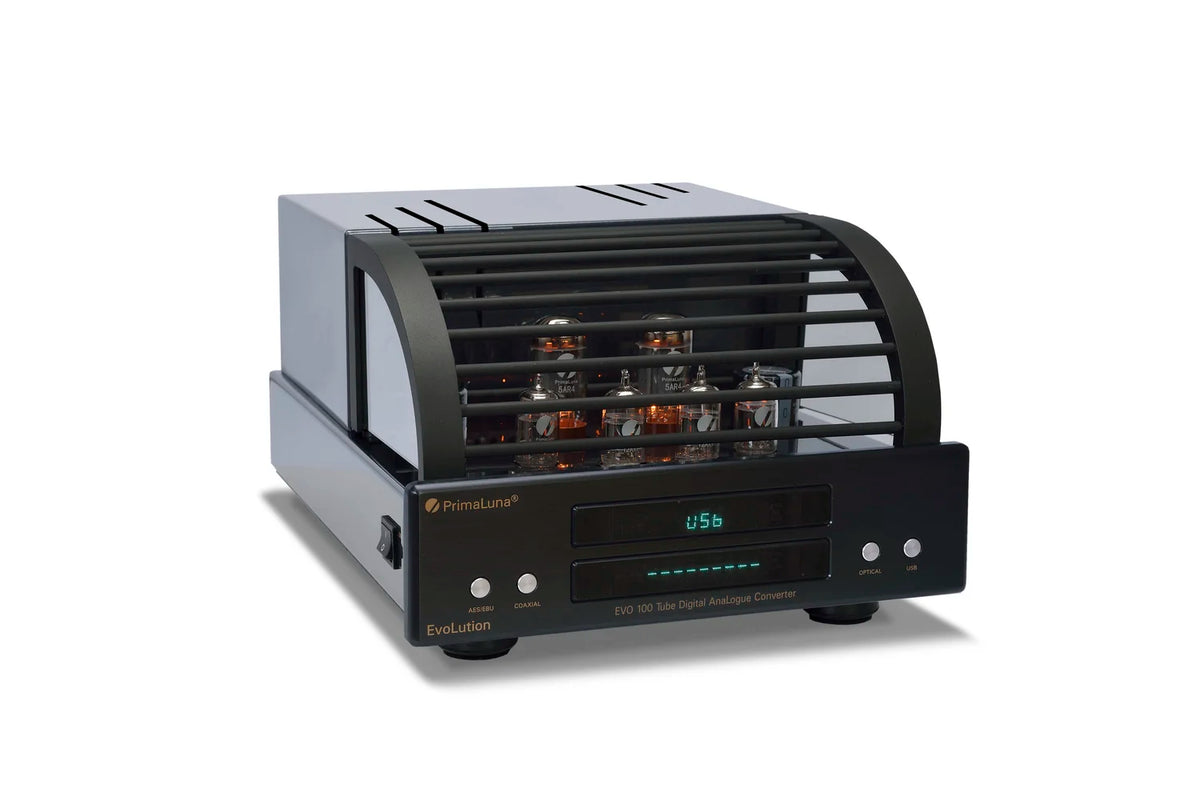

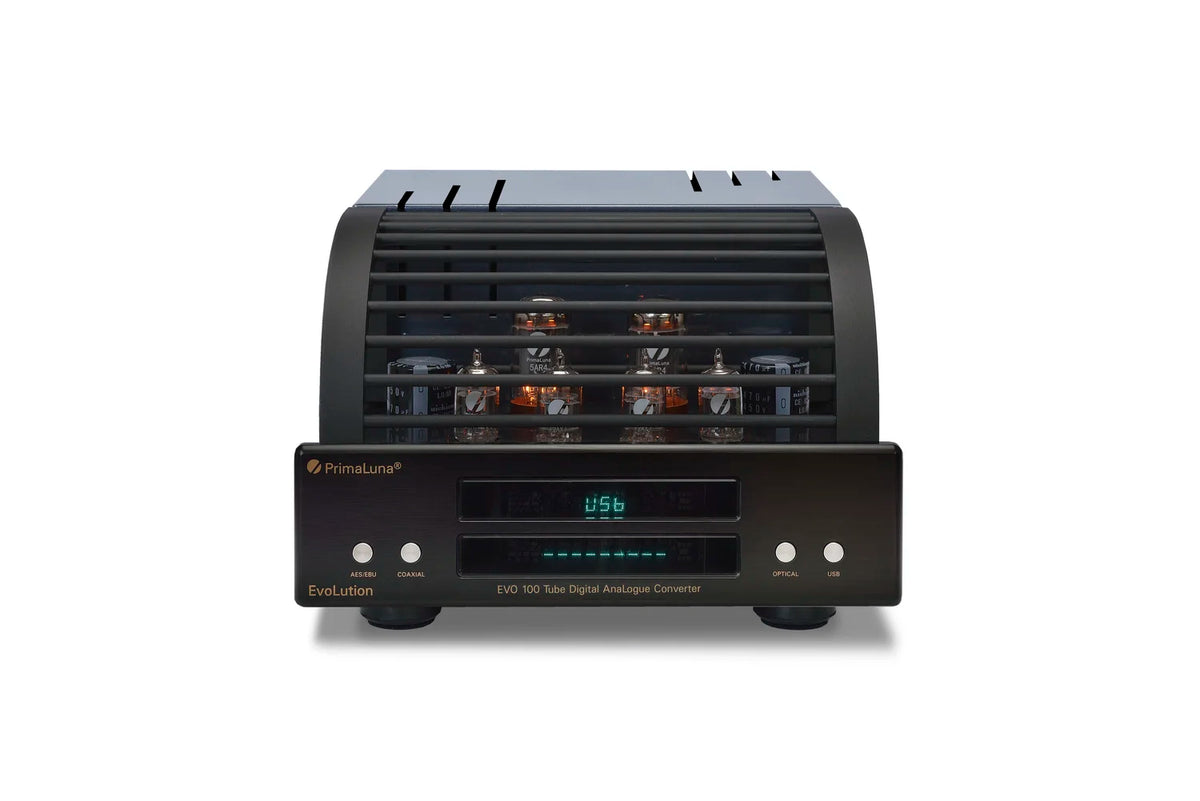

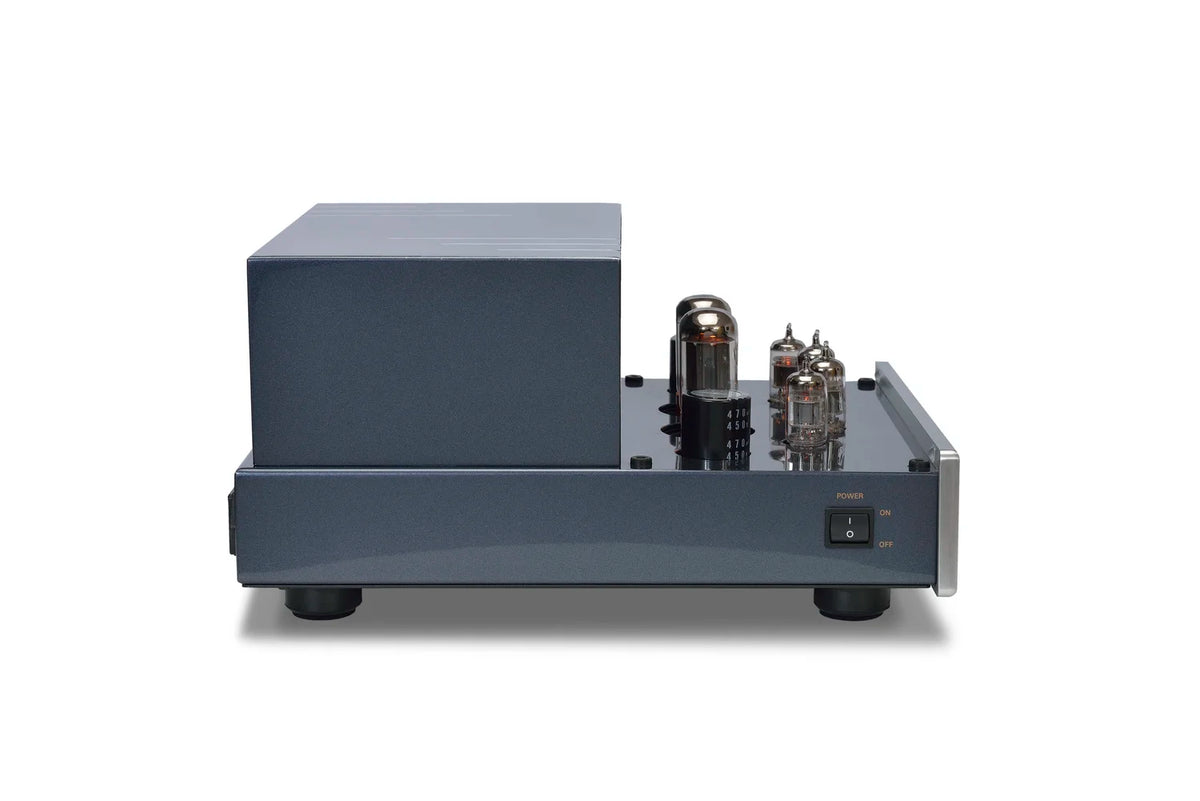

PrimaLuna EVO 100 Tube DAC
SuperTubeClock™. Dual-mono tube architecture. 24-bit/192kHz digital conversion.
The PrimaLuna EVO 100 takes a distinctly analog approach to digital playback. At its heart is PrimaLuna’s SuperTubeClock™, which replaces the conventional solid-state clock oscillator with a low-noise miniature triode tube to reduce jitter and noise at the critical clocking stage.
A Burr-Brown PCM1792A DAC, SRC4192 24-bit/192kHz upsampling, tube-rectified power supply, dual-mono topology, custom isolation transformers, and point-to-point wiring make the EVO 100 a substantial high-end DAC designed for dedicated two-channel systems.
Key Features
- SuperTubeClock™ — Vacuum-tube-based digital clocking designed to minimize jitter and noise.
- Burr-Brown PCM1792A DAC — Premium 24-bit/192kHz digital-to-analog conversion.
- 24-bit/192kHz Upsampling — Burr-Brown SRC4192 sample-rate converter.
- High-Resolution USB — Supports PCM up to 24-bit/192kHz and DSD128 via DoP.
- Four Digital Inputs — USB, AES/EBU, coaxial and optical.
- Dual-Mono Topology — Dedicated tubes and circuitry for each channel.
- Tube-Rectified Power Supply — Eleven separate power-supply regulation circuits.
- AC Offset Killer — Designed to reduce power-transformer noise caused by DC on the AC line.

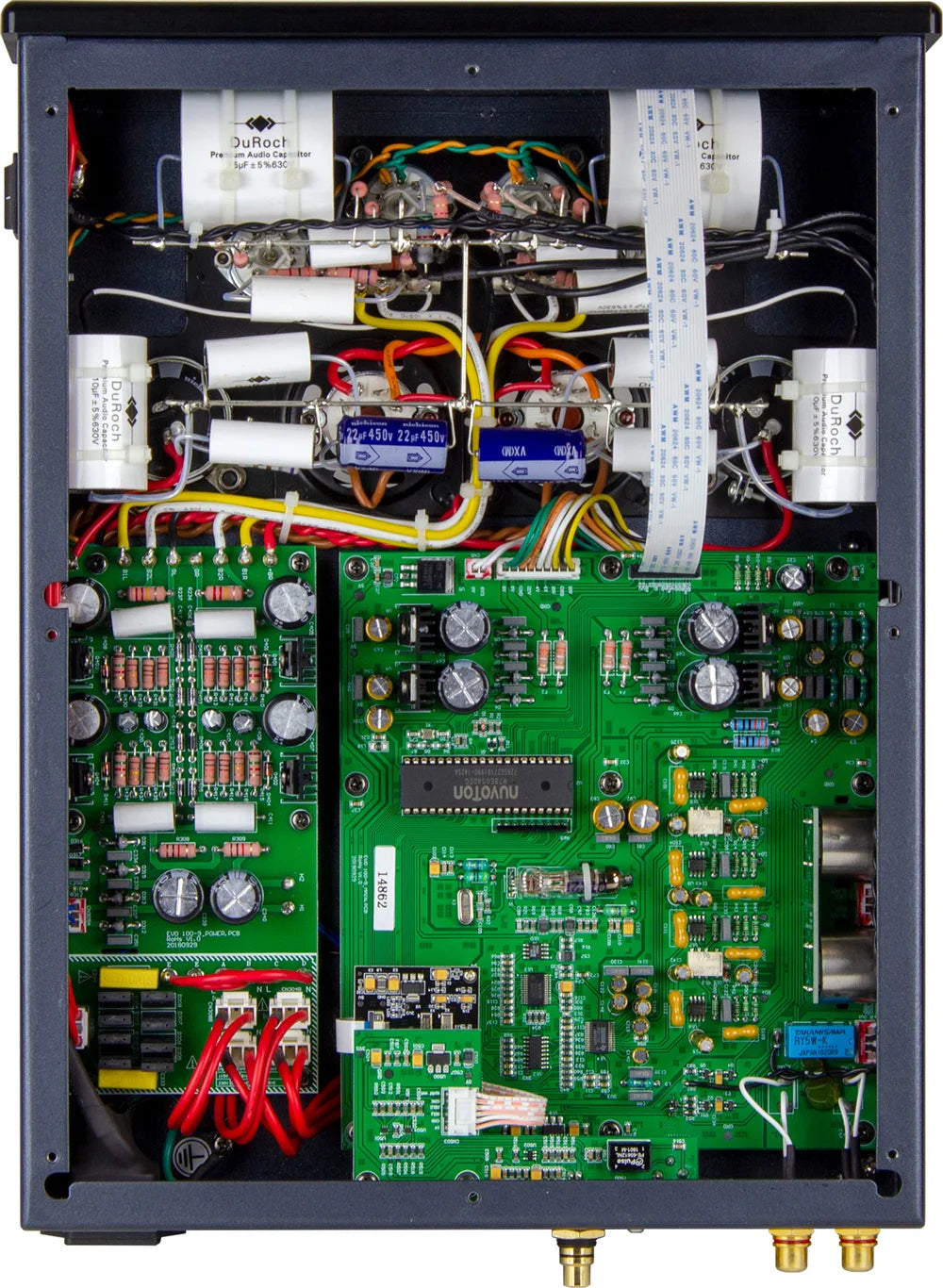

- Point-to-Point Wiring — Hand-wired signal path using heavy-gauge cable.
- Remote Control — Included for convenient operation.
SuperTubeClock™
Rather than relying on a conventional solid-state oscillator, PrimaLuna developed a tube-based clocking system specifically for the EVO 100. The miniature Russian military triode is operated conservatively, with PrimaLuna estimating approximately 5–10 years of operating life. The company uses the clock to address timing errors before digital conversion, with the goal of improving transient definition, clarity and low-level detail.
Technical Specifications
| Specification | PrimaLuna EVO 100 Tube DAC |
|---|---|
| DAC | TI / Burr-Brown PCM1792A |
| DAC Resolution | 24-bit / 192kHz |
| Upsampling | TI / Burr-Brown SRC4192 |

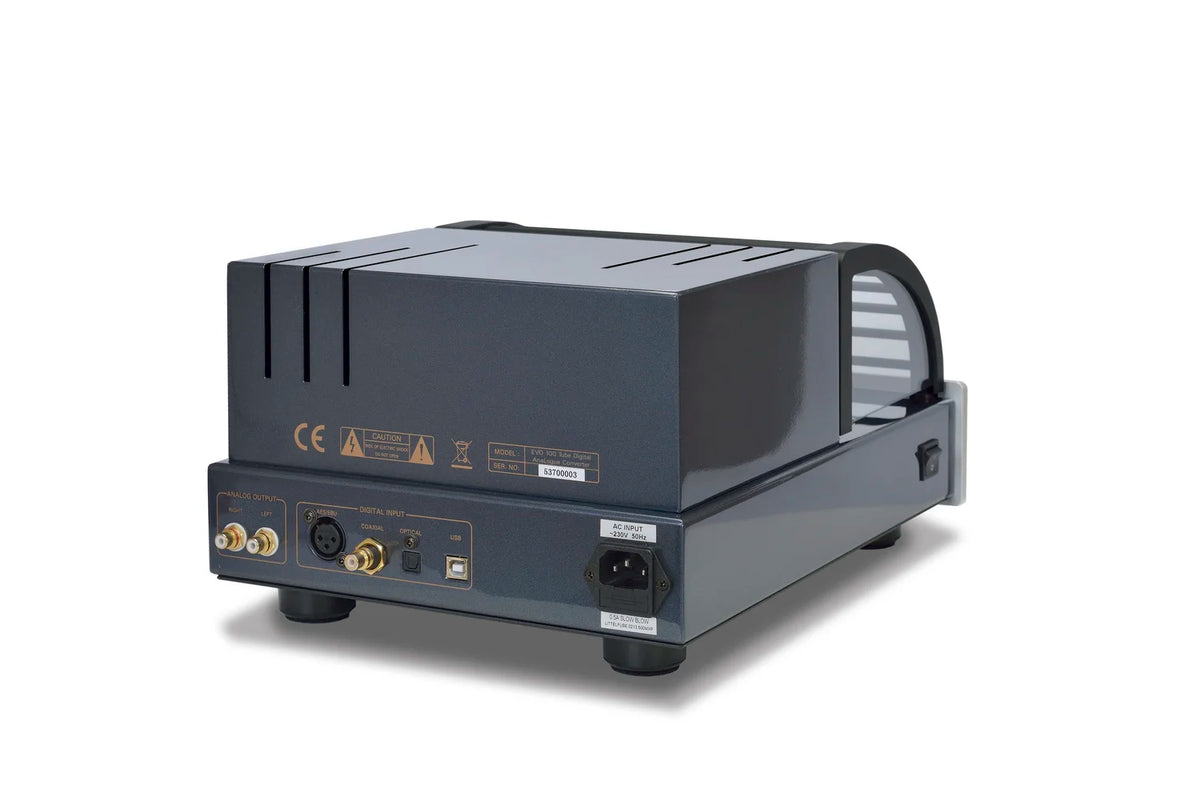

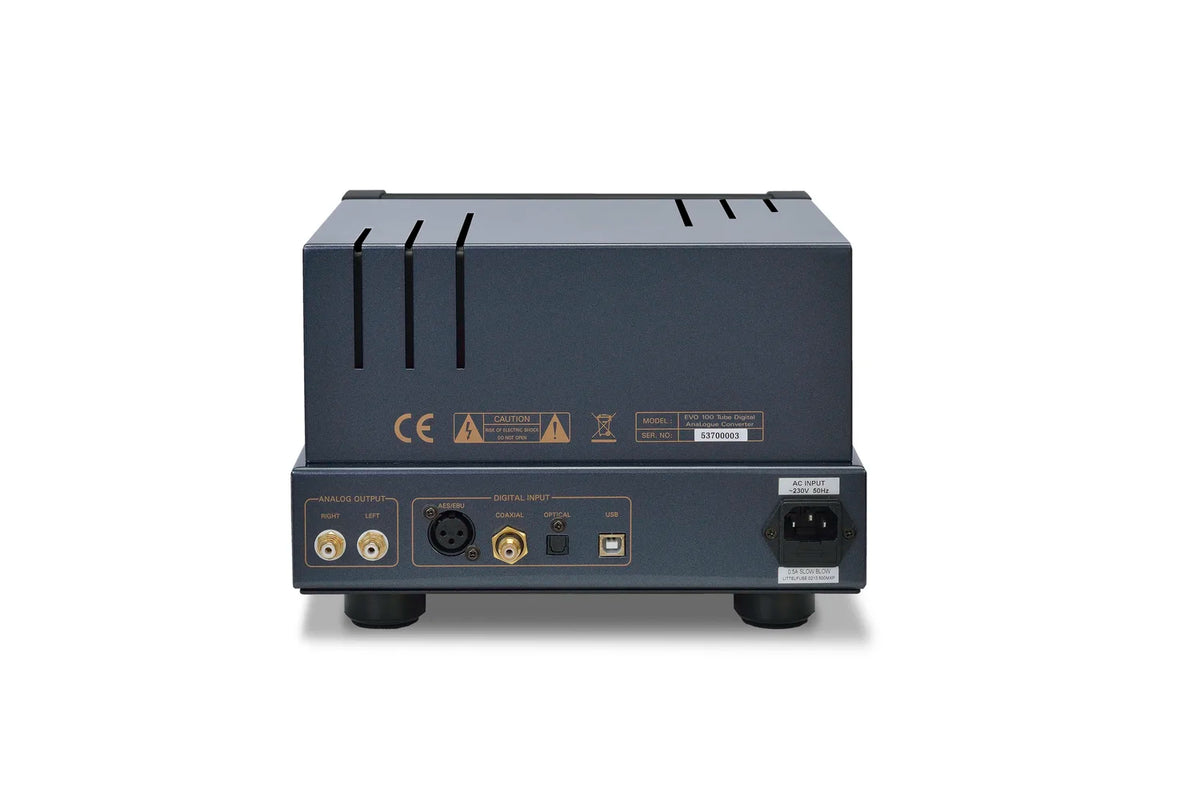

| Digital Inputs | USB, AES/EBU, Coaxial, Optical |
| Analog Outputs | Stereo RCA |
| PCM – All Inputs | 16–24 bit / 44.1–192kHz |
| DSD – USB | DSD64–DSD128 via DoP |
| DSD – Other Inputs | DSD64 via DoP |
| Tube Complement | 2 × 12AX7, 2 × 12AU7, 2 × 5AR4 |
| Architecture | Dual mono |
| Clocking | PrimaLuna SuperTubeClock™ |
| Dimensions (W × H × D) | 11 × 7.5 × 15.9 in. |
| Weight | 28.7 lb |
Digital with a Tube Difference
The EVO 100 is especially well suited to systems where streaming or digital sources are the primary source but the listener wants a dedicated DAC with PrimaLuna’s tube-based approach to the analog output and power-supply stages.
Pair it with a PrimaLuna integrated amplifier or preamp/power amplifier combination for a complete PrimaLuna system, or use it as the digital front end for virtually any high-end two-channel setup.
Available from The Grid HiFi in Houston.
