Overview

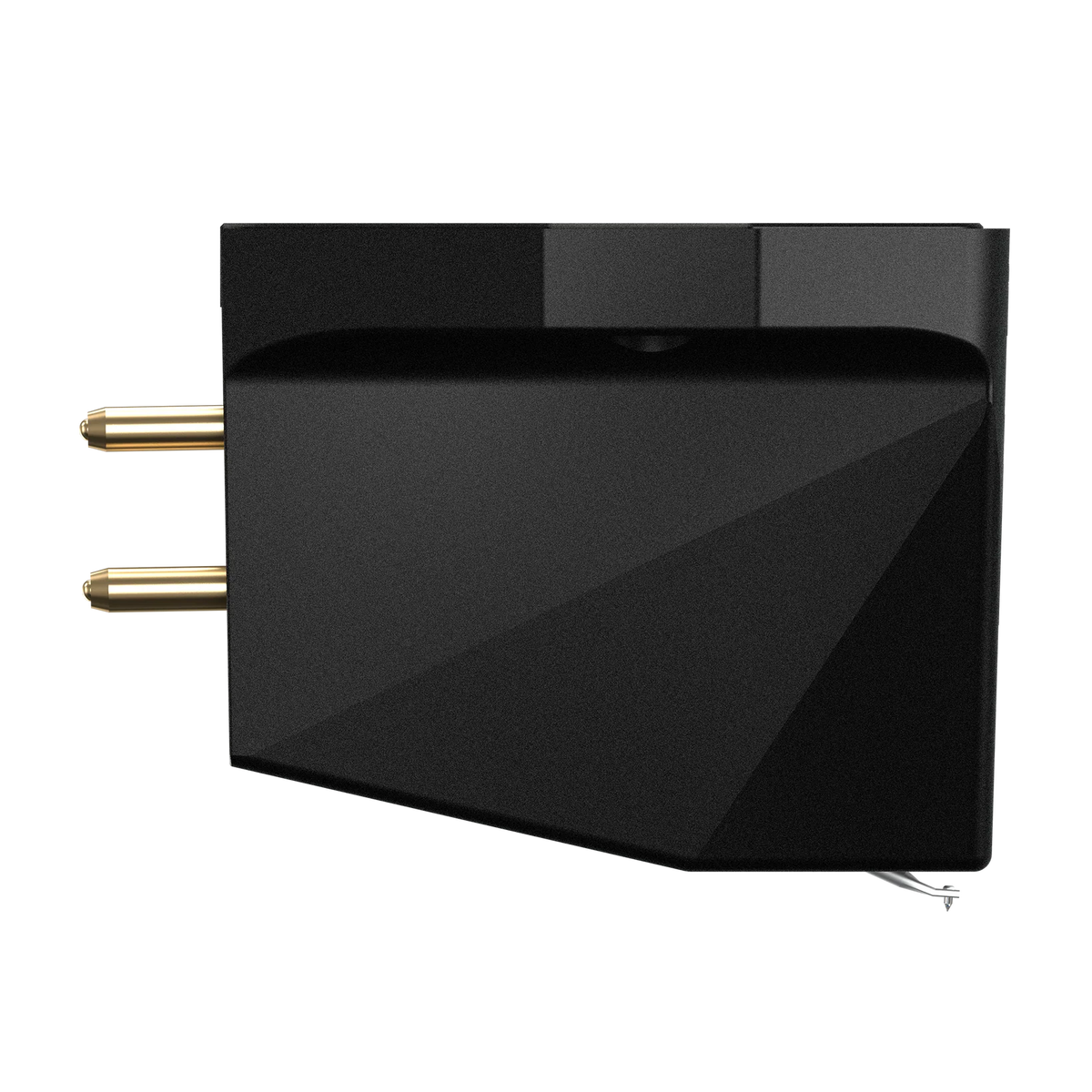

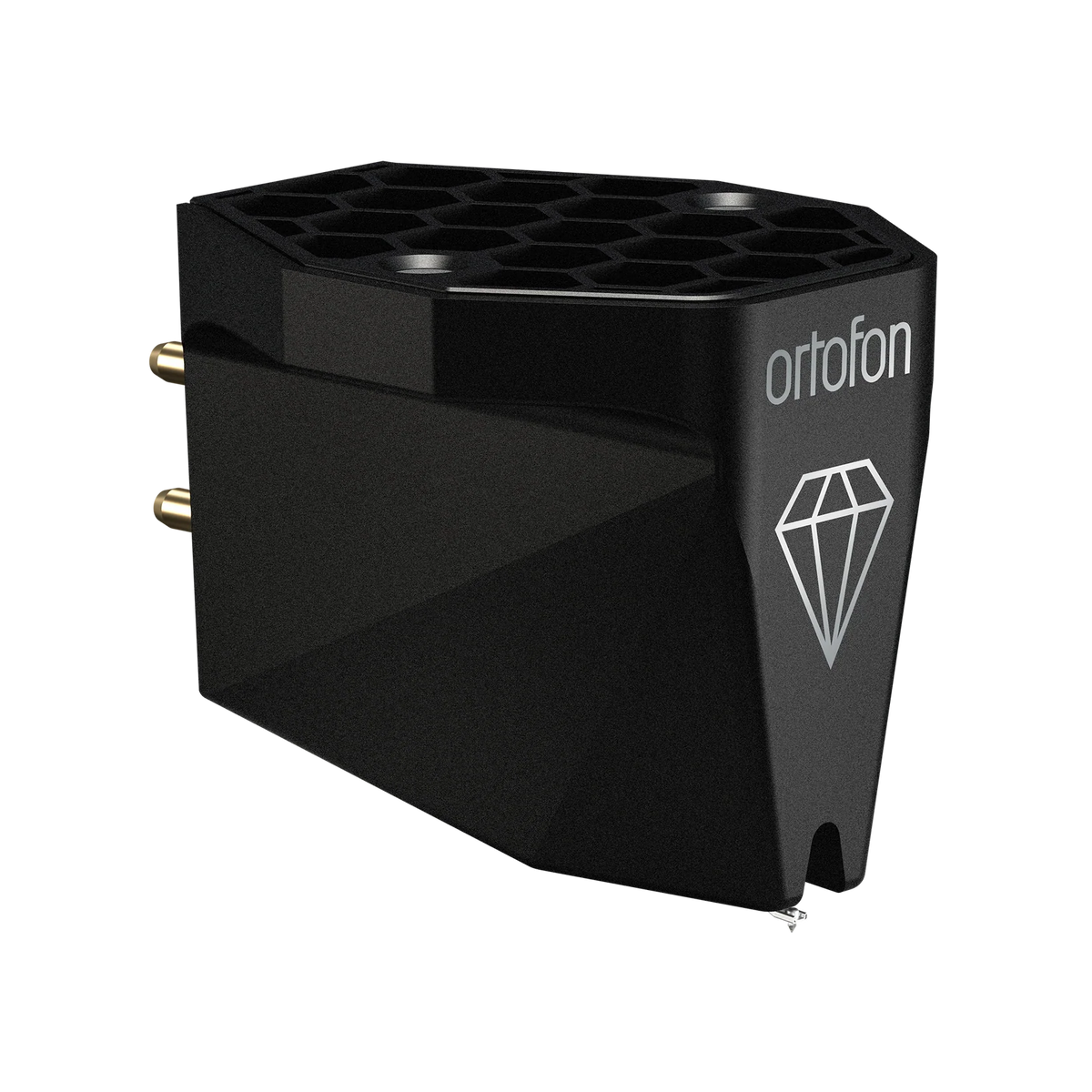

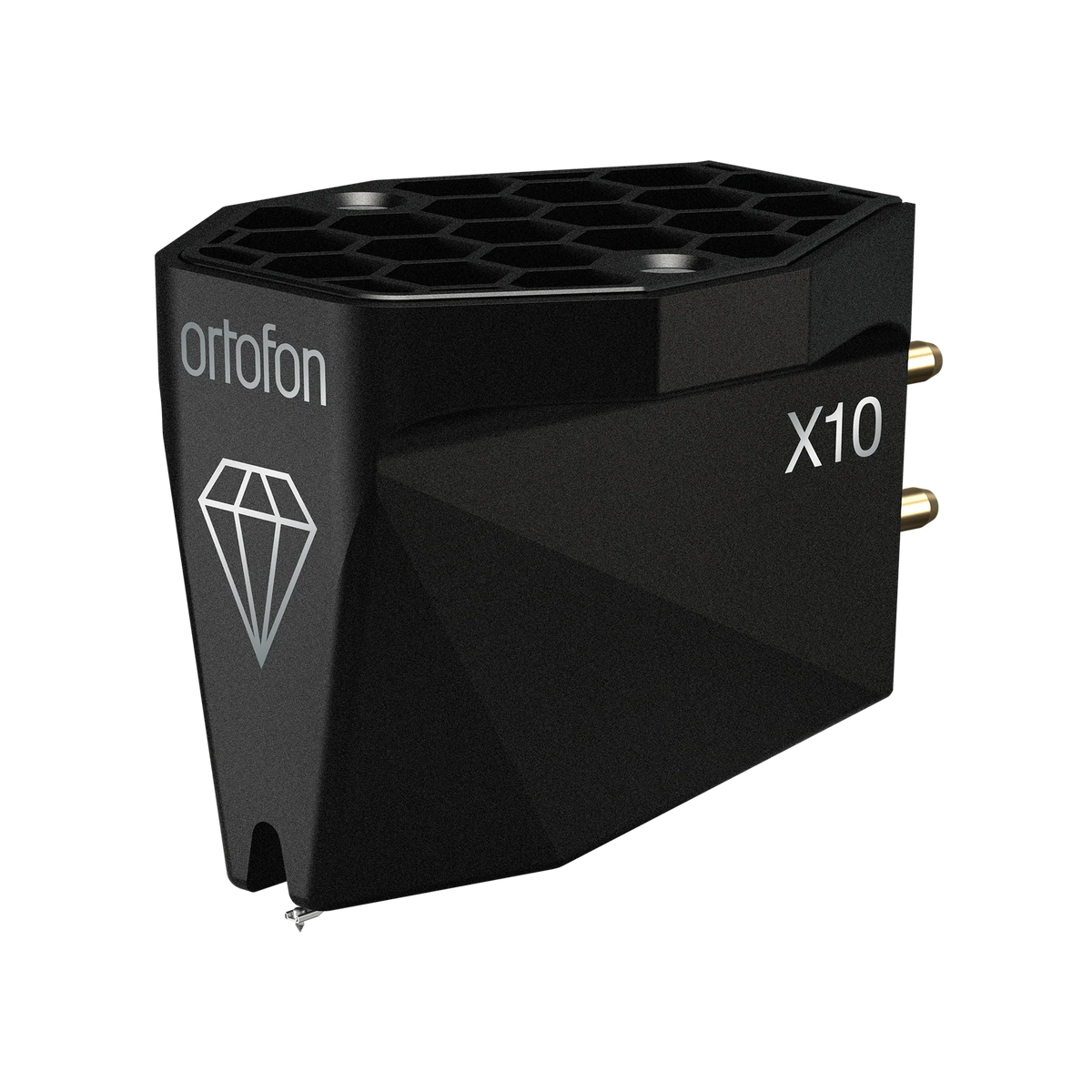

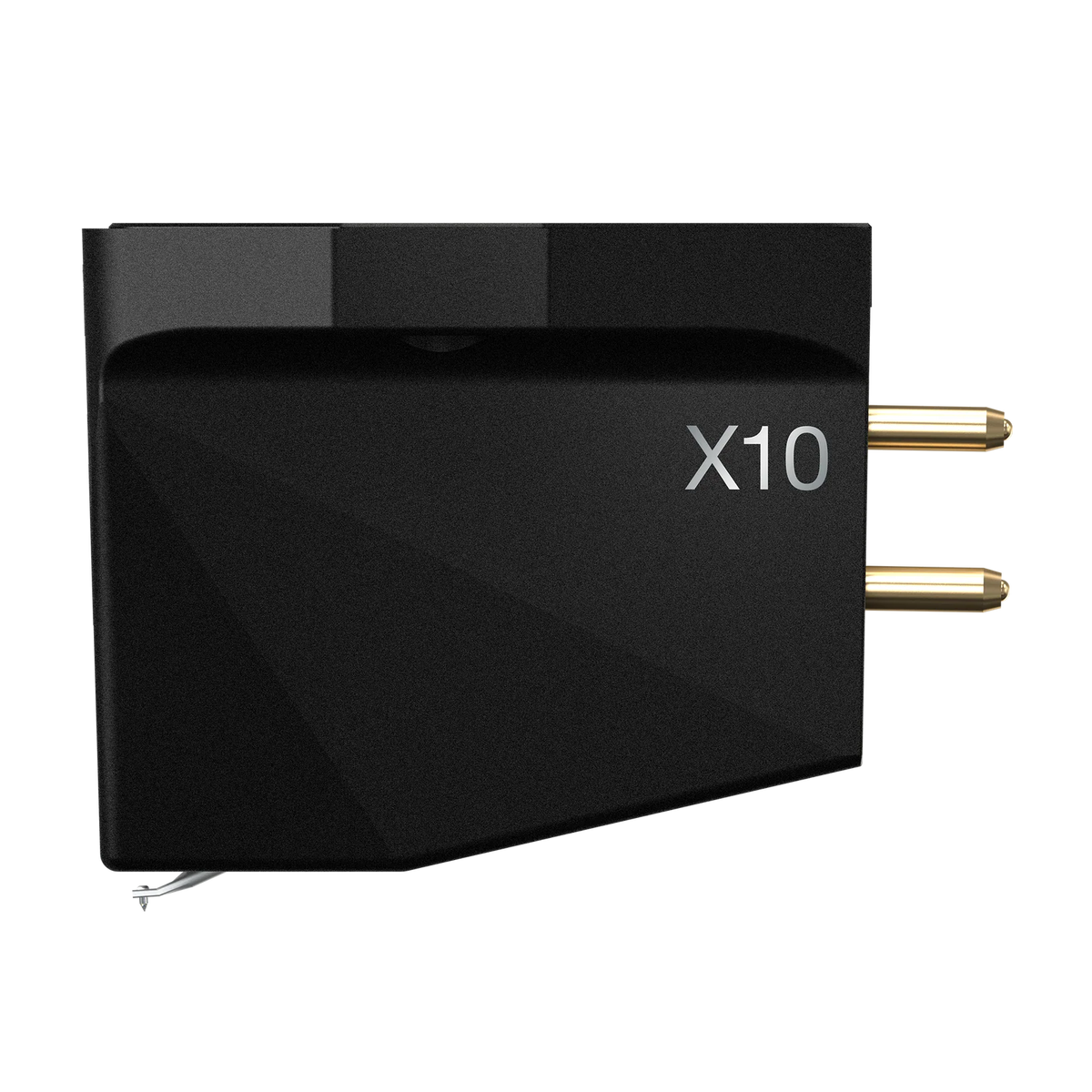

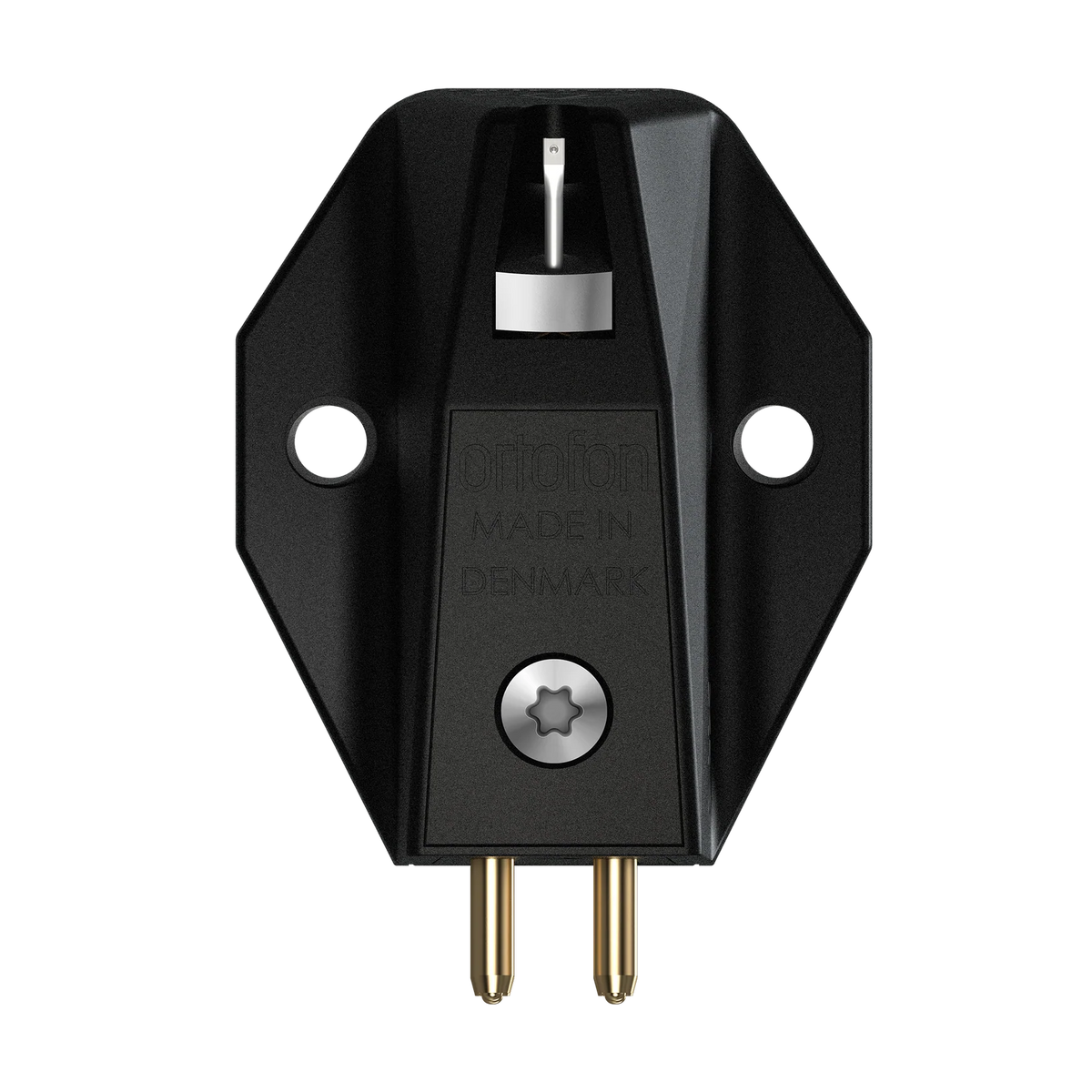

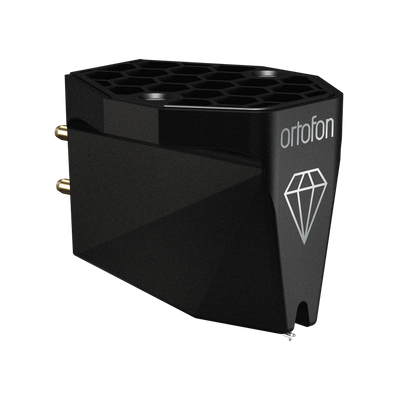

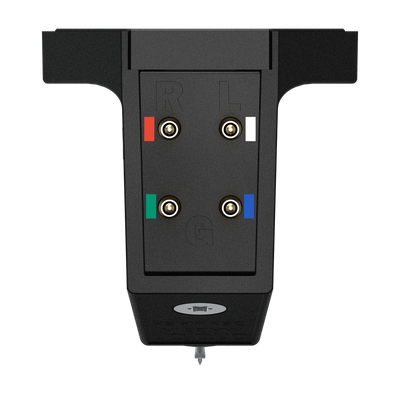

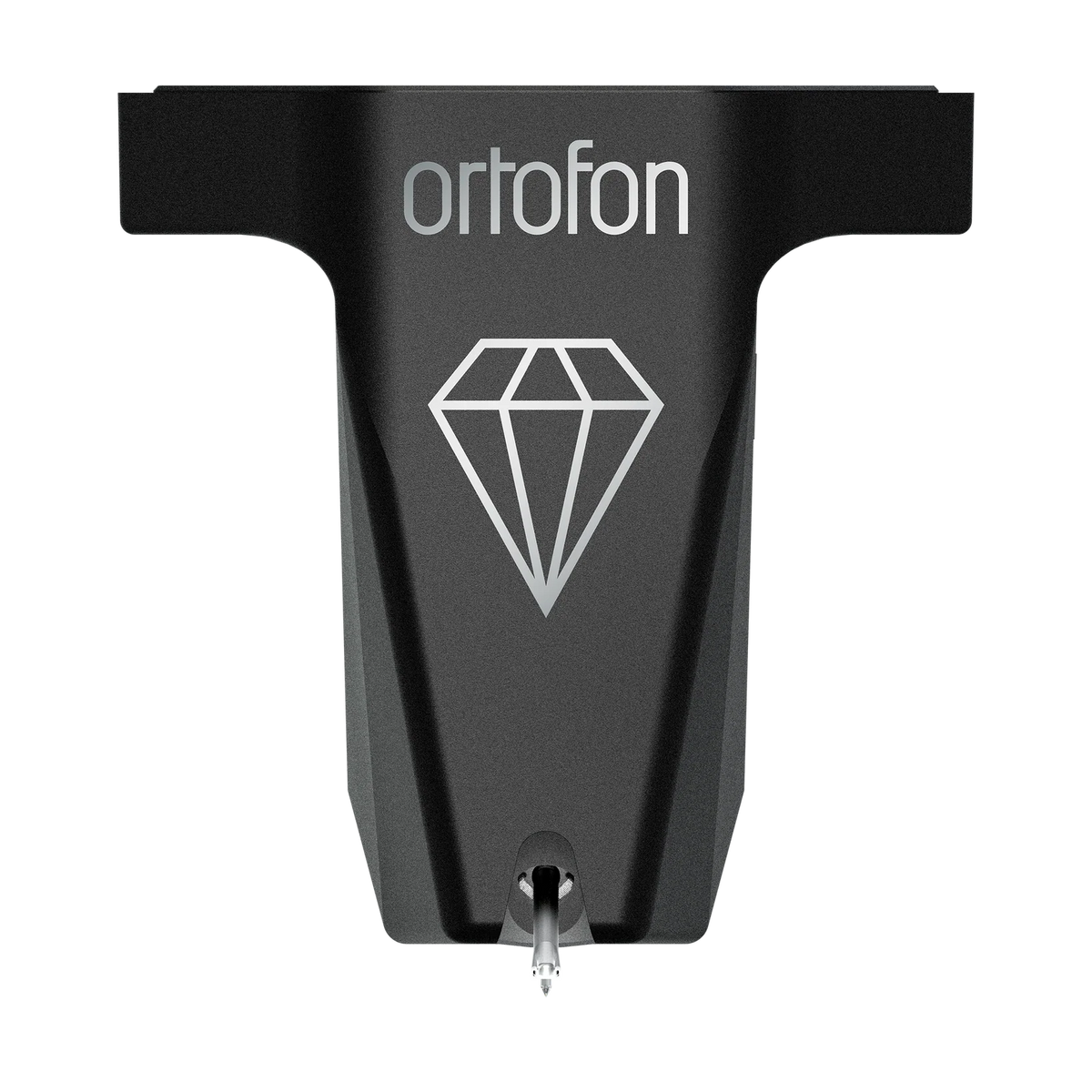

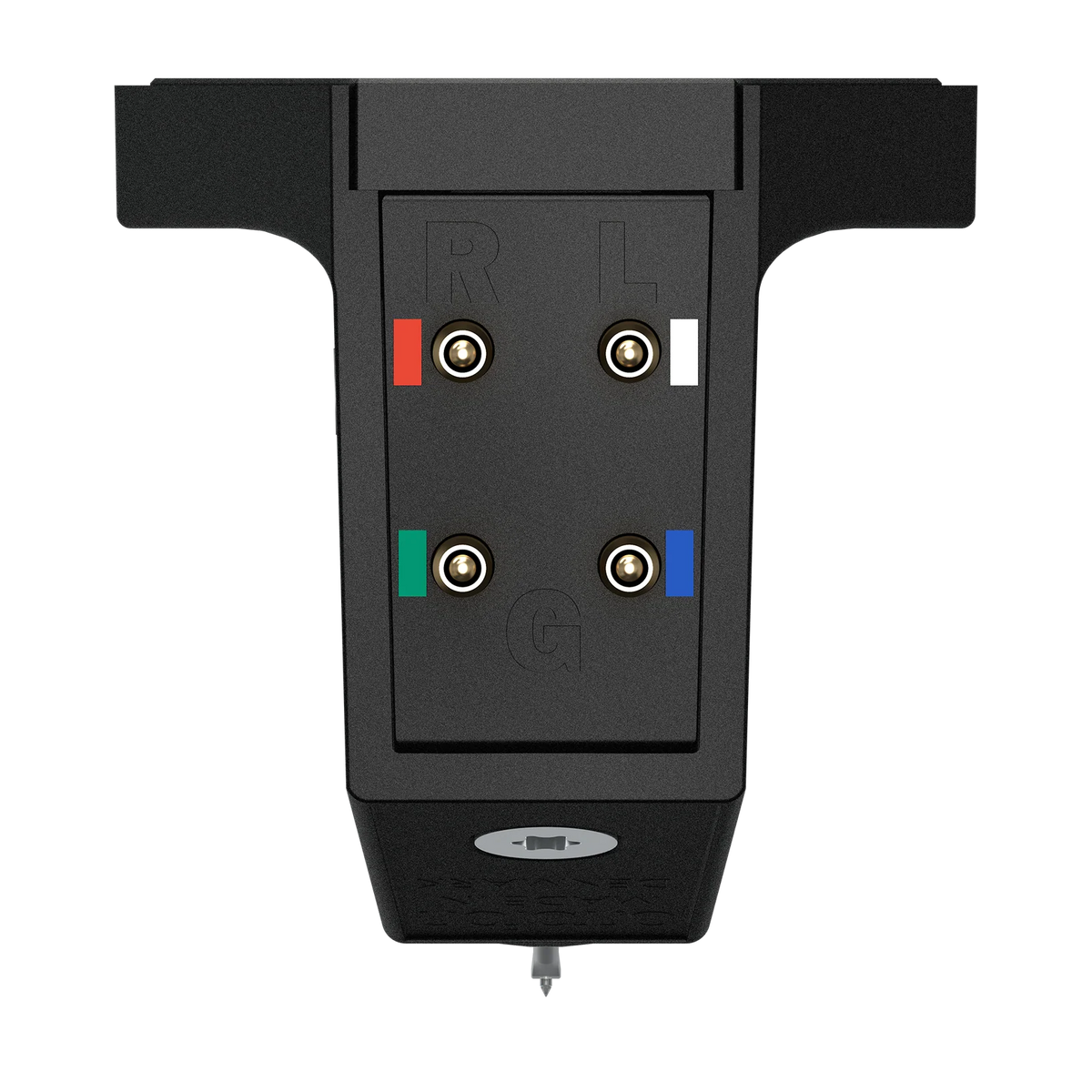

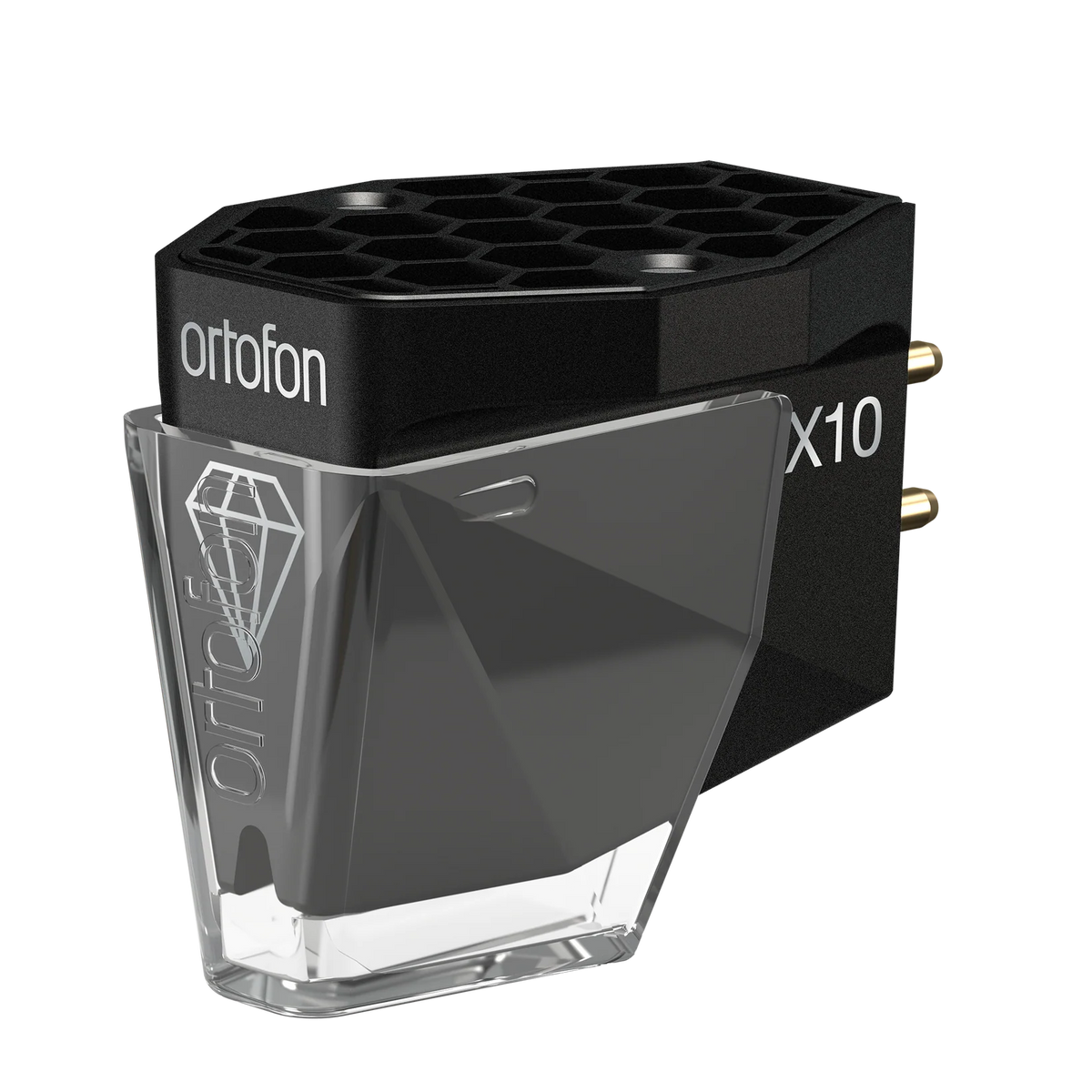

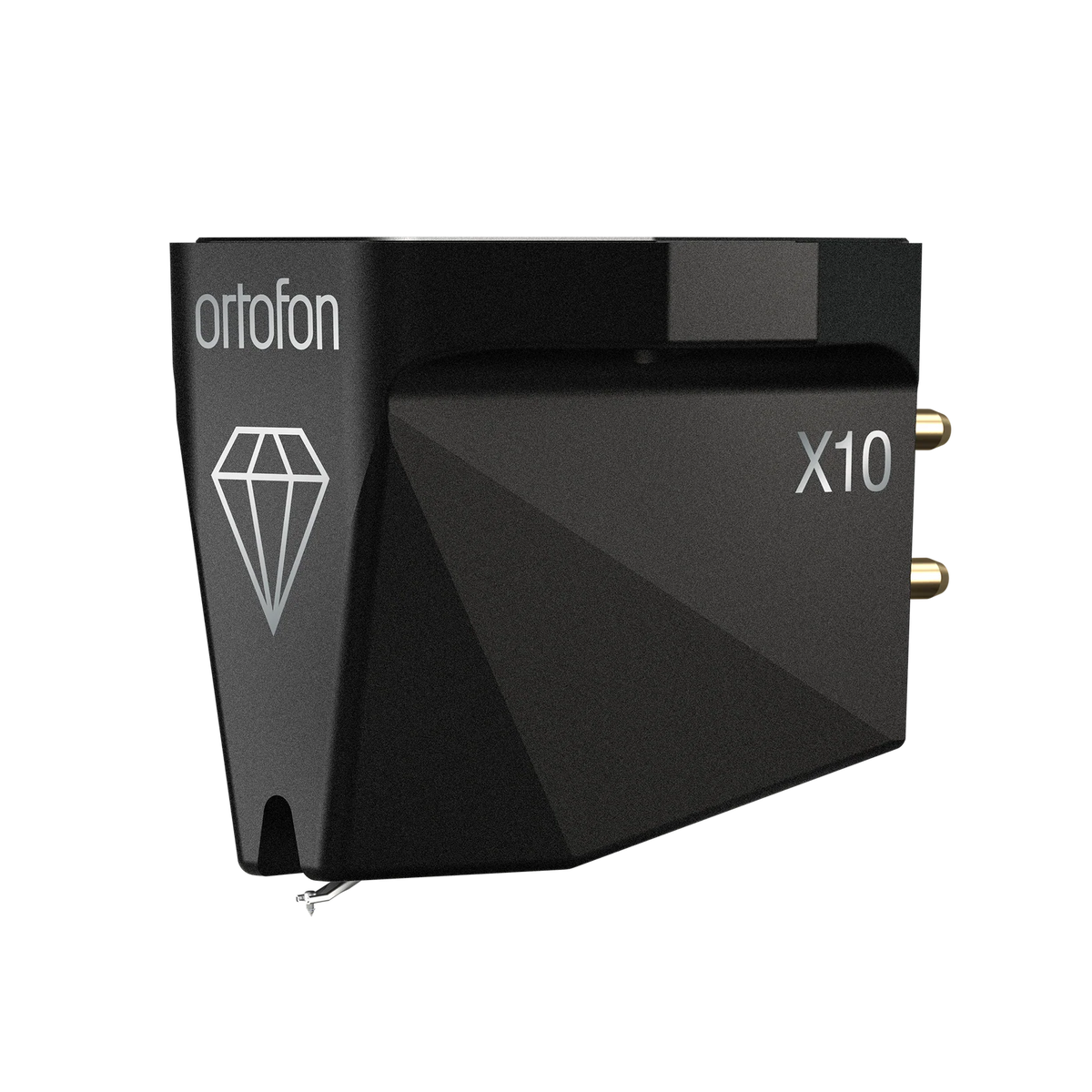

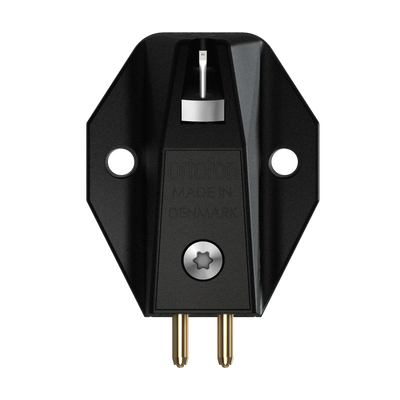

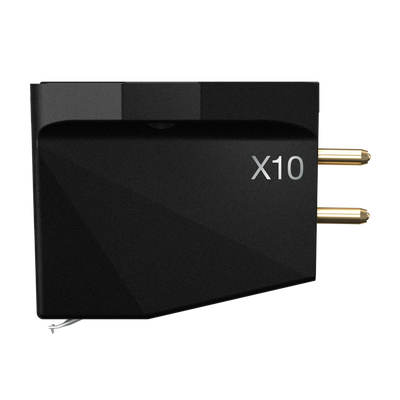

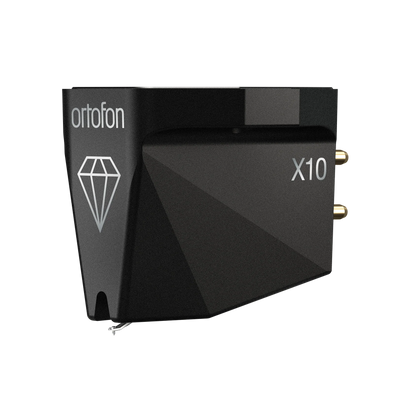

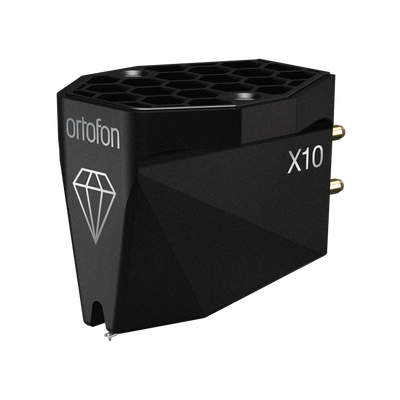

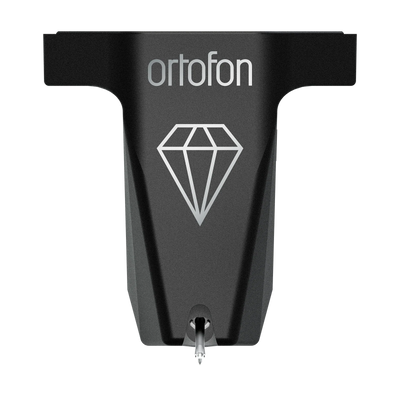

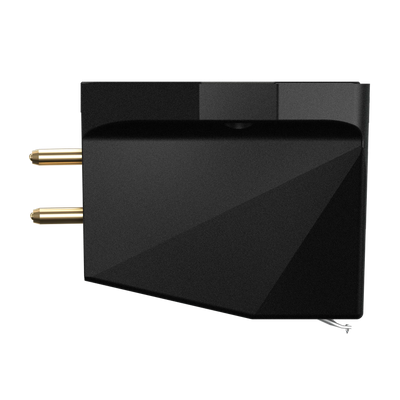

Ortofon MC X10 Moving Coil Phono Cartridge
Elliptical diamond stylus. Pure silver coils. Precision moving coil performance.
The Ortofon MC X10 brings the engineering of the MC X Series to an accessible high-performance moving coil cartridge. Its elliptical diamond stylus and aluminum cantilever are designed for accurate groove tracking, while high-purity silver coils and an optimized magnet system preserve fine musical detail.
A honeycomb-structured stainless-steel frame provides mechanical stability, and Ortofon's custom-developed rubber suspension helps control unwanted vibration.
The MC X10 delivers 0.4 mV output and is designed for use with a compatible moving coil phono stage.
OUTPUT
0.4 mV
TRACKING FORCE
2.0 g
WEIGHT
8.6 g
Key Features
-
Bonded elliptical diamond stylus with an 8/18 µm profile.
-
Aluminum cantilever for accurate groove tracking.
-
Quad-coil system wound with high-purity silver wire.
-
Optimized magnet system with a one-piece pole cylinder and rear magnet yoke.
-
Custom-developed rubber suspension for controlled stylus movement.
-
Honeycomb-structured stainless-steel frame manufactured using Metal Injection Molding (MIM).
-
Physical Vapor Deposition (PVD) surface treatment.
-
Standard ½-inch mounting for compatible turntables.
Complete Technical Specifications
|
Specification |
Ortofon MC X10 |
|---|---|
|
Cartridge type |
Moving coil (MC) |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Bonded Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Stylus suspension |
Ortofon exclusive rubber suspension |
|
Coil system |
Quad coils |
|
Coil wire material |
High-purity silver |
|
Magnet system |
Optimized magnet system with one-piece pole cylinder and rear magnet yoke |
|
Cartridge frame |
Honeycomb-structured stainless steel |
|
Frame manufacturing |
Metal Injection Molding (MIM) |
|
Surface treatment |
Physical Vapor Deposition (PVD) |
|
Output voltage at 1 kHz, 5 cm/sec |
0.4 mV |
|
Channel balance at 1 kHz |
0.5 dB |
|
Channel separation at 1 kHz |
24 dB |
|
Frequency response, 20 Hz–20 kHz |
±2 dB |
|
Dynamic lateral compliance |
13 µm/mN |
|
Recommended tracking force |
2.0 g |
|
Internal impedance / DC resistance |
6 Ω |
|
Recommended load resistance |
Greater than 50 Ω |
|
Cartridge weight |
8.6 g |
Manufacturer specification note: Ortofon does not publish a tracking-force range, tracking ability, vertical tracking angle, or recommended load capacitance in the referenced MC X10 specifications. These values have intentionally not been inferred from other cartridges.
MC X10 Technology
High-Purity Silver Coils
The MC X10 uses a quad-coil system wound with high-purity silver wire to transmit the delicate electrical signal generated by the moving coil assembly.
Optimized Magnet System
A newly developed magnetic structure integrates a one-piece pole cylinder with the rear magnet yoke to improve magnetic efficiency.

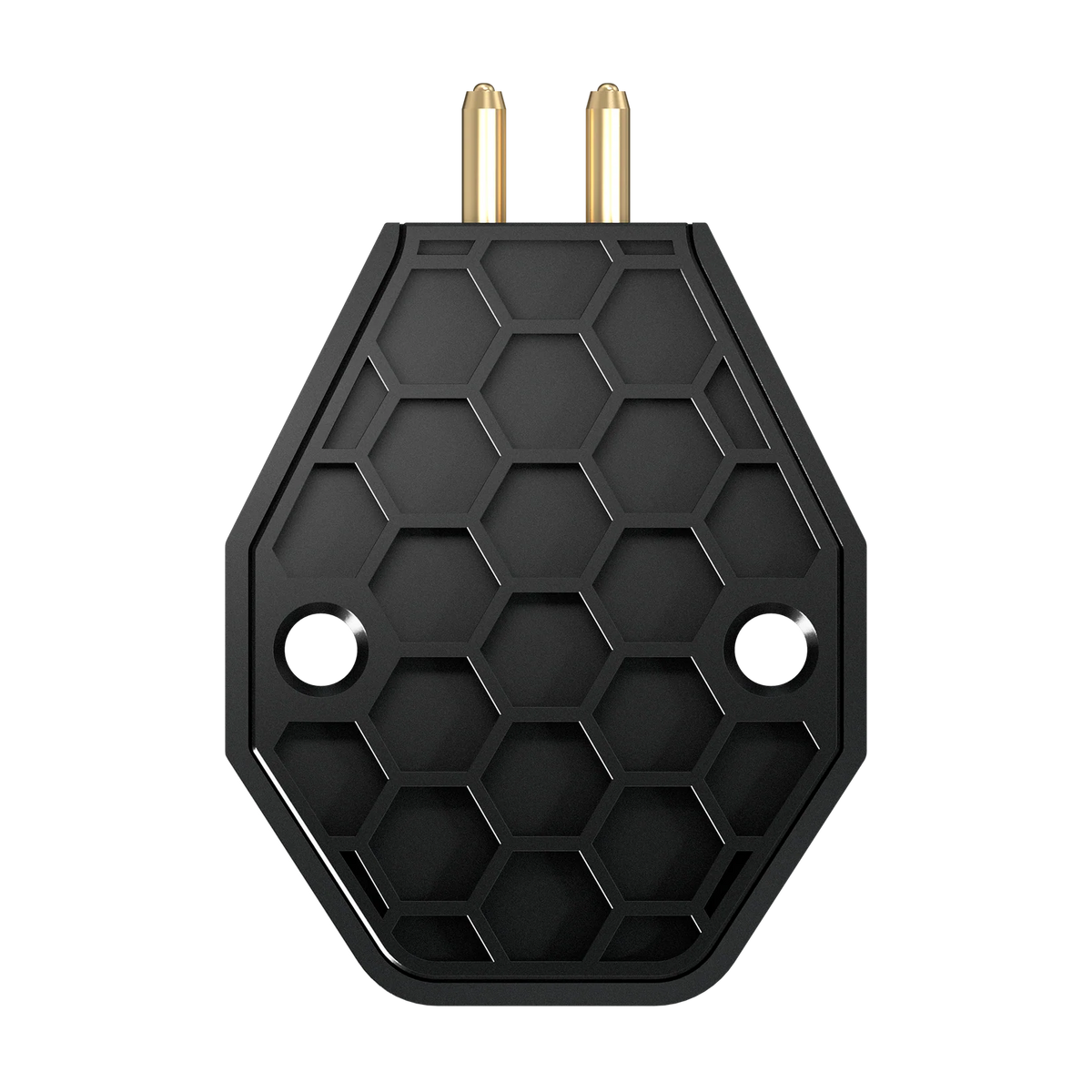

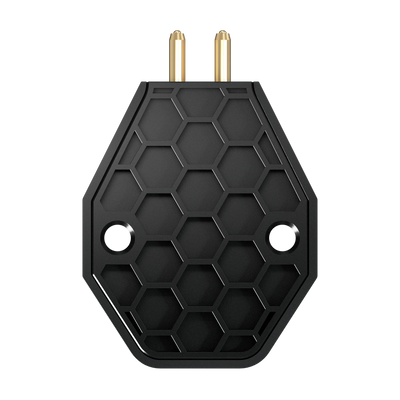

Stainless-Steel Honeycomb Frame
A precision MIM-manufactured frame provides a rigid foundation for the cartridge's internal components.
Custom Rubber Suspension
Ortofon's proprietary damping compounds help stabilize coil movement and control unwanted vibration.
Technology details sourced from Ortofon's MC X Series documentation.
Compatibility & Installation
The MC X10 uses standard ½-inch mounting and requires a compatible tonearm.
Unlike Ortofon's 2M moving magnet cartridges, the MC X10 produces a low 0.4 mV output. It should be connected to a suitable moving coil phono stage or an appropriate step-up transformer and phono preamplifier combination.
Ortofon recommends a load resistance greater than 50 ohms. The correct setting will depend on the capabilities of your phono stage and system configuration.
Explore Ortofon at The Grid HiFi. Our Houston team can help with cartridge selection, turntable compatibility, and moving coil phono stage matching.
