Overview

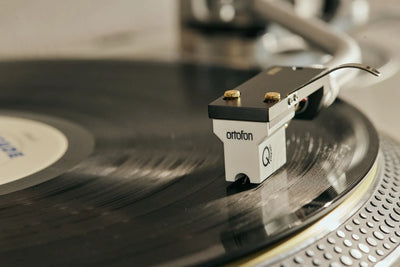

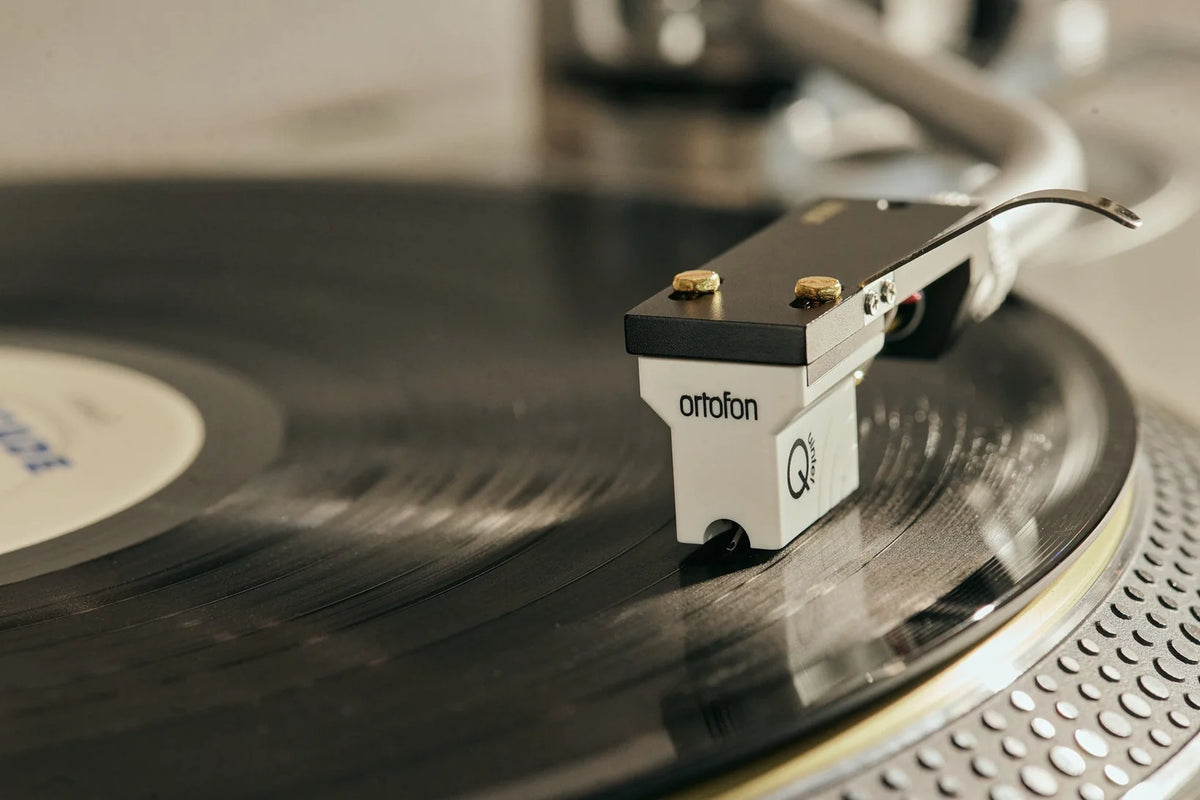

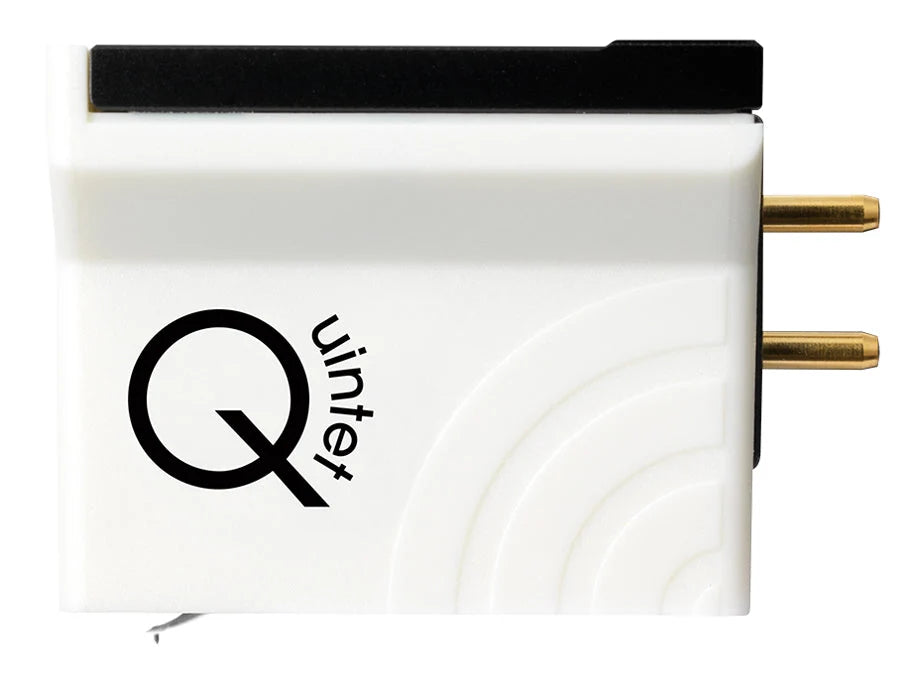

Ortofon MC Quintet Mono Moving Coil Phono Cartridge
Dedicated mono playback. Nude Elliptical stylus. Pure silver coils.
The Ortofon MC Quintet Mono is a moving coil cartridge engineered specifically for mono microgroove vinyl records. Its Nude Elliptical diamond stylus features an 8/18 µm profile designed to track mono LP grooves accurately, including worn records, while helping control surface noise.
Unlike a conventional stereo cartridge, the Quintet Mono uses a strapped output that delivers the same mono signal through both sets of output pins. This allows it to work with a compatible stereo playback system without requiring a dedicated mono phono stage.
The cartridge combines pure 4-nines silver coil wire, a neodymium magnet system, and a durable thermoplastic body. Its low internal impedance supports compatibility with a wide range of appropriately matched moving coil phono stages and step-up transformers.
Key Features
-
Dedicated mono cartridge: Designed for mono microgroove vinyl LPs.
-
Nude Elliptical stylus: 8/18 µm diamond profile.
-
Strapped mono output: Sends the same signal through both stereo output channels.
-
Pure silver coils: 99.99% pure silver wire.
-
Neodymium magnet system: Designed to provide optimal cartridge output.
-
Low internal impedance: 5 ohms, with a recommended load greater than 20 ohms.
-
Threaded mounting holes: Secure installation using the supplied 5 mm or 7 mm screws.
-
Standard ½-inch mounting: Compatible with appropriately matched tonearms.
Complete Technical Specifications
|
Specification |
Ortofon MC Quintet Mono |
|---|---|
|
Cartridge type |
Moving coil (MC), mono |
|
Intended record format |
Mono microgroove vinyl records |
|
Output configuration |
Strapped mono output to both channel pin pairs |
|
Mounting type |
Standard ½-inch |
|
Output voltage at 1 kHz, 5 cm/sec |
0.3 mV |
|
Frequency range at −3 dB |
20 Hz–25 kHz |
|
Frequency response, 20 Hz–20 kHz |
±2.0 dB |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
15 µm/mN |
|
Stylus type |
Nude Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Tracking force range |
2.1–2.5 g |
|
Recommended tracking force |
2.3 g |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
5 Ω |
|
Recommended load impedance |
Greater than 20 Ω |
|
Coil wire material |
Pure 4-nines silver (99.99% Ag) |
|
Magnet type |
Neodymium |
|
Cartridge body material |
PC thermoplastic |
|
Mounting hardware |
Supplied 5 mm and 7 mm screws |
|
Cartridge color |
White |
|
Cartridge weight |
9 g |
Designed for Mono Vinyl
The MC Quintet Mono is intended for mono microgroove records, including mono LPs from the vinyl era. Its strapped output provides a mono signal to both left and right channels, making it straightforward to integrate into an existing stereo system.
This is not a 78 RPM shellac cartridge. Its 8/18 µm stylus is intended for microgroove vinyl rather than the wider grooves typically found on shellac 78s.
Compatibility & Installation
The Quintet Mono uses standard ½-inch mounting with threaded holes for straightforward installation. Its 0.3 mV output requires a compatible moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier.
Set tracking force to Ortofon’s recommended 2.3 grams and use a load impedance greater than 20 ohms. Confirm tonearm and phono-stage compatibility before installation.
Explore Ortofon at The Grid HiFi. Our Houston team can help you select the right cartridge for your mono record collection, turntable, and phono stage.
