Overview

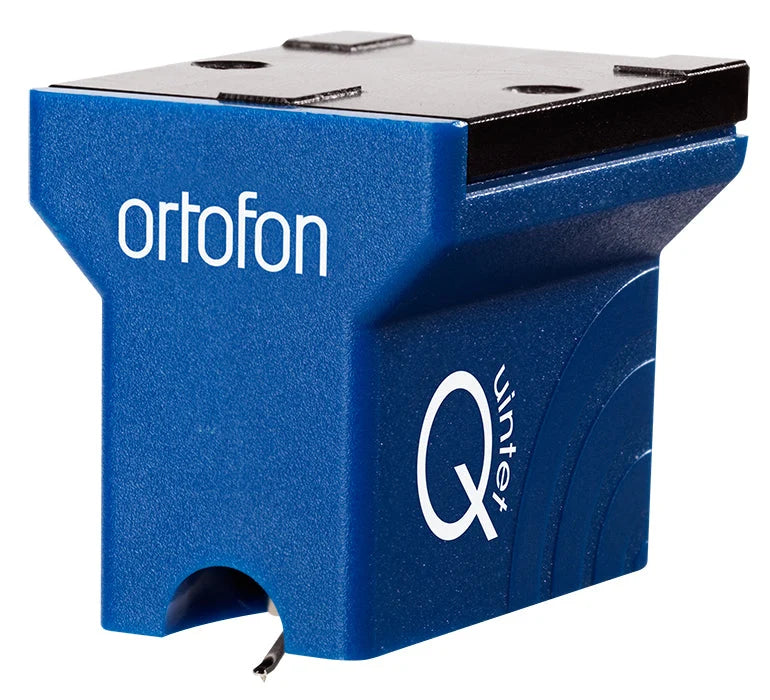

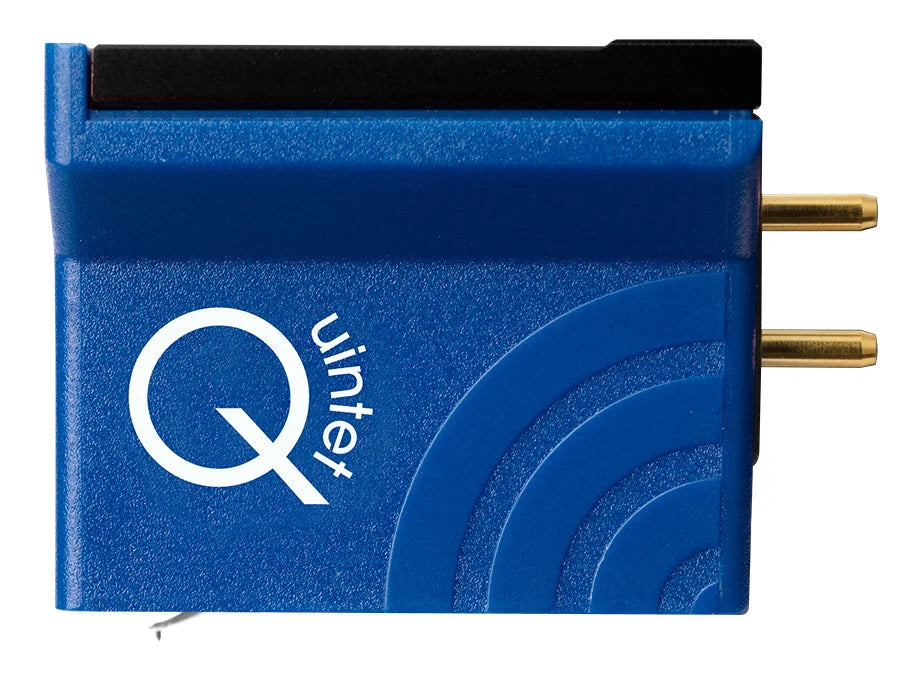

Ortofon MC Quintet Blue Moving Coil Phono Cartridge
Nude Elliptical stylus. Pure silver coils. 0.5 mV output.
The Ortofon MC Quintet Blue takes the Quintet Series beyond the Red with a Nude Elliptical diamond stylus mounted directly to an aluminum cantilever. This design reduces the mass of the stylus assembly, supporting precise groove tracking and improved retrieval of musical detail.
Its moving coil generator features 99.99% pure silver wire and a neodymium magnet system. Ortofon describes the Quintet Blue as delivering a smooth, balanced presentation with greater space, depth, and detail than the Quintet Red.
A durable thermoplastic body, aluminum mounting frame, and threaded mounting holes make installation straightforward on compatible turntables.
Key Features
-
Nude Elliptical stylus: 8/18 µm diamond profile mounted directly to the cantilever.
-
Aluminum cantilever: Designed for accurate groove tracking.
-
Pure silver coils: 99.99% silver wire in the moving coil generator.
-
Neodymium magnet system: Provides a 0.5 mV output.
-
70 µm tracking ability: Measured at 315 Hz.
-
Low internal impedance: 7 ohms, with a recommended load greater than 20 ohms.
-
Durable construction: Scratch-resistant thermoplastic body with an aluminum mounting frame.
-
Threaded mounting holes: Supplied 5 mm and 7 mm screws simplify installation.
Complete Technical Specifications
|
Specification |
Ortofon MC Quintet Blue |
|---|---|
|
Cartridge type |
Moving coil (MC), stereo |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
0.5 mV |
|
Channel balance at 1 kHz |
Less than 1.5 dB |
|
Channel separation at 1 kHz |
Greater than 21 dB |
|
Channel separation at 15 kHz |
Greater than 14 dB |
|
Frequency range at −3 dB |
20 Hz–25 kHz |
|
Frequency response, 20 Hz–20 kHz |
±2.5 dB |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
15 µm/mN |
|
Tracking force range |
2.1–2.5 g (21–25 mN) |
|
Recommended tracking force |
2.3 g (23 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
7 Ω |
|
Recommended load impedance |
Greater than 20 Ω |
|
Coil wire material |
Pure 4-nines silver (99.99% Ag) |
|
Magnet system |
Neodymium |
|
Cartridge body material |
PC thermoplastic |
|
Mounting frame |
Aluminum with threaded holes |
|
Included mounting screws |
5 mm and 7 mm |
|
Cartridge color |
Blue |
|
Cartridge weight |
9 g |
Specifications sourced from Ortofon's official MC Quintet Blue product page and Quintet Series user guide. The user guide provides additional figures, including frequency range and channel separation at 15 kHz.
What Makes the Quintet Blue Different?
The MC Quintet Blue introduces two key changes over the Quintet Red: a Nude Elliptical stylus and pure silver coil wire.
|
Feature |
MC Quintet Red |
MC Quintet Blue |
|---|---|---|
|
Stylus |
Elliptical |
Nude Elliptical |
|
Cantilever |
Aluminum |
Aluminum |
|
Coil wire |
Copper |
99.99% pure silver |
|
Output |
0.5 mV |
0.5 mV |
|
Tracking ability |
65 µm |
70 µm |
|
Recommended tracking force |
2.3 g |
2.3 g |
|
Weight |
9 g |
9 g |
The Nude Elliptical stylus is mounted directly to the cantilever rather than using a bonded diamond construction. Ortofon pairs this upgrade with pure silver coils while retaining the Red's output voltage and recommended tracking force.
Compatibility & Installation
The MC Quintet Blue features standard ½-inch mounting and threaded holes for secure installation. The included 5 mm and 7 mm screws accommodate different headshell thicknesses.
Its 0.5 mV output requires a compatible moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier. Ortofon recommends a load impedance greater than 20 ohms and a tracking force of 2.3 grams.
Discover Ortofon at The Grid HiFi. Visit our Houston showroom for assistance with cartridge selection, turntable compatibility, and moving coil phono stage matching.
