Overview

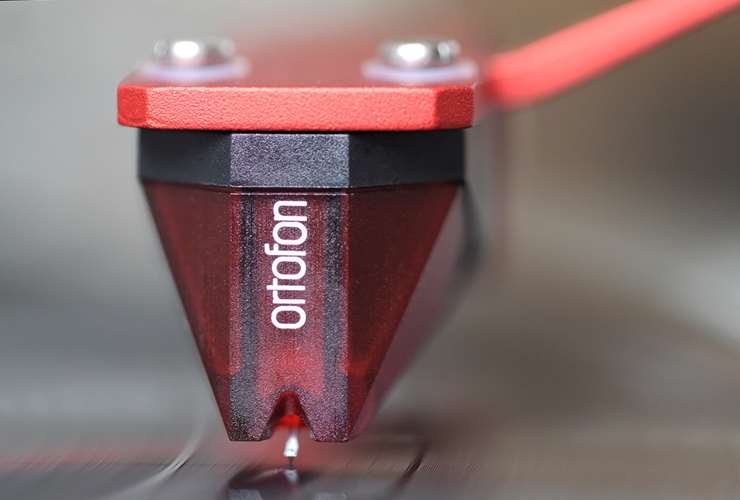

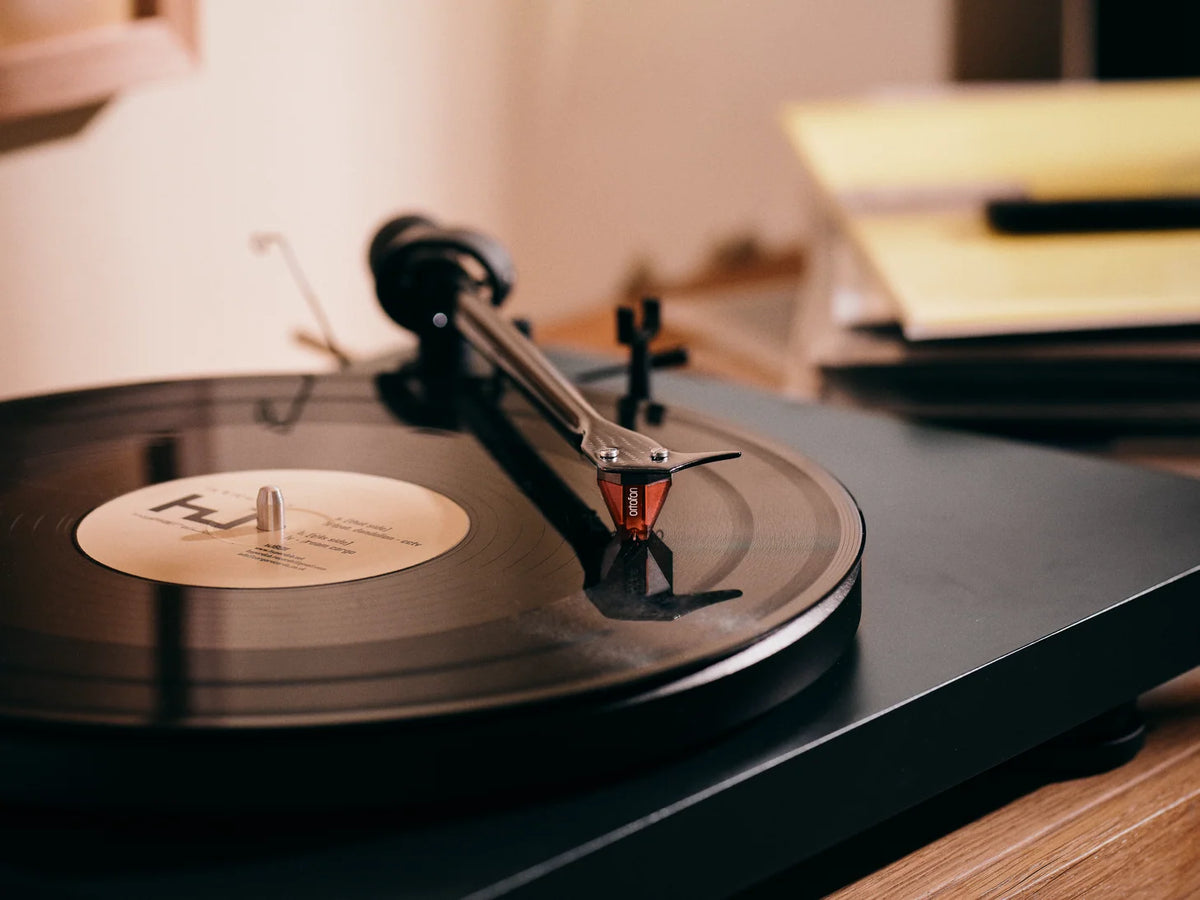

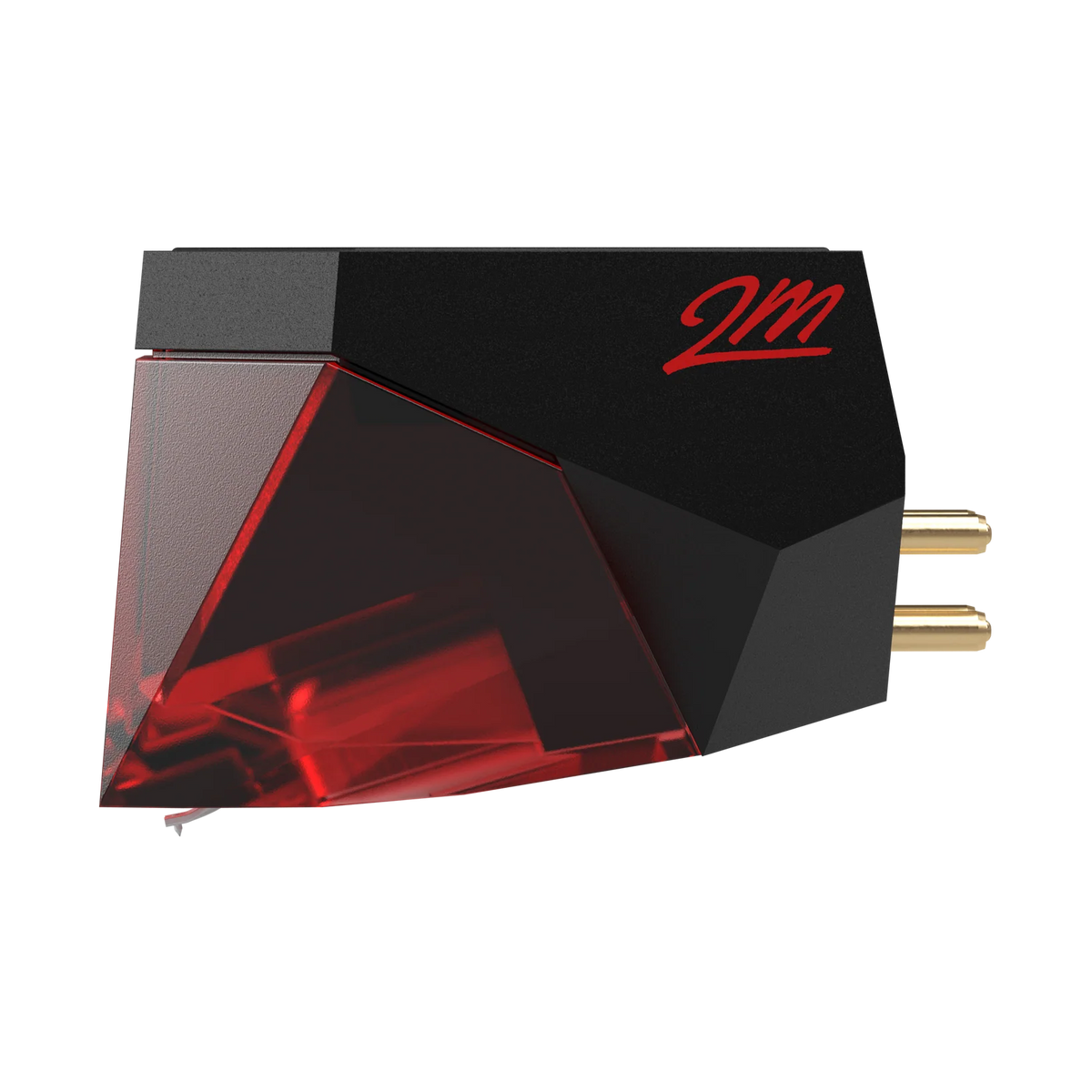

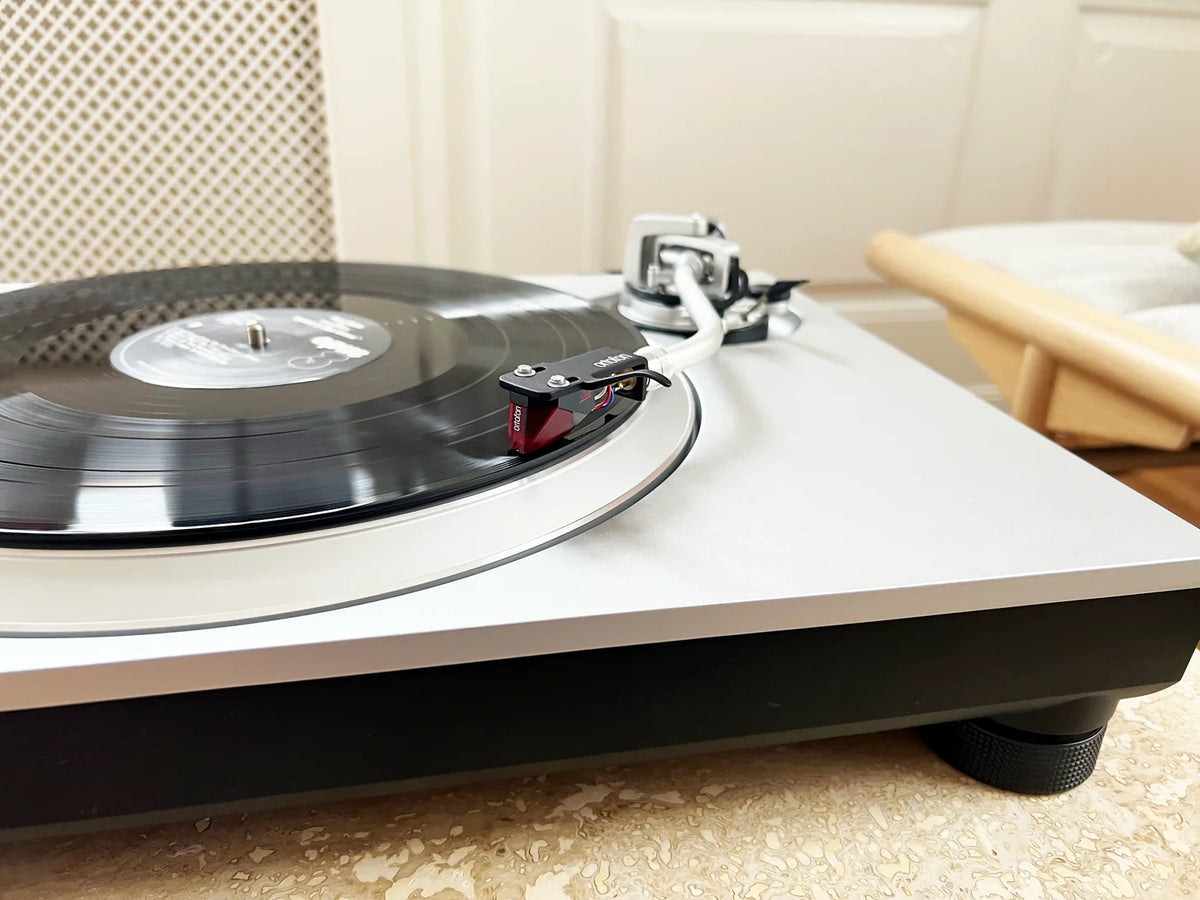

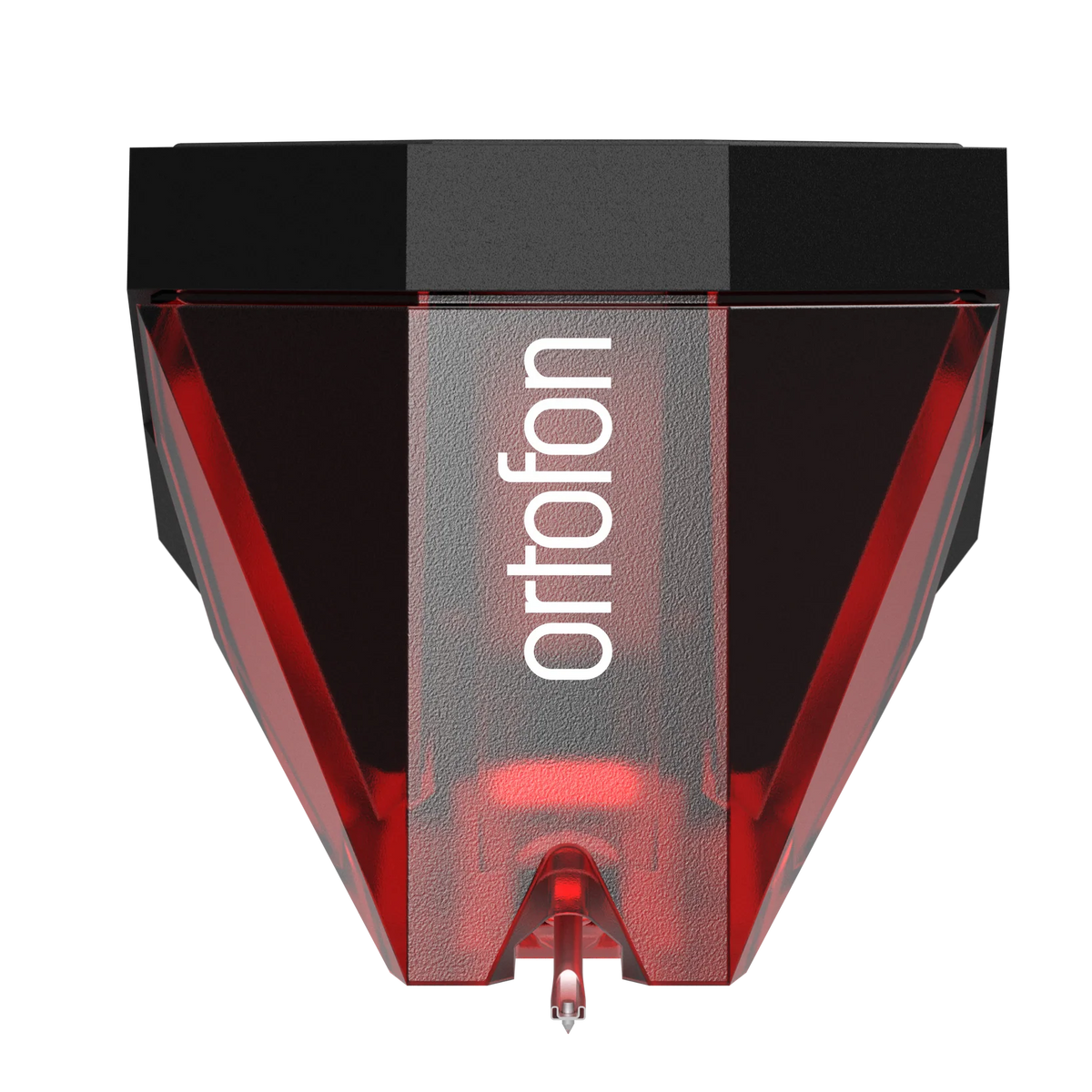

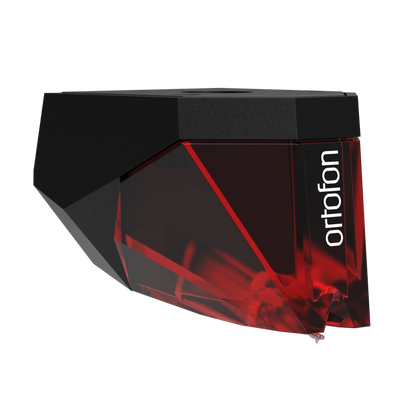

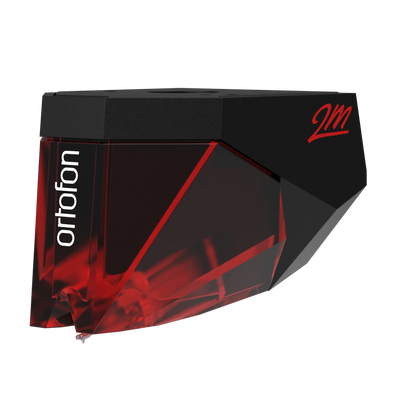

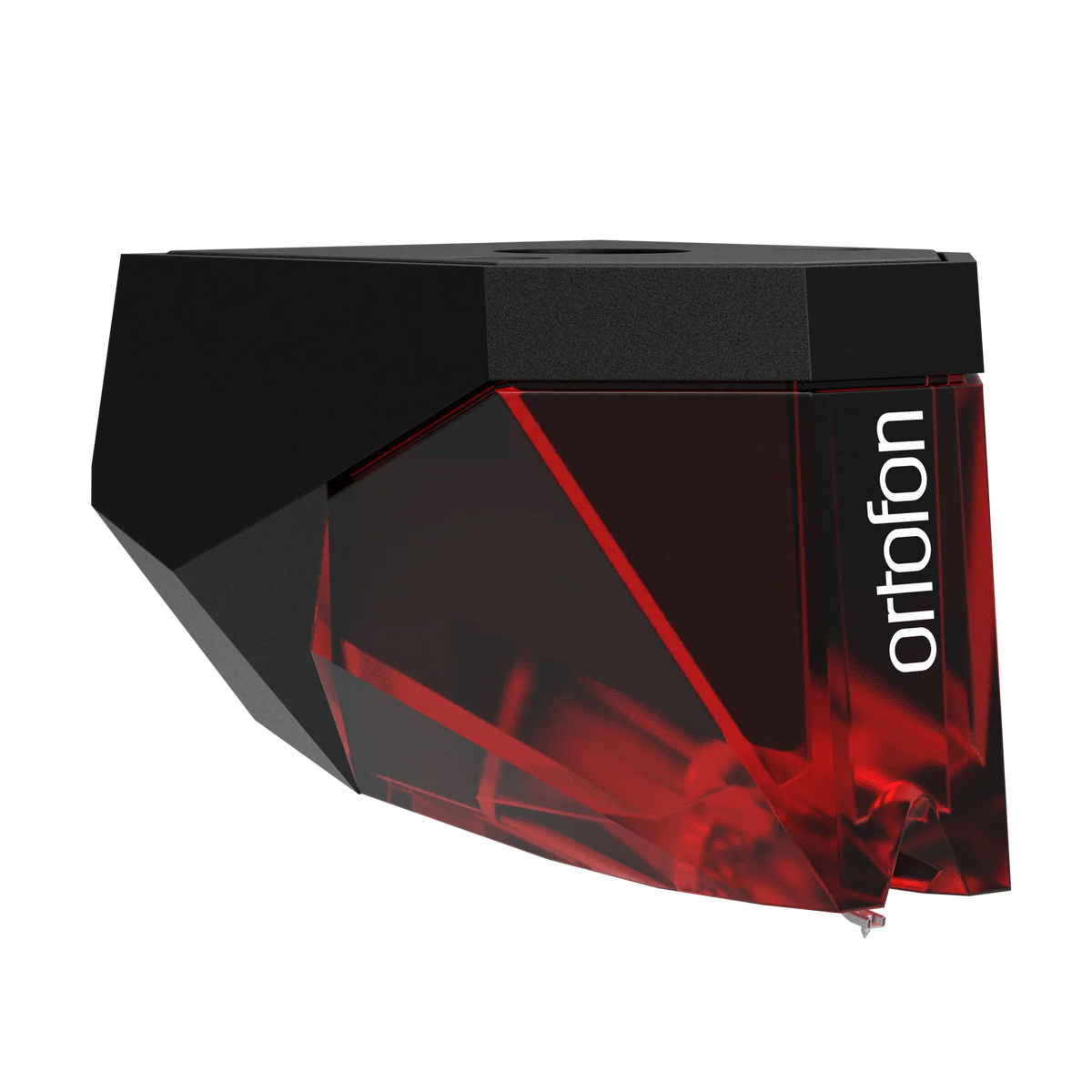

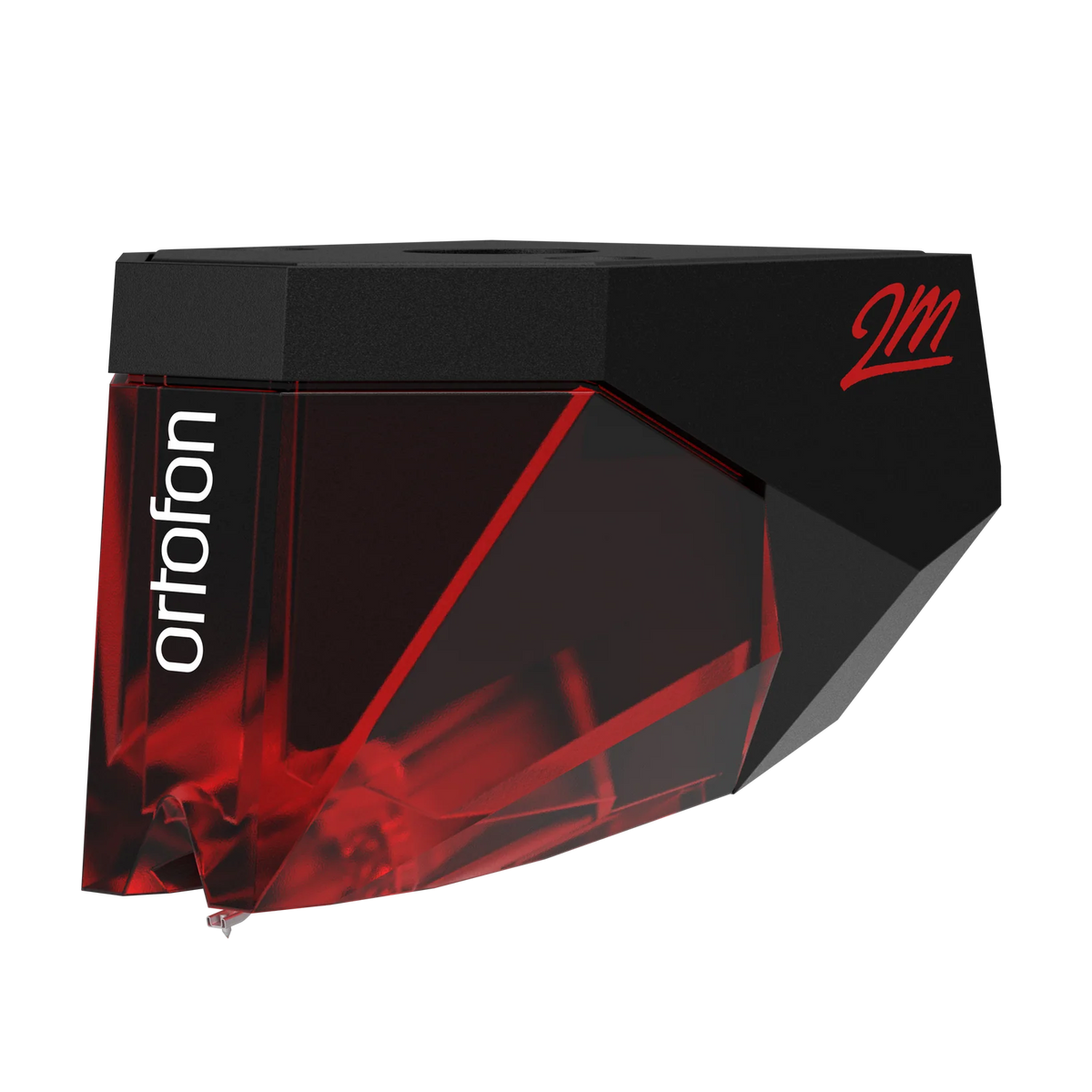

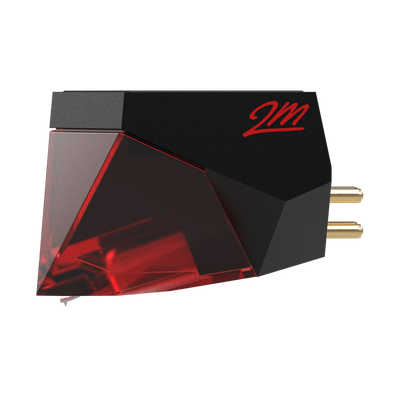

Ortofon 2M Red Moving Magnet Phono Cartridge
Elliptical diamond stylus. 5.5 mV output. A straightforward upgrade for vinyl playback.

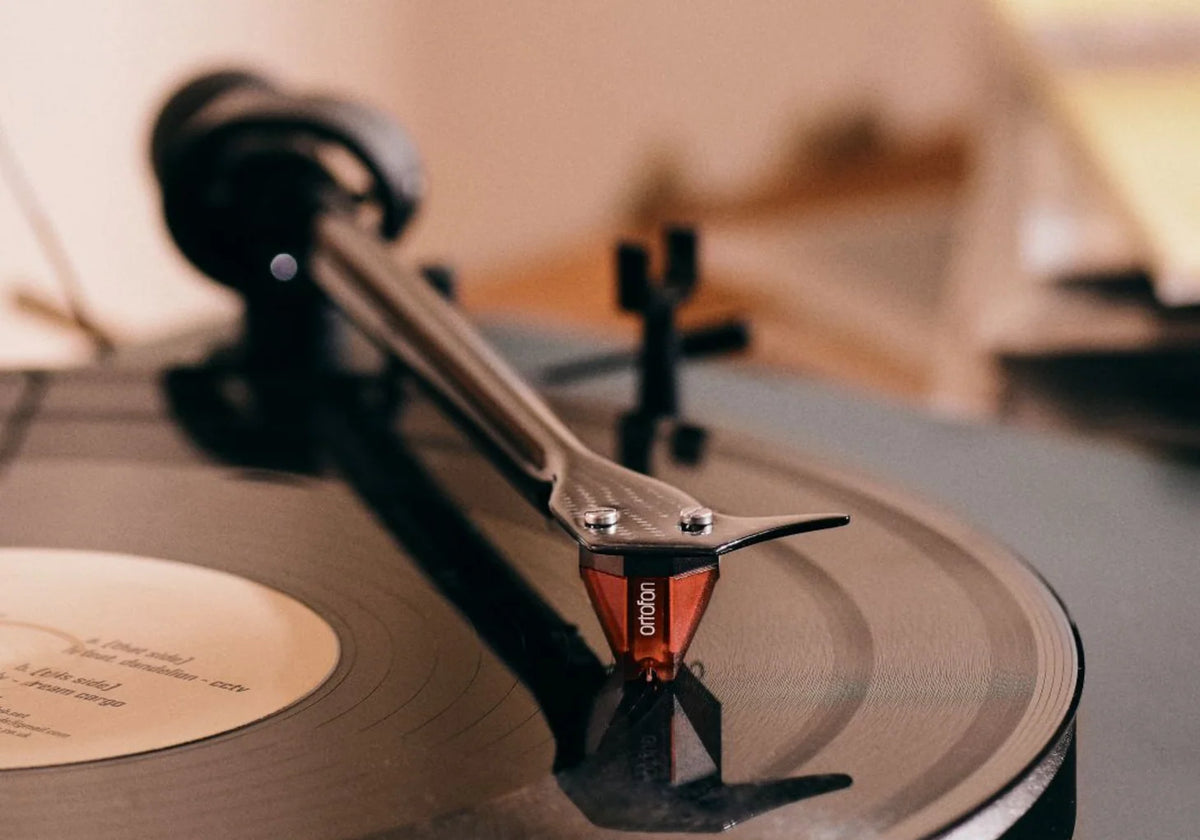

The Ortofon 2M Red is a moving magnet (MM) phono cartridge designed to deliver an open, dynamic sound with a touch of warmth. Its elliptical diamond stylus, aluminum cantilever, and split pole pin technology provide precise groove tracking and detailed music reproduction.
With a standard ½-inch mounting configuration, replaceable stylus, and 5.5 mV output, the 2M Red is a practical choice for upgrading a compatible turntable or replacing an existing cartridge.
OUTPUT
5.5 mV
TRACKING FORCE
1.8 g
CARTRIDGE WEIGHT
7.2 g
Key Features
-
Moving magnet cartridge with an elliptical diamond stylus.
-
Split pole pins with copper wire for accurate sound reproduction.
-
Aluminum cantilever and replaceable stylus assembly.
-
Standard ½-inch mounting for compatible turntables.
-
Designed and manufactured in Denmark.
Complete Technical Specifications
|
Specification |
Ortofon 2M Red |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Stylus type |
Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
5.5 mV |
|
Channel balance at 1 kHz |
1.5 dB |
|
Channel separation at 1 kHz |
22 dB |
|
Frequency response, 20 Hz–20 kHz |
+3 / −1 dB |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
20 µm/mN |
|
Tracking force range |
1.6–2.0 g (16–20 mN) |
|
Recommended tracking force |
1.8 g (18 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
1.3 kΩ |
|
Internal inductance |
700 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted version weight |
16.7 g |
|
Cartridge color |
Black / Red |
Compatibility & Stylus Replacement
The standard 2M Red uses ½-inch mounting and is intended for compatible turntables and tonearms. It connects to a moving magnet phono input or an external phono preamplifier with suitable loading.
The stylus is replaceable, so you don't need to replace the entire cartridge when the stylus wears out. Ortofon lists the Stylus 2M Red as the replacement for the standard 2M Red, 2MR Red, and 2M Red Premounted cartridges.
