Overview

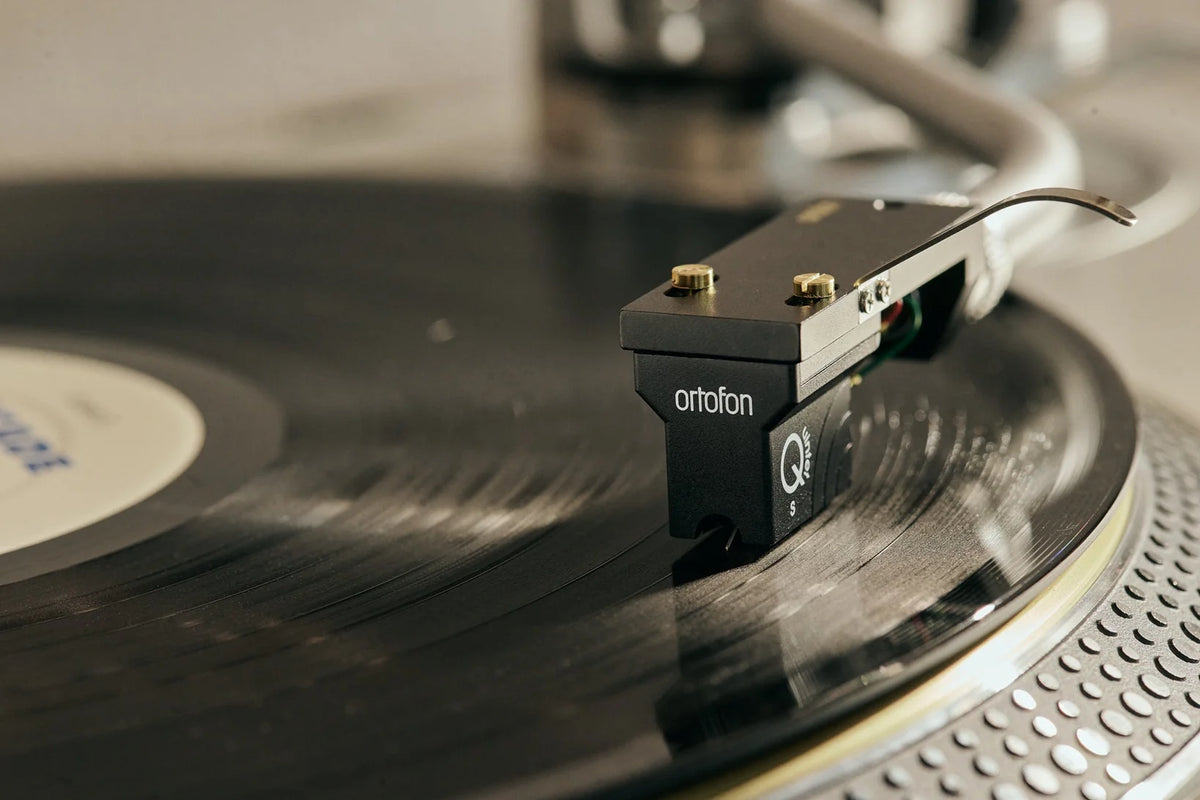

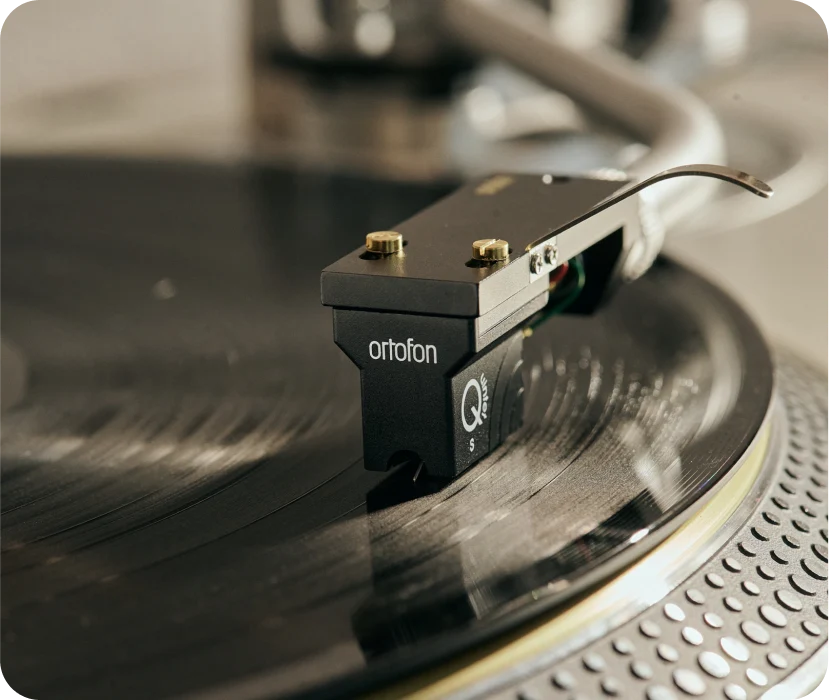

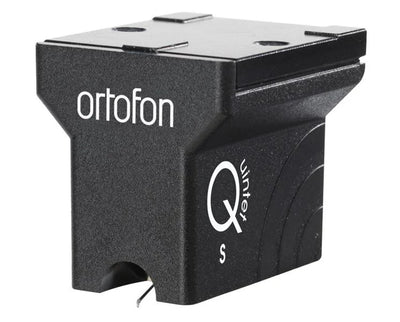

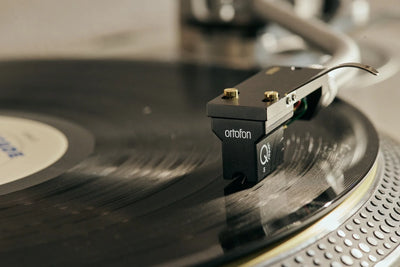

Ortofon MC Quintet Black S Moving Coil Phono Cartridge
Nude Shibata stylus. Sapphire cantilever. Aucurum coil wire.
The Ortofon MC Quintet Black S is the flagship of the Quintet Series, combining a Nude Shibata diamond stylus with a high-performance sapphire cantilever. Its finely polished 6/50 µm stylus profile provides an extended contact area with the record groove, allowing it to retrieve delicate musical information, including fine high-frequency detail.
The Black S features Ortofon's Aucurum coil wire, a neodymium magnet system, and a rigid, scratch-resistant cartridge body. With 80 µm tracking ability, a 0.3 mV output, and low internal impedance, it is engineered for precise vinyl reproduction when paired with a compatible moving coil phono stage.
Key Features
-
Nude Shibata stylus: 6/50 µm diamond profile for precise groove tracing.
-
Sapphire cantilever: Rigid construction designed for accurate transmission of stylus movement.
-
Aucurum coil wire: Ortofon's gold-plated, 99.9999% pure oxygen-free copper conductor.
-
Neodymium magnet system: Provides efficient moving coil operation.
-
80 µm tracking ability: Measured at 315 Hz at the recommended tracking force.
-
Low internal impedance: 5 ohms, with a recommended load greater than 20 ohms.
-
Durable construction: Impact-resistant PC thermoplastic body with an aluminum mounting frame.
-
Straightforward installation: Threaded mounting holes with supplied 5 mm and 7 mm screws.
Complete Technical Specifications
|
Specification |
Ortofon MC Quintet Black S |
|---|---|
|
Cartridge type |
Moving coil (MC), stereo |
|
Mounting type |
Standard ½-inch |
|
Stylus type |
Nude Shibata |
|
Stylus tip radius |
r/R 6/50 µm |
|
Cantilever material |
Sapphire |
|
Output voltage at 1 kHz, 5 cm/sec |
0.3 mV |
|
Channel balance at 1 kHz |
Less than 1.0 dB |
|
Channel separation at 1 kHz |
Greater than 23 dB |
|
Channel separation at 15 kHz |
Greater than 15 dB |
|
Frequency range at −3 dB |
20 Hz–25 kHz |
|
Frequency response, 20 Hz–20 kHz |
±1.5 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
15 µm/mN |
|
Tracking force range |
2.1–2.5 g (21–25 mN) |
|
Recommended tracking force |
2.3 g (23 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
5 Ω |
|
Recommended load impedance |
Greater than 20 Ω |
|
Coil wire material |
Aucurum |
|
Magnet system |
Neodymium |
|
Cartridge body |
PC thermoplastic with aluminum mounting frame |
|
Included mounting screws |
5 mm and 7 mm |
|
Cartridge color |
Black |
|
Cartridge weight |
9 g |
What Makes the Quintet Black S Different?
The Black S introduces two important changes over the Quintet Bronze: a Nude Shibata stylus in place of the Nude Fine Line design and a sapphire cantilever. It also uses Aucurum coil wire rather than the Bronze's high-purity copper coils.
|
Specification |
Quintet Bronze |
Quintet Black S |
|---|---|---|
|
Stylus |
Nude Fine Line |
Nude Shibata |
|
Stylus profile |
8/40 µm |
6/50 µm |
|
Cantilever |
Not specified in the series guide |
Sapphire |
|
Coil wire |
99.99% pure copper |
Aucurum |
|
Output voltage |
0.3 mV |
0.3 mV |
|
Channel balance |
Less than 1.2 dB |
Less than 1.0 dB |
|
Tracking ability |
80 µm |
80 µm |
|
Recommended tracking force |
2.3 g |
2.3 g |
Compatibility & Installation
The MC Quintet Black S uses standard ½-inch mounting with threaded holes. Ortofon supplies 5 mm and 7 mm screws to accommodate different headshell thicknesses.
Its 0.3 mV output requires a compatible moving coil phono stage or an appropriately matched step-up transformer and phono preamplifier. Ortofon recommends a load impedance greater than 20 ohms and a tracking force of 2.3 grams.
Discover Ortofon at The Grid HiFi. Our Houston team can assist with cartridge selection, turntable compatibility, and moving coil phono stage matching.
