Overview

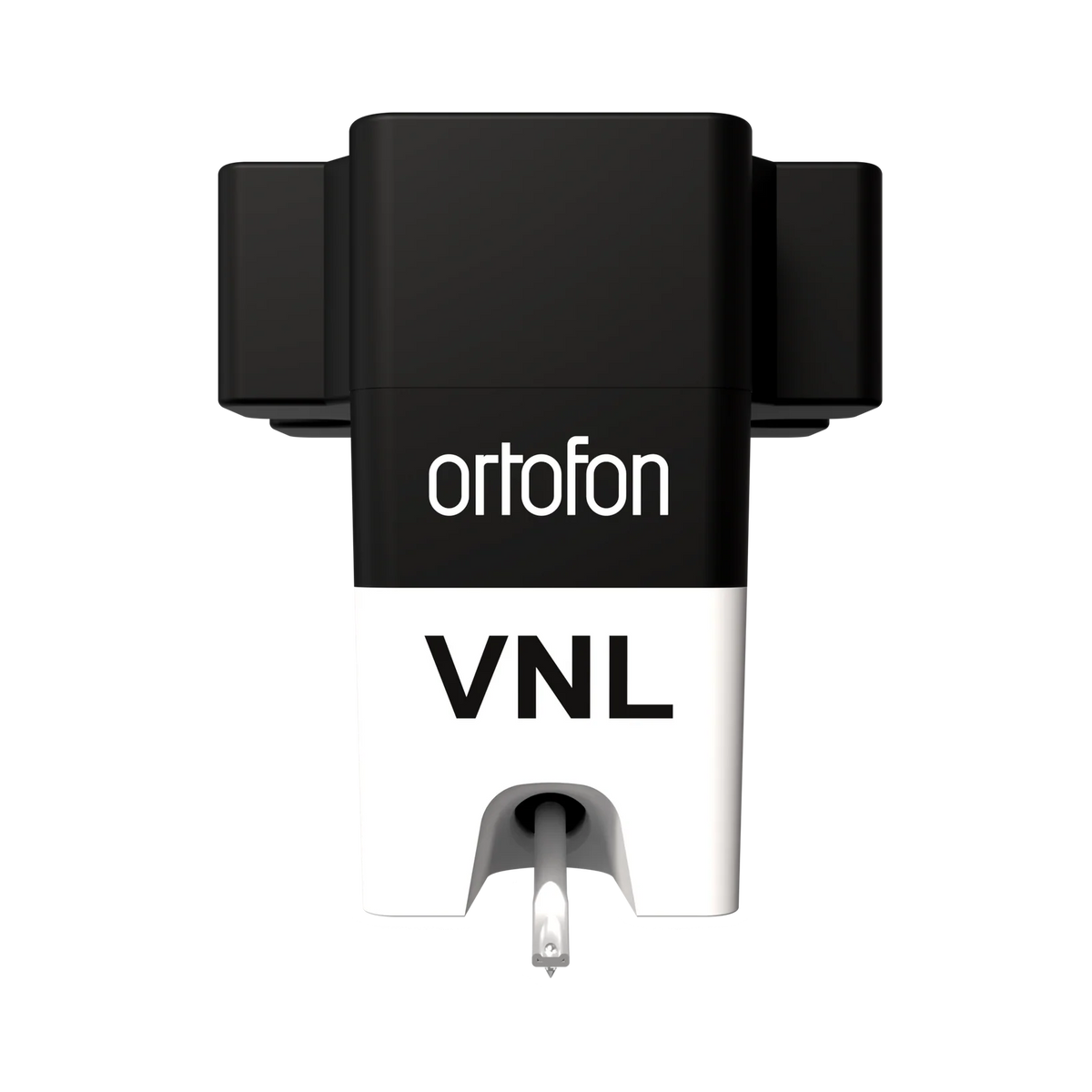

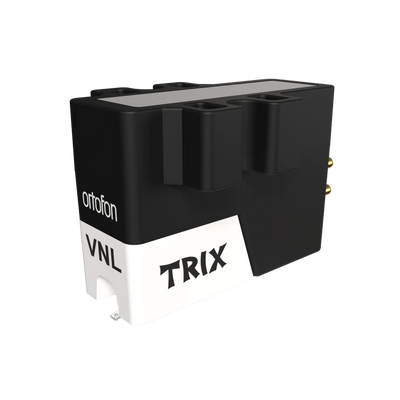

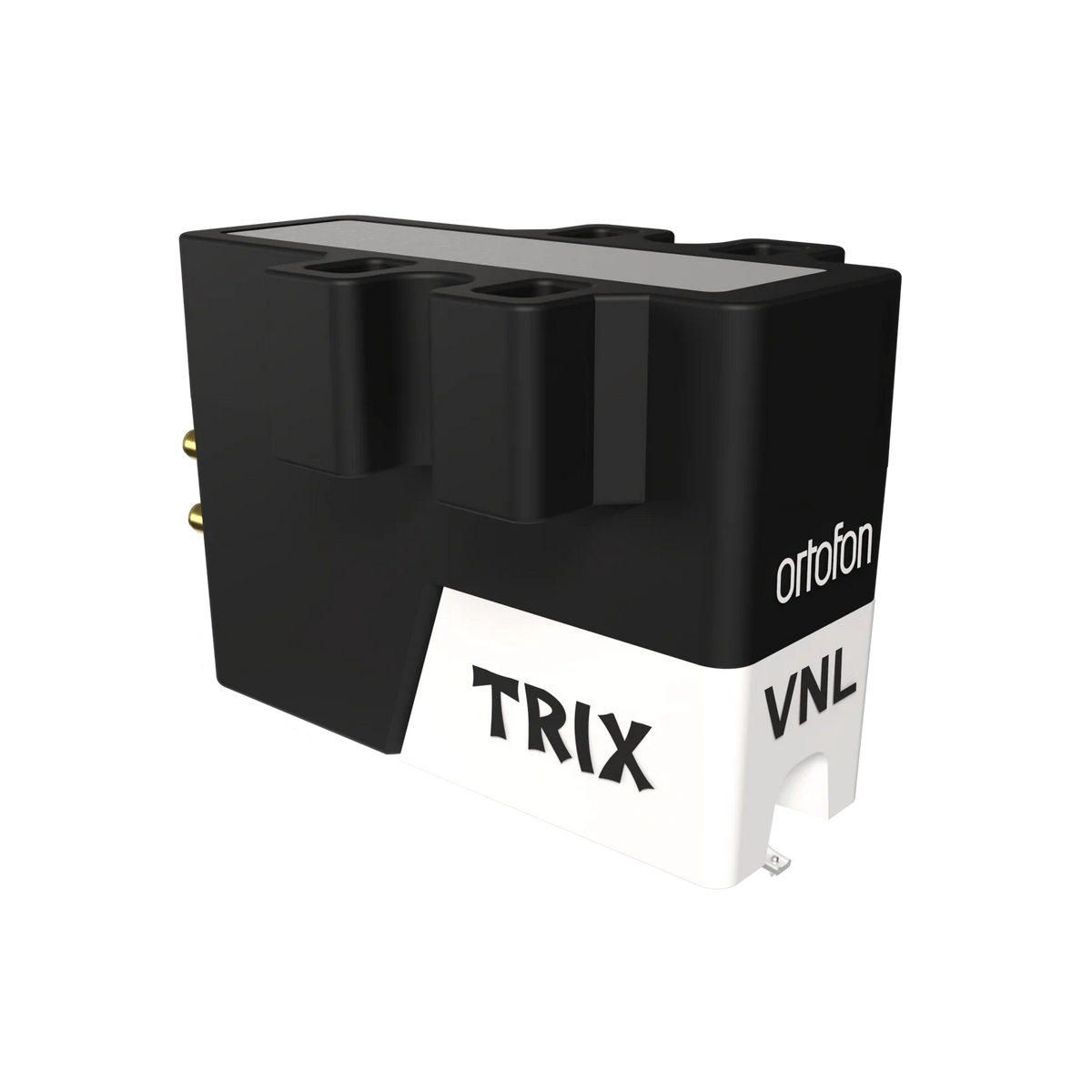

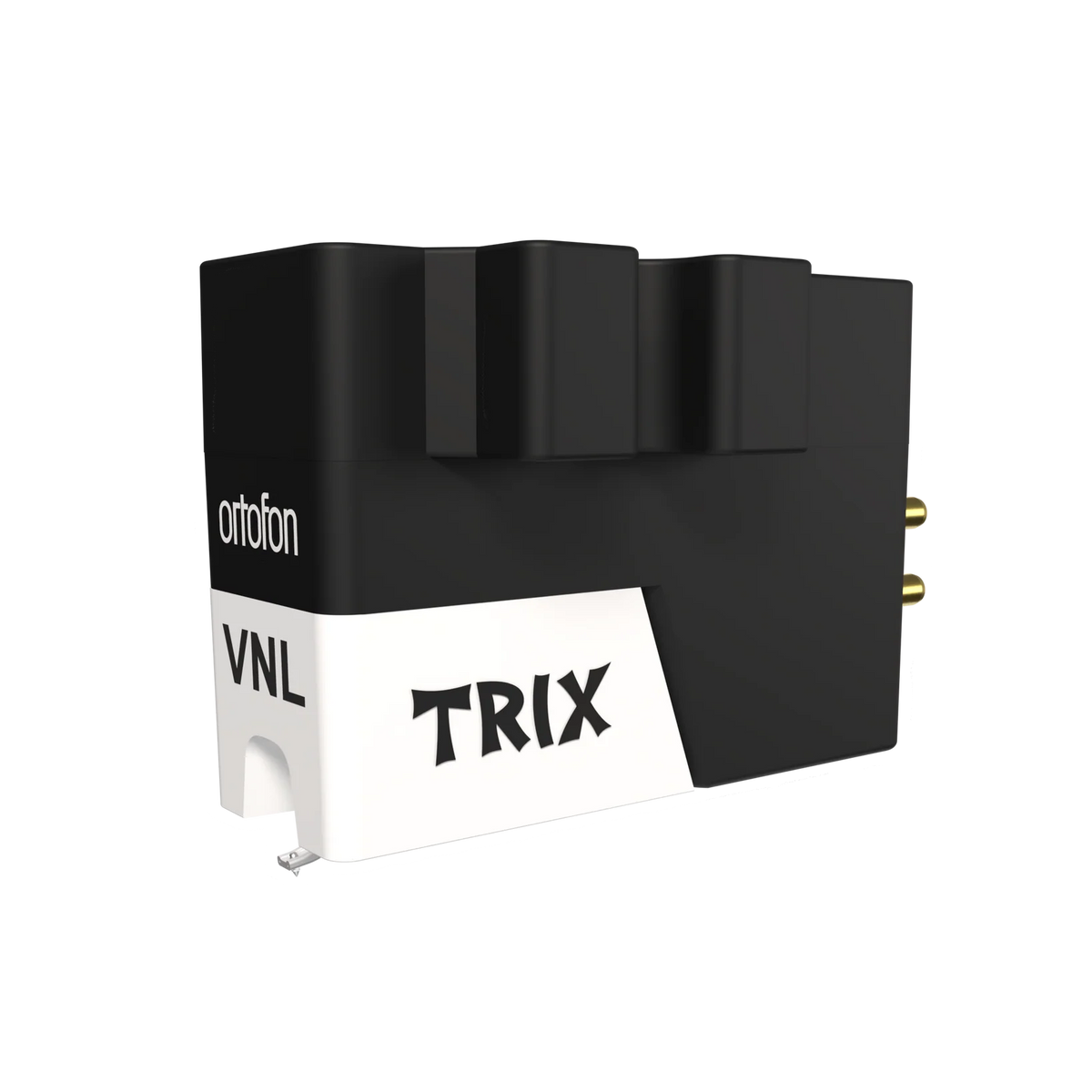

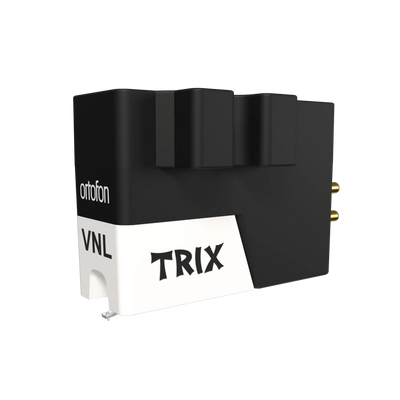

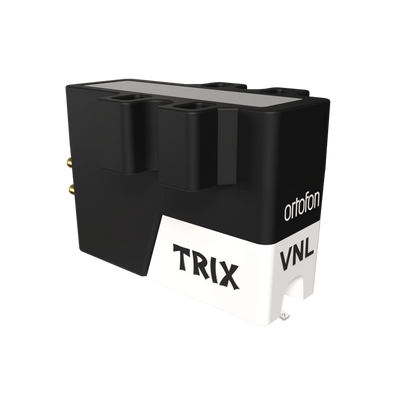

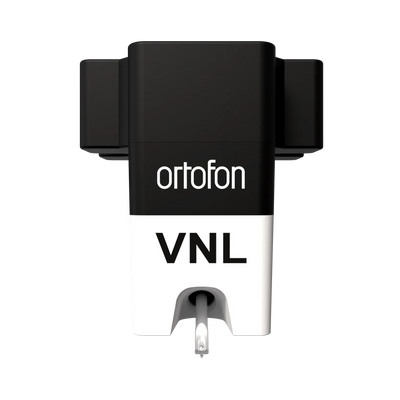

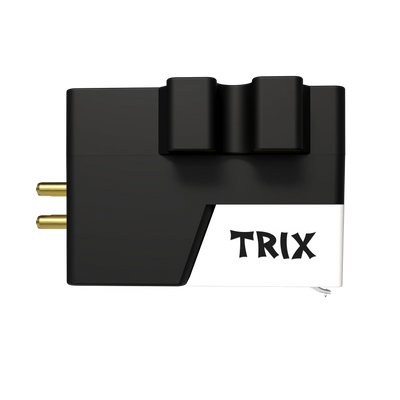

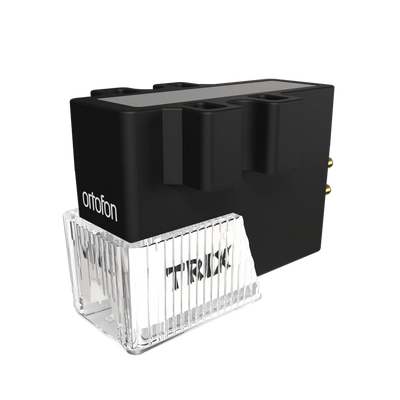

Ortofon VNL TRIX Premounted DJ Cartridge
10 mV output. 100 µm tracking ability. Factory-mounted on the SH-2 Black headshell.
The Ortofon VNL TRIX Premounted is a high-output DJ cartridge designed for scratching, back-cueing, beatmatching, and demanding live performances.
Its spherical diamond stylus, rigid aluminum cantilever, and specialized rubber suspension deliver dependable groove tracking under aggressive DJ techniques. A fluorescent white stylus improves visibility under UV lighting, making cueing easier in dark booths.

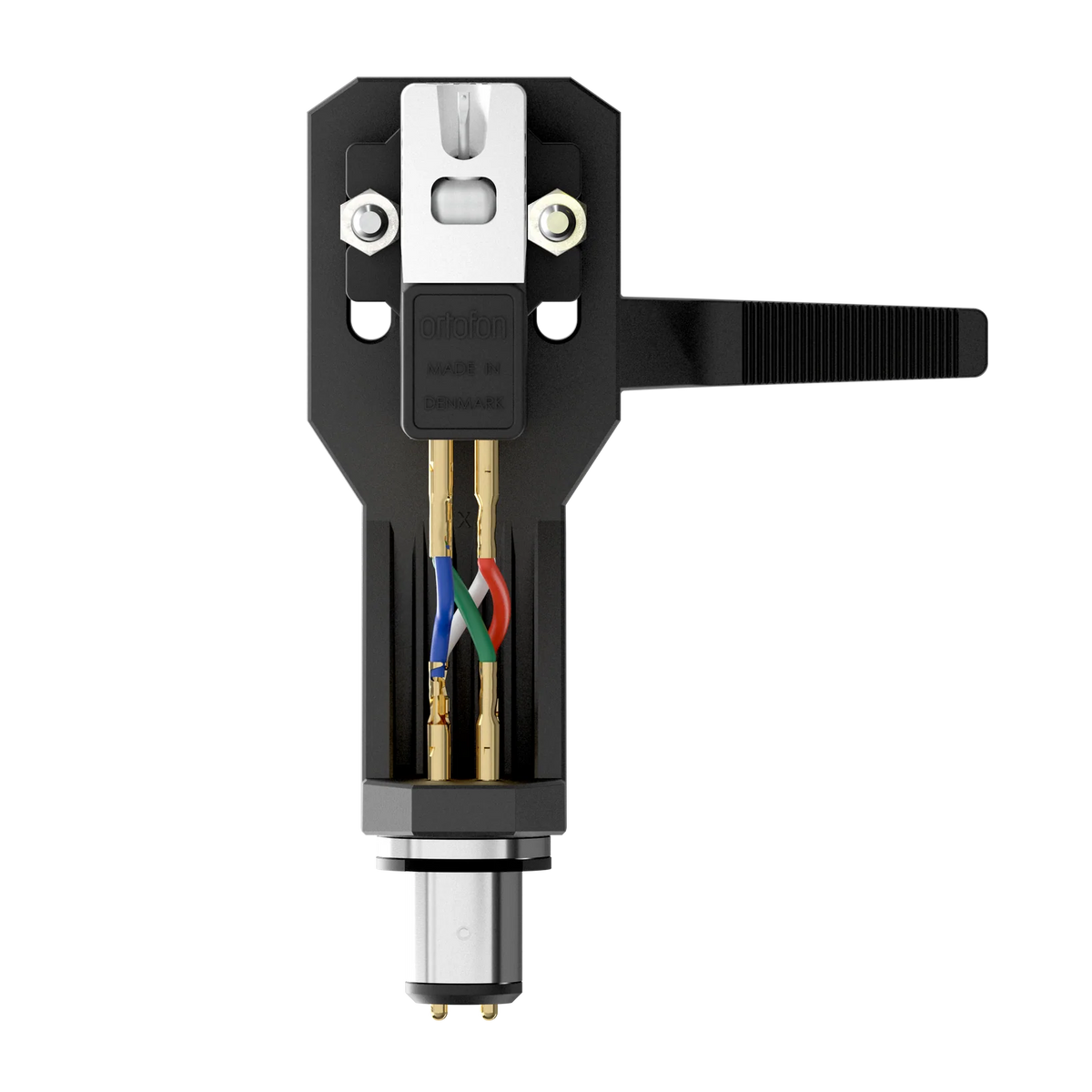

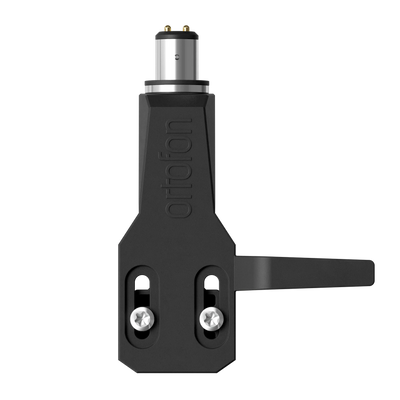

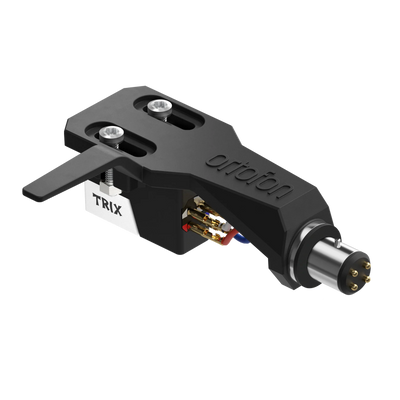

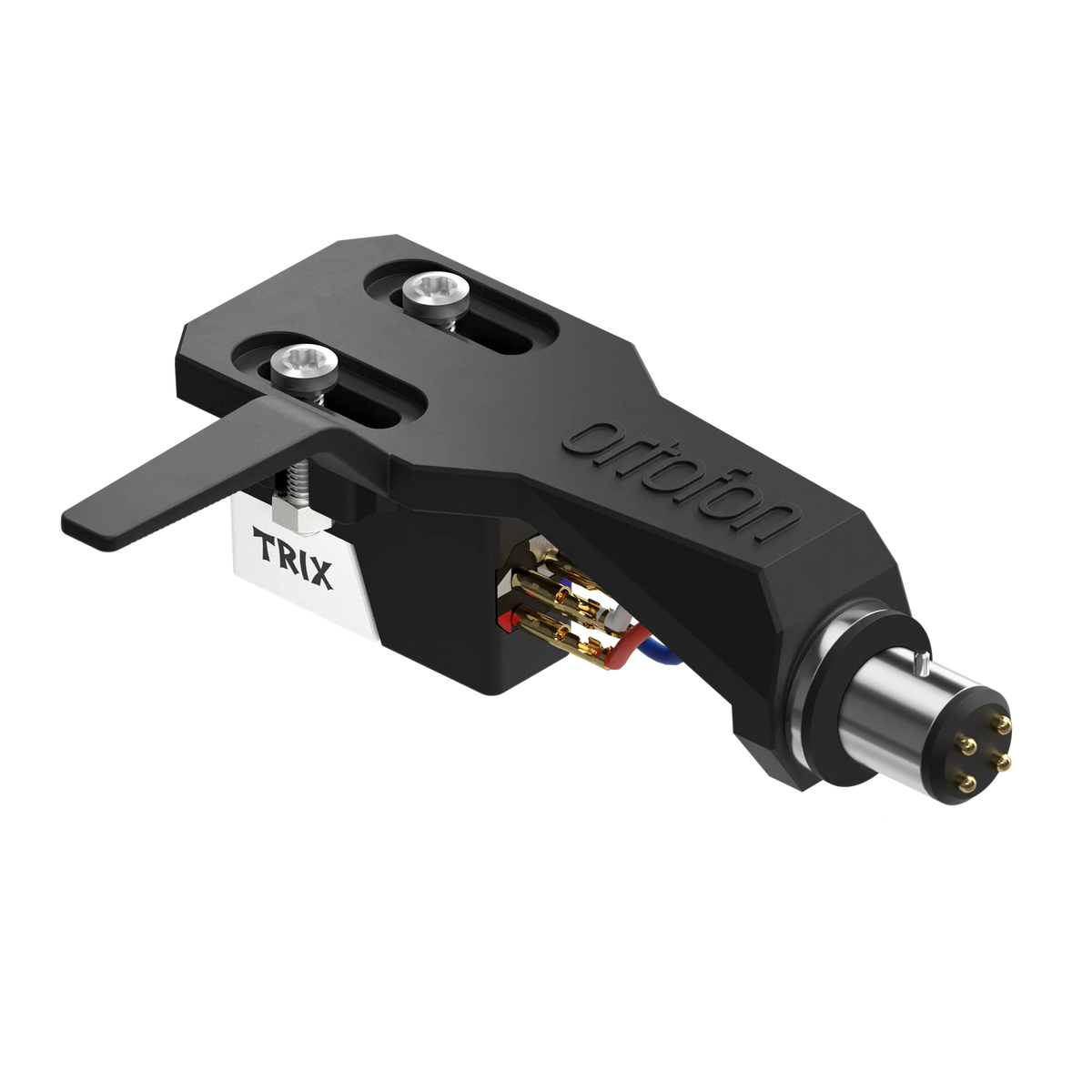

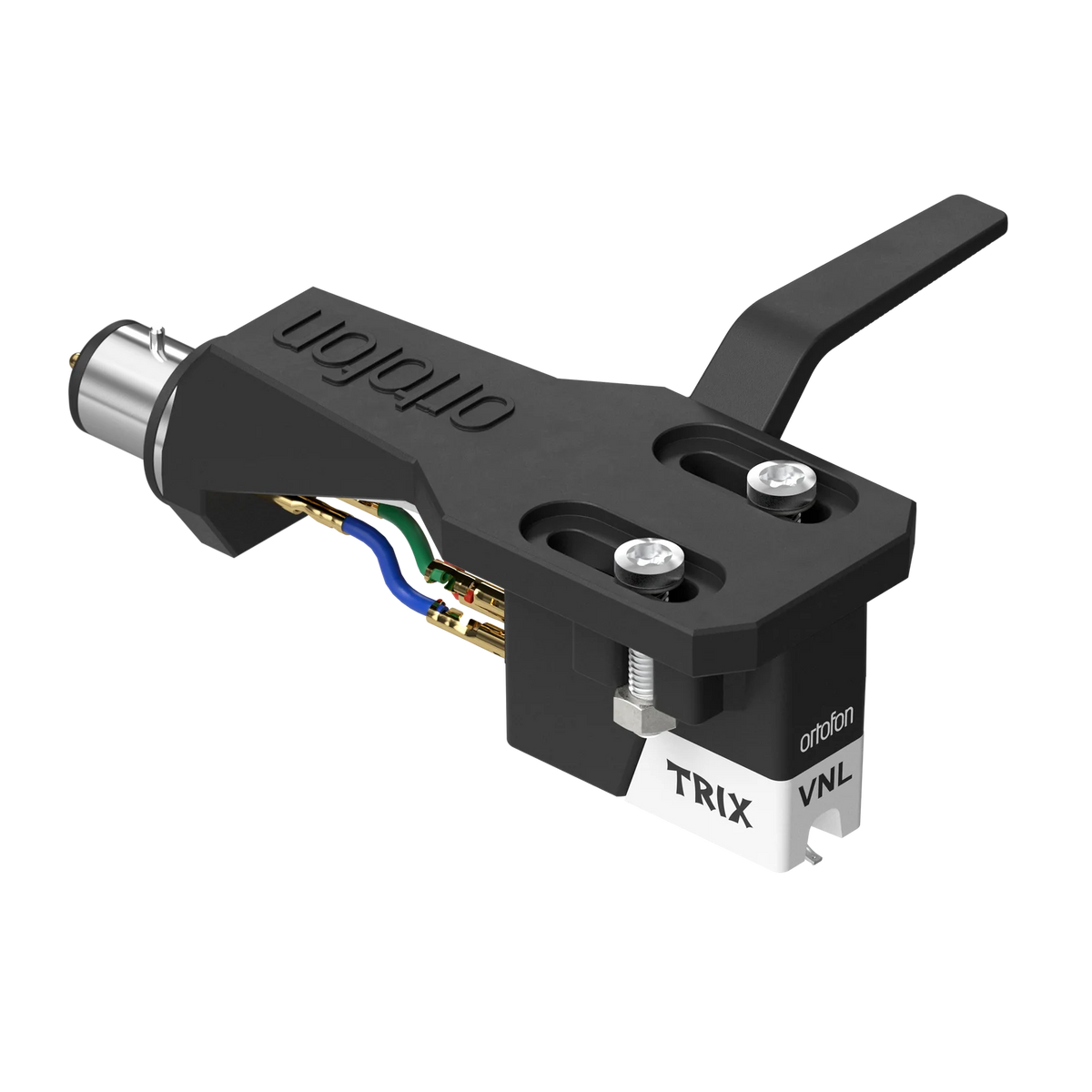

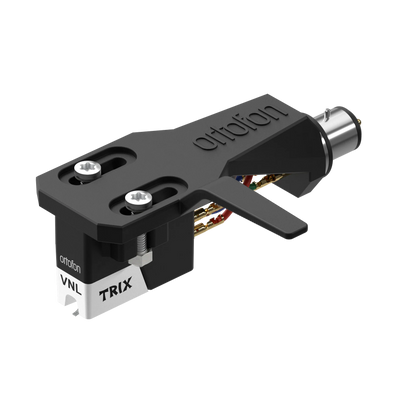

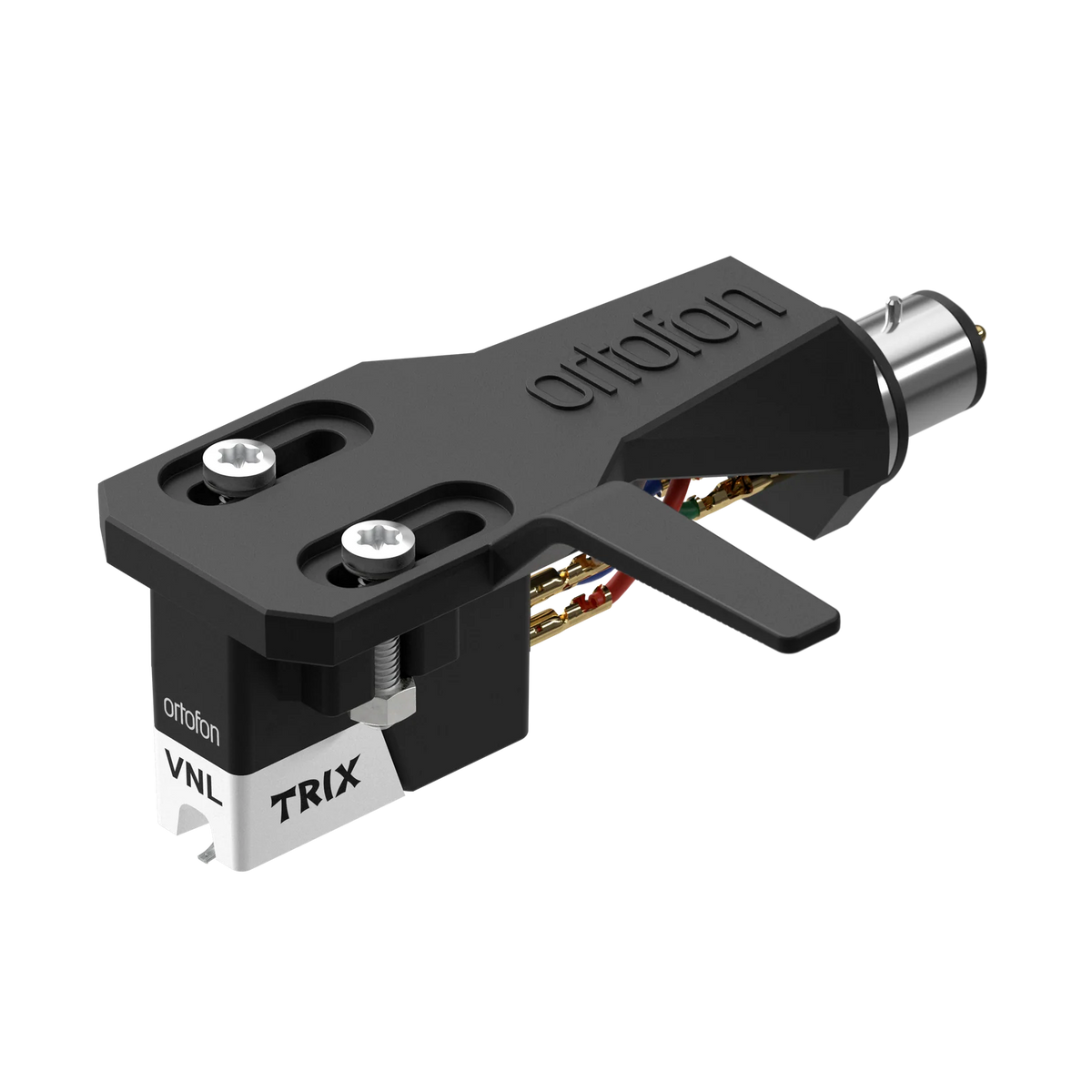

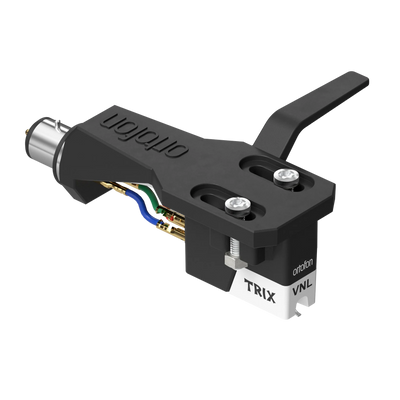

Factory-mounted on Ortofon's SH-2 Black universal headshell, the VNL TRIX Premounted offers a convenient installation solution for compatible turntables with SME-style bayonet tonearm connections.
OUTPUT
10 mV
TRACKING ABILITY
100 µm
TRACKING FORCE
4.0 g
Key Features
-
High-output 10 mV cartridge for DJ applications.
-
100 µm tracking ability for scratching and back-cueing.
-
Spherical diamond stylus with an 18 µm tip radius.
-
Rigid aluminum cantilever and Ortofon rubber suspension.
-
Fluorescent white stylus for improved visibility under UV light.
-
Quad-coil system with oxygen-free copper (OFC) wire.
-
Factory-mounted on the SH-2 Black universal headshell.
-

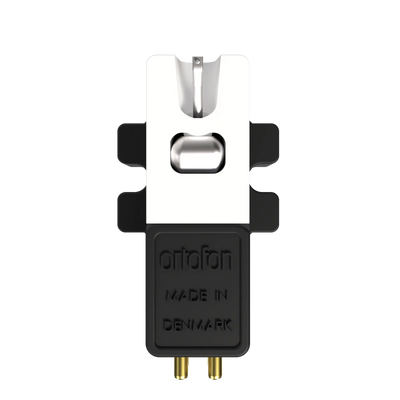

Replaceable stylus compatible with the VNL cartridge family.
Complete Technical Specifications
|
Specification |
Ortofon VNL TRIX Premounted |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Application |
DJ scratching and high-tracking-performance playback |
|
Output voltage at 1 kHz, 5 cm/sec |
10 mV |
|
Channel separation at 1 kHz |
22 dB |
|
Frequency response, 20 Hz–20 kHz |
±3 dB |
|
Tracking ability at 315 Hz |
100 µm |
|
Dynamic lateral compliance |
12 µm/mN |
|
Stylus type |
Spherical diamond |
|
Stylus tip radius |
R 18 µm |
|
Cantilever material |
Aluminum |
|
Stylus suspension |
Ortofon proprietary rubber suspension |
|
Coil system |
Quad coils |
|
Coil wire material |
Oxygen-free copper (OFC) |
|
Recommended tracking force |
4.0 g |
|
Recommended load resistance |
47 kΩ |
|
Mounting type |
SME-style bayonet |
|
Included headshell |
Ortofon SH-2 Black |
|
Premounted assembly weight |
17 g |
|
Cartridge color |
Black |
|
Stylus color |
Fluorescent white |
|
Replacement stylus |
Stylus VNL TRIX |
Ortofon lists the complete premounted assembly at 17 g. Its US specifications also label 17 g as cartridge weight, but do not clearly establish a separate cartridge-only weight. Tracking-force range, internal impedance, inductance, and recommended load capacitance are not published for this model on the referenced product pages, so they have not been inferred from other VNL cartridges.
Built for Scratching and Back-Cueing
High-Output Performance
A 10 mV output provides a strong signal for compatible DJ mixers and phono inputs.
Secure Groove Tracking
The 100 µm tracking ability, spherical stylus, and specialized suspension are engineered for demanding scratching and back-cueing techniques.
Fluorescent White Stylus
The stylus glows under UV lighting, helping DJs locate cue points in low-light environments.

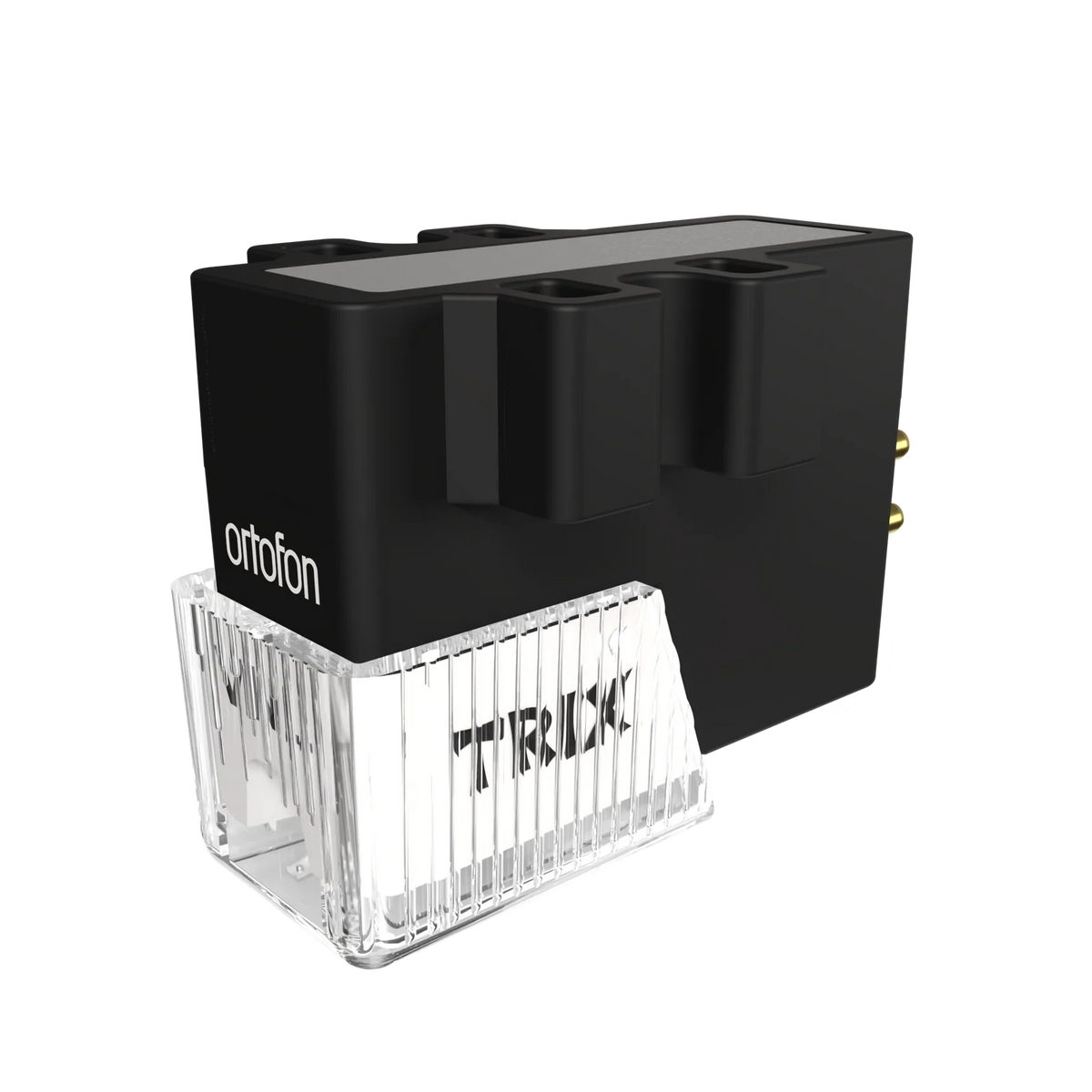

Interchangeable VNL Stylus
The VNL TRIX stylus is compatible with other VNL cartridge bodies, allowing replacement or changes between compatible VNL stylus options.
Compatibility & Installation

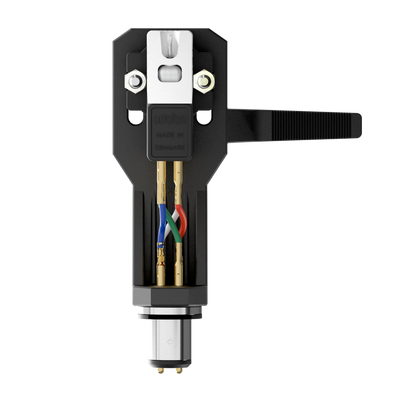

The VNL TRIX Premounted includes the cartridge factory-installed on Ortofon's SH-2 Black headshell. Its SME-style bayonet connector fits compatible tonearms commonly found on DJ turntables.

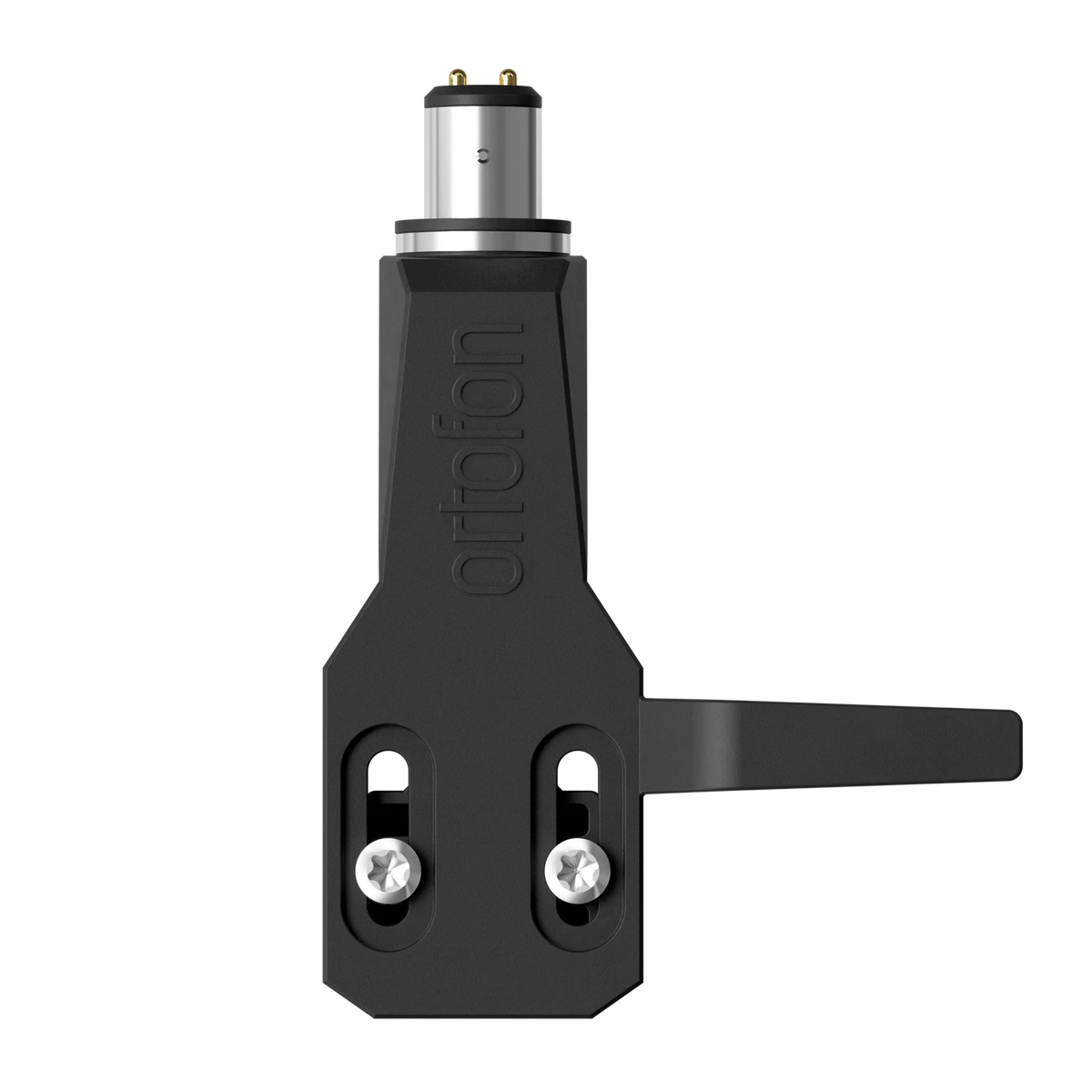

The headshell uses Torx T8 mounting screws. Confirm your turntable's headshell connection and tonearm compatibility before purchasing.
Explore Ortofon at The Grid HiFi. Our Houston team can help with cartridge selection, turntable compatibility, and replacement styli.
