Overview

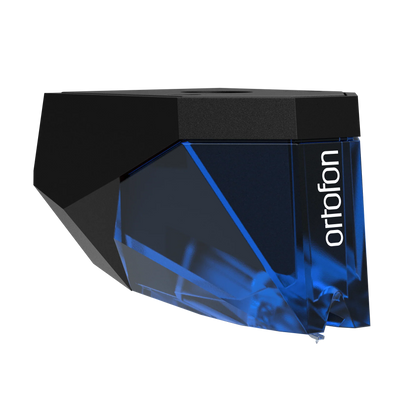

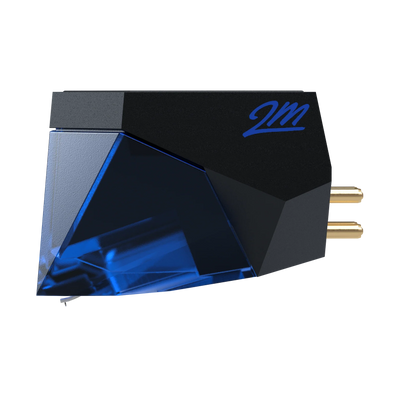

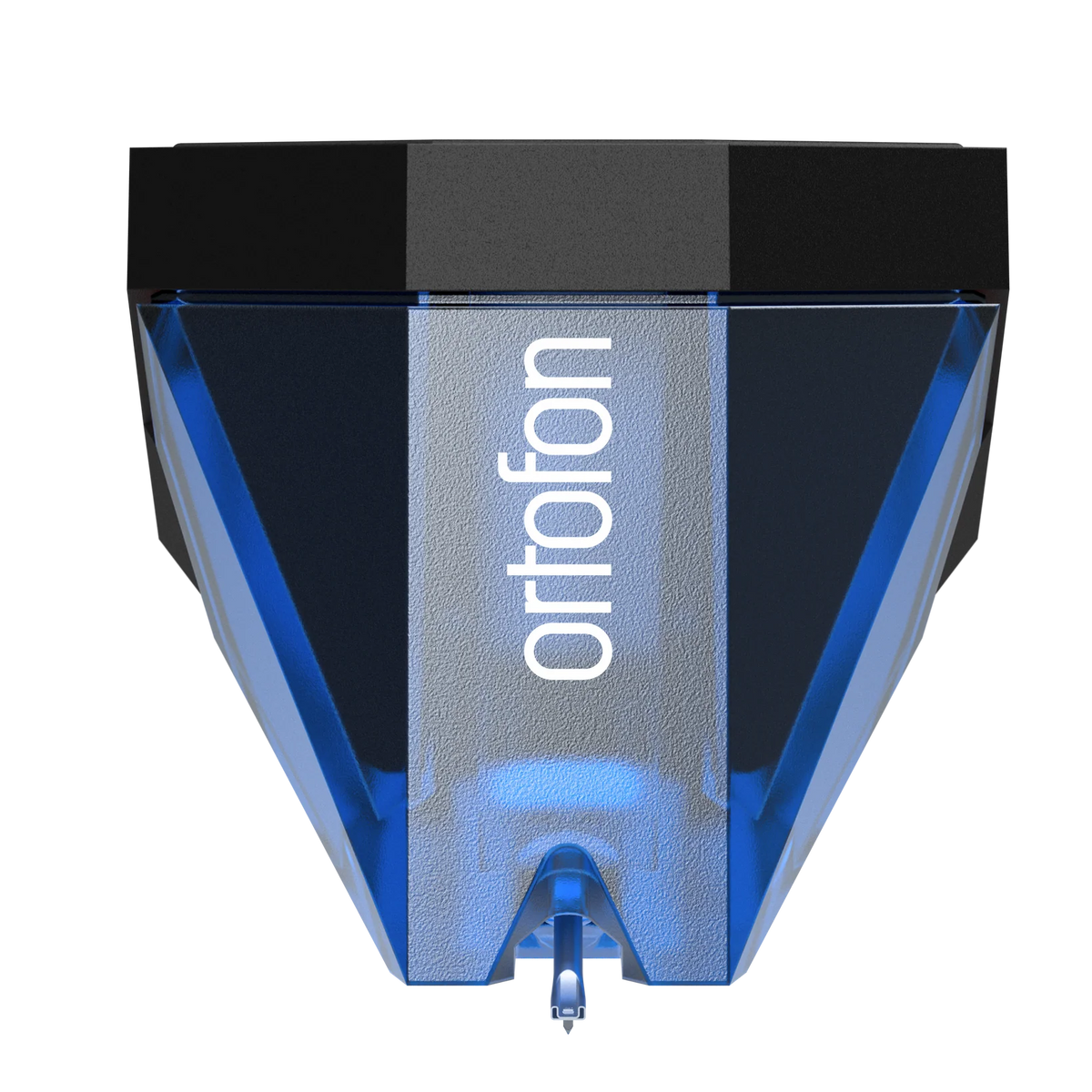

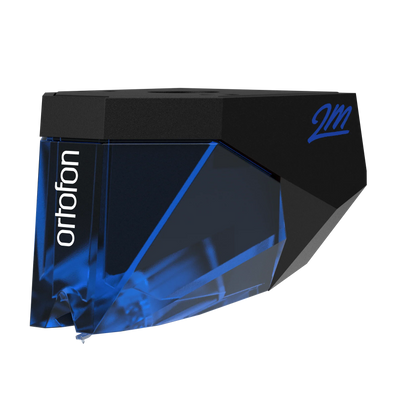

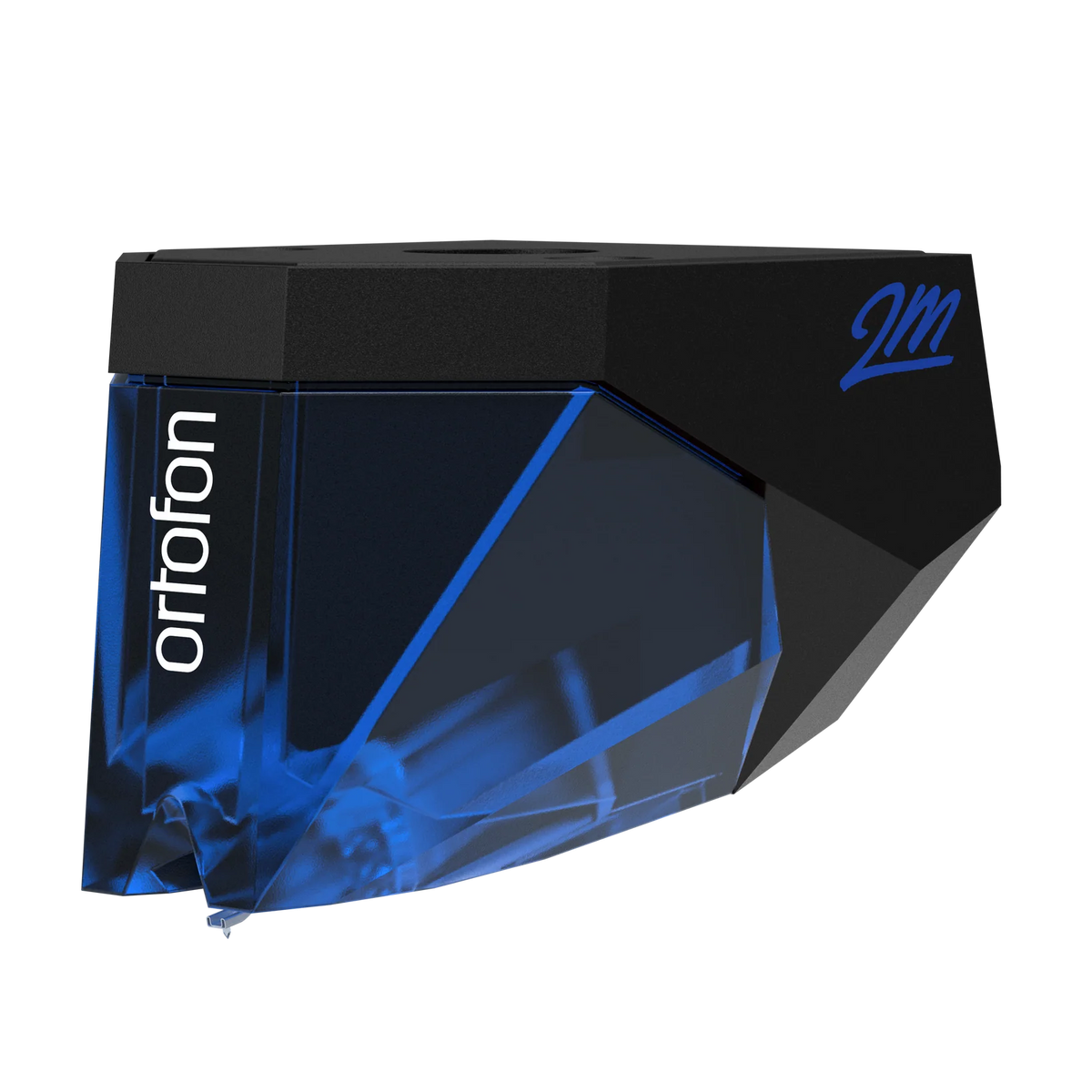

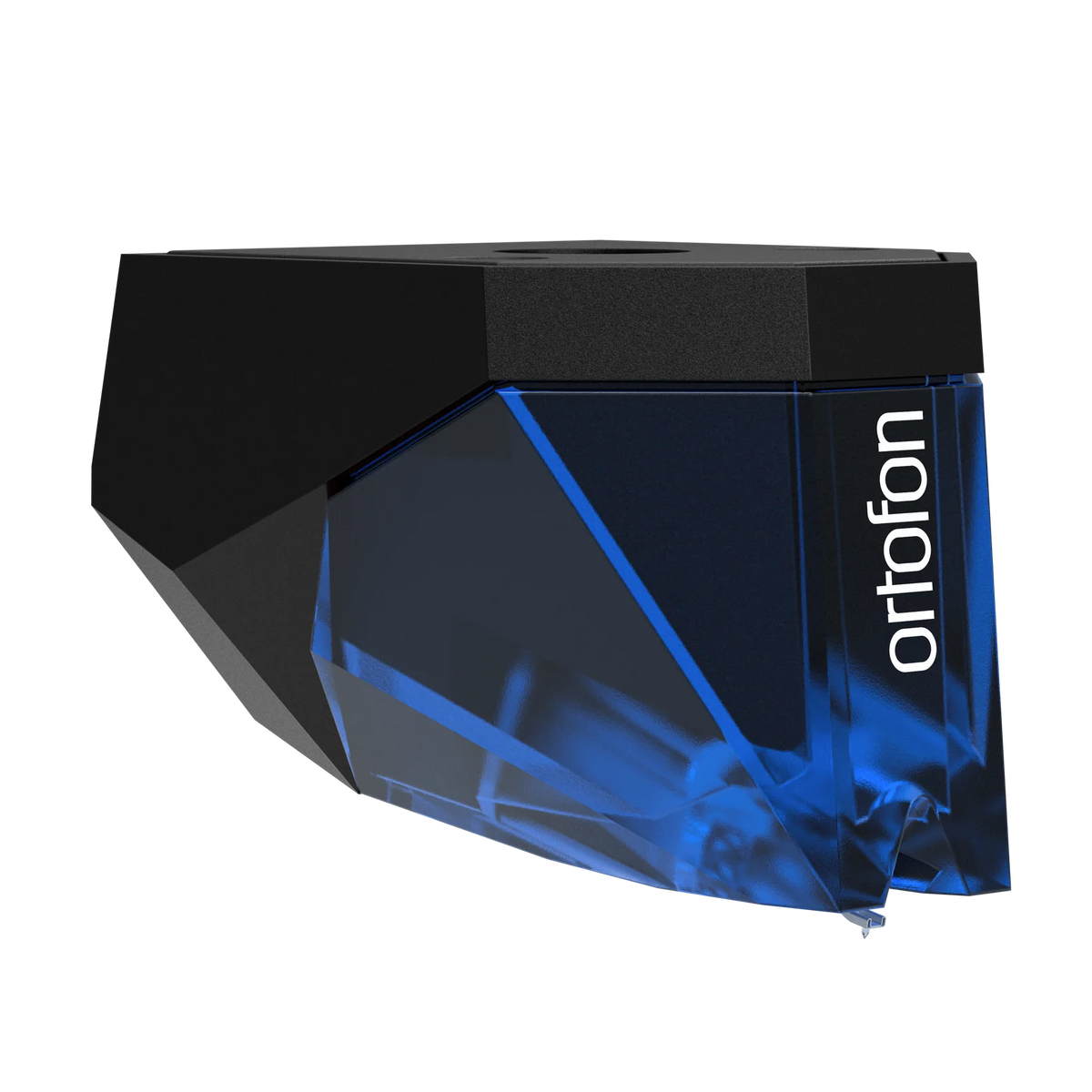

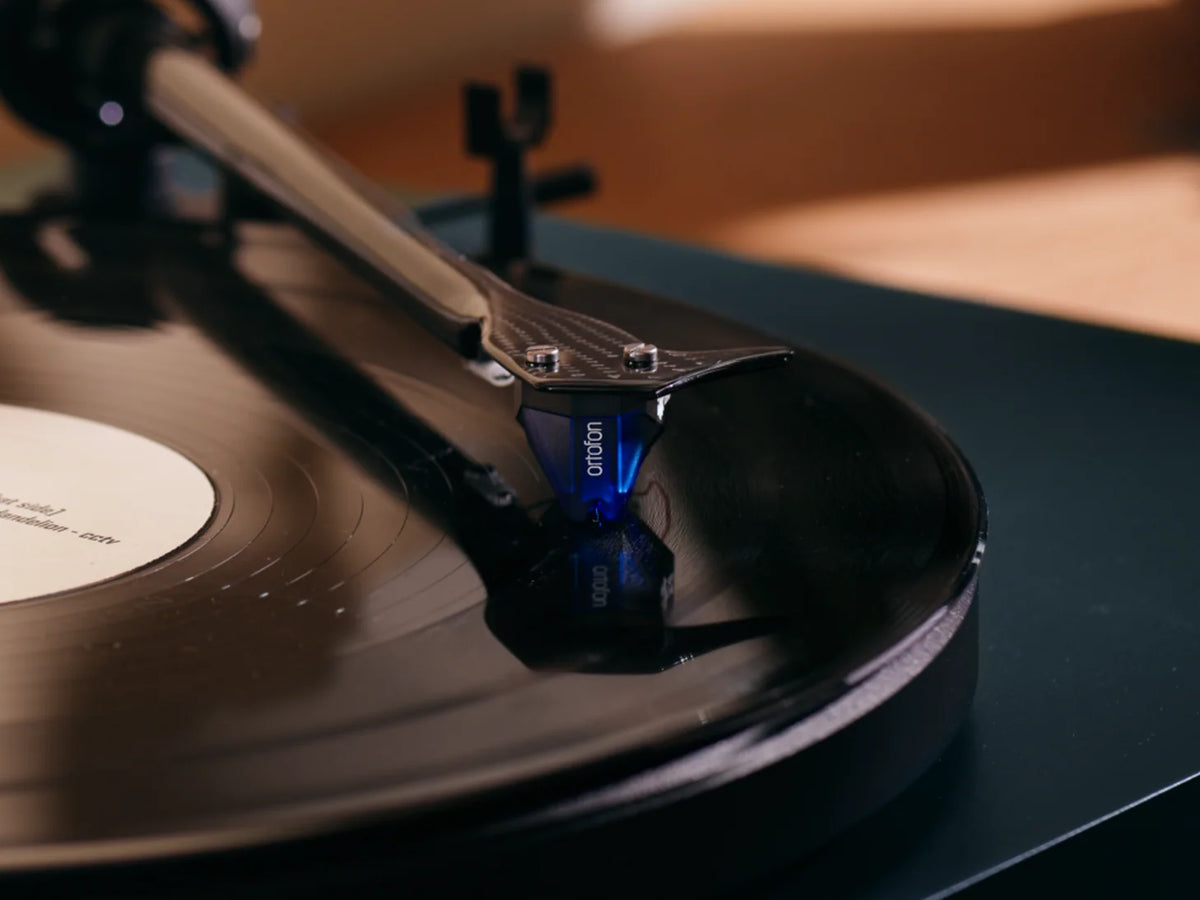

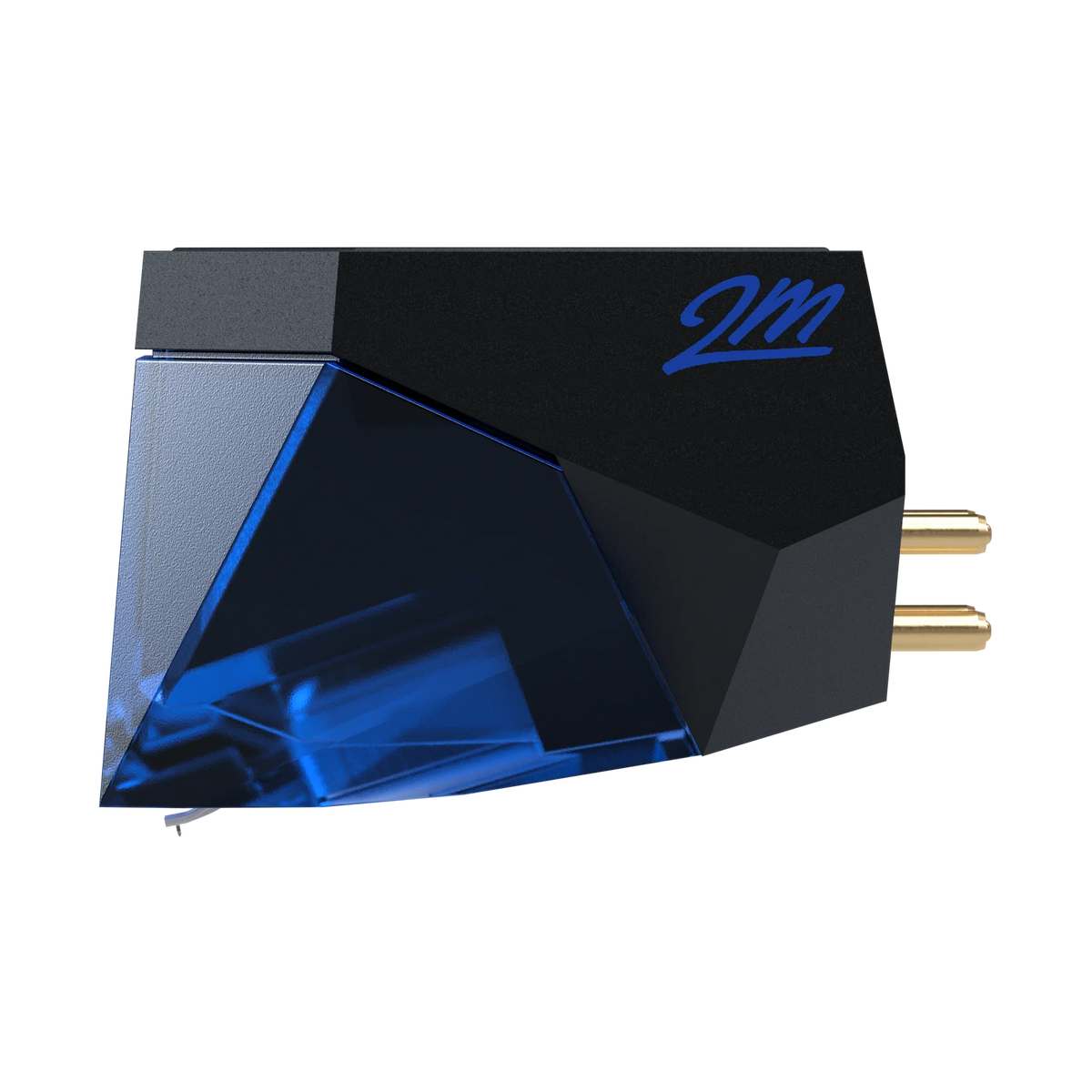

Ortofon 2M Blue Moving Magnet Phono Cartridge
Nude Elliptical stylus. 5.5 mV output. Greater detail from your vinyl collection.
The Ortofon 2M Blue is a moving magnet phono cartridge designed for listeners seeking greater resolution, improved dynamics, and more precise groove tracking.

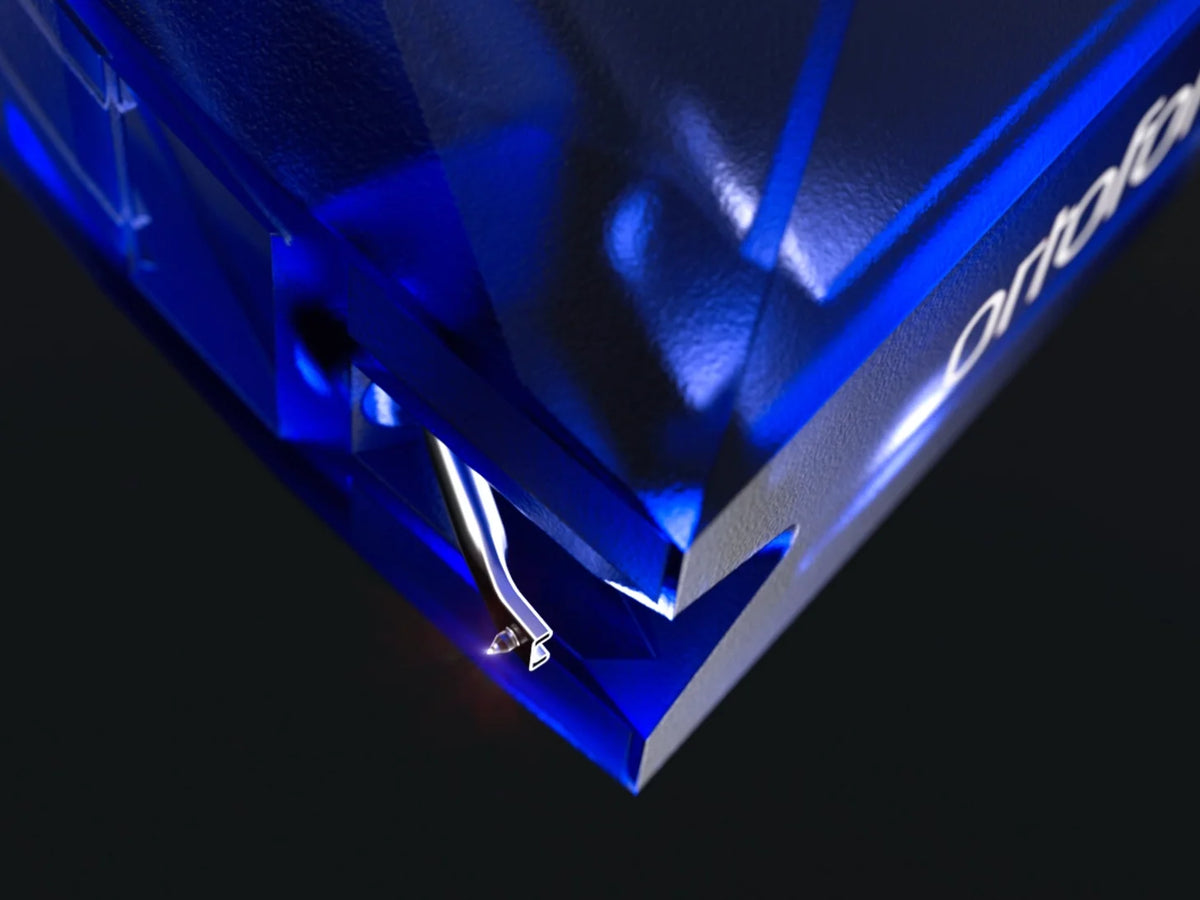

Its Nude Elliptical diamond stylus is mounted directly to the cantilever, allowing it to retrieve more information from the record groove than the bonded elliptical stylus used in the 2M Red. Ortofon's split pole pin technology and 5.5 mV output complete a cartridge designed for detailed, balanced vinyl reproduction.
OUTPUT
5.5 mV
TRACKING FORCE
1.8 g
CHANNEL SEPARATION
25 dB
Key Features
-
Nude Elliptical diamond stylus for detailed groove retrieval.
-
Aluminum cantilever with 80 µm tracking ability.
-
Split pole pin technology with OFC coil wire.
-
Standard ½-inch mounting for compatible turntables.
-
Replaceable stylus for convenient maintenance and upgrades.
-
5.5 mV output compatible with appropriately configured MM phono stages.
Complete Technical Specifications
Manufacturer specifications verified against Ortofon's US and international product pages.
|
Specification |
Ortofon 2M Blue |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Stylus type |
Nude Elliptical |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Coil system |
Quad-coils with split pole pins |
|
Coil wire material |
OFC (oxygen-free copper) |
|
Cartridge body material |
Polymer and aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
5.5 mV |
|
Channel balance at 1 kHz |
1.5 dB |
|
Channel separation at 1 kHz |
25 dB |
|
Frequency response, 20 Hz–20 kHz |
+2 / −1 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
20 µm/mN |
|
Tracking force range |
1.6–2.0 g (16–20 mN) |
|
Recommended tracking force |
1.8 g (18 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
1.3 kΩ |
|
Internal inductance |
700 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted version weight |
16.7 g |
|
Cartridge color |
Black / Blue |
|
Stylus color |
Blue |
2M Blue vs. 2M Red: What's the Difference?
The 2M Blue retains the accessible design of the 2M Red but introduces a Nude Elliptical stylus for improved detail retrieval and tracking performance.
|
Feature |
2M Red |
2M Blue |
|---|---|---|
|
Stylus |
Bonded Elliptical |
Nude Elliptical |
|
Output voltage |
5.5 mV |
5.5 mV |
|
Channel separation |
22 dB |
25 dB |
|
Tracking ability |
70 µm |
80 µm |
|
Recommended tracking force |
1.8 g |
1.8 g |
|
Cartridge weight |
7.2 g |
7.2 g |
Already own a 2M Red? The 2M Blue replacement stylus provides an upgrade path without replacing the entire compatible cartridge body.
Compatibility & Installation

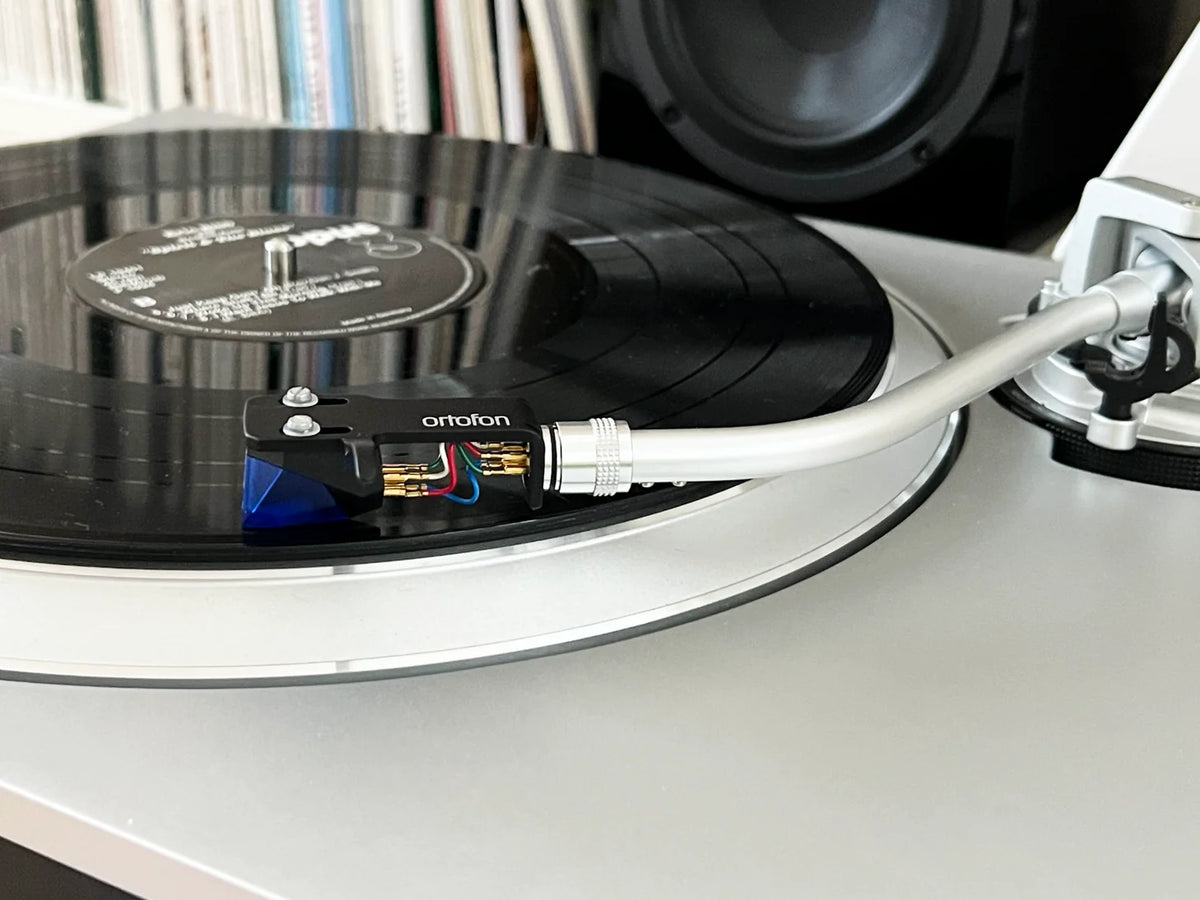

The standard 2M Blue features ½-inch mounting and is intended for compatible turntables and tonearms. It requires a moving magnet phono input or external MM phono preamplifier.
For different mounting requirements, Ortofon also offers the 2M Blue Premounted for compatible S-shaped tonearms, the 2M Verso for bottom-mount headshells, and the low-profile 2MR Blue for turntables such as certain Rega models. These are separate configurations.
Available at The Grid HiFi in Houston. Contact our team for cartridge selection, turntable compatibility, and phono stage matching.
