Overview

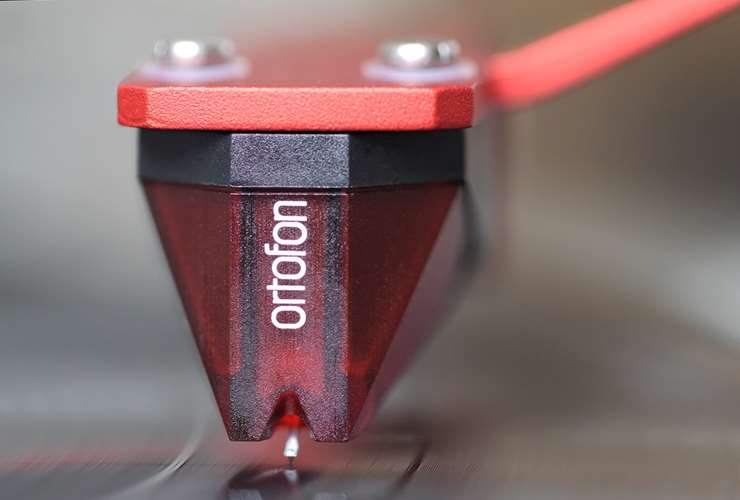

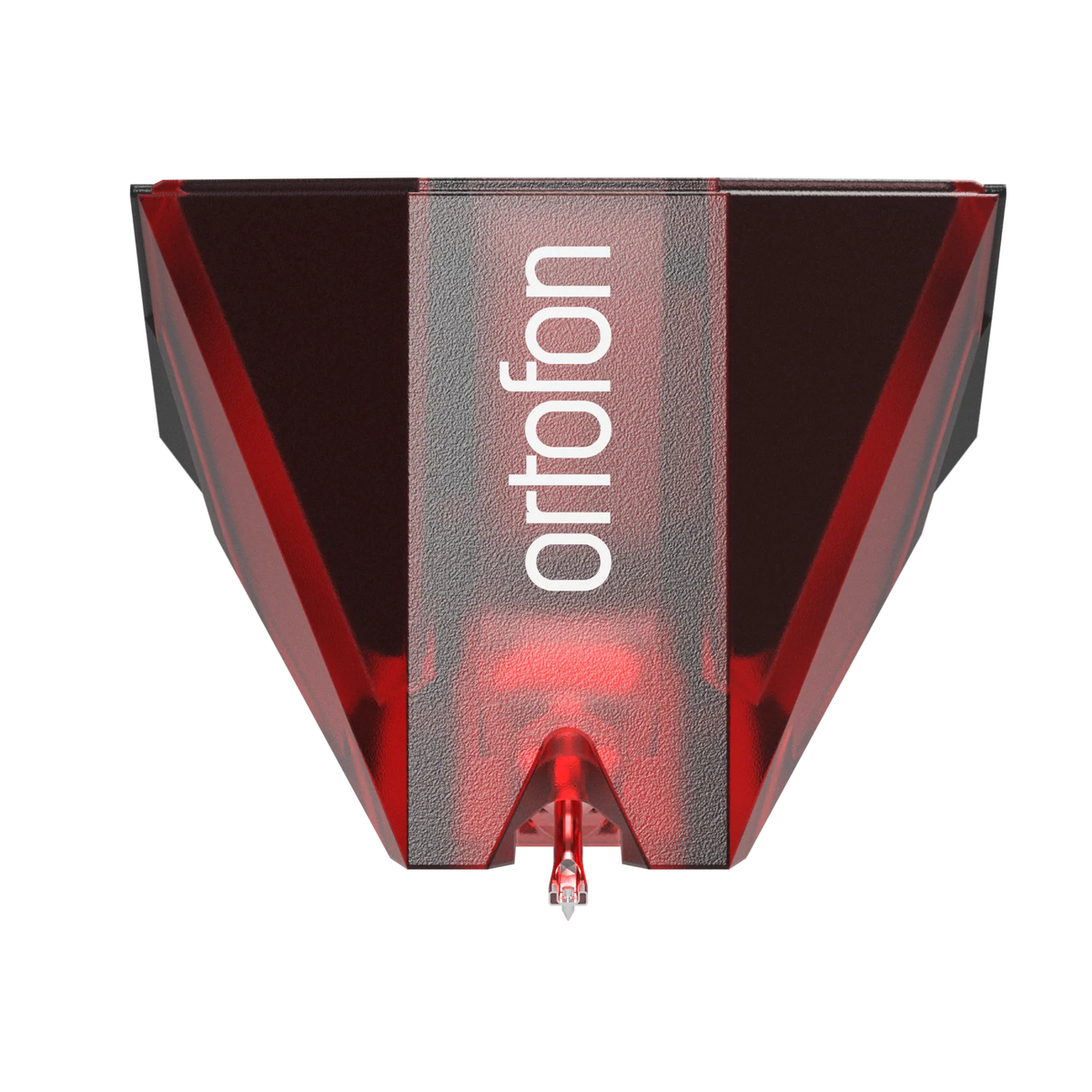

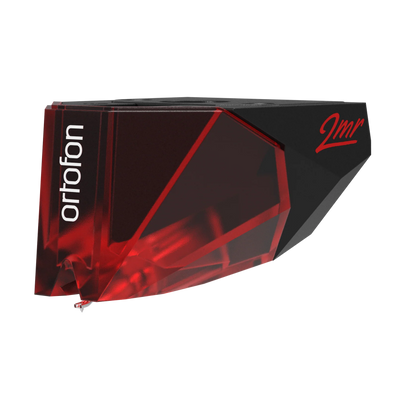

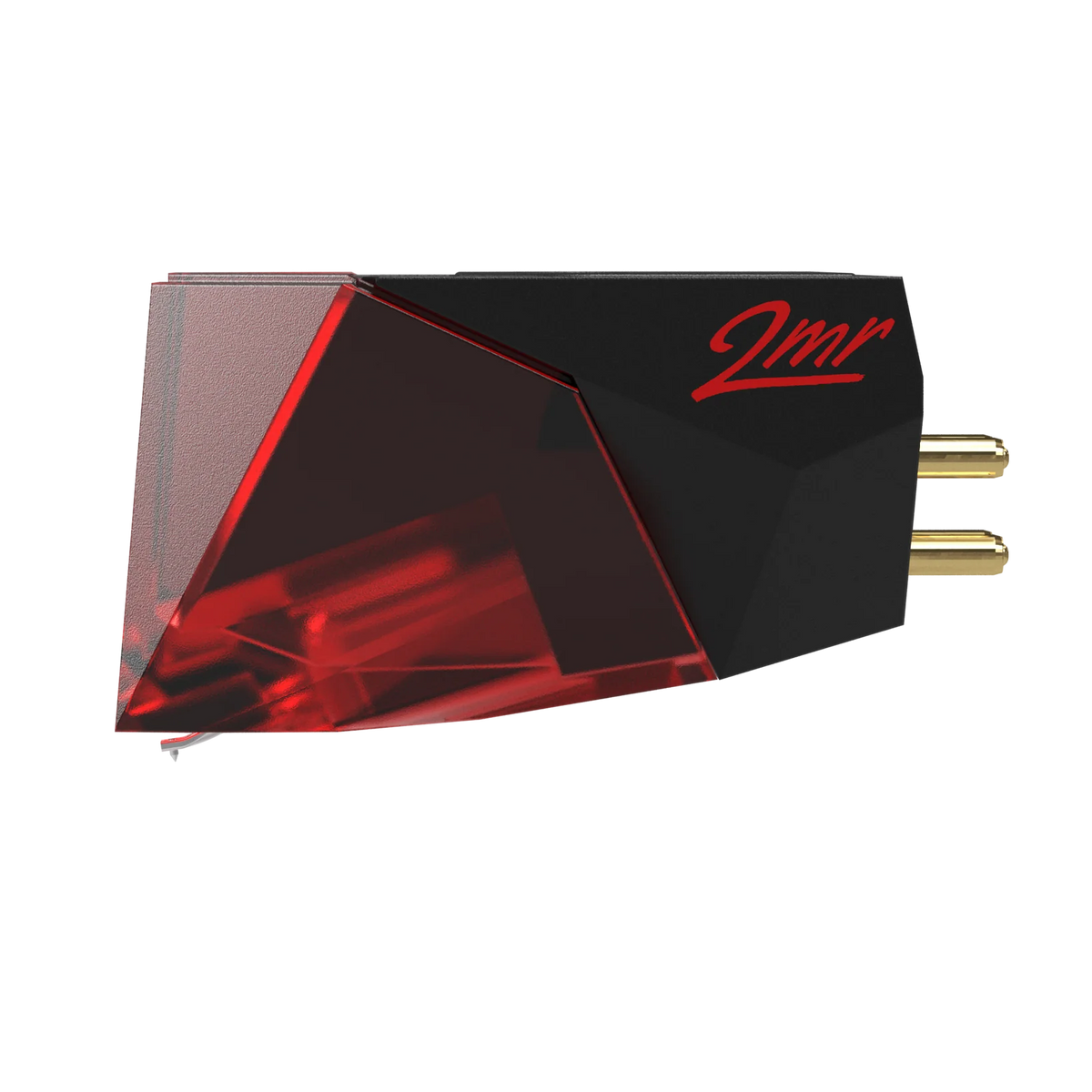

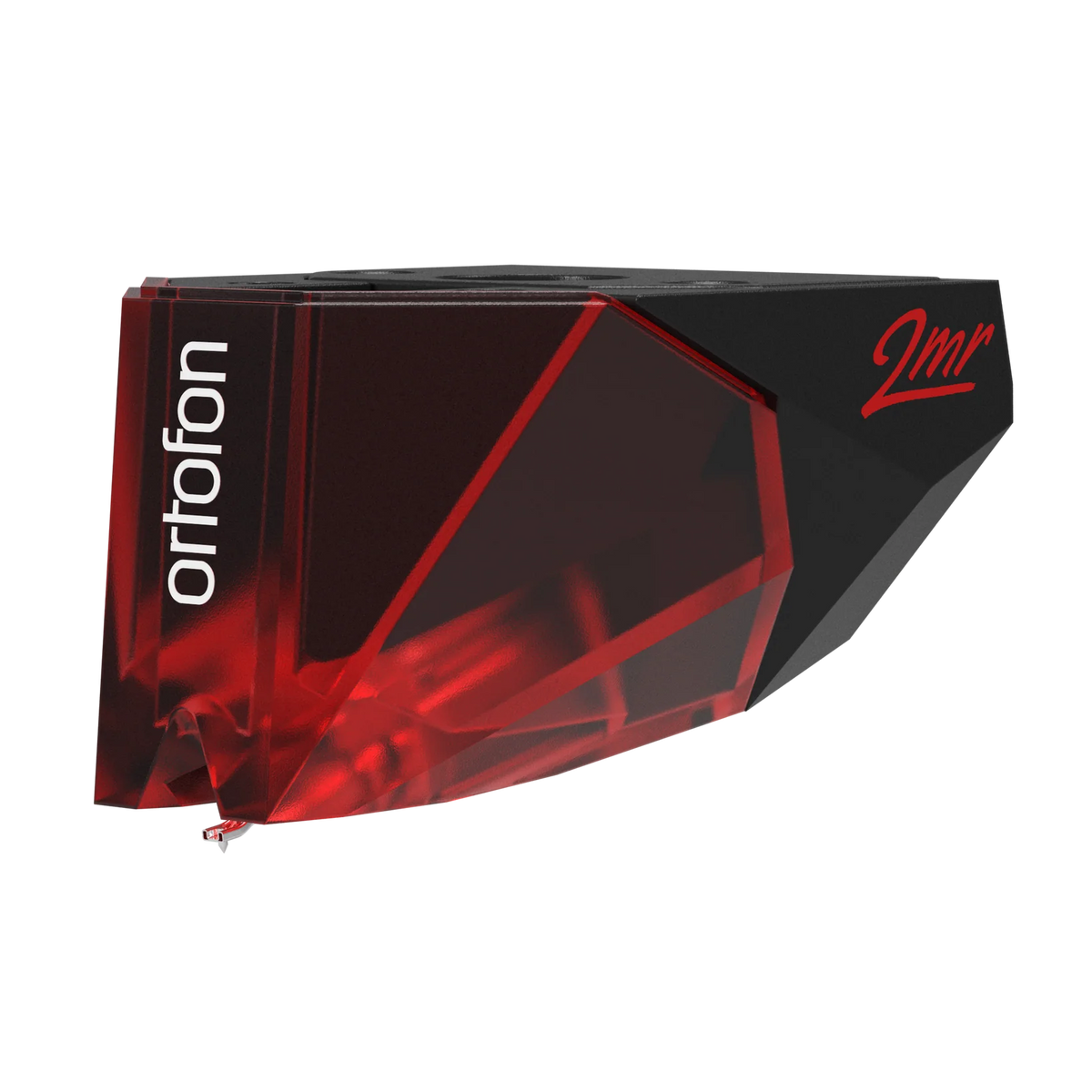

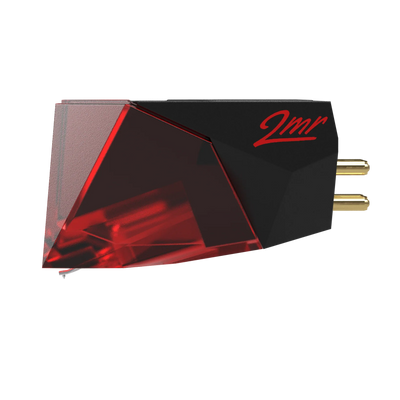

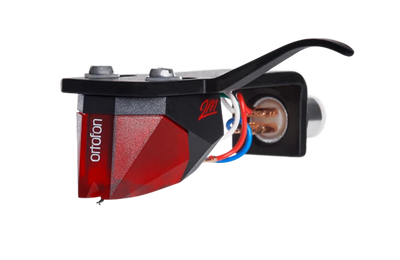

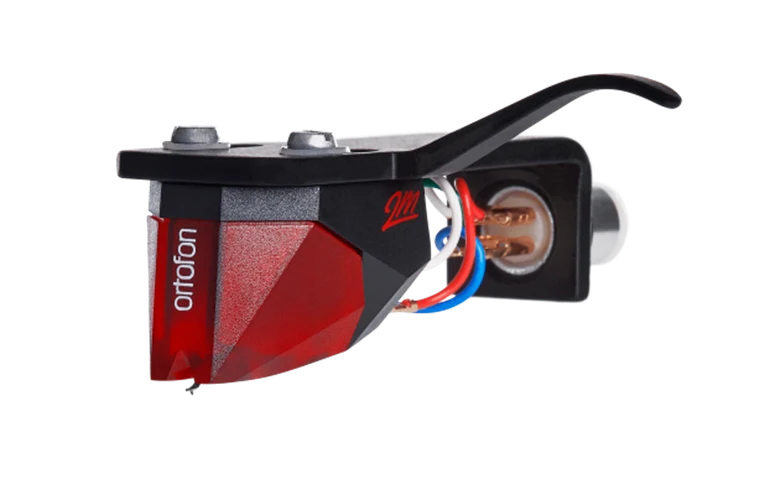

Ortofon 2MR Red Moving Magnet Phono Cartridge
Low-profile design. Elliptical diamond stylus. 5.5 mV output.

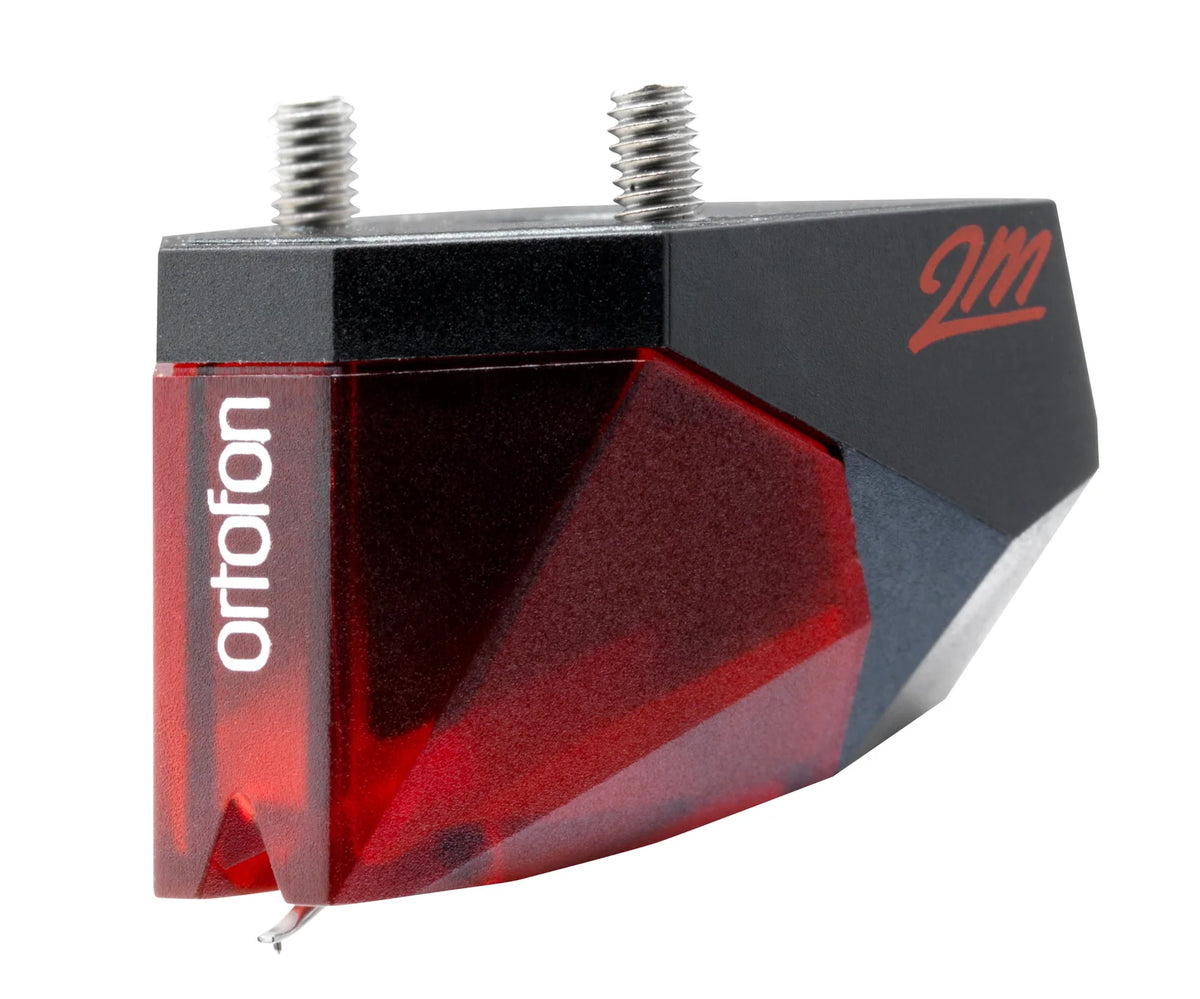

The Ortofon 2MR Red brings the performance of the 2M Red to turntables that require a lower-profile cartridge. Its redesigned housing is 3 mm shorter than the standard 2M body, making it particularly suitable for compatible Rega turntables without requiring tonearm spacers.
Featuring an elliptical diamond stylus, aluminum cantilever, and Ortofon's quad-coil motor with split pole pins, the 2MR Red delivers an open, dynamic sound with a touch of warmth.
Its replaceable stylus and compatibility with the entire 2M stylus range also provide a convenient upgrade path as your vinyl system evolves.
OUTPUT
5.5 mV
TRACKING FORCE
1.8 g
WEIGHT
6 g
Key Features
-
Low-profile cartridge body, 3 mm shorter than the standard 2M.
-
Designed for compatible Rega and other low-profile turntables.
-
Elliptical diamond stylus with aluminum cantilever.
-
Quad-coil motor with split pole pins and copper coil wire.
-
Standard ½-inch mounting with two-screw installation.
-
Replaceable stylus, compatible with the full 2M stylus range.
-
5.5 mV output for compatible moving magnet phono stages.
Complete Technical Specifications
The following combines Ortofon's published 2MR Red specifications with the shared 2M Red motor and stylus specifications. The 2MR-specific body weight and dimensions take precedence over those of the standard cartridge.
|
Specification |
Ortofon 2MR Red |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Mounting configuration |
Low-profile, ½-inch mount |
|
Housing height |
3 mm shorter than standard 2M |
|
Stylus type |
Elliptical diamond |
|
Stylus tip radius |
r/R 8/18 µm |
|
Cantilever material |
Aluminum |
|
Coil system |
Quad-coil with split pole pins |
|
Coil wire material |
Copper |
|
Output voltage at 1 kHz, 5 cm/sec |
5.5 mV |
|
Channel balance at 1 kHz |
1.5 dB* |
|
Channel separation at 1 kHz |
22 dB* |
|
Frequency response, 20 Hz–20 kHz |
+3 / −1 dB* |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
20 µm/mN |
|
Tracking force range |
1.6–2.0 g (16–20 mN)* |
|
Recommended tracking force |
1.8 g (18 mN) |
|
Tracking angle |
20°* |
|
Internal impedance / DC resistance |
1.3 kΩ* |
|
Internal inductance |
700 mH* |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Cartridge weight |
6 g |
|
Cartridge color |
Black / Red |
|
Replacement stylus |
Stylus 2M Red |
*Ortofon does not separately list these values on its current 2MR Red product page. They are published for the standard 2M Red or its shared replacement stylus and are included as corresponding reference specifications.
2MR Red vs. 2M Red
The key difference is the cartridge housing, not the stylus.
|
Feature |
2MR Red |
Standard 2M Red |
|---|---|---|
|
Intended fit |
Low-profile tonearms |
Conventional cartridge-height requirements |
|
Housing |
3 mm shorter |
Standard height |
|
Weight |
6 g |
7.2 g |
|
Stylus |
Elliptical |
Elliptical |
|
Output |
5.5 mV |
5.5 mV |
|
Recommended tracking force |
1.8 g |
1.8 g |
The 2MR Red is designed to simplify installation on compatible Rega turntables and other tonearms where cartridge height affects vertical tracking angle. Always confirm compatibility with your specific turntable model.
Replacement Stylus & Upgrades

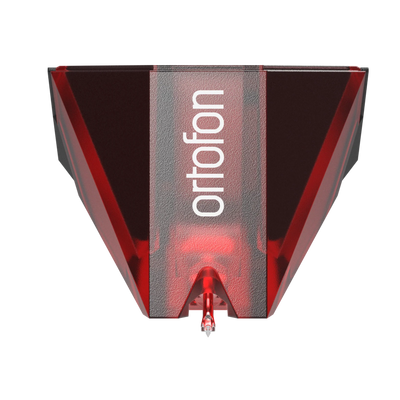

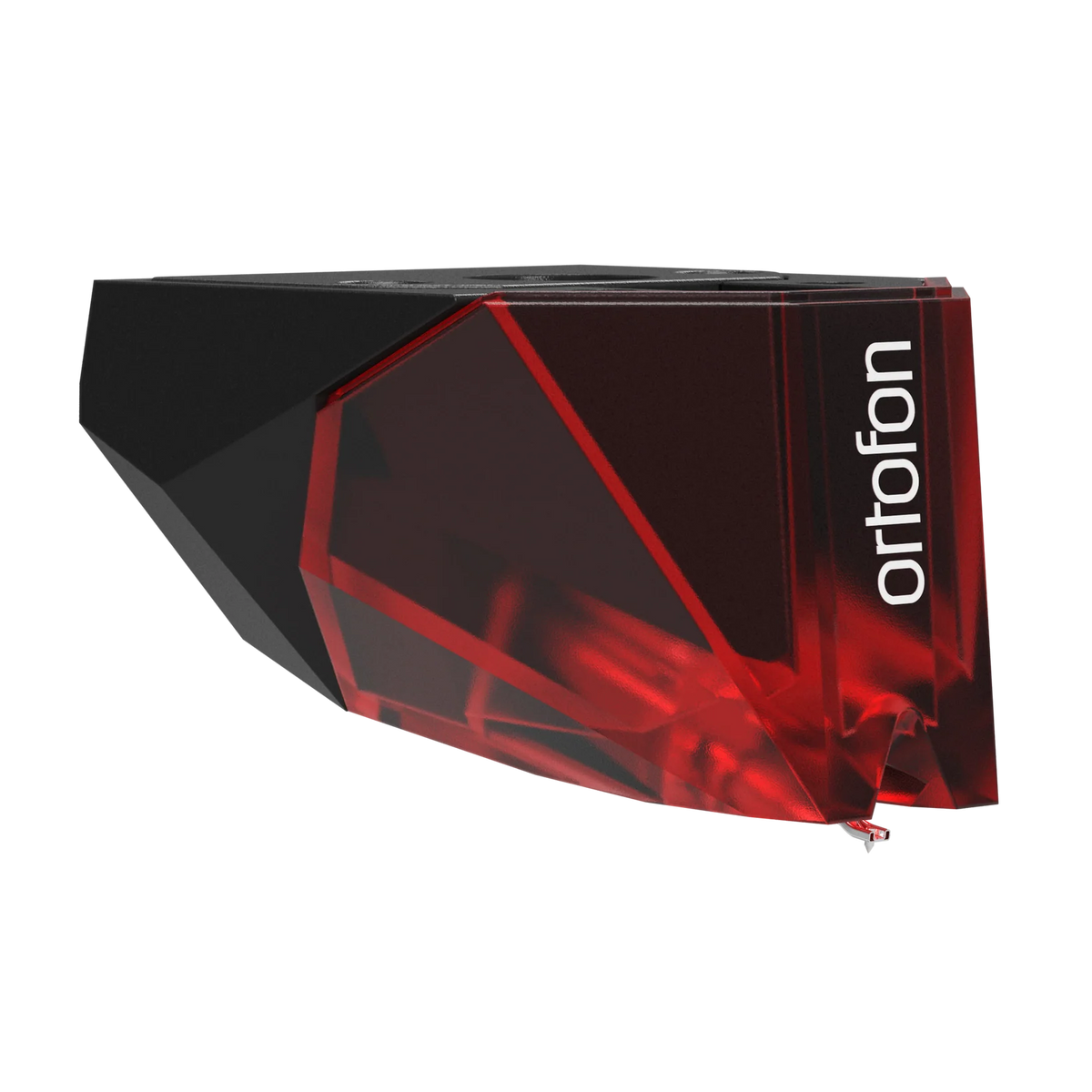

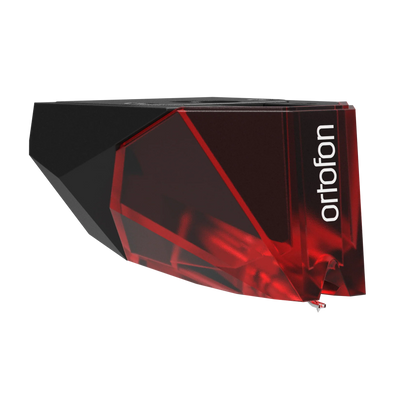

The designated replacement is the Ortofon Stylus 2M Red. The 2MR cartridge body also accepts other styli in the 2M range, providing an upgrade path without replacing the complete cartridge.
