Overview

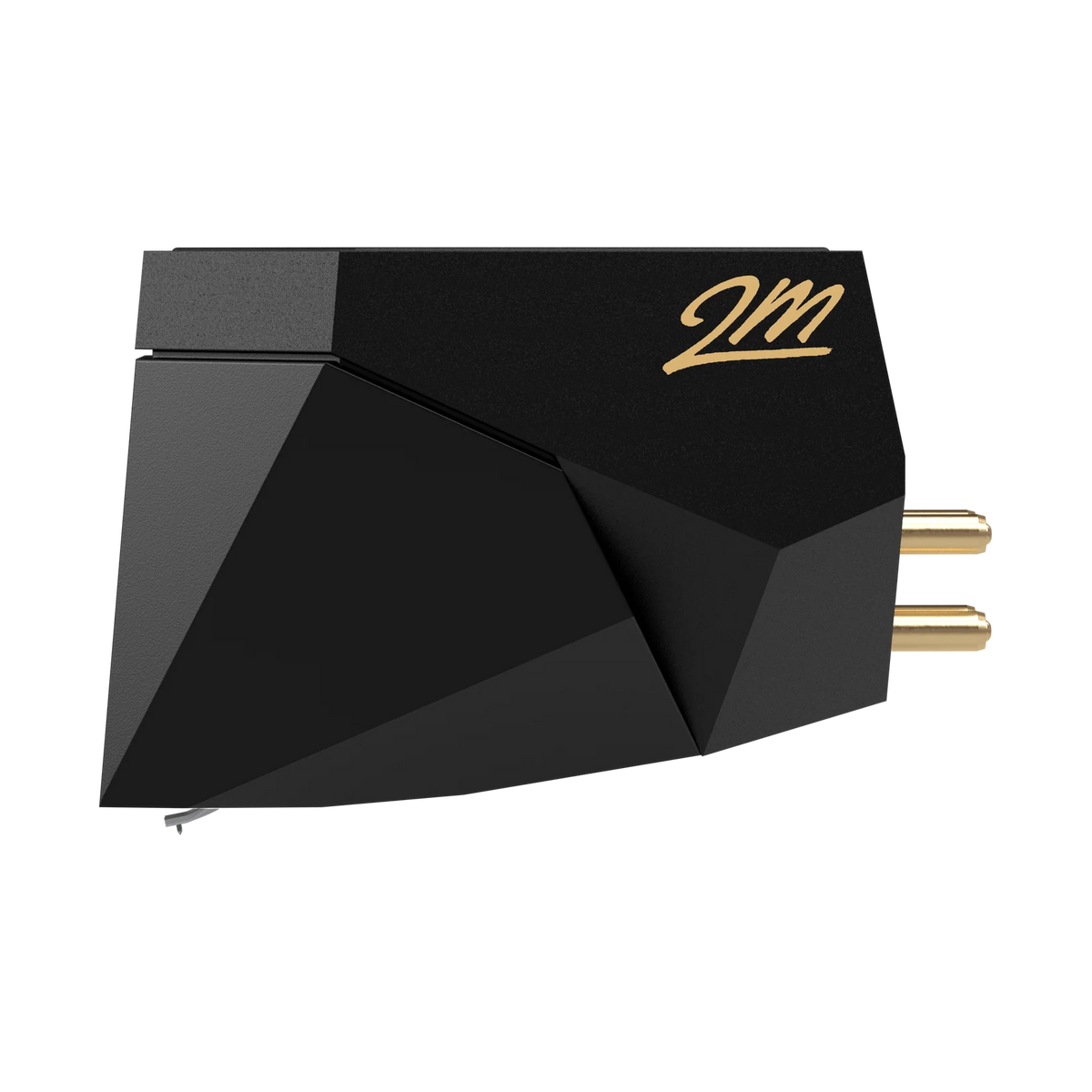

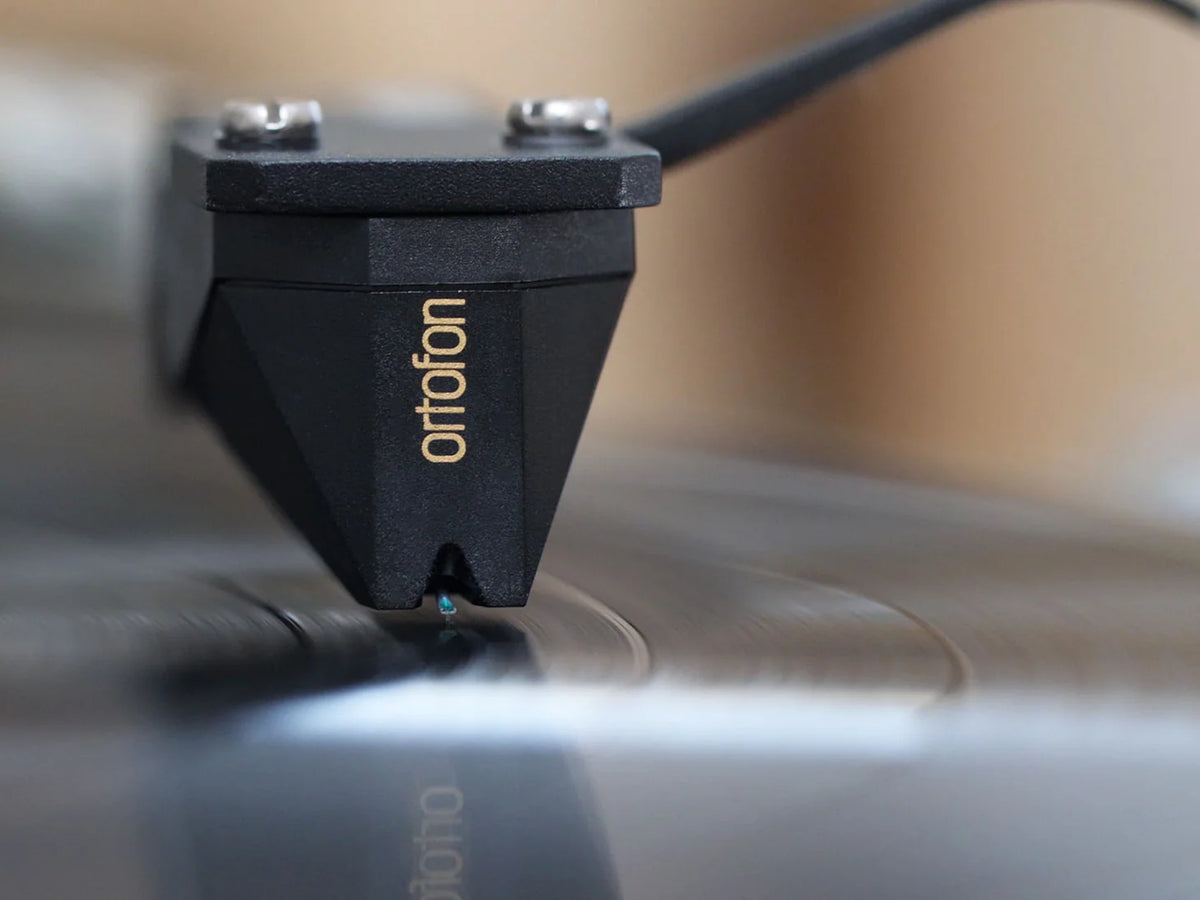

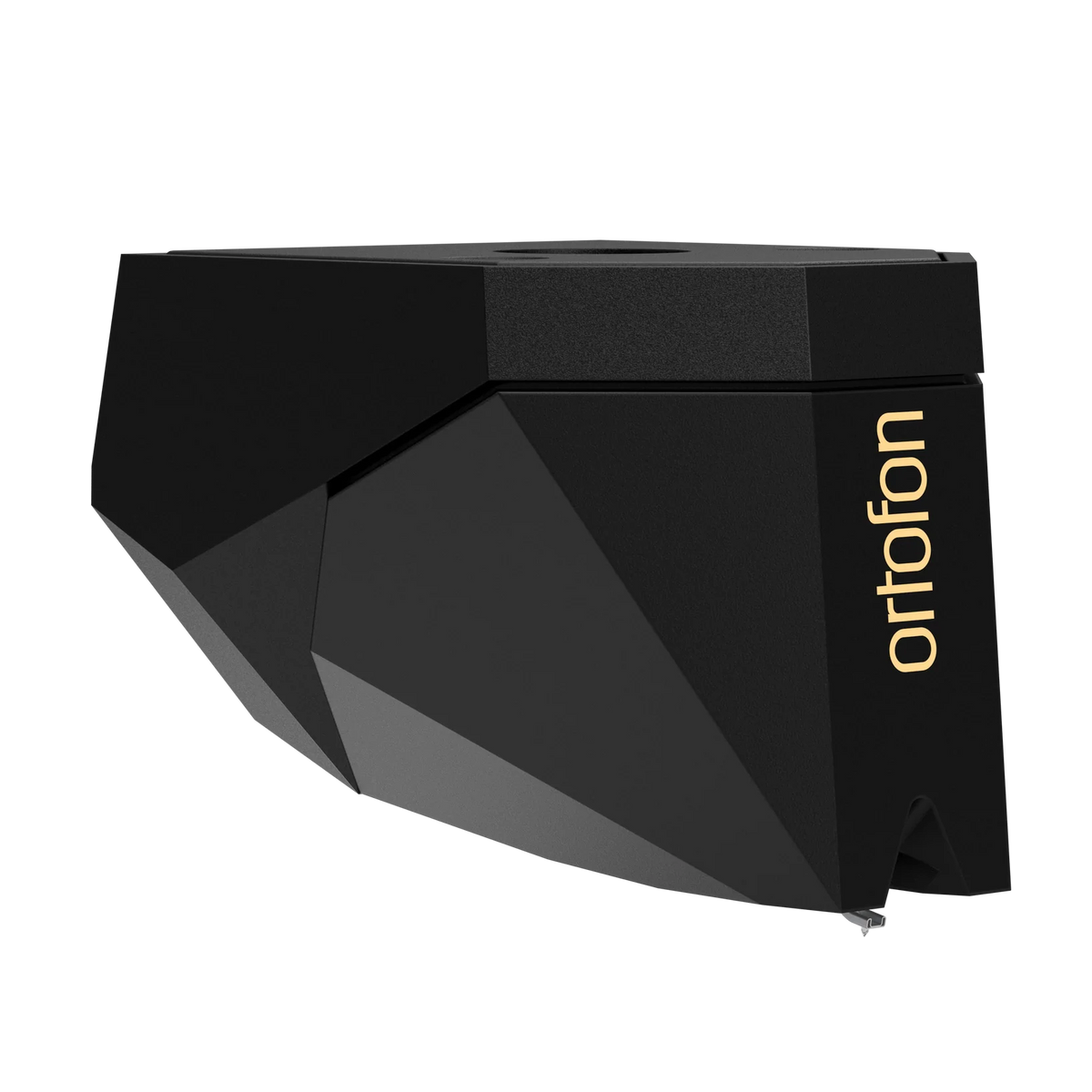

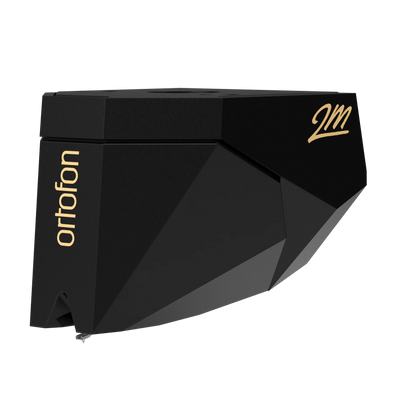

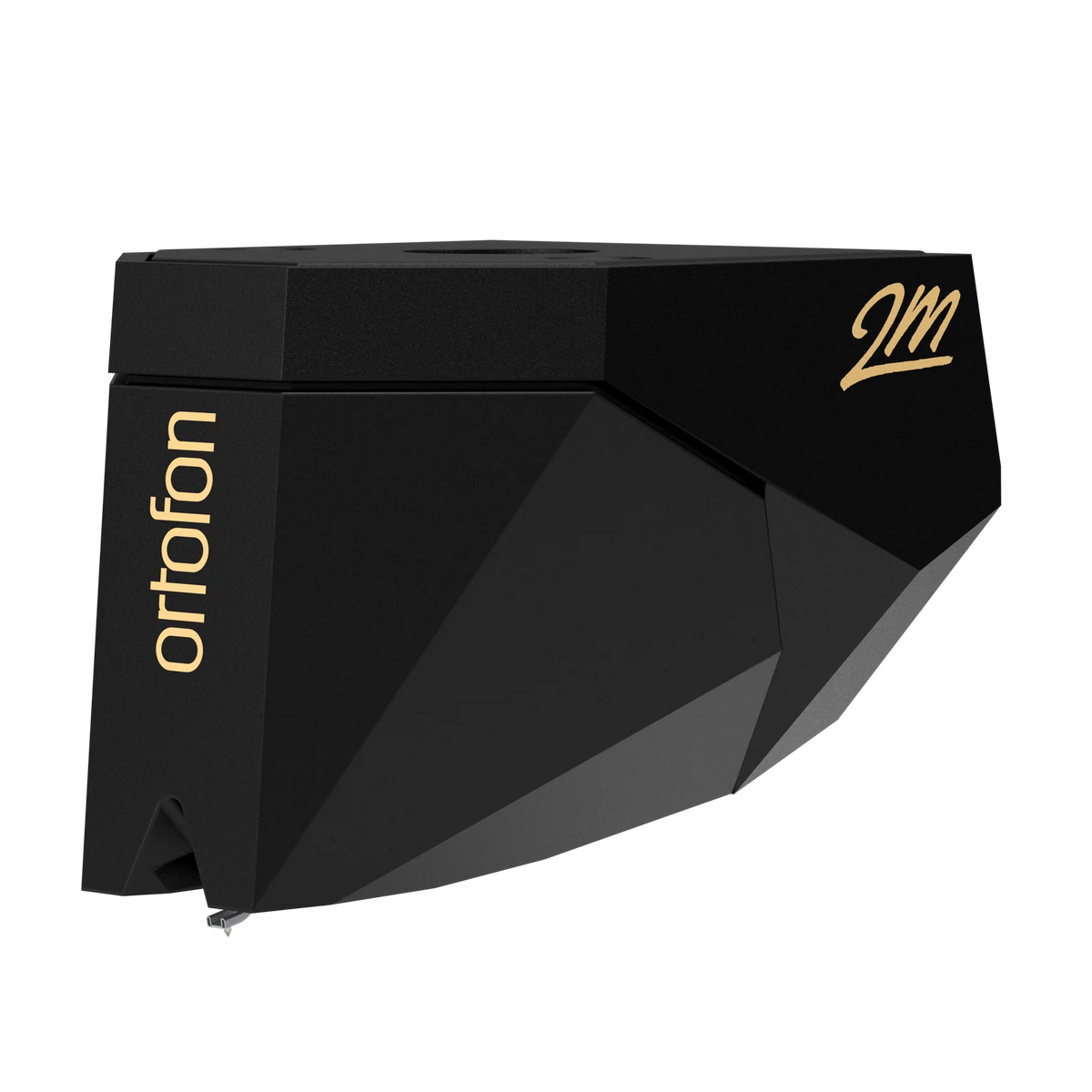

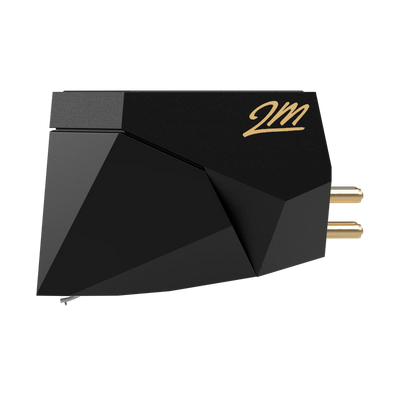

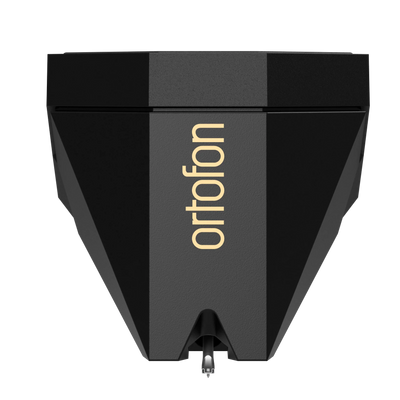

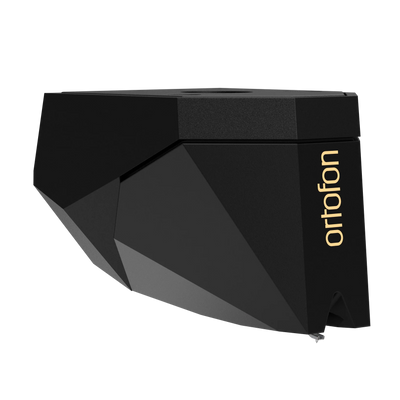

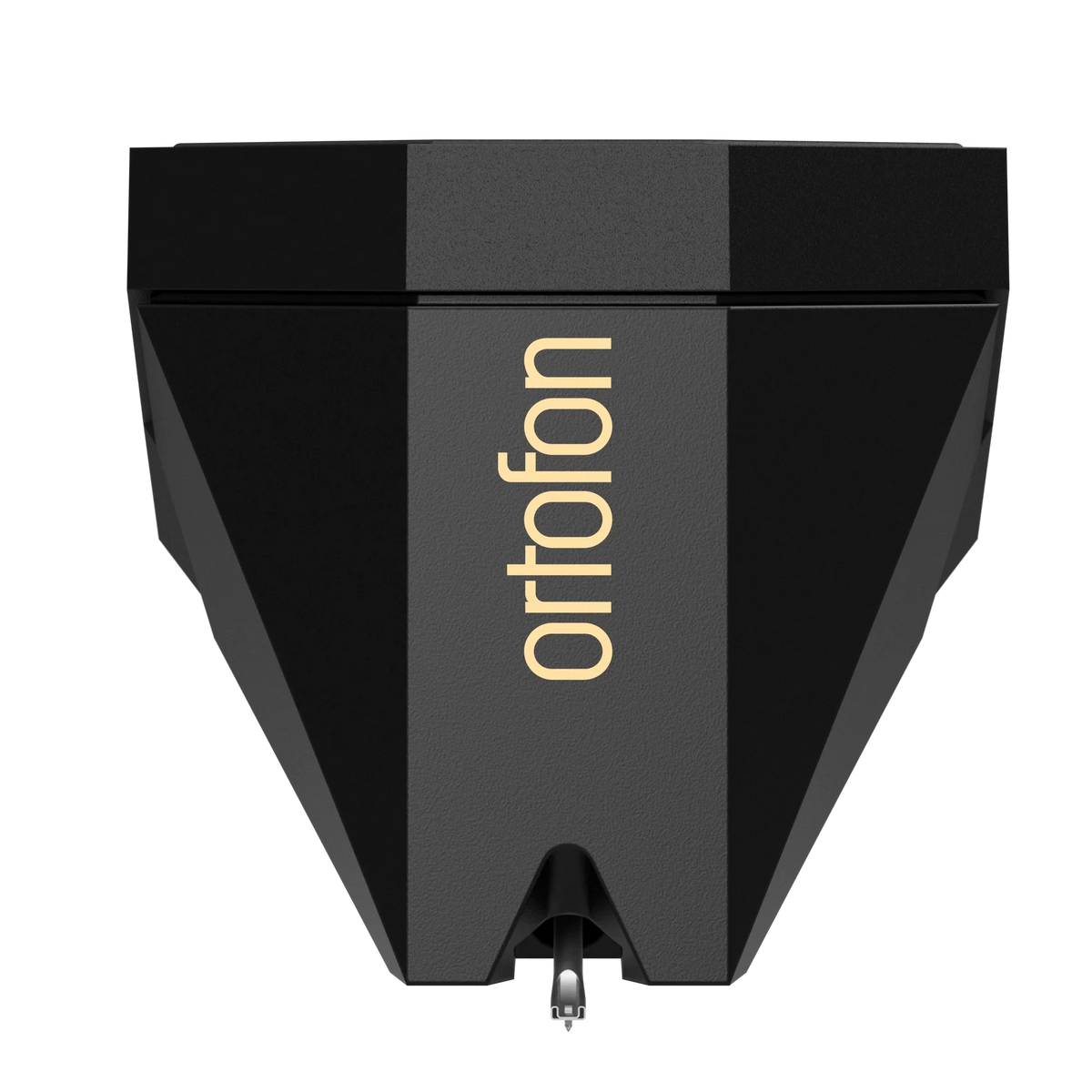

Ortofon 2M Black Moving Magnet Phono Cartridge
Nude Shibata stylus. Silver-plated copper coils. Exceptional groove detail.
The Ortofon 2M Black is the flagship of the original 2M moving magnet cartridge series, engineered for listeners who want to extract more detail from their vinyl records.
Its Nude Shibata diamond stylus features an extended contact area that traces the record groove with exceptional precision, retrieving fine musical information across the frequency spectrum. A high-performance motor system with split pole pins and silver-plated oxygen-free copper coil wire completes the design.
With a 5 mV output, replaceable stylus, and standard ½-inch mounting, the 2M Black brings sophisticated cartridge engineering to a wide range of high-end turntable systems.
OUTPUT
5 mV
TRACKING FORCE
1.5 g
SEPARATION
26 dB
Key Features
-
Nude Shibata diamond stylus with a 6/50 µm tip profile.
-
Aluminum cantilever for precise groove tracking.
-
Quad-coil motor system with Ortofon split pole pins.
-
Silver-plated oxygen-free copper (OFC) coil wire.
-
80 µm tracking ability and 22 µm/mN dynamic compliance.
-
Replaceable stylus for long-term cartridge ownership.
-
Standard ½-inch mounting for compatible turntables.
-
Designed and manufactured in Denmark
Complete Technical Specifications
|
Specification |
Ortofon 2M Black |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Stylus type |
Nude Shibata |
|
Stylus tip radius |
r/R 6/50 µm |
|
Cantilever material |
Aluminum |
|
Coil system |
Quad-coils with split pole pins |
|
Coil wire material |
Silver-plated OFC |
|
Cartridge body material |
Polymer and aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
5 mV |
|
Channel balance at 1 kHz |
1 dB |
|
Channel separation at 1 kHz |
26 dB |
|
Frequency response, 20 Hz–20 kHz |
+2 / −0 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
22 µm/mN |
|
Tracking force range |
1.4–1.7 g (14–17 mN) |
|
Recommended tracking force |
1.5 g (15 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
1.2 kΩ |
|
Internal inductance |
630 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted version weight |
16.7 g |
|
Cartridge color |
Black / Black |
Nude Shibata Stylus
The defining feature of the 2M Black is its Nude Shibata diamond. Its slim, highly polished profile provides an extended contact area with the groove walls, allowing it to retrieve fine details, particularly in high-frequency passages.
The stylus is replaceable, and the 2M Black stylus can also be used to upgrade a compatible 2M Bronze cartridge body.
Turntable & Phono Stage Compatibility
The standard 2M Black uses ½-inch mounting and requires a compatible tonearm and moving magnet phono stage.
Ortofon also offers separate mounting configurations for different turntable designs:
-

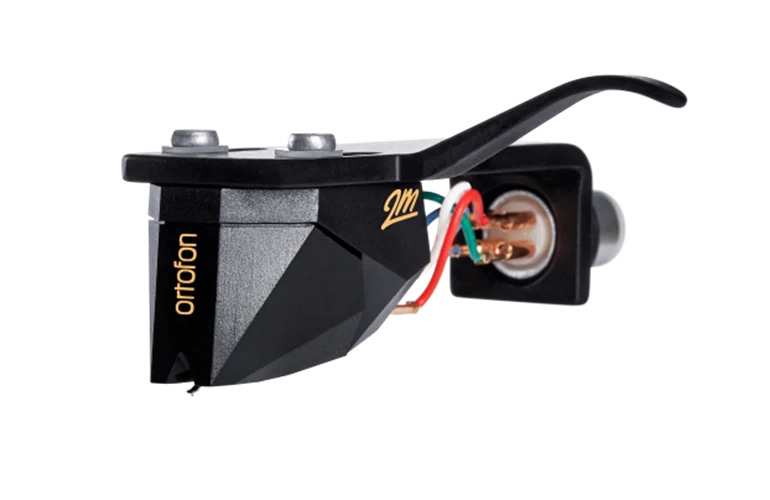

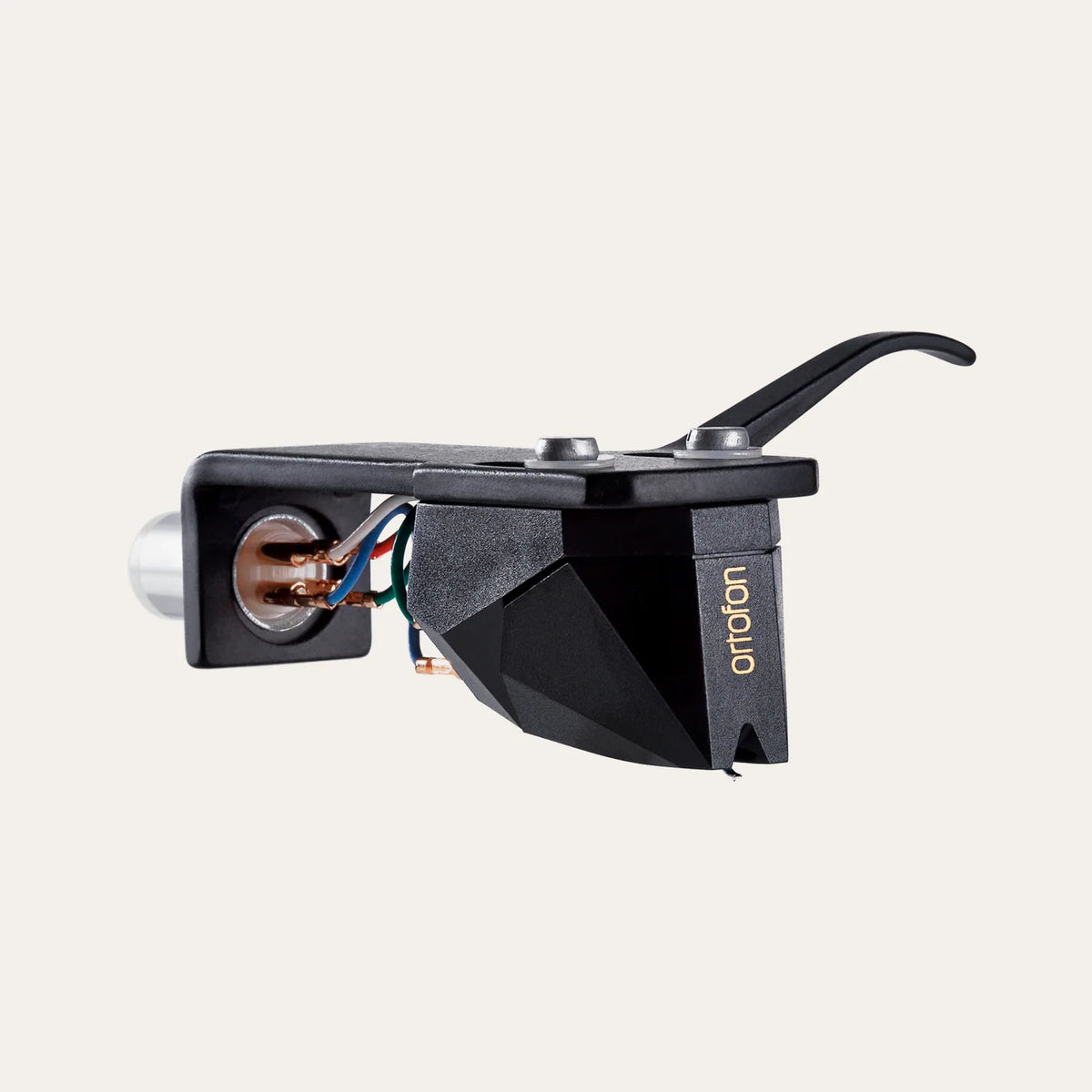

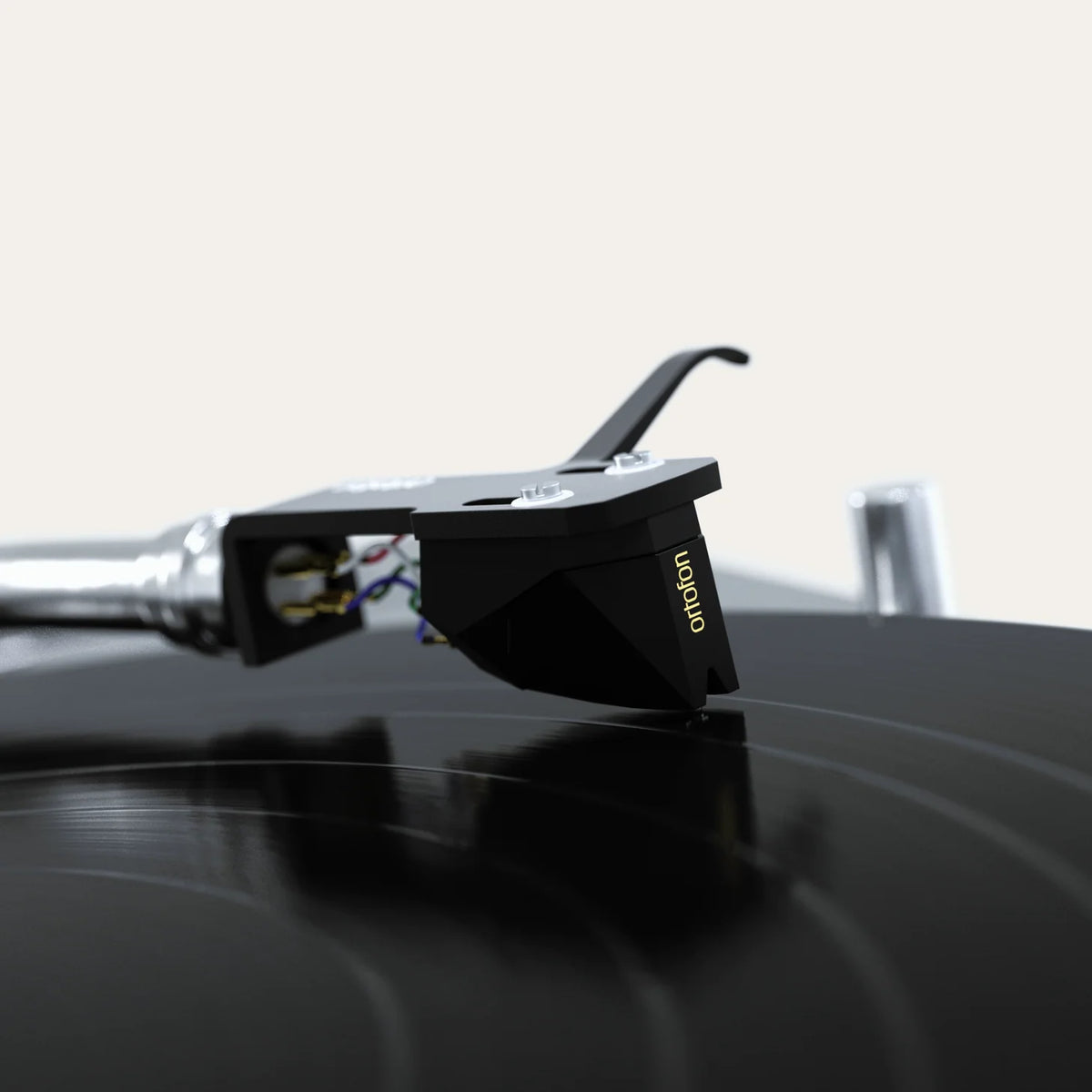

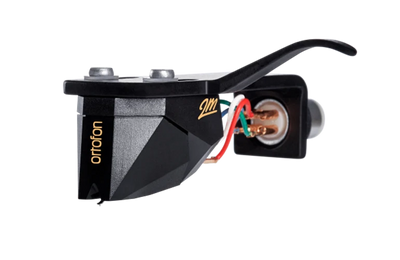

2M Black Premounted: Supplied on an SH-4 headshell for compatible S-shaped tonearms.
-
2M Black Verso: Designed for bottom-mount headshells.
-
2MR Black: Low-profile cartridge housing for turntables and tonearms with reduced cartridge-height requirements, including certain Rega models.
