Overview

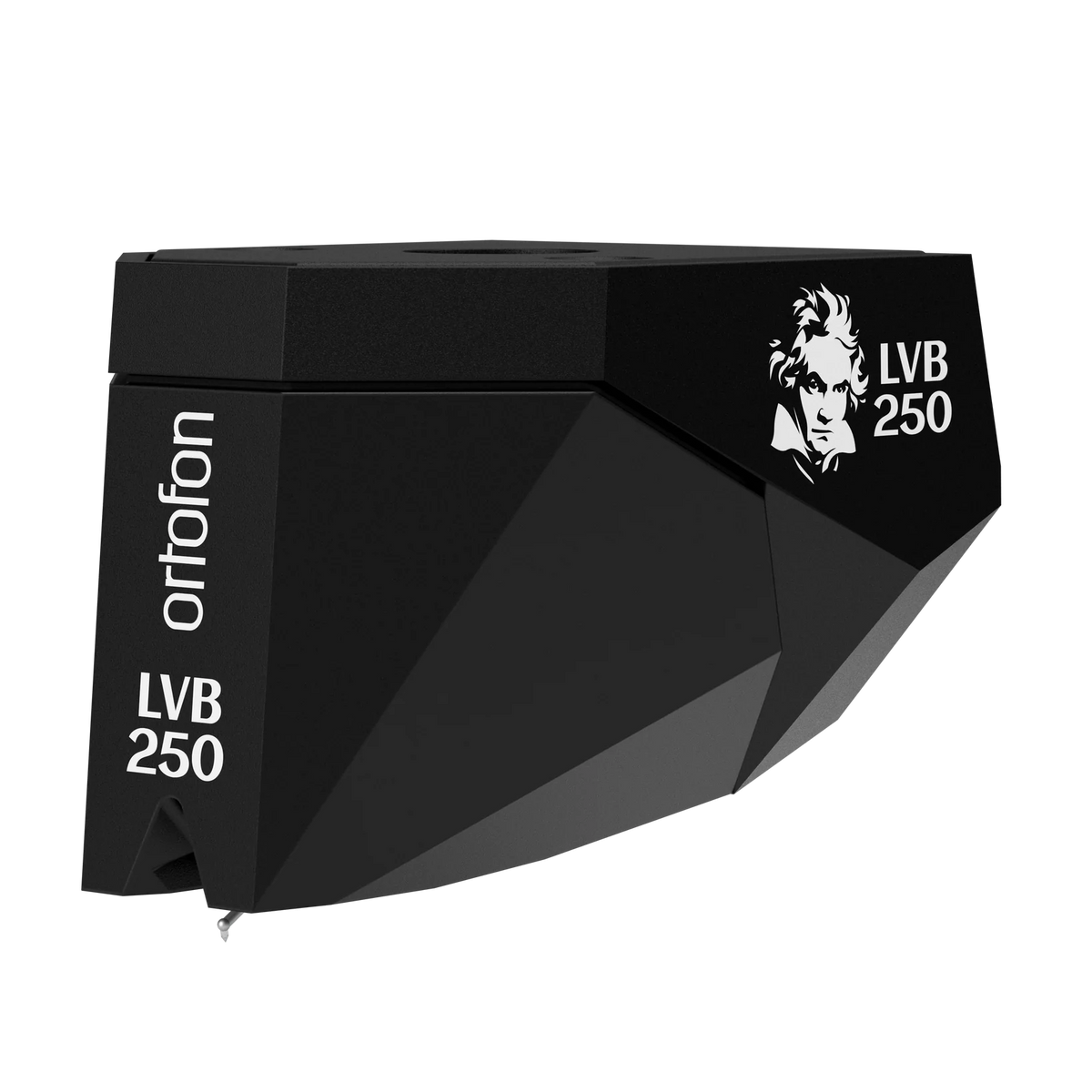

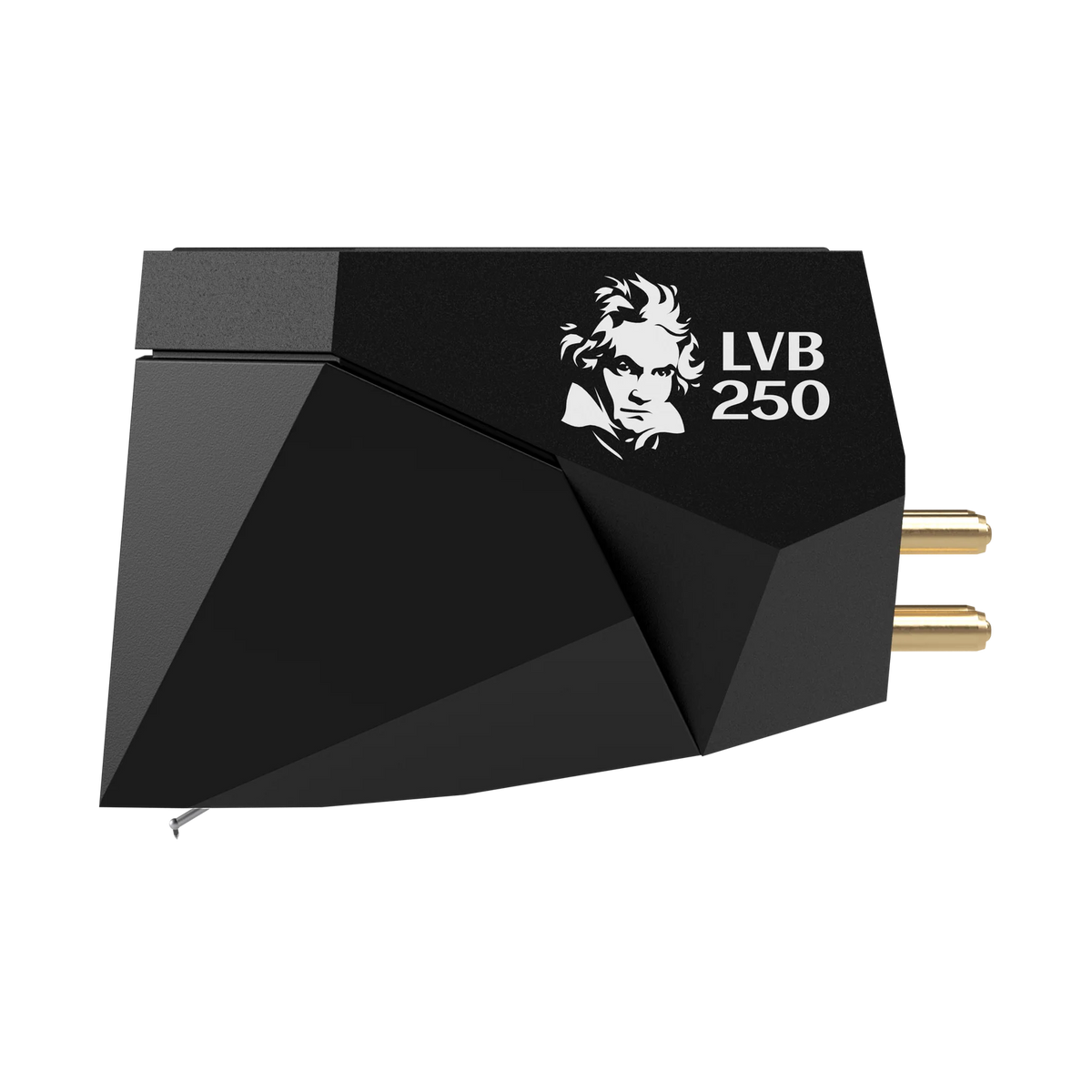

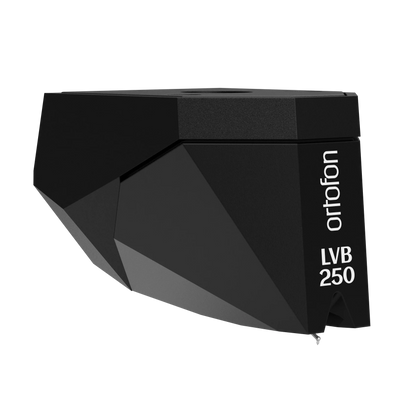

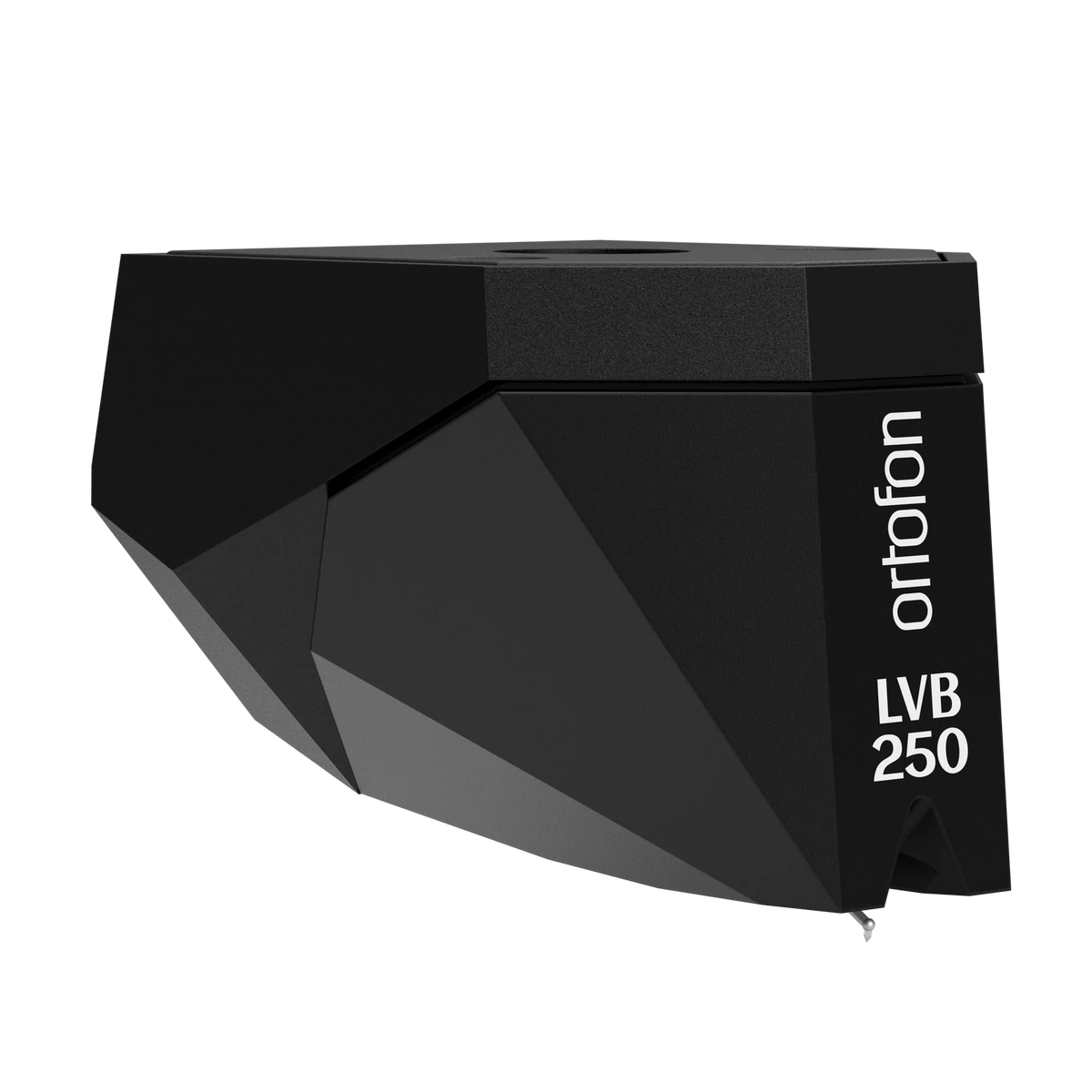

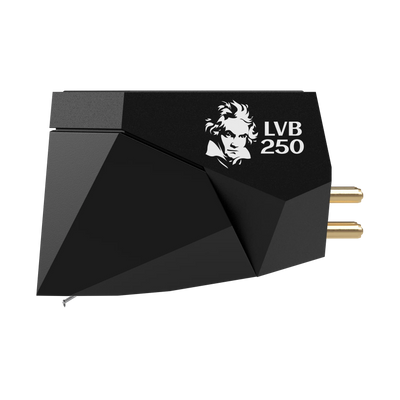

Ortofon 2M Black LVB 250 Moving Magnet Phono Cartridge
Nude Shibata diamond. Boron cantilever. Nano Tube suspension.
The Ortofon 2M Black LVB 250 builds on the acclaimed 2M Black with two significant upgrades: a lightweight, exceptionally rigid boron cantilever and Ortofon's proprietary Nano Tube suspension system.
Its Nude Shibata diamond stylus features an extended contact area for precise groove tracing, while the boron cantilever improves responsiveness. The suspension incorporates Multi Wall Carbon Nano Tubes (MWCNT) to enhance damping and mechanical performance.
Originally introduced to commemorate the 250th anniversary of Ludwig van Beethoven's birth, the LVB 250 delivers Ortofon's advanced moving magnet technology in a cartridge designed for serious vinyl playback.
OUTPUT
5 mV
TRACKING FORCE
1.6 g
SEPARATION
27 dB
Key Features
-
Nude Shibata diamond stylus with a 6/50 µm profile.
-
Lightweight, high-rigidity boron cantilever.
-
Nano Tube suspension using Multi Wall Carbon Nano Tubes.
-
5 mV output for compatible moving magnet phono stages.
-
80 µm tracking ability and 22 µm/mN dynamic lateral compliance.
-
User-replaceable stylus with compatibility across select 2M Bronze and Black cartridge bodies.
-
Standard ½-inch mounting for compatible turntables.
Complete Technical Specifications
|
Specification |
Ortofon 2M Black LVB 250 |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Stylus type |
Nude Shibata diamond |
|
Stylus tip radius |
r/R 6/50 µm |
|
Cantilever material |
Boron |
|
Suspension |
Nano Tube suspension with MWCNT-based rubber compound |
|
Output voltage at 1 kHz, 5 cm/sec |
5 mV |
|
Channel balance at 1 kHz |
1 dB |
|
Channel separation at 1 kHz |
27 dB |
|
Frequency response, 20 Hz–20 kHz |
+2 / −1 dB |
|
Tracking ability at 315 Hz |
80 µm |
|
Dynamic lateral compliance |
22 µm/mN |
|
Tracking force range |
1.5–1.7 g (15–17 mN) |
|
Recommended tracking force |
1.6 g (16 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
1.2 kΩ |
|
Internal inductance |
630 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted cartridge weight |
16.7 g |
|
Cartridge color |
Black / Black |
|
Replacement stylus |
Stylus 2M Black LVB 250 |
What Makes the LVB 250 Different?
Nude Shibata Diamond
Its slim, highly polished profile provides extensive contact with the groove walls, helping retrieve fine musical information, including high-frequency detail.
Boron Cantilever
The rigid, lightweight boron cantilever is engineered for fast response and precise transmission of stylus movement.
Nano Tube Suspension
Ortofon's MWCNT-enhanced rubber suspension is designed to improve damping and the interaction between the cartridge's compliance and mechanical movement.
Technology descriptions based on Ortofon's published engineering information.
Stylus Replacement & Upgrade Compatibility
The LVB 250 features a replaceable stylus. Ortofon identifies the Stylus 2M Black LVB 250 as a replacement for the standard, 2MR, and premounted LVB 250 cartridges.
It can also be used as an upgrade for compatible 2M Bronze and 2M Black cartridge bodies, including their 2MR and premounted versions.

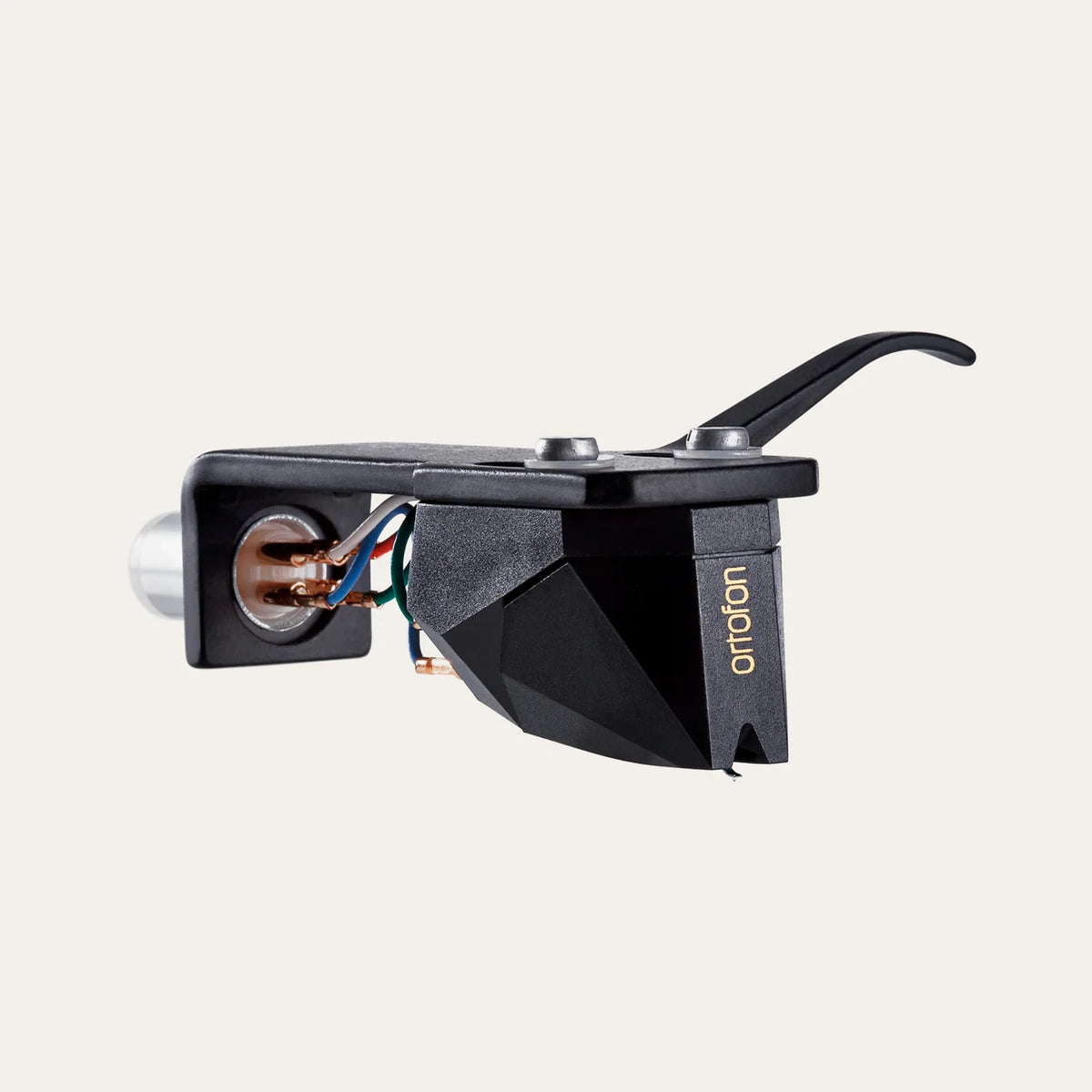

Installation: The standard cartridge uses ½-inch mounting and requires a compatible tonearm and moving magnet phono stage. For other tonearm configurations, check the separately available premounted and low-profile 2MR versions.
