Overview

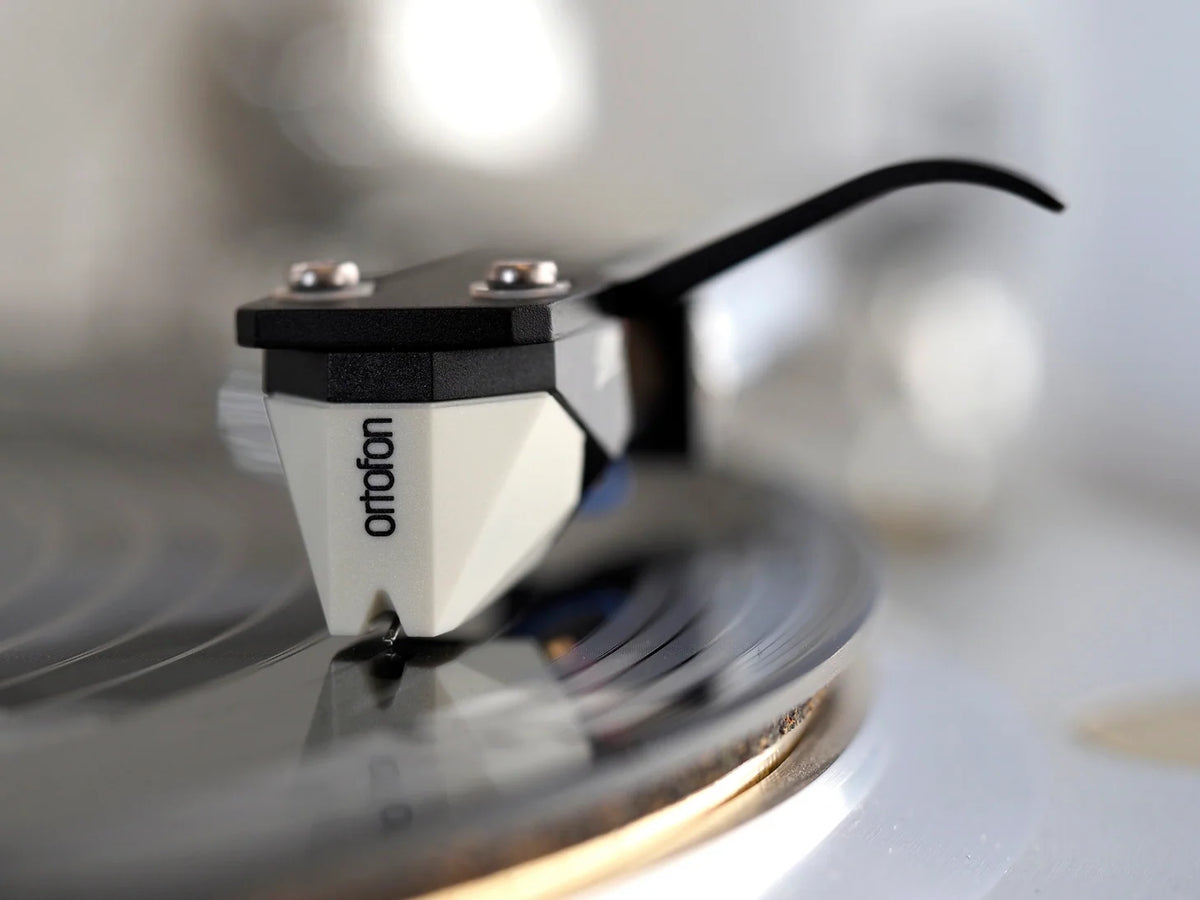

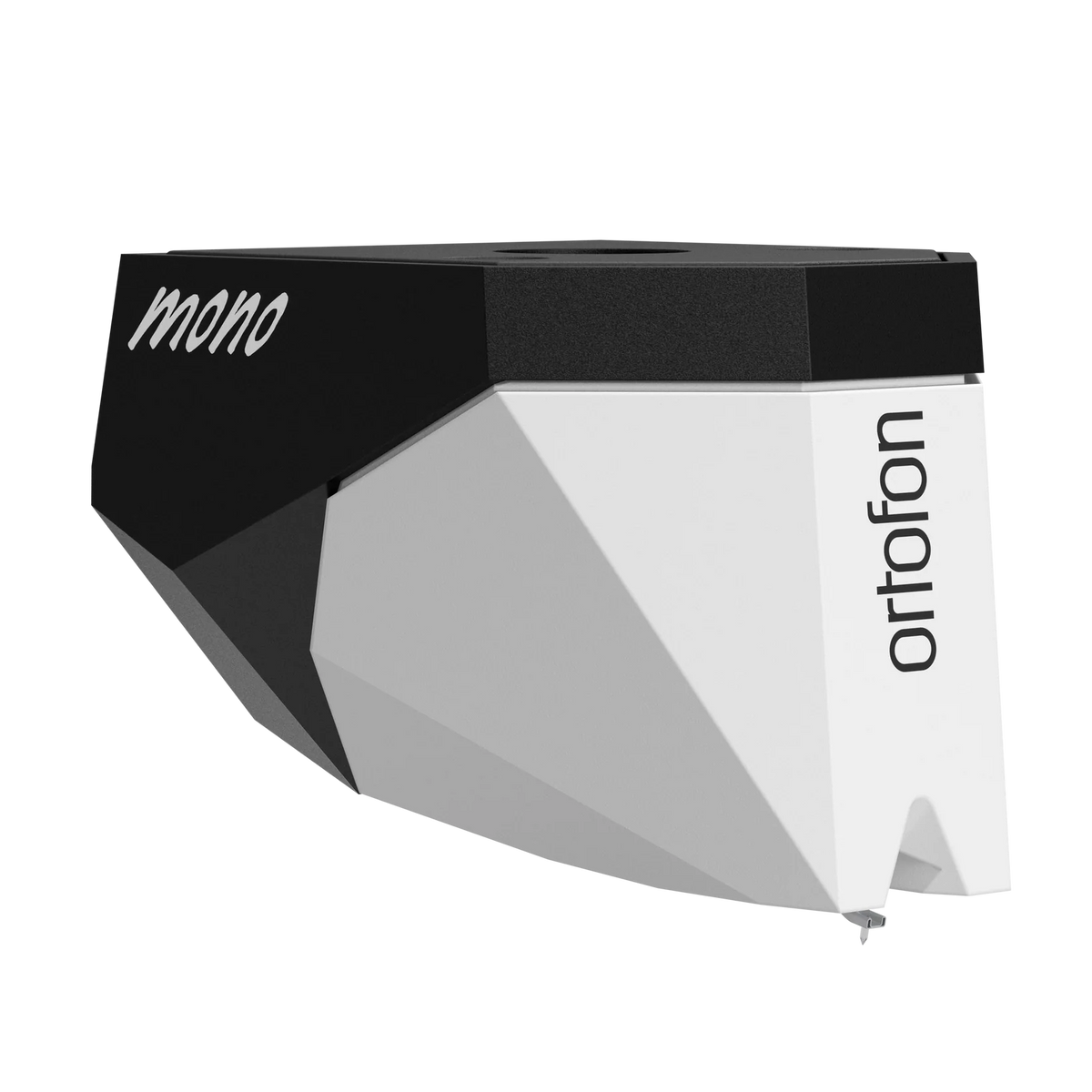

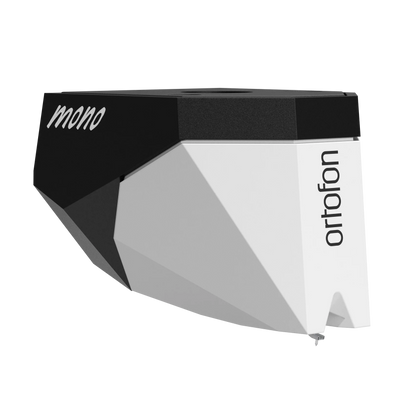

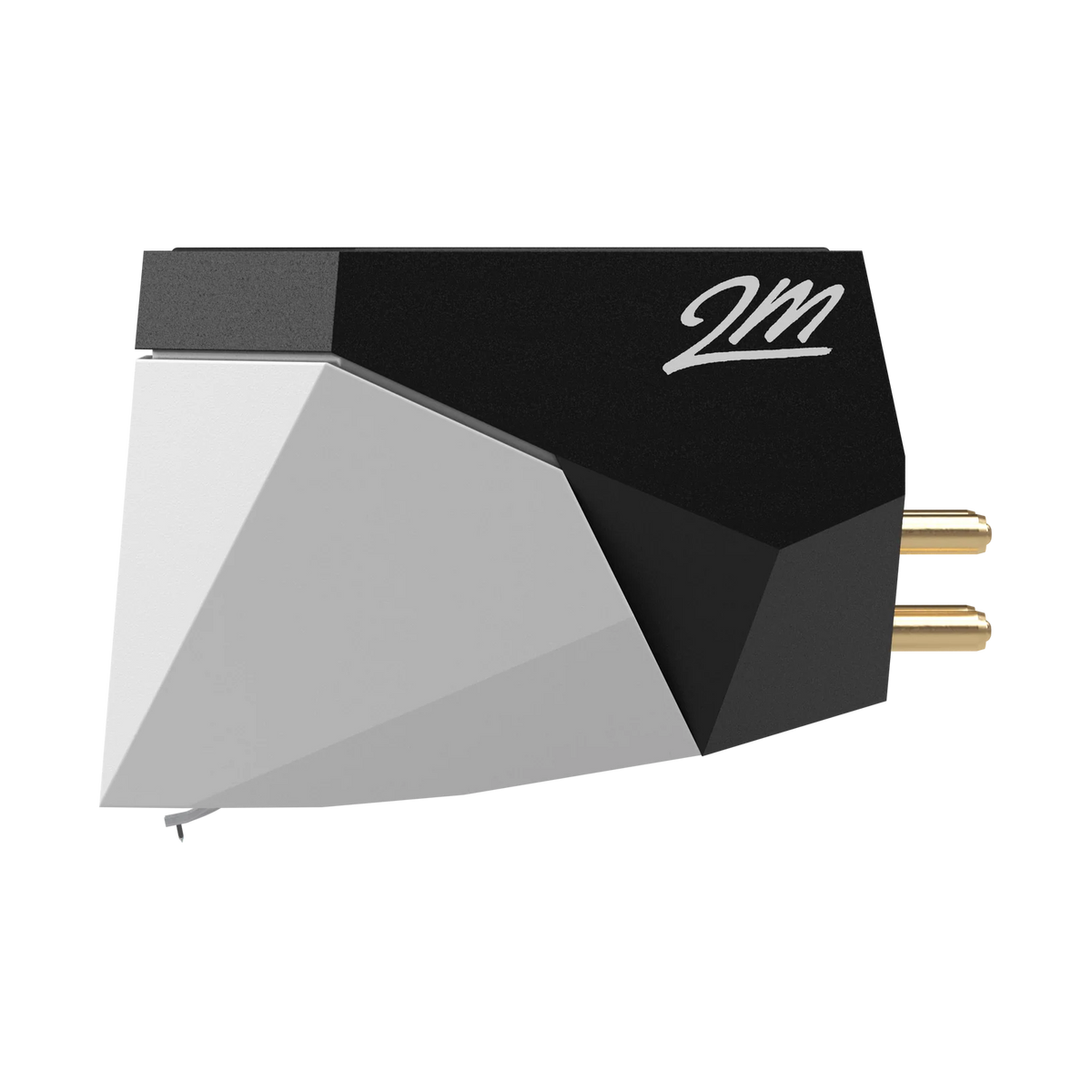

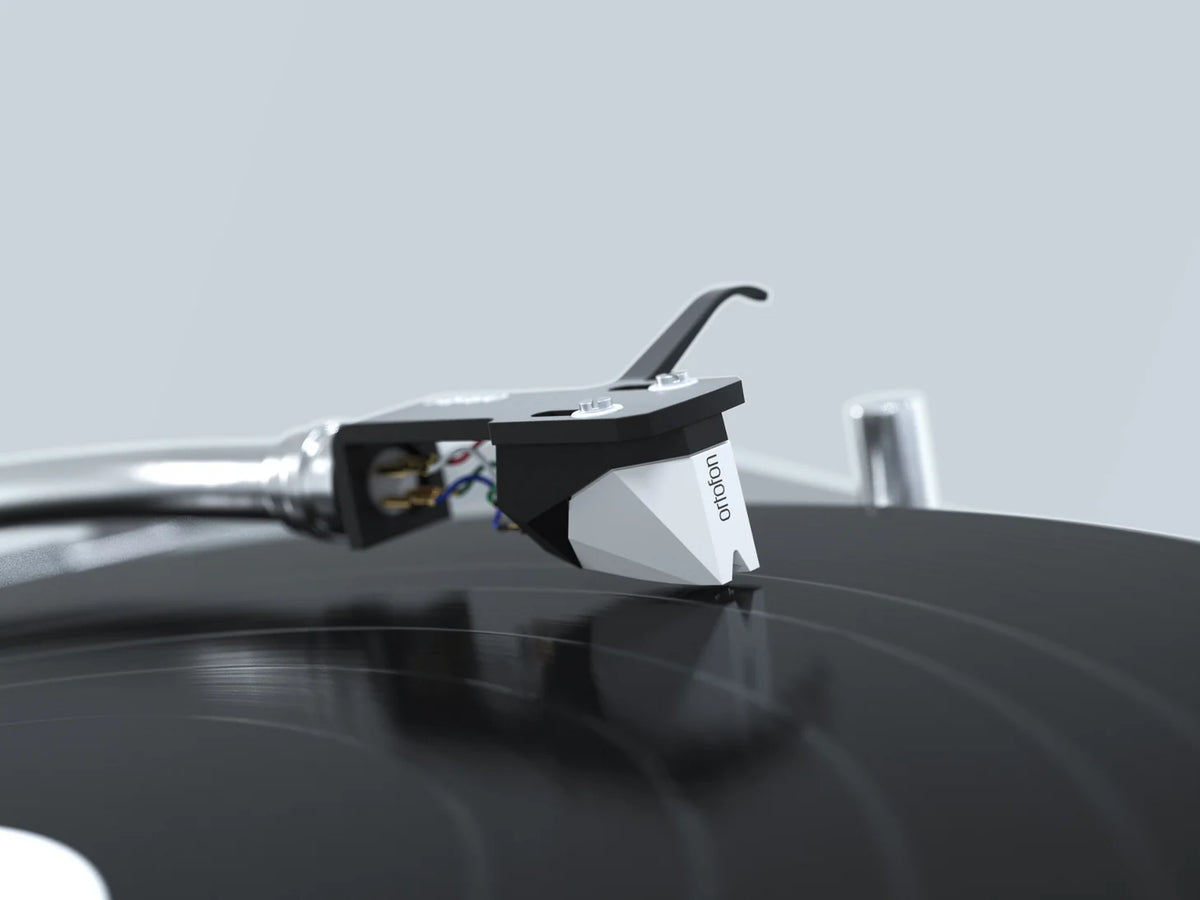

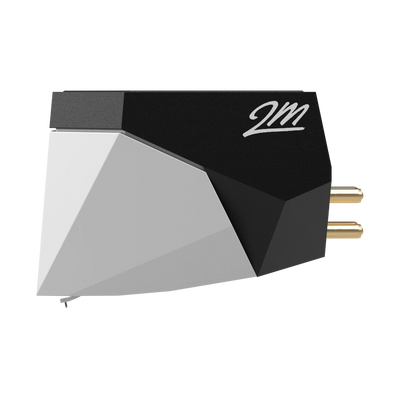

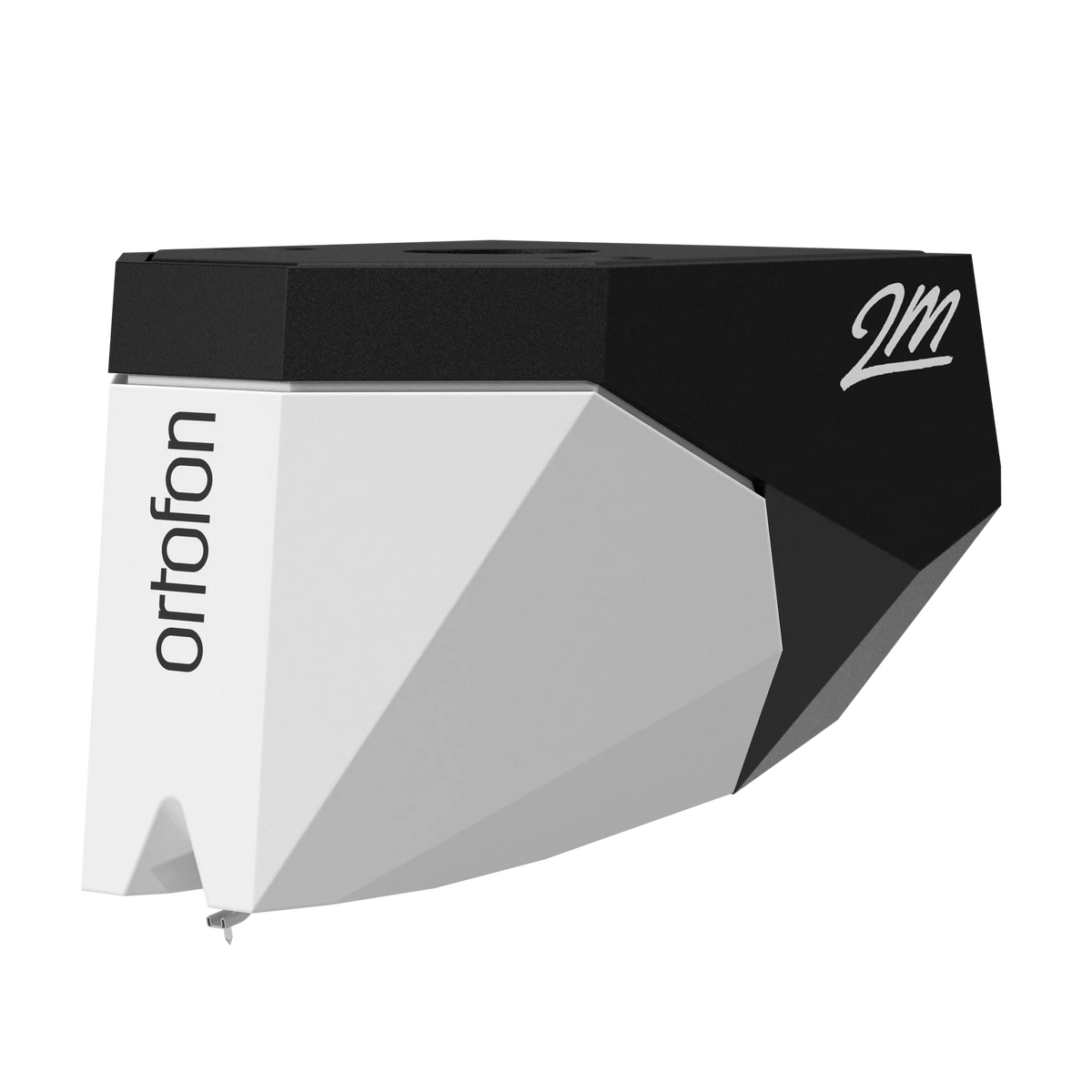

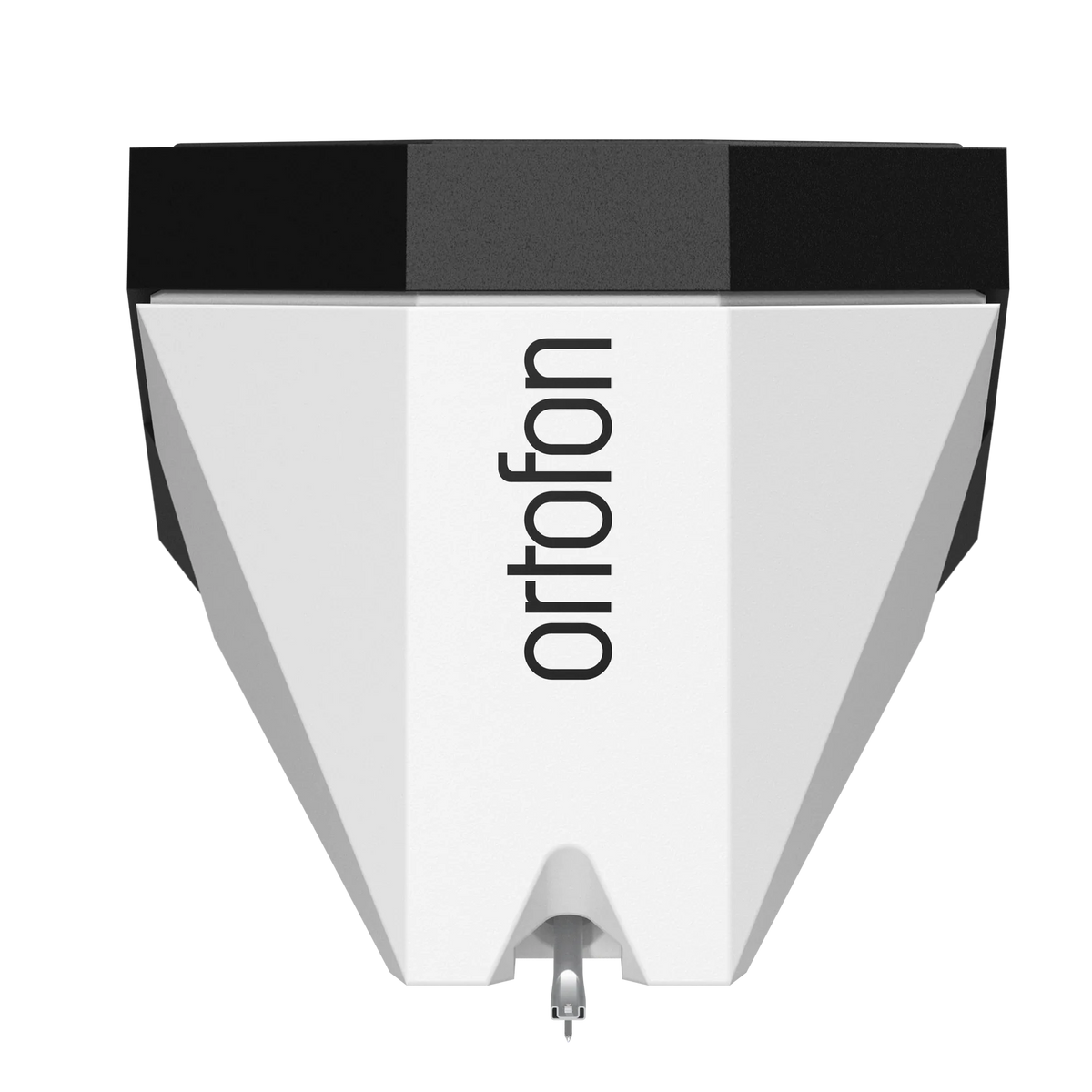

Ortofon 2M Mono Moving Magnet Phono Cartridge
Nude Spherical stylus. True mono playback. Designed for mono vinyl LPs.
The Ortofon 2M Mono is a dedicated moving magnet cartridge engineered for mono microgroove vinyl records. Its Nude Spherical diamond stylus features an 18 µm radius, designed to trace mono LP grooves accurately and retrieve musical detail while minimizing unwanted noise.
A strapped mono output delivers the same signal through both sets of output pins, allowing the cartridge to work with conventional stereo HiFi systems without requiring a dedicated mono amplifier.
STYLUS RADIUS
18 µm
OUTPUT
4 mV
TRACKING FORCE
1.8 g
Key Features
-
Nude Spherical diamond stylus with an 18 µm tip radius.
-
Dedicated mono design for microgroove LP records.
-
Strapped output sends identical signals to both stereo channels.
-
Aluminum cantilever and 70 µm tracking ability.
-
4 mV output for compatible moving magnet phono stages.
-
Replaceable stylus for long-term cartridge ownership.
-
Standard ½-inch mounting for compatible turntables.
Complete Technical Specifications
|
Specification |
Ortofon 2M Mono |
|---|---|
|
Cartridge type |
Moving magnet (MM) |
|
Channel configuration |
Mono, strapped output |
|
Intended record format |
Mono microgroove vinyl LPs |
|
Stylus type |
Nude Spherical diamond |
|
Stylus tip radius |
R 18 µm |
|
Cantilever material |
Aluminum |
|
Output voltage at 1 kHz, 5 cm/sec |
4 mV |
|
Frequency response, 20 Hz–20 kHz |
+3 / −1 dB |
|
Tracking ability at 315 Hz |
70 µm |
|
Dynamic lateral compliance |
18 µm/mN |
|
Tracking force range |
1.6–2.0 g (16–20 mN) |
|
Recommended tracking force |
1.8 g (18 mN) |
|
Tracking angle |
20° |
|
Internal impedance / DC resistance |
700 Ω |
|
Internal inductance |
350 mH |
|
Recommended load resistance |
47 kΩ |
|
Recommended load capacitance |
150–300 pF |
|
Mounting type |
Standard ½-inch |
|
Cartridge weight |
7.2 g |
|
Premounted version weight |
16.7 g |
|
Cartridge color |
Black / White |
2M Mono vs. 2M 78: Choose the Correct Cartridge
These cartridges serve different record formats. The 2M Mono is designed for mono microgroove vinyl LPs, while the 2M 78 uses a substantially larger stylus for vintage shellac records.
|
Feature |
2M Mono |
2M 78 |
|---|---|---|
|
Intended records |
Mono vinyl LPs |
78 RPM shellac |
|
Stylus |
Nude Spherical |
Spherical |
|
Stylus radius |
18 µm |
65 µm |
|
Output voltage |
4 mV |
4 mV |
|
Recommended tracking force |
1.8 g |
1.8 g |
|
Cartridge weight |
7.2 g |
7.2 g |
Important: The 2M Mono is not a substitute for the 2M 78 when playing wide-groove shellac records.
Compatibility & Installation
The standard 2M Mono uses ½-inch mounting and connects to a compatible moving magnet phono stage. Its strapped output makes mono playback possible through a conventional stereo system.

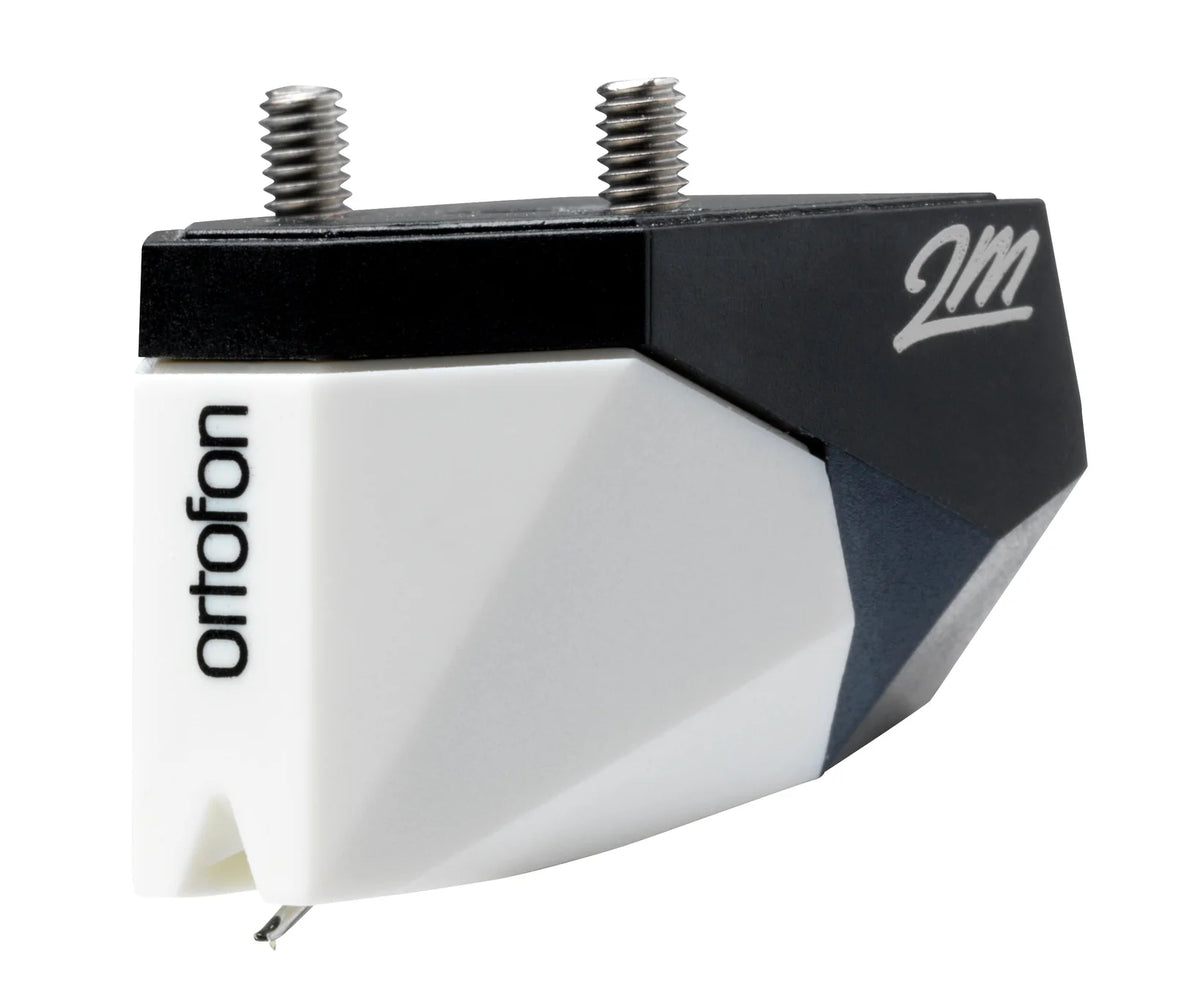

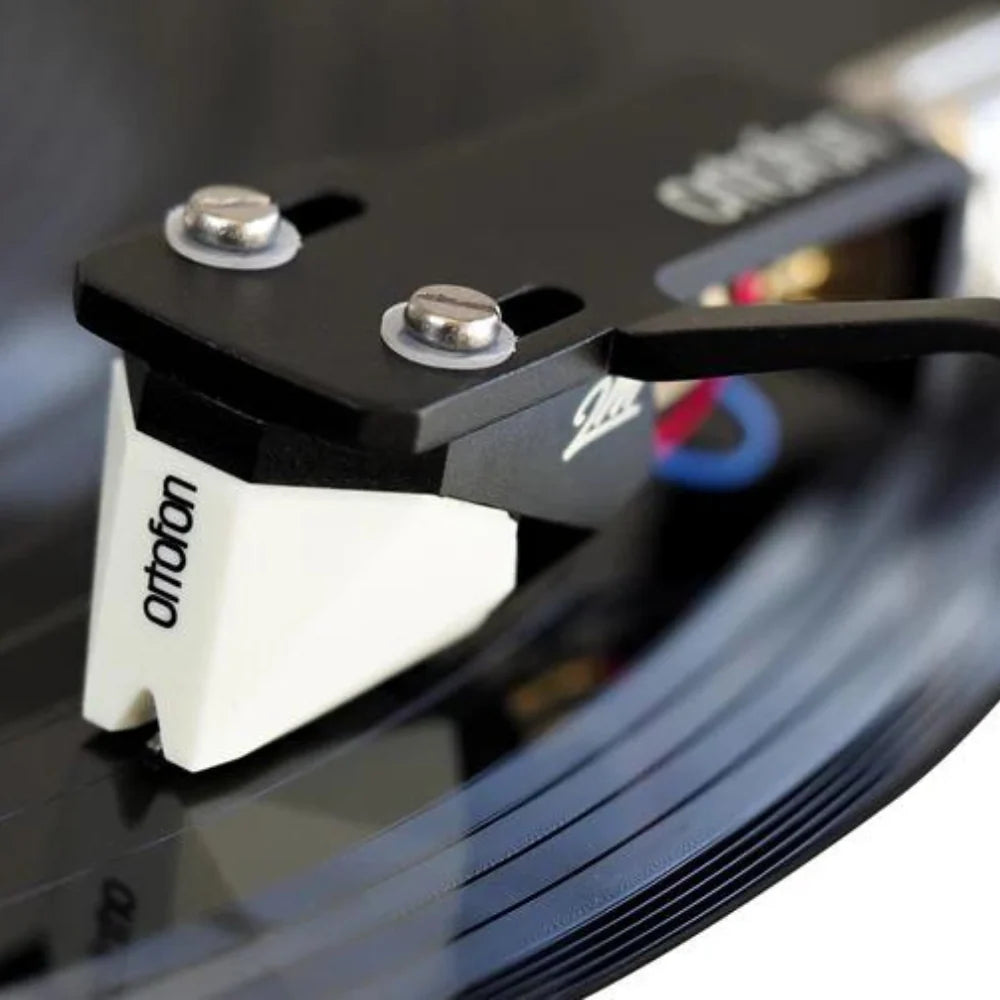

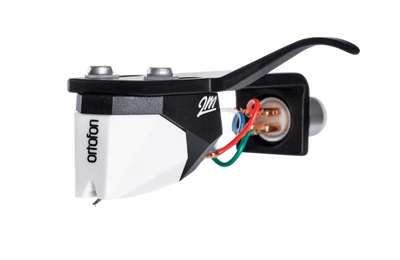

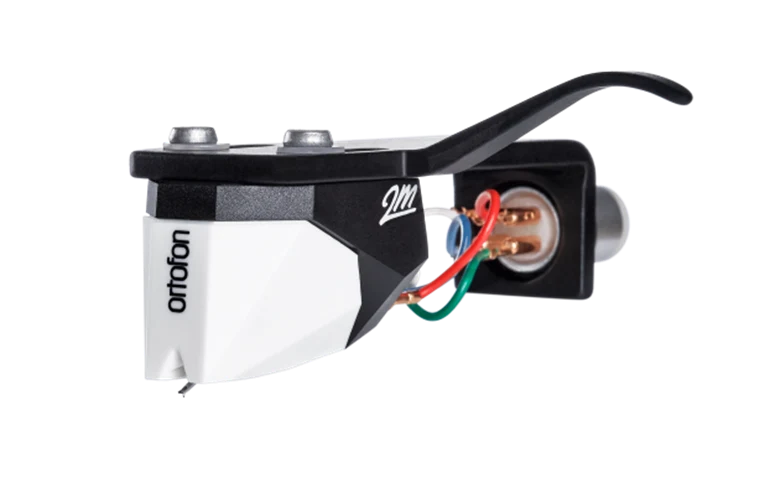

Ortofon also offers the 2M Mono Premounted with an SH-4 headshell for compatible S-shaped tonearms and the 2M Mono Verso for bottom-mount headshells. These are separate mounting configurations.
Discover Ortofon at The Grid HiFi. Our Houston team can help you choose the correct cartridge for your record collection, turntable, and phono stage.
